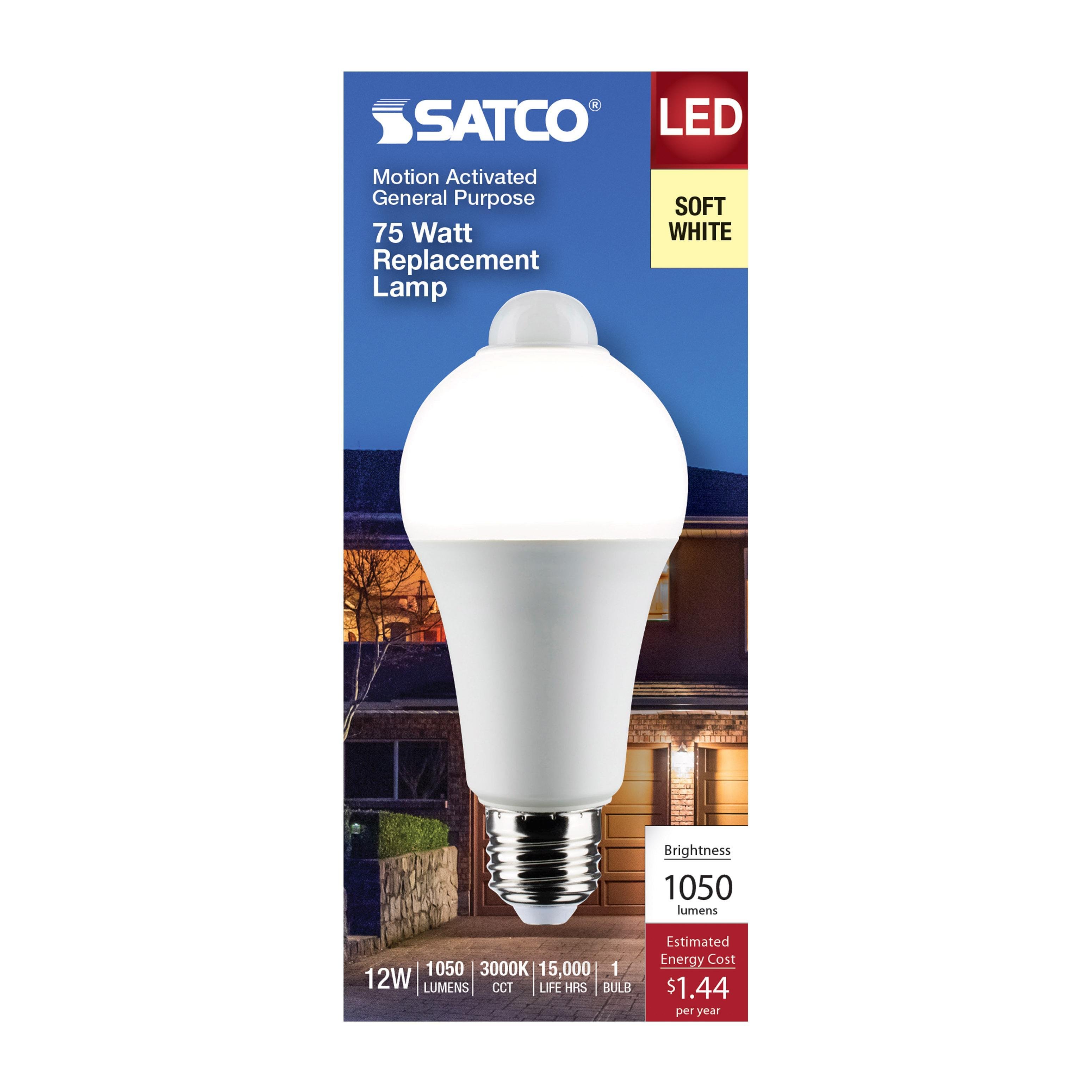

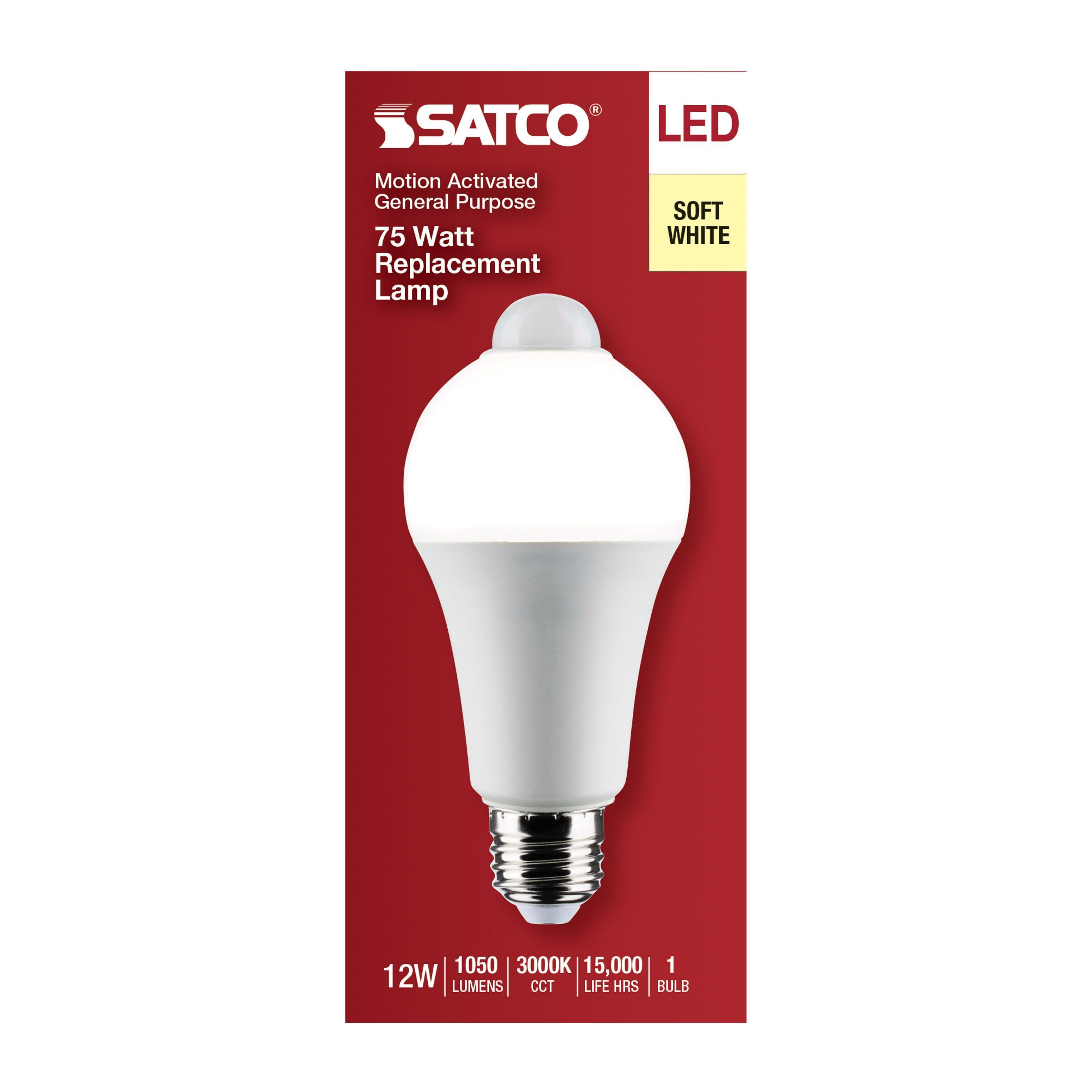

S11445 - 12 Watt A19 LED - White - 3000K - 1050 Lumens - 120 Volt - PIR Sensor - Non-Dimmable
Description
Specifications
0.3
5.71
2.44
2.44
PIR Sensor Motion Activated
20401356
Ideal for walkways, entryways and garages, these lamps provide exceptional brightness and illumination while adding an extra layer of safety and security to your property
Satco®
USA
CN
Specification Sheet
Full Engineering Drawing
20401356
LED-A-L 12W 75W E26 MEDIUM A19
PIR Sensor Motion Activated
Instant Security Lighting - Simply put into existing fixtures
90 deg viewing angle and 26 foot range
Light activates for 5 min when motion is detected
Wet Location
Dusk to Dawn
S11445 Non-Dimmable Type A Lamp, 12 W, 75 W Incandescent Equivalent, E26 Lamp Base, A19 Shape, 1050 Lumens ; SATCO ; S11445 ; 20401356 ; 045923114458 ; LED - A-Line
SATCO PRODUCTS
5.7100
IN
2.4400
IN
1
34.5600
cu-in
0.3000
LB
2.4400
IN
S11445 ; 045923114458 ; 45923114458 ; 04592311445
https://youtu.be/KFJmCy0bh6E
Satco
Miscellaneous
Average Life
HR
15000
Lamp Base Type
E26
Lamp Finish
White
Lumens
Lumens
1050
Shape
A19
Type
Non-Dimmable Type A
Voltage Rating
V AC
120
Wattage
W
12
Beam Angle
deg
230
Beam Type
Spread
Color
Soft White
Color Rendering Index (CRI)
90
Color Temperature
K
3000
Designation
12A19/PIR/930/120V/ND
Dimensions
2.36 in MOD x 5.11 in MOL
Incandescent Equivalent
W
75
