SATCO®

S11766 - 14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt

Category LED Linear Fluorescent Straight, U-Shape & Circular Lamps

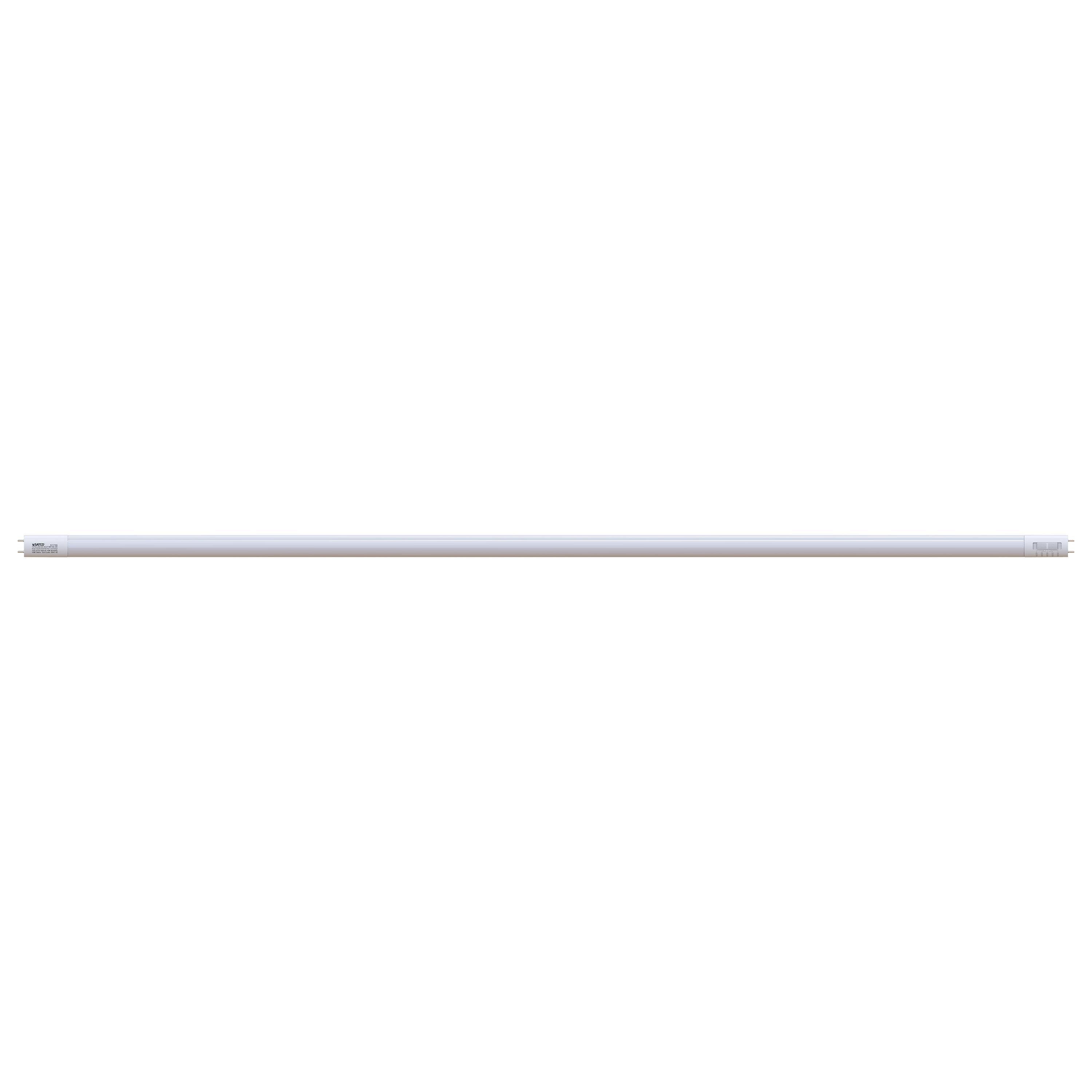

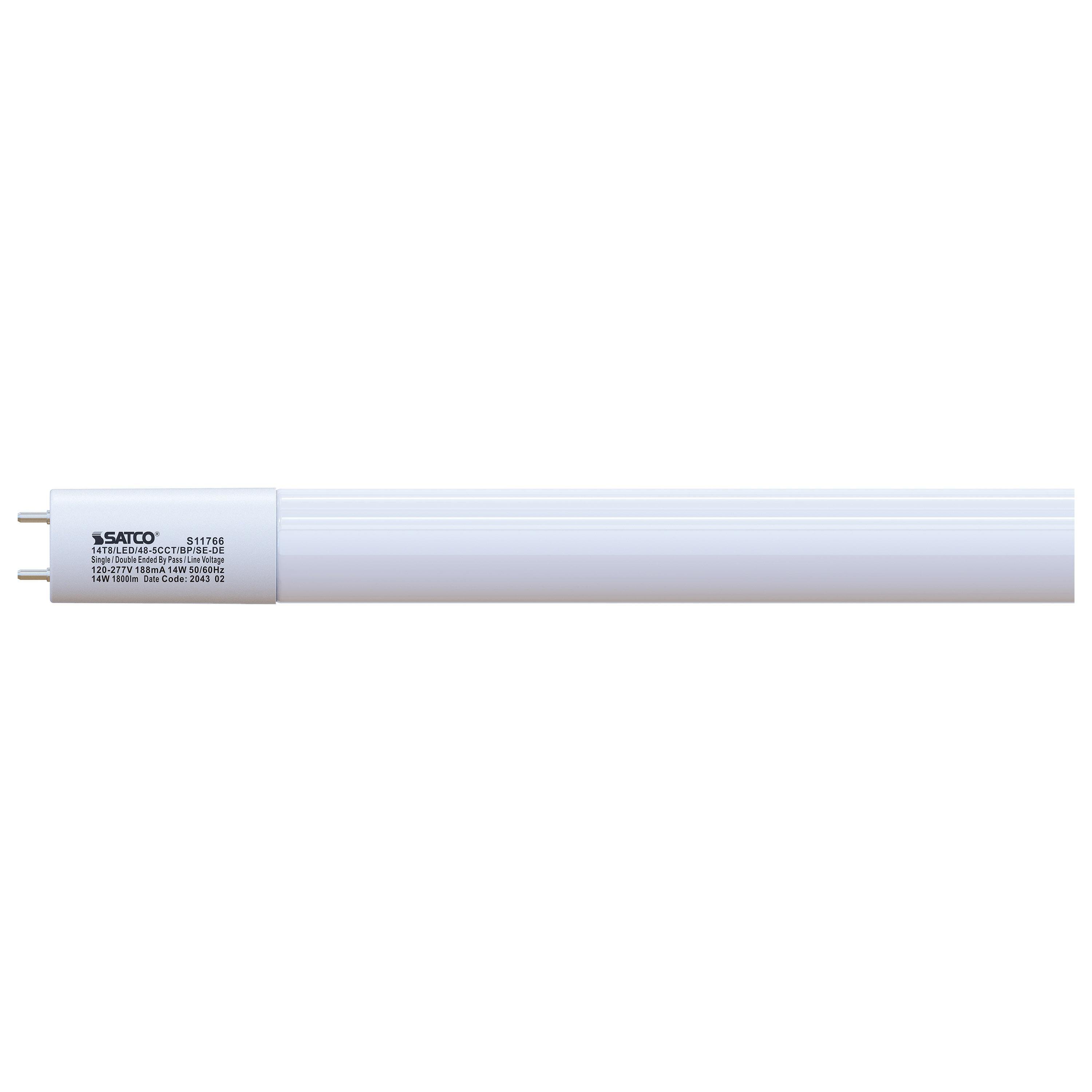

Picture of S11766 - 14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt Picture of S11766 - 14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt
Picture of S11766 - 14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt Picture of S11766 - 14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt
Picture of S11766 - 14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt Picture of S11766 - 14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt
SATCO®

S11766 - 14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt

Item Code: 1188459
Category LED Linear Fluorescent Straight, U-Shape & Circular Lamps
Manufacturer SATCO PRODUCTS
Manufacturer Ref S11766

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

4' - 14 watt - 120/277 volt - T8 - Medium Bi-Pin (G13) Base - 3,000K/3,500K/4,000K/5,000K/6,500K - CCT Selectable - Ballast Bypass - Frosted - Dimmable | Satco LED Light Bulb

Specifications

Weight

0.45

Height

0.94

Width

0.94

Length

47.8

AD Alternative Part Number

20671742

AD Application

For Indoor Lighting

AD Brand (Description)

Satco®

AD Country

USA

AD Country Of Origin

CN

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Instruction/Installation Manual

AD IDEA Index ID

20671742

AD Invoice Description

LED - L/TUBULAR 14W 75W G13 MDM BI-PIN

AD Keywords

S11766 Tubular Light, 14 W, 75 W Incandescent Equivalent, G13 Lamp Base, T8 Shape, 1700, 1700, 1800, 1800, 1800 Lumens ; SATCO ; S11766 ; 20671742 ; 045923117664 ; LED - Linear/Tubular

AD Manufacturer (Description)

SATCO PRODUCTS

AD Package Height

0.9400

AD Package Height UOM

IN

AD Package Length

47.8000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

34.5600

AD Package Volume UOM

cu-in

AD Package Weight

0.4500

AD Package Weight UOM

LB

AD Package Width

0.9400

AD Package Width UOM

IN

AD Part Number Keywords

S11766 ; 045923117664 ; 45923117664 ; 04592311766

AD Video Links

https://youtu.be/rGdomPSYd3I

Brand

Satco

Category

LED LINEAR FLUORESCENT STRAIGHT, U-SHAPE & CIRCULAR LAMPS

Spec 1 Attribute

Average Life

Spec 1 Attribute UOM

HR

Spec 1 Attribute Value

50000

Spec 10 Attribute

Incandescent Equivalent

Spec 10 Attribute UOM

W

Spec 10 Attribute Value

75

Spec 11 Attribute

Lamp Base Type

Spec 11 Attribute Value

G13

Spec 12 Attribute

Lamp Finish

Spec 12 Attribute Value

White

Spec 13 Attribute

Lumens

Spec 13 Attribute UOM

Lumens

Spec 13 Attribute Value

1700, 1700, 1800, 1800, 1800

Spec 14 Attribute

Shape

Spec 14 Attribute Value

T8

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

120 To 277

Spec 16 Attribute

Wattage

Spec 16 Attribute UOM

W

Spec 16 Attribute Value

14

Spec 2 Attribute

Ballast Type

Spec 2 Attribute Value

Type B Bypass

Spec 3 Attribute

Beam Angle

Spec 3 Attribute UOM

deg

Spec 3 Attribute Value

210

Spec 4 Attribute

Beam Type

Spec 4 Attribute Value

Spread

Spec 5 Attribute

Color

Spec 5 Attribute Value

Warm White/Neutral White/Cool White/Natural Light/Day Light

Spec 6 Attribute

Color Rendering Index (CRI)

Spec 6 Attribute Value

80

Spec 7 Attribute

Color Temperature

Spec 7 Attribute UOM

K

Spec 7 Attribute Value

3000/3500/4000/5000/6500

Spec 8 Attribute

Dimensions

Spec 8 Attribute Value

1 in Dia x 47.17 in L

Spec 9 Attribute

Fixture Type

Spec 9 Attribute Value

Enclosed
