Satco

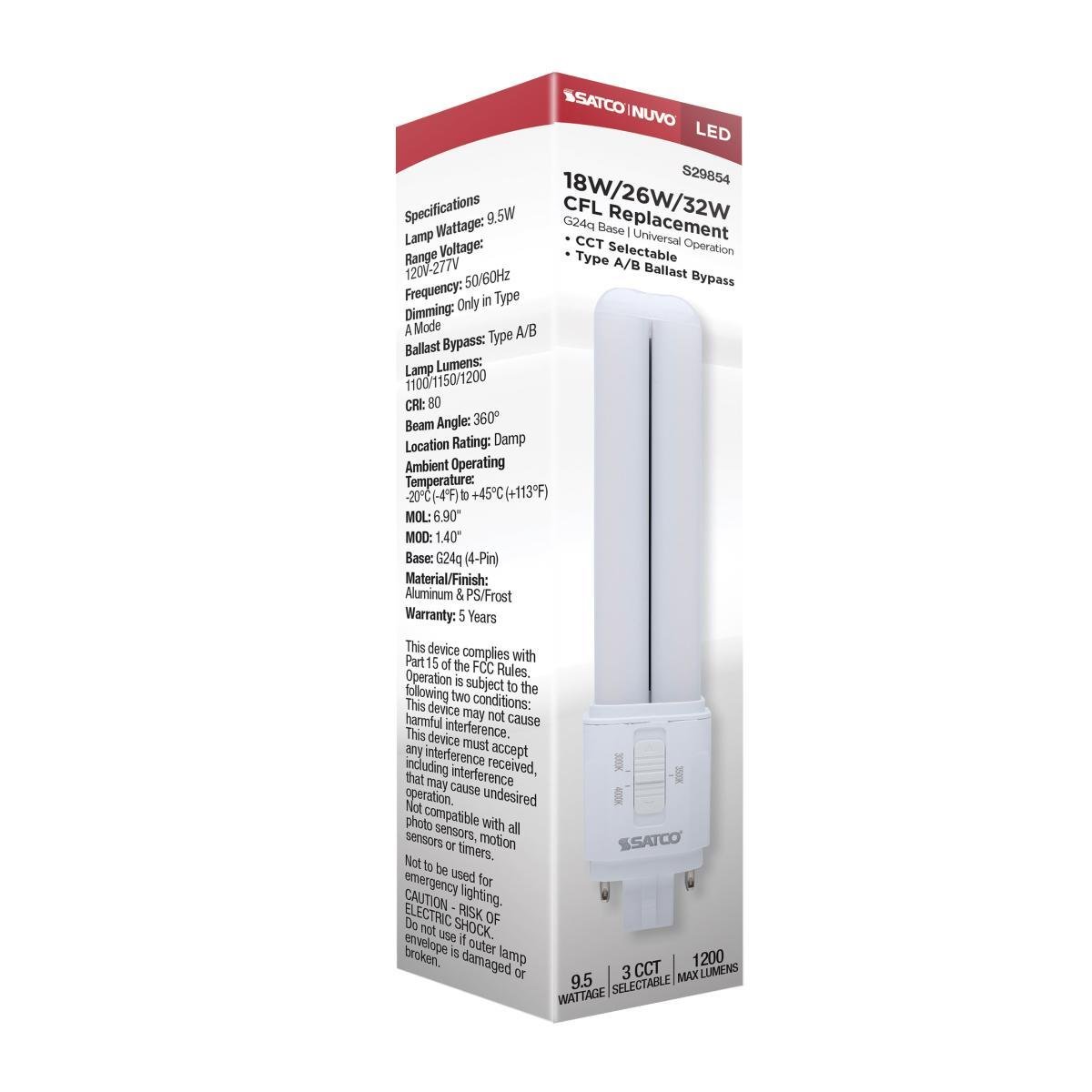

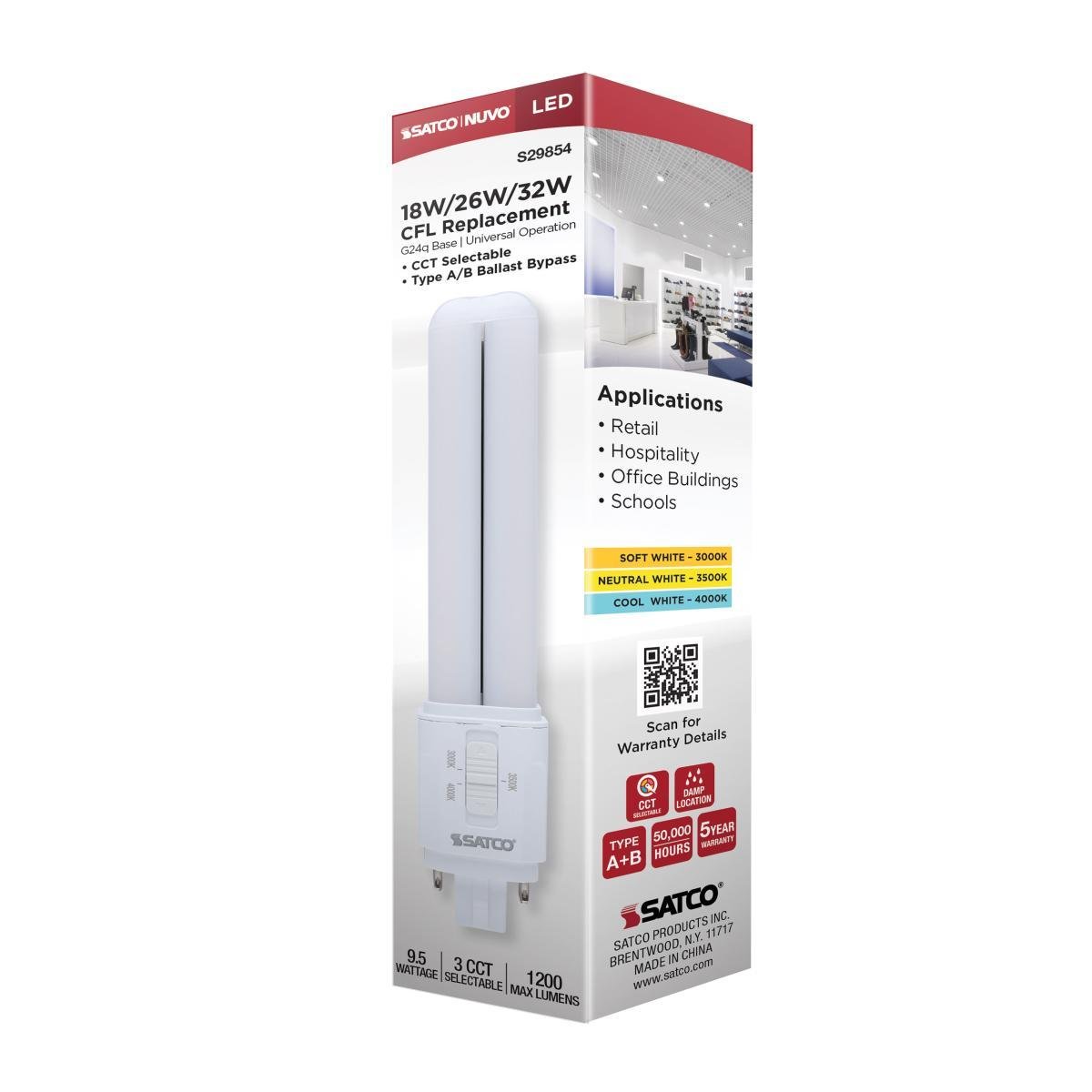

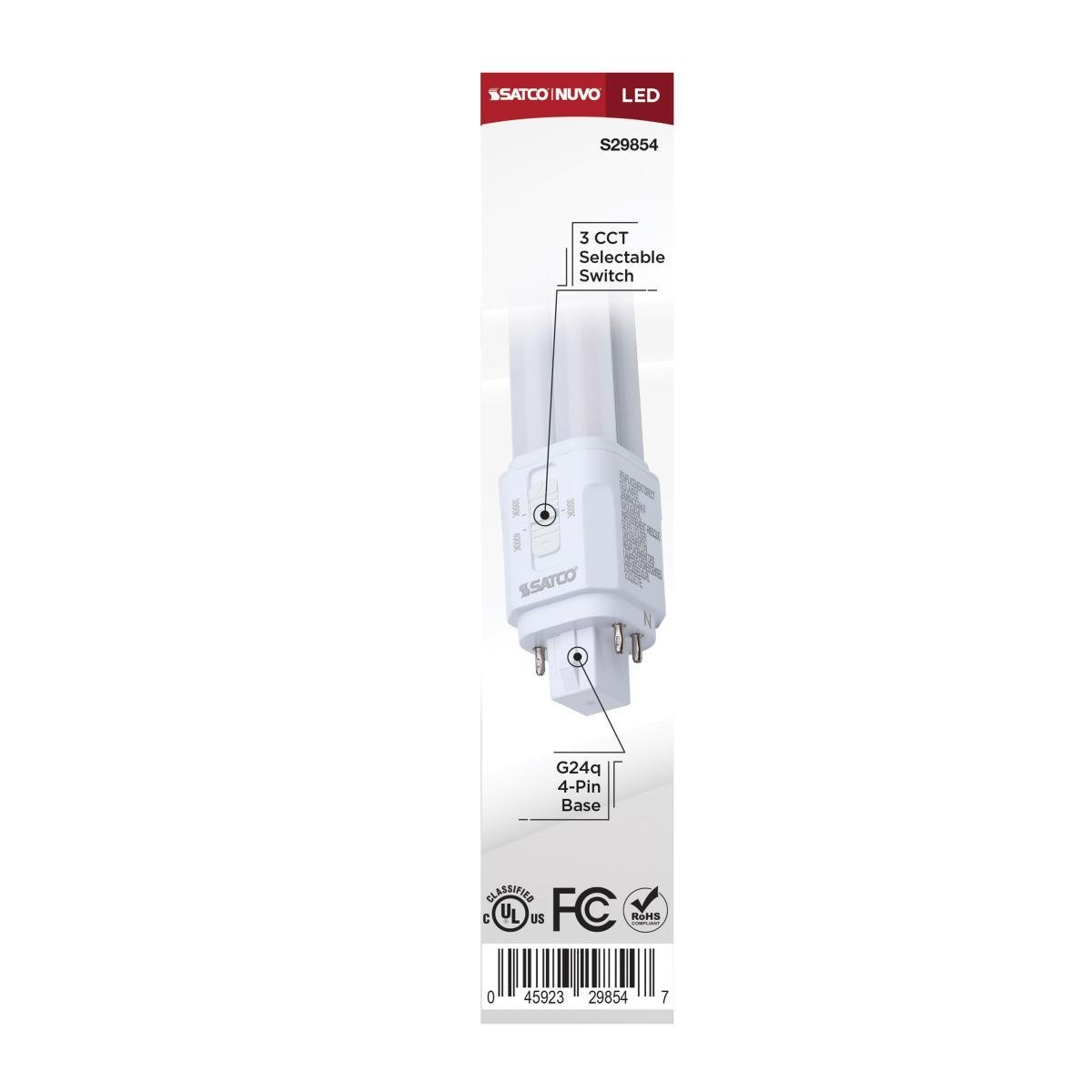

S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt

Category LED Compact Fluorescent Integrated & Non-Integrated Lamps
Picture of S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt Picture of S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt
Picture of S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt Picture of S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt
Picture of S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt Picture of S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt
Picture of S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt Picture of S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt
Picture of S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt Picture of S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt
Satco

S29854 - 9.5 Watt LED PL - 30K/35K/40K CCT Selectable - G24q Base - Type A/B - 120-277 Volt

Item Code: 1244493
Category LED Compact Fluorescent Integrated & Non-Integrated Lamps
Manufacturer SATCO PRODUCTS
Manufacturer Ref S29854

Document
Document
Call for Availability
Add to Favorites
Compare

Description

SATCO NUVO's S29854 9.5-watt PL lamp offers a versatile replacement for traditional 18W, 26W, and 32W CFL lamps. Designed with a G24q (4-pin) base, it supports both Type A and Type B ballast bypass operation, making it ideal for retrofitting without rewiring. With selectable CCT options of 3000K, 3500K, and 4000K, this lamp delivers adaptable lighting for a range of environments. Crafted from durable aluminum and plastic, it is damp-location rated, boasting a 50,000-hour lifespan and a 5-year warranty. This energy-efficient solution upgrades lighting with ease for both commercial and residential applications.

Specifications

Weight

0.26

Height

7.01

Width

1.46

Length

1.46

AD All Features

3 CCT Selectable

AD Application

Suitable for Use in Enclosed Fixtures

AD Brand (Description)

Satco

AD Country

USA

AD Country Of Origin

TH

AD Invoice Description

LED - UN/TUBULAR 9.5W 18, 26, 32W G24Q

AD Item Features 01

3 CCT Selectable

AD Item Features 02

Type A/B Ballast Bypass

AD Manufacturer (Description)

SATCO PRODUCTS

AD Package Height

7.0100

AD Package Height UOM

IN

AD Package Length

1.4600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2600

AD Package Weight UOM

LB

AD Package Width

1.4600

AD Package Width UOM

IN

Brand

Satco

Category

LED COMPACT FLUORESCENT INTEGRATED & NON-INTEGRATED LAMPS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

0.07 to 0.03

Spec 10 Attribute

Fixture Type

Spec 10 Attribute Value

Enclosed

Spec 11 Attribute

Incandescent Equivalent

Spec 11 Attribute UOM

W

Spec 11 Attribute Value

18, 26, 32

Spec 12 Attribute

Lamp Base Type

Spec 12 Attribute Value

G24q

Spec 13 Attribute

Lamp Finish

Spec 13 Attribute Value

Frost

Spec 14 Attribute

Lumens

Spec 14 Attribute UOM

Lumens

Spec 14 Attribute Value

1100, 1150, 1200

Spec 15 Attribute

Type

Spec 15 Attribute Value

Type A/B

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V

Spec 16 Attribute Value

120 To 277

Spec 17 Attribute

Wattage

Spec 17 Attribute UOM

W

Spec 17 Attribute Value

9.5

Spec 2 Attribute

Average Life

Spec 2 Attribute UOM

HR

Spec 2 Attribute Value

50000

Spec 3 Attribute

Ballast Type

Spec 3 Attribute Value

Type A/B Bypass

Spec 4 Attribute

Beam Angle

Spec 4 Attribute UOM

deg

Spec 4 Attribute Value

360

Spec 5 Attribute

Color

Spec 5 Attribute Value

Warm to Cool White

Spec 6 Attribute

Color Rendering Index (CRI)

Spec 6 Attribute Value

80

Spec 7 Attribute

Color Temperature

Spec 7 Attribute UOM

K

Spec 7 Attribute Value

3000, 3500, 4000

Spec 8 Attribute

Dimensions

Spec 8 Attribute Value

7.01 in H x 1.46 in W x 1.46 in L

Spec 9 Attribute

Filament

Spec 9 Attribute Value

Led
