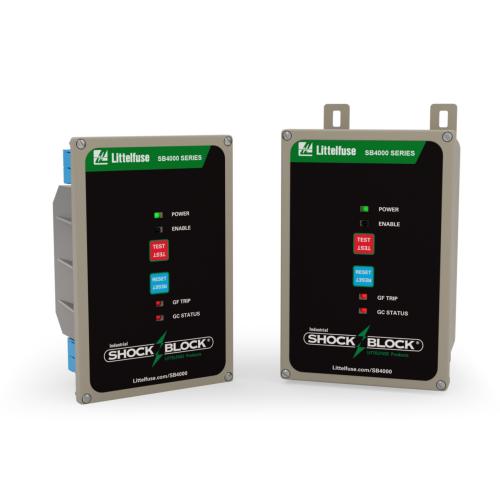

SB4000-GFCI -Shock Block - GFCI SB4000 Series
selection not available, try a different combination
selection not available, try a different combination
Compare
Description
systems from 208 -240 V on 30 A branch circuits. The power system can be either solidly or high-resistance grounded.
All SB4000 models equipped with connections for a neutral wire have built-in grounded-neutral protection per the UL 943
standard. The standard enclosure is IP 69K/NEMA 4X and outdoor rated, suitable for all industrial environments including
high temperature washdown used in food production applications. The SB4000 includes advanced harmonic filtering, an
automatic self-test feature, and is compliant to the UL 1998 Software in Programmable Components standard.
Ground-Fault Circuit Interrupter (GFCI), Class A: The SB4000 is available as a 208 - 240 V Class A GFCI, allowing new construction or retro-fit projects to meet NEC 210.8 for a wide variety of single-phase, split-phase, three-phase and 4-wire (neutral supported) loads on 30 A circuits.
Specifications
Brand
Littelfuse
Category
New Products
Manufacturer
Littelfuse
