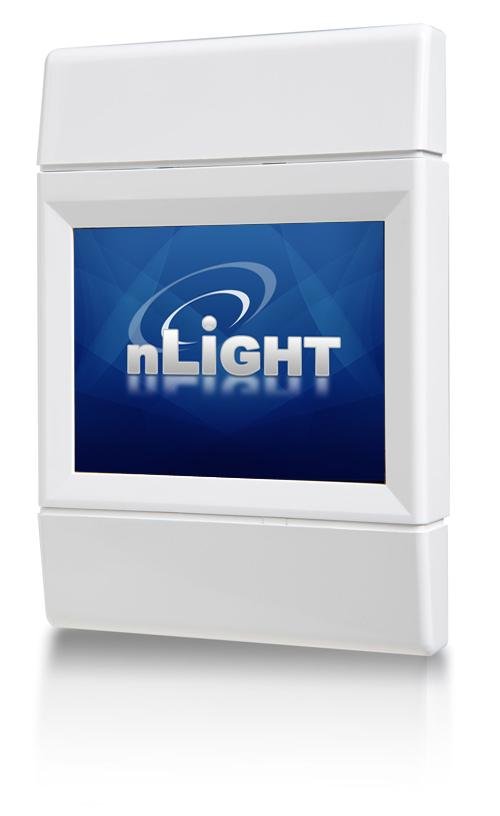

NPOD TOUCH WH - LITH NPOD TOUCH WH Low Voltage Wall
Description
Specifications
1.66lb
5.3mm
4.17mm
7.56mm
Education, Government, Healthcare, Hospitality, Manufacturing, Offices, Banks, Religious, Retail, Sports, Recreation and Warehouses Applications
nLight
Canada
US
00193048165432
PS 150 Power Supply
LTG CS 15TO24VDC 60MA TGL WHT
One or two channel dimming control
Simple and intuitive user interface
Slim and compact form factor
Proximity screen sensor for auto "wake-up
3-1/2 in full-color responsive capacitive touchscreen
Full alpha-numeric nomenclature for scenes and lighting channels
Communicates with nLight® network
A+ capable configuration
Enables on-screen customization of all preset scenes, on/off/dim lighting and shade channels
optimal resolution - 320 x 480
Mounts to a single gang switch box
Remotely configurable/upgradeable
Multi-level password/pin protection
Traditional tactile feel
Customizable screen saver image
Green LED per button
Enables wireless control of scenes, lights and shades through the my personify mobile app
Acuity Brands
5.3000
IN
7.5600
IN
1
1.6600
LB
4.1700
IN
Own Brand
Miscellaneous
Amperage Rating
MA
60
Type
Low Voltage
Voltage Rating
V DC
15 to 24
Color
White
Control
ON/OFF Pushbutton
Dimensions
2.74 in H x 1.68 in W x 1.63 in D
Mounting Type
Surface
Operation Mode
Toggle
Series
NPODM
Temperature Rating
deg F
32 to 140
Terminal Type
RJ-45
