Square D

1.5S1F - Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise [TAA]

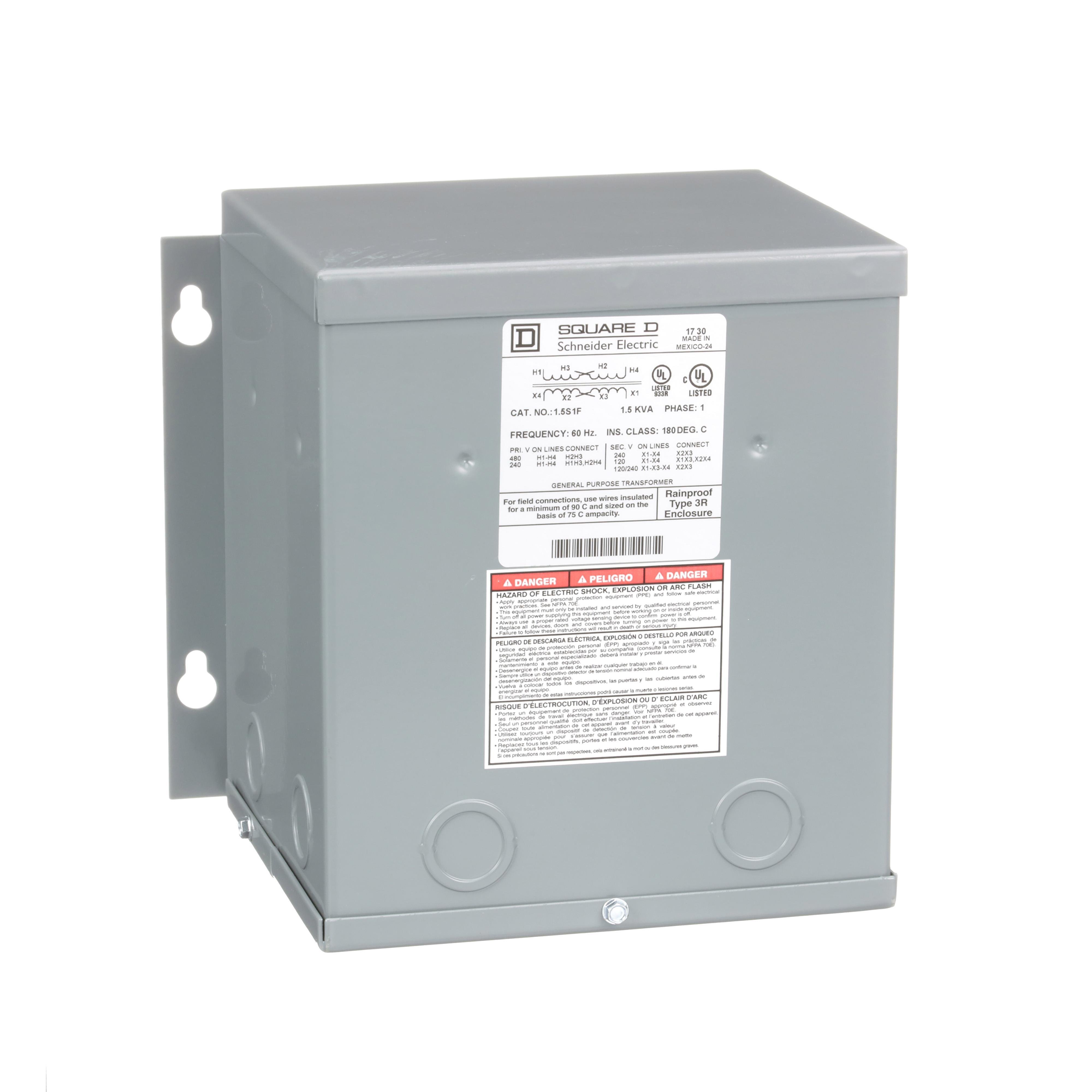

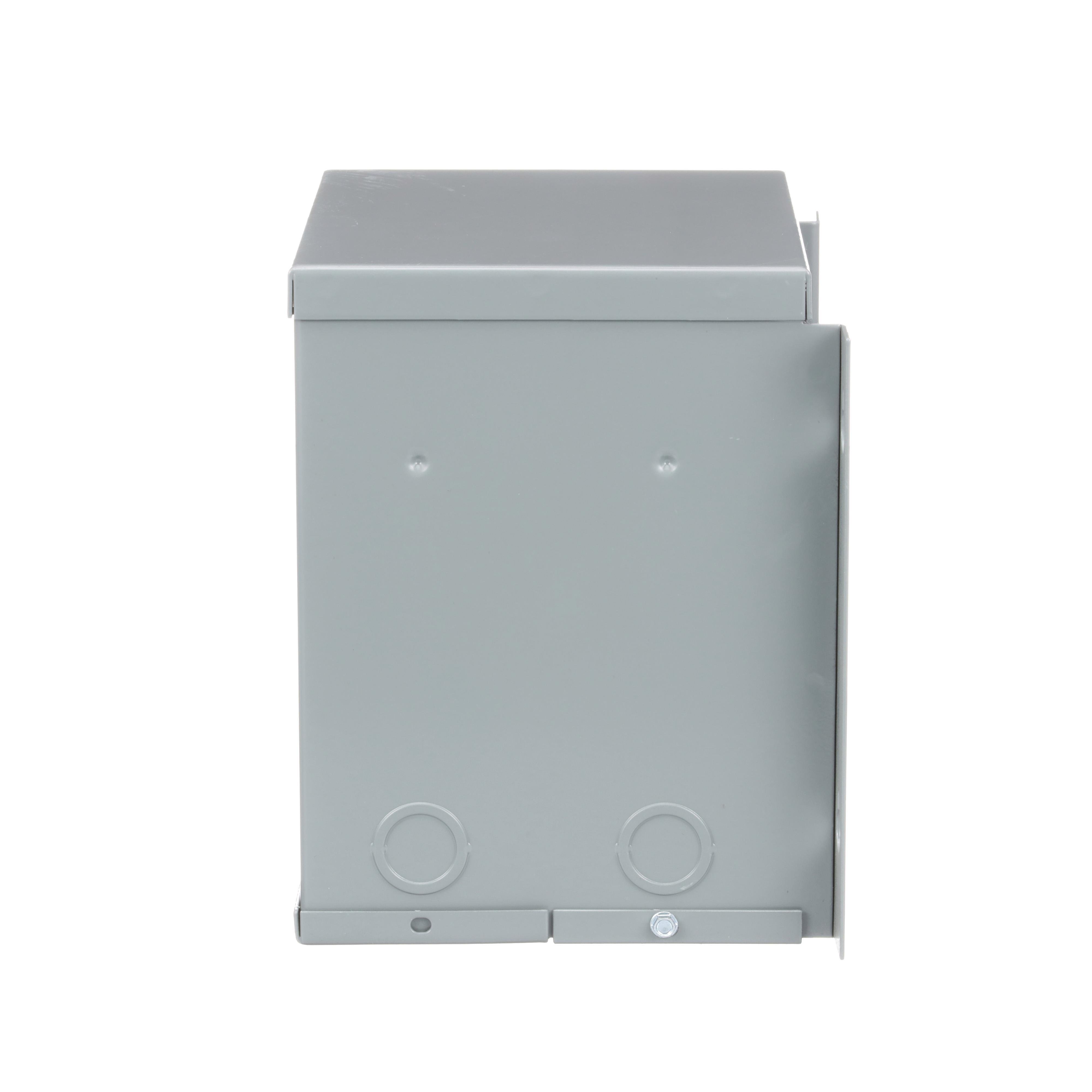

Picture of 1.5S1F - Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise [TAA] Picture of 1.5S1F - Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise [TAA]

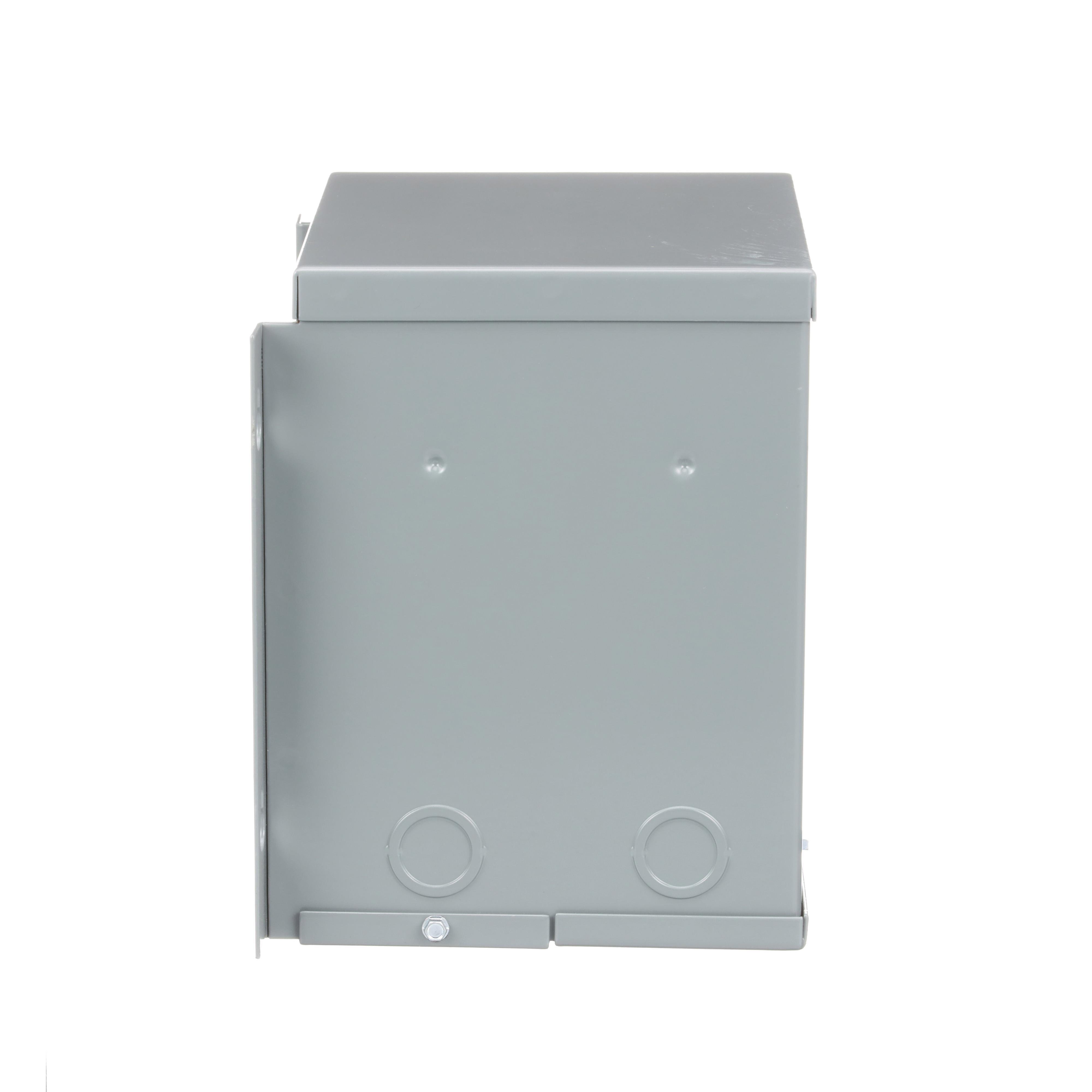

Picture of 1.5S1F - Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise [TAA] Picture of 1.5S1F - Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise [TAA]
Picture of 1.5S1F - Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise [TAA] Picture of 1.5S1F - Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise [TAA]
Picture of 1.5S1F - Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise [TAA] Picture of 1.5S1F - Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise [TAA]
Square D

1.5S1F - Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise [TAA]

Item Code: 17043
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 1.5S1F

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 1.5 KVA. This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 8.25 in (H), 8.68 in (W), 6.56 in (D). This product complys to UL & CSA standards.

Specifications

Weight

36.83lb

Height

9.7mm

Width

10.9mm

Length

12.68mm

Depth

6.56mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/1.5S1F/1.5S1F.spin

AD All Features

Resin filled transformers are epoxy encoapsulated

AD Alternative Part Number

8149063

AD Application

Power, Heating and Lighting Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

FR

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901019879

AD Gtin

00785901019879

AD IDEA Index ID

8149063

AD Invoice Description

TRANSFORMER 240 X 480VAC 120/240VAC 60HZ

AD Item Features 01

Resin filled transformers are epoxy encoapsulated

AD Item Features 02

Individual enclosures from 50VA through 5kVA

AD Item Features 03

Can be configured into autotransformer

AD Keywords

1.5S1F Distribution Dry Sealed Encapsulated Resin Sealed Transformer, 240 x 480 V AC Primary, 120/240 VAC Secondary, 1.5 kVA Power Rating, 60 Hz, 1 Phase ; Square D ; 1.5S1F ; 8149063 ; 785901019879 ; General Purpose - Multi-Use Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

9.7000

AD Package Height UOM

IN

AD Package Length

12.6800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1365.7600

AD Package Volume UOM

cu-in

AD Package Weight

36.8300

AD Package Weight UOM

LB

AD Package Width

10.9000

AD Package Width UOM

IN

AD Part Number Keywords

1.5S1F ; 15S1F ; 8149063 ; 785901019879 ; 78590101987 ; 00785901019879 ; 0785901019879

AD Video Links

https://www.youtube.com/watch?v=JO-xeFeF0tw

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

8.7 in W x 6.6 in D x 8.3 in H

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120/240

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

115

Spec 12 Attribute

Type

Spec 12 Attribute Value

Distribution Dry Sealed Encapsulated Resin Sealed

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 3R

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

60

Spec 4 Attribute

Housing Material

Spec 4 Attribute Value

Painted Steel

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

kVA

Spec 8 Attribute Value

1.5

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

240 x 480
