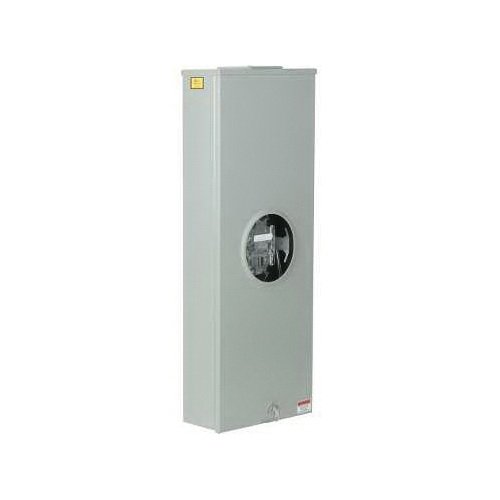

1009788A - Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A-L, lever bypass, jaw release

Category Commercial Single Meter Sockets
Picture of 1009788A - Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A-L, lever bypass, jaw release Picture of 1009788A - Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A-L, lever bypass, jaw release
Picture of 1009788A - Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A-L, lever bypass, jaw release Picture of 1009788A - Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A-L, lever bypass, jaw release
Square D™

1009788A - Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A-L, lever bypass, jaw release

Item Code: 1011861
Category Commercial Single Meter Sockets
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 1009788A

Document
Call for Availability
Add to Favorites
Compare

Description

Square D individual meter socket is a single phase, ringless meter socket device for single family residential construction. This socket underground feed has provisions to feed a downstream main lug load center, a main breaker load center, or an individually enclsoed service disconnect. This socket is an A-L ACPL closing plate type with 4 jaws and a lever bypass, and a current rating of 320A. This unit has a rated operational voltage of 600 VAC and a short circuit current rating of 10,000 RMS symmetrical amperes. It also has a NEMA type 3R enclosure that is supplied with a bonded neutral, and hub opening in top endwall. This hub opening will require the use of a bolt on hub or closing plate. Unit is UL listed.

Specifications

Weight

30.19

Height

5.7

Width

13.67

Length

35.07

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/1009788A/1009788A.spin

AD Alternative Part Number

10002839

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD EAN

0785901478713

AD Gtin

00785901478713

AD IDEA Index ID

10002839

AD Invoice Description

SOCKET MTR 600VAC 320A 1 NEMA 3R 4 SURF

AD Item Features 01

This Series A-L individual meter compartment has one ringless four jaw socket in a NEMA Type 3R enclosure

AD Item Features 02

It is a single phase, three wire design rated for 600VAC and 320A

AD Item Features 03

The socket has a lever bypass with jaw release

AD Item Features 04

Suitable for use as service entrance equipment, it accepts either overhead or underground feeds

AD Item Features 05

Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

AD Keywords

1009788A 3-Wire Meter Socket With Lever Bypass, 600 V AC, 320 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; 1009788A ; 1009788A ; 785901478713 ; Meter Sockets - Single Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.7000

AD Package Height UOM

IN

AD Package Length

35.0700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2784.5600

AD Package Volume UOM

cu-in

AD Package Weight

30.1900

AD Package Weight UOM

LB

AD Package Width

13.6700

AD Package Width UOM

IN

AD Part Number Keywords

1009788A ; 10002839 ; 785901478713 ; 78590147871 ; 00785901478713 ; 0785901478713

Brand

Square D

Category

COMMERCIAL SINGLE METER SOCKETS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

320

Spec 10 Attribute

Type

Spec 10 Attribute Value

3-Wire

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

600 kcmil, 350 kcmil Al/Cu

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Overhead/Underground

Spec 5 Attribute

Hub Type

Spec 5 Attribute Value

A-L, ACPL Closing Plate

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Surface

Spec 7 Attribute

Number of Jaws

Spec 7 Attribute Value

4

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Hex Stud
