Square D

10S40F - Transformer, dry type, encapsulated, 10kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA]

Category Miscellaneous

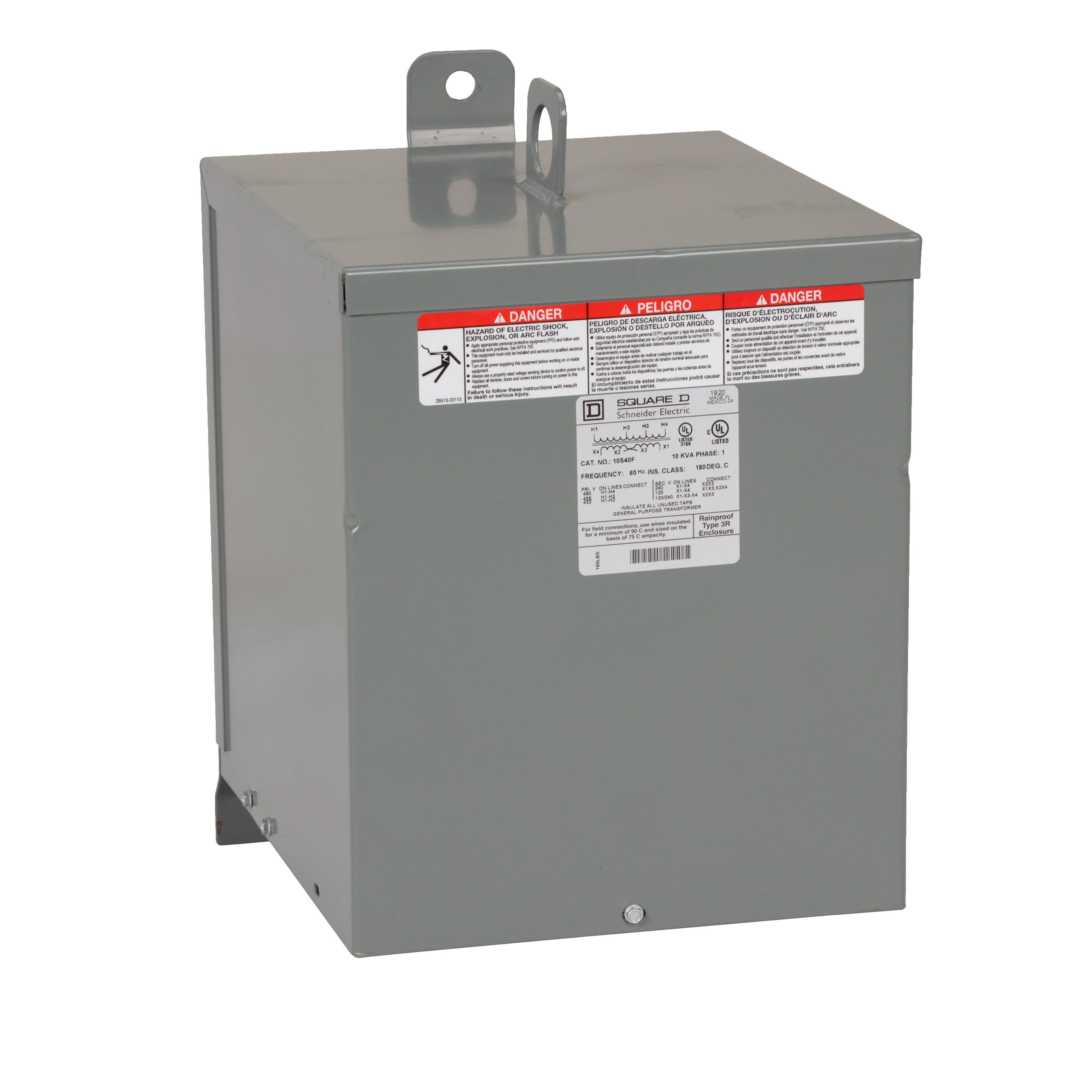

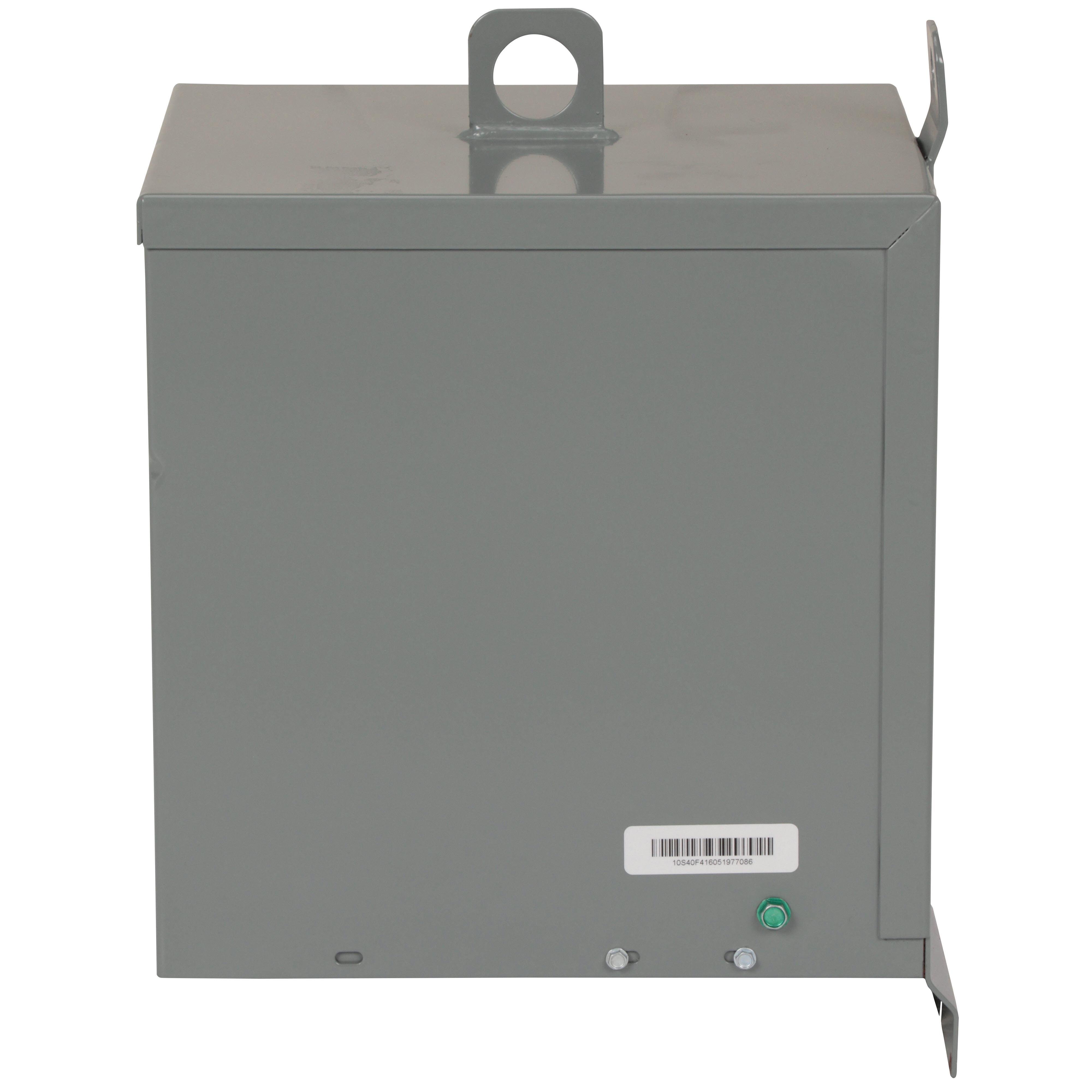

Picture of 10S40F - Transformer, dry type, encapsulated, 10kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 10S40F - Transformer, dry type, encapsulated, 10kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA]

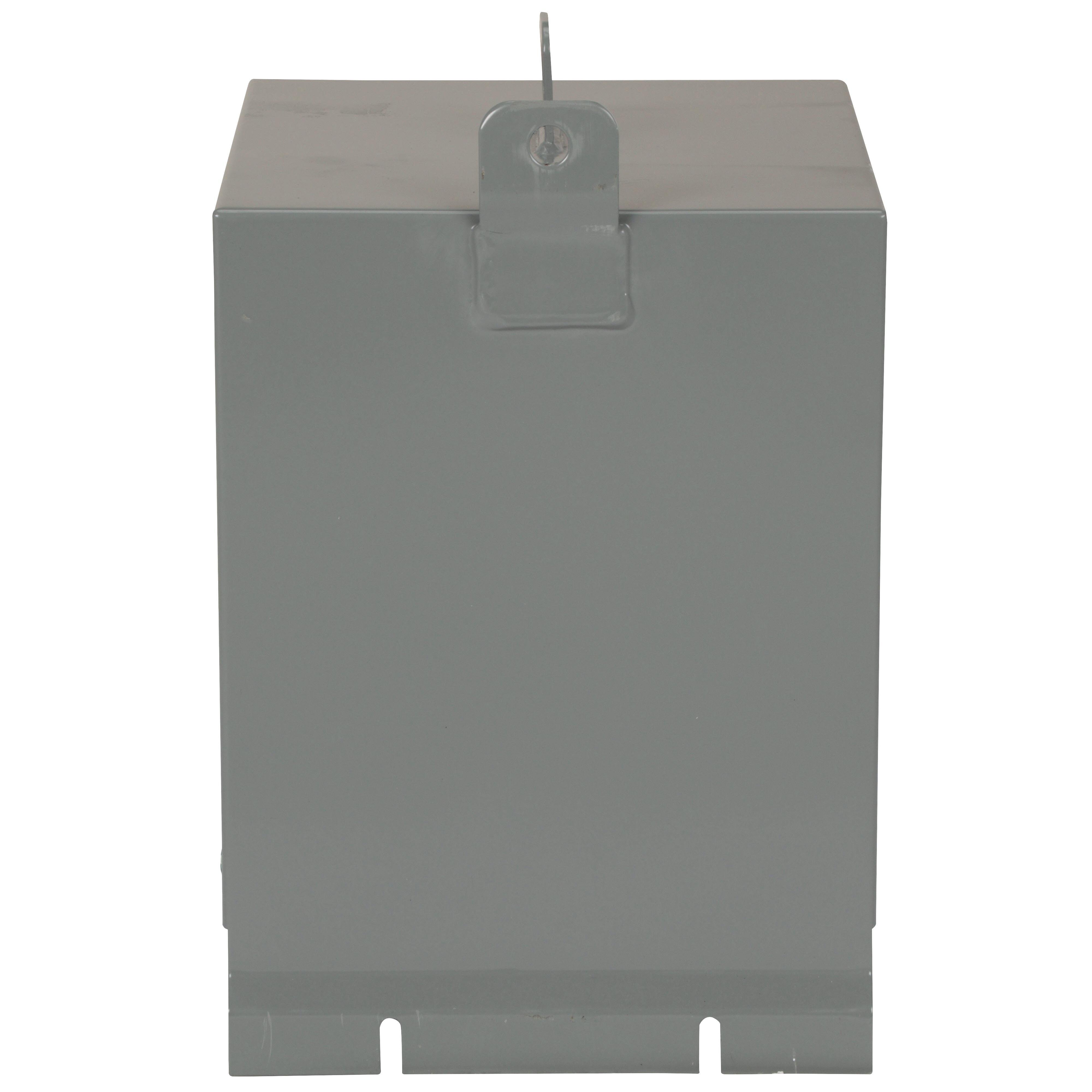

Picture of 10S40F - Transformer, dry type, encapsulated, 10kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 10S40F - Transformer, dry type, encapsulated, 10kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA]
Picture of 10S40F - Transformer, dry type, encapsulated, 10kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 10S40F - Transformer, dry type, encapsulated, 10kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA]
Square D

10S40F - Transformer, dry type, encapsulated, 10kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA]

Item Code: 32401
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 10S40F

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 10 KVA. This transformer has a primary voltage of 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 14.75 in (H), 9.75 in (W), 11.75 in (D). This product complys to UL & CSA standards.

Specifications

Weight

164.66

Width

9.66

Length

11.64

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/10S40F/10S40F.spin

AD All Features

Resin filled transformers are epoxy encoapsulated

AD Alternative Part Number

8002728

AD Application

For intended power, heating, lighting and indoor/outdoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901359593

AD Gtin

00785901359593

AD IDEA Index ID

8002728

AD Invoice Description

TRANSFORMER 480VAC 120/240VAC 10KVA 60HZ

AD Item Features 01

Resin filled transformers are epoxy encoapsulated

AD Item Features 02

Individual enclosures from 50VA through 5kVA

AD Item Features 03

Can be configured into autotransformer

AD Keywords

10S40F Dry Sealed General Purpose Transformer, 480 V AC Primary, 120/240 VAC Secondary, 10 kVA Power Rating, 60 Hz, 1 Phase ; Schneider Electric ; Square D ; 10S40F ; 10S40F ; 785901359593 ; General Purpose - Multi-Use Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Length

11.6400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

164.6600

AD Package Weight UOM

LB

AD Package Width

9.6600

AD Package Width UOM

IN

AD Part Number Keywords

10S40F ; 8002728 ; 785901359593 ; 78590135959 ; 00785901359593 ; 0785901359593

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

9-3/4 in W x 11-3/4 in D x 14-3/4 in H

Spec 10 Attribute

Primary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

480

Spec 11 Attribute

Secondary Voltage

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

120/240

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

115

Spec 13 Attribute

Type

Spec 13 Attribute Value

Dry Sealed General Purpose

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 3R/IP14

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

60

Spec 4 Attribute

Housing Material

Spec 4 Attribute Value

Steel

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

Number of Taps

Spec 7 Attribute Value

2 to 5

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

kVA

Spec 9 Attribute Value

10
