Square D™

150SV1A - Transformer, dry type, encapsulated, 0.15kVA, 1 phase, 240x480V primary, 120/240V secondary, 3A, 55C rise [TAA]

Category Miscellaneous

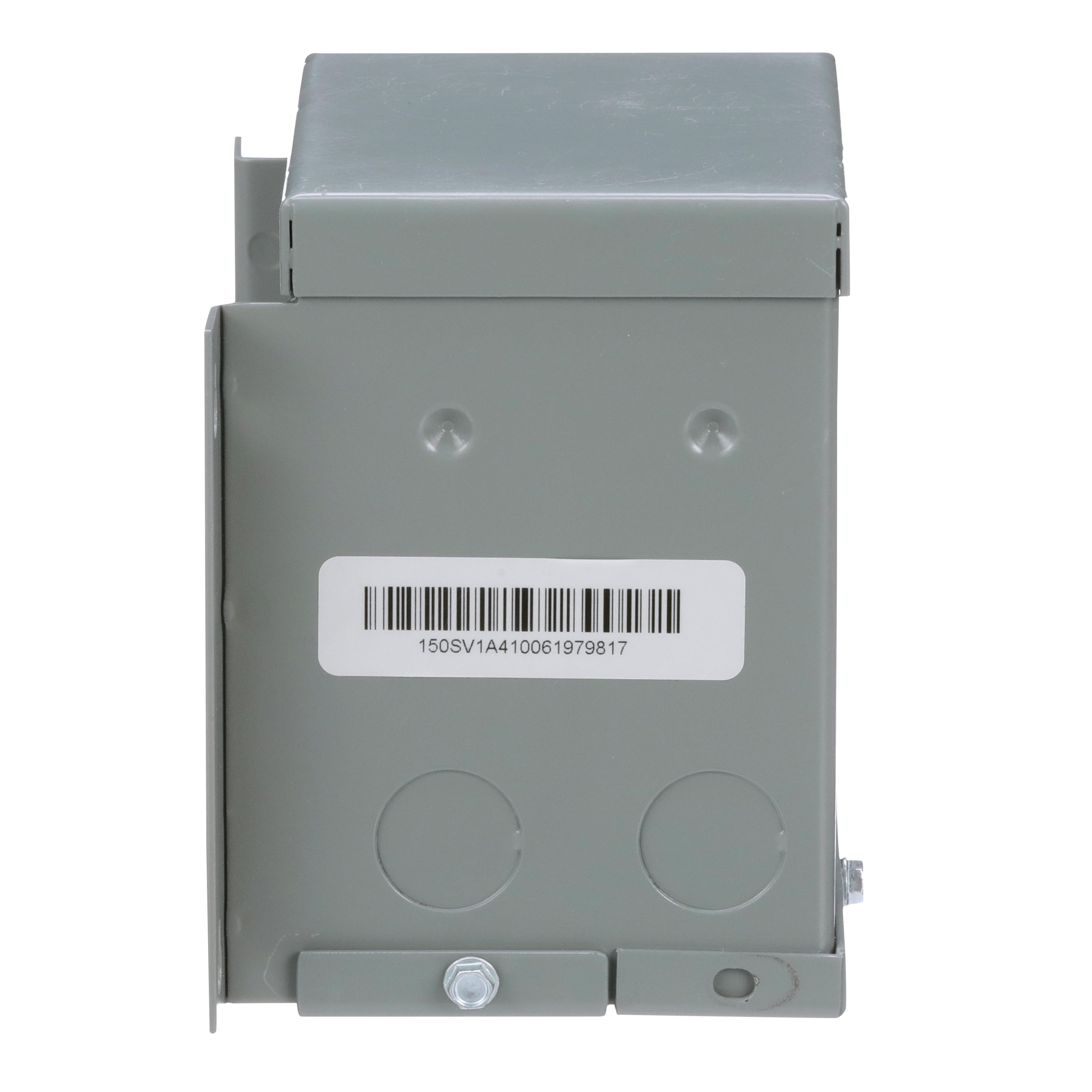

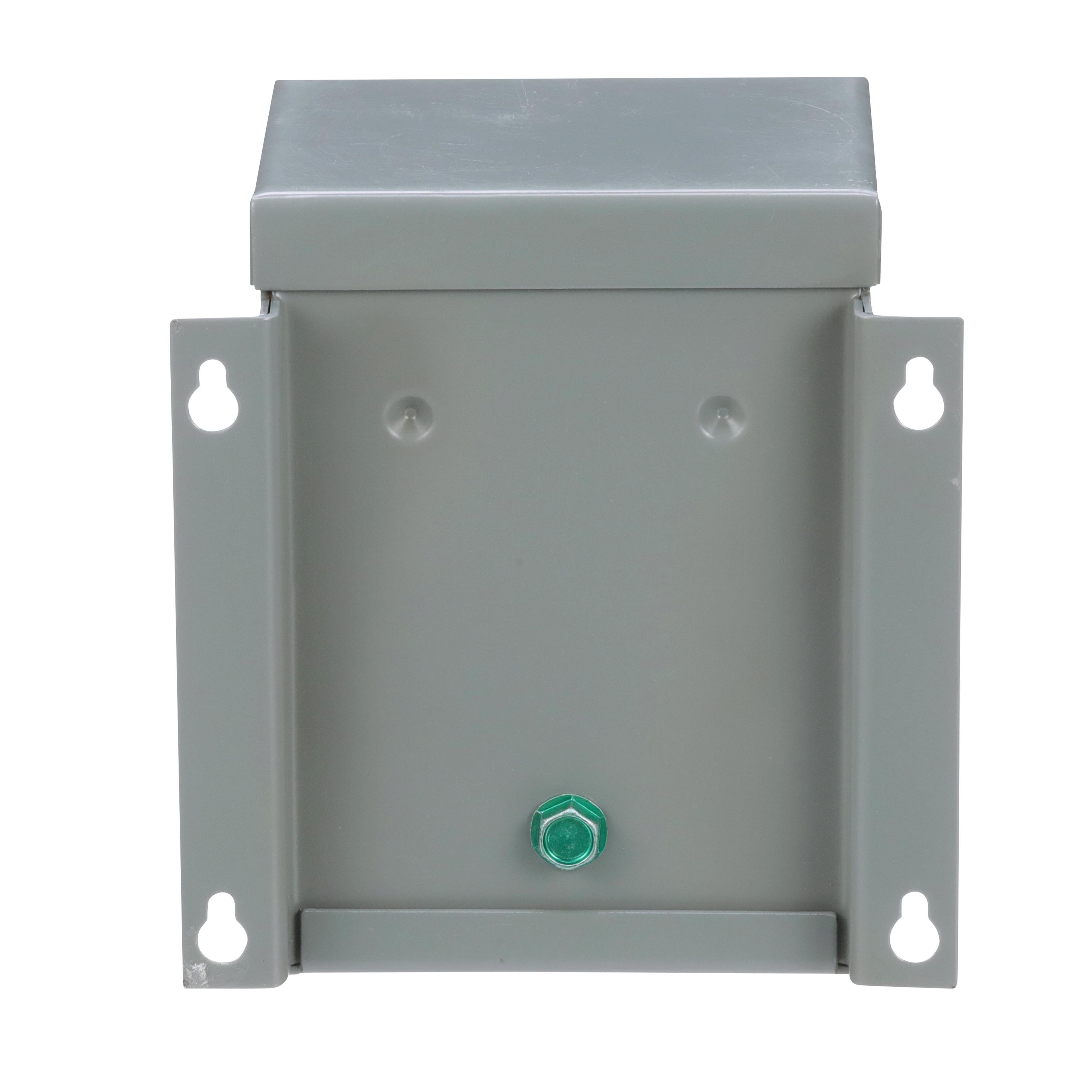

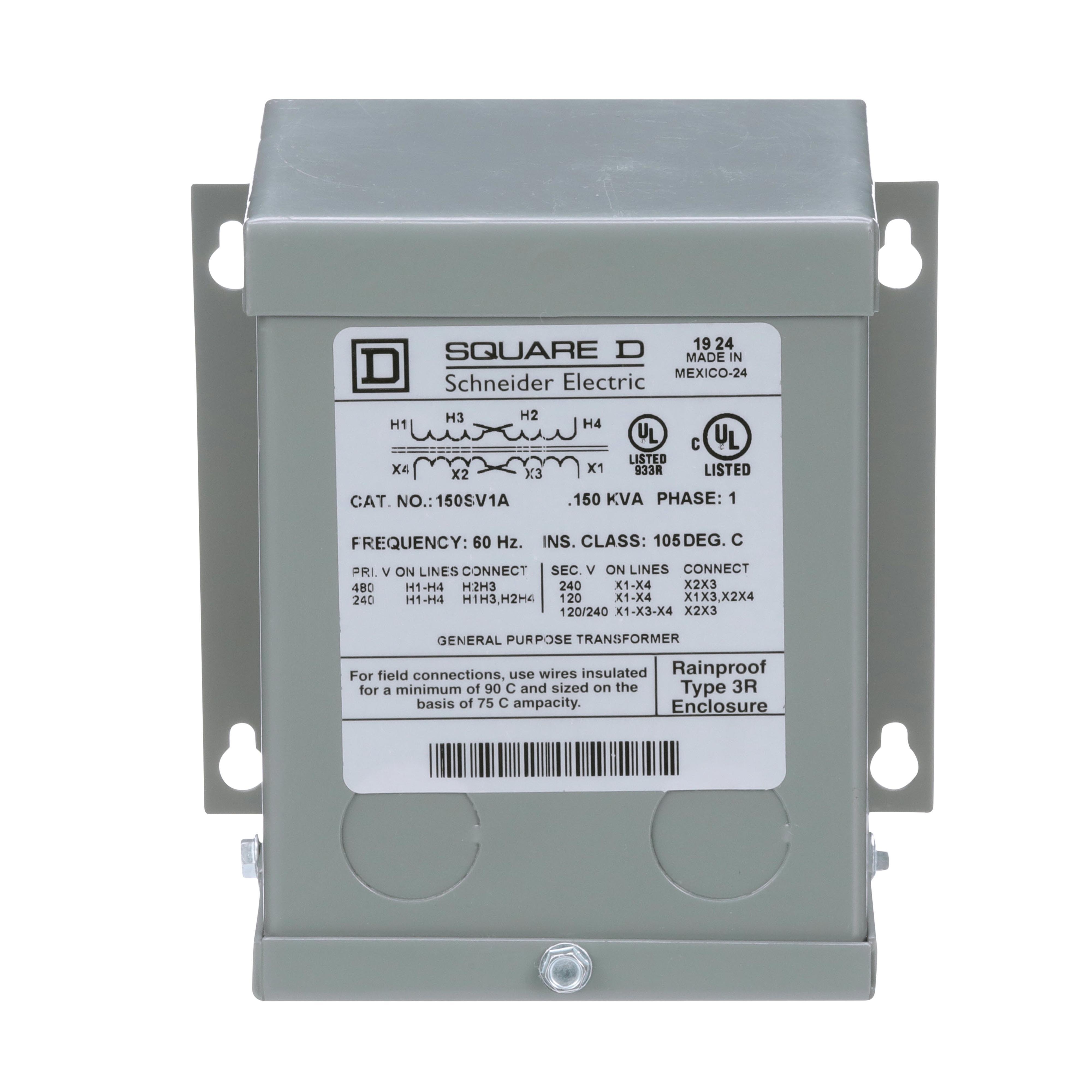

Picture of 150SV1A - Transformer, dry type, encapsulated, 0.15kVA, 1 phase, 240x480V primary, 120/240V secondary, 3A, 55C rise [TAA] Picture of 150SV1A - Transformer, dry type, encapsulated, 0.15kVA, 1 phase, 240x480V primary, 120/240V secondary, 3A, 55C rise [TAA]
Picture of 150SV1A - Transformer, dry type, encapsulated, 0.15kVA, 1 phase, 240x480V primary, 120/240V secondary, 3A, 55C rise [TAA] Picture of 150SV1A - Transformer, dry type, encapsulated, 0.15kVA, 1 phase, 240x480V primary, 120/240V secondary, 3A, 55C rise [TAA]
Picture of 150SV1A - Transformer, dry type, encapsulated, 0.15kVA, 1 phase, 240x480V primary, 120/240V secondary, 3A, 55C rise [TAA] Picture of 150SV1A - Transformer, dry type, encapsulated, 0.15kVA, 1 phase, 240x480V primary, 120/240V secondary, 3A, 55C rise [TAA]
Picture of 150SV1A - Transformer, dry type, encapsulated, 0.15kVA, 1 phase, 240x480V primary, 120/240V secondary, 3A, 55C rise [TAA] Picture of 150SV1A - Transformer, dry type, encapsulated, 0.15kVA, 1 phase, 240x480V primary, 120/240V secondary, 3A, 55C rise [TAA]
Square D™

150SV1A - Transformer, dry type, encapsulated, 0.15kVA, 1 phase, 240x480V primary, 120/240V secondary, 3A, 55C rise [TAA]

Item Code: 1012547
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 150SV1A

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 0.15 KVA. This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 5 in (H), 4.85 in (W), 3.75 in (D). This product complys to UL & CSA standards.

Specifications

Weight

7.48

Height

6.6

Width

6.67

Length

7.33

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/150SV1A/150SV1A.spin

AD All Features

Resin filled transformers are epoxy encoapsulated

AD Alternative Part Number

8073136

AD Application

For general purpose such as intended power, heating and lighting applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901876076

AD Gtin

00785901876076

AD IDEA Index ID

8073136

AD Invoice Description

TRANSFORMER 240/480VAC 120/240VAC 60HZ 1

AD Item Features 01

Resin filled transformers are epoxy encoapsulated

AD Item Features 02

Individual enclosures from 50VA through 5kVA

AD Item Features 03

Can be configured into autotransformer

AD Keywords

150SV1A Dry Sealed General Purpose Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 0.15 kVA Power Rating, 60 Hz, 1 Phase ; Square D ; 150SV1A ; 8073136 ; 785901876076 ; General Purpose - Multi-Use Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.6000

AD Package Height UOM

IN

AD Package Length

7.3300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

7.4800

AD Package Weight UOM

LB

AD Package Width

6.6700

AD Package Width UOM

IN

AD Part Number Keywords

150SV1A ; 8073136 ; 785901876076 ; 78590187607 ; 00785901876076 ; 0785901876076

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

3.75 in L x 4.85 in W x 5 in H

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120/240

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

55

Spec 12 Attribute

Type

Spec 12 Attribute Value

Dry Sealed General Purpose

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 3R/3A/IP54

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

60

Spec 4 Attribute

Housing Material

Spec 4 Attribute Value

Sheet Steel

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

105

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

kVA

Spec 8 Attribute Value

0.15

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

240/480
