Schneider Electric

170ADI54050 - discrete input module Modicon Momentum - 16 Input 100..120 V AC

Category Programmable Logic & Automation Accessories

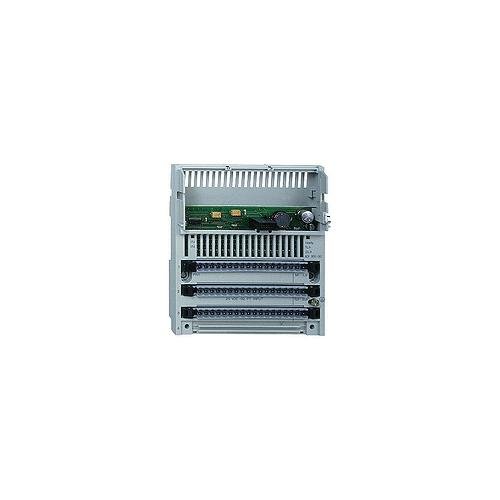

Picture of 170ADI54050 - discrete input module Modicon Momentum - 16 Input 100..120 V AC Picture of 170ADI54050 - discrete input module Modicon Momentum - 16 Input 100..120 V AC
Picture of 170ADI54050 - discrete input module Modicon Momentum - 16 Input 100..120 V AC Picture of 170ADI54050 - discrete input module Modicon Momentum - 16 Input 100..120 V AC
Schneider Electric

170ADI54050 - discrete input module Modicon Momentum - 16 Input 100..120 V AC

Item Code: 863220
Category Programmable Logic & Automation Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 170ADI54050

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete input base AC module offers 2 groups of 8 inputs, conforming to IEC 1131-2 type 2 with positive discrete input logic. It is a module with discrete input voltage of 120V AC. There is an isolation between group, channels and bus at 1780V AC. It features 16 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.284kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Weight

1.1

Width

7.02

Length

10.14

AD All Features

16 LEDs for channel status local signaling

AD Application

Industrial and Building Automation Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

MODULE INP DISCRETE 16 10 TO 35MS 120VAC

AD Item Features 01

16 LEDs for channel status local signaling

AD Item Features 02

Wide range of operating temperature from 0 deg C to 60 deg C

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

10.1400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.1000

AD Package Weight UOM

LB

AD Package Width

7.0200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/O_qwHU-1vVE

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

125

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

47.5 mm L x 125 mm W x 141.5 mm H

Spec 3 Attribute

Number of Inputs

Spec 3 Attribute Value

16

Spec 4 Attribute

Series

Spec 4 Attribute Value

170AD

Spec 5 Attribute

Step Response

Spec 5 Attribute UOM

Ms

Spec 5 Attribute Value

10 to 35

Spec 6 Attribute

Temperature Rating

Spec 6 Attribute UOM

deg C

Spec 6 Attribute Value

0 To 60

Spec 7 Attribute

Type

Spec 7 Attribute Value

Base AC

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120
