Schneider Electric

170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state

Category Programmable Logic & Automation Accessories

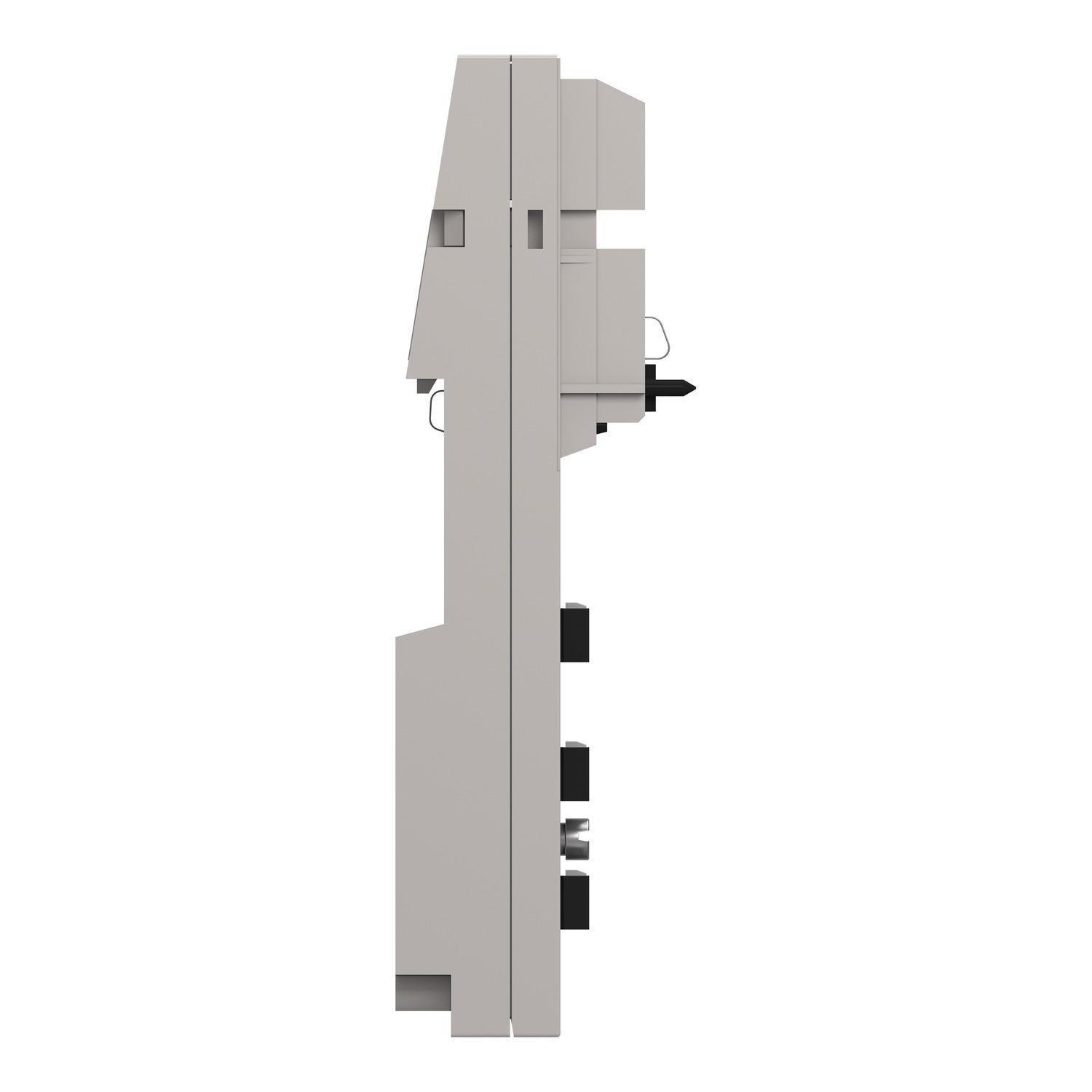

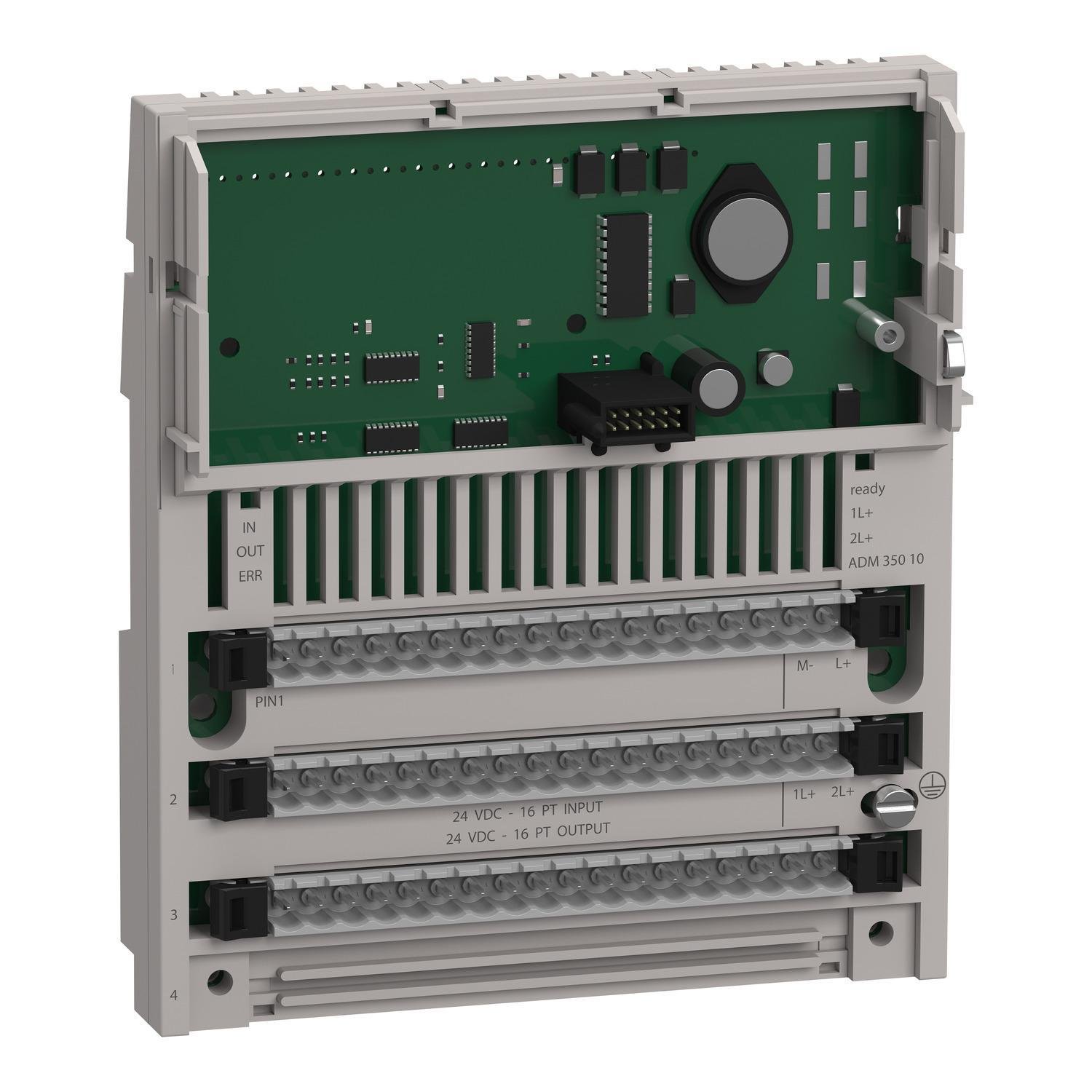

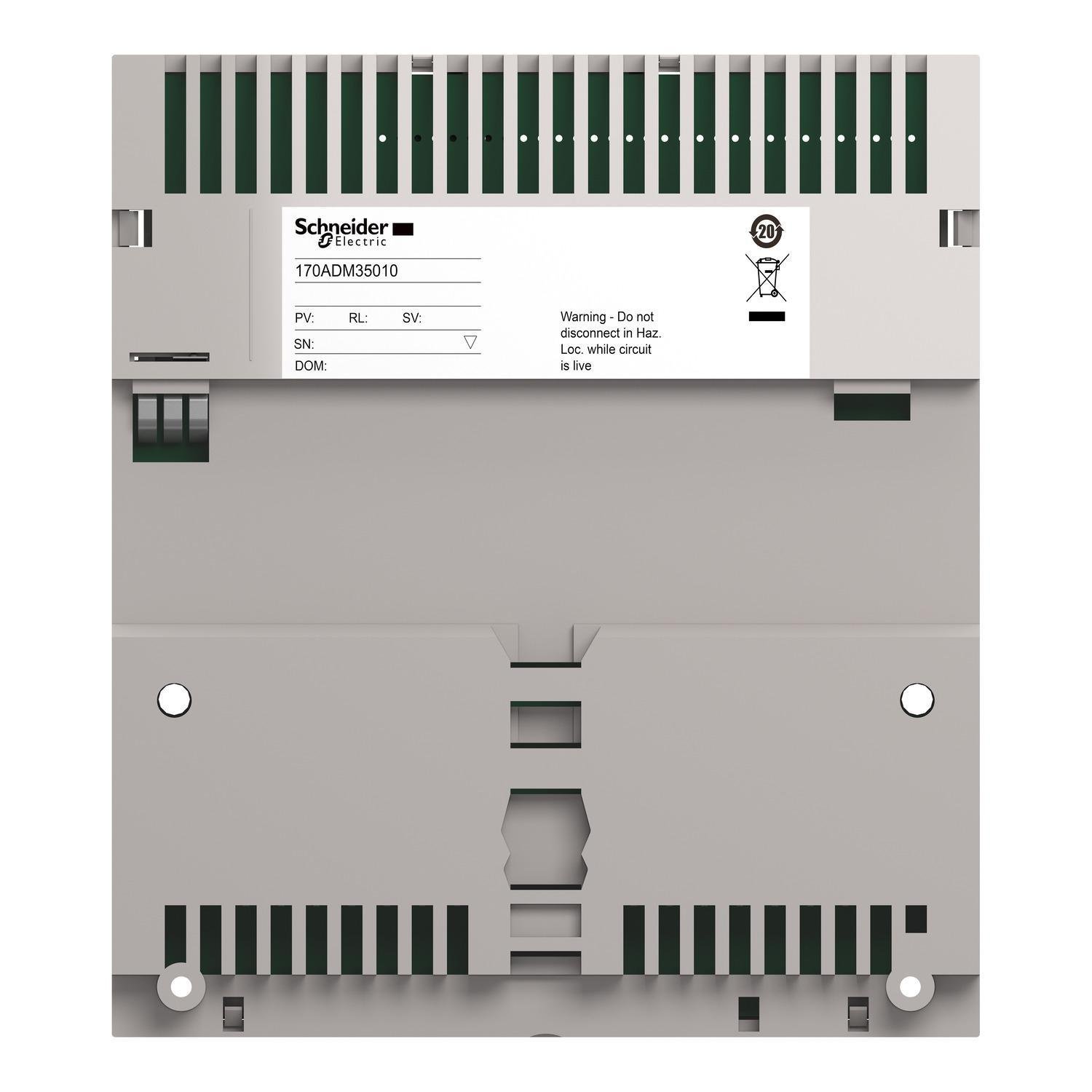

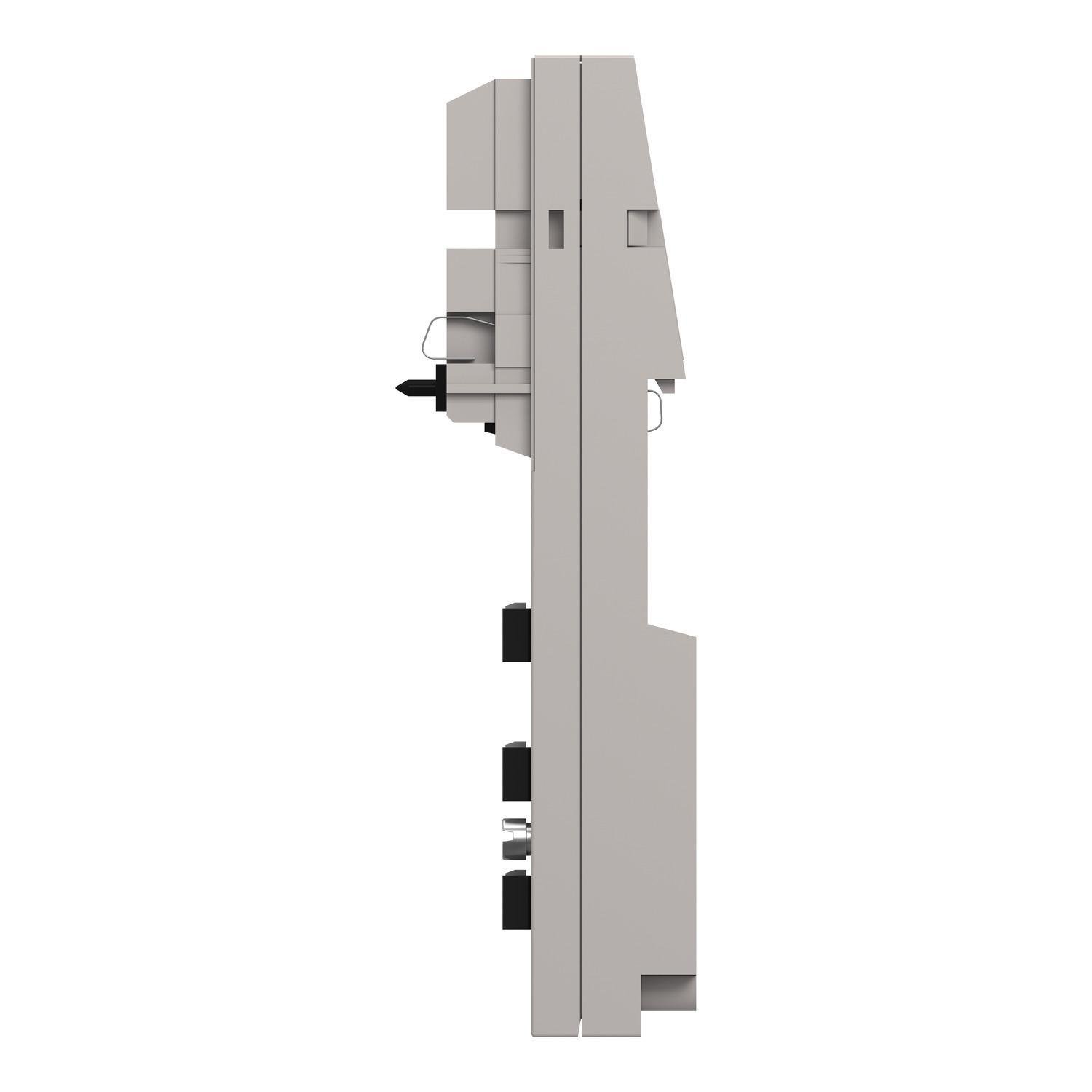

Picture of 170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state Picture of 170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state
Picture of 170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state Picture of 170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state
Picture of 170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state Picture of 170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state
Picture of 170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state Picture of 170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state
Picture of 170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state Picture of 170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state
Schneider Electric

170ADM35010 - discrete I/O module Modicon Momentum - 16 I/O solid state

Item Code: 581253
Category Programmable Logic & Automation Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 170ADM35010

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups of 8 solid state outputs with sink (positive) discrete logic. It is an I/O module with a rated supply voltage of 24V DC, an input/output voltage of 24V DC, a current consumption of 250mA at 24V DC and a power dissipation of 8W. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height) and weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Weight

0.86

Width

7.02

Length

10.06

AD All Features

Provides foundation for the rest of momentum control system

AD Application

Industrial and Building Automation Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

MODULE I/O DISCRETE 16 16 0.1 TO 1MS

AD Item Features 01

Provides foundation for the rest of momentum control system

AD Item Features 02

Serve as the mounting base

AD Item Features 03

Overload on output fault

AD Item Features 04

16 LEDs for channel status local signaling

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

10.0600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8600

AD Package Weight UOM

LB

AD Package Width

7.0200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/O_qwHU-1vVE

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

250

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V DC

Spec 10 Attribute Value

24

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

47.5 mm L x 125 mm W x 141.5 mm H

Spec 3 Attribute

Number of Inputs

Spec 3 Attribute Value

16

Spec 4 Attribute

Number of Outputs

Spec 4 Attribute Value

16

Spec 5 Attribute

Power Rating

Spec 5 Attribute UOM

W

Spec 5 Attribute Value

6 to 8

Spec 6 Attribute

Series

Spec 6 Attribute Value

170AD

Spec 7 Attribute

Step Response

Spec 7 Attribute UOM

Ms

Spec 7 Attribute Value

0.1 to 1

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

0 To 60

Spec 9 Attribute

Type

Spec 9 Attribute Value

Solid State Base DC
