Schneider Electric

199X-12 - Power relay, SE Relays, DPDT, 40A, 12 VDC, open type, heavy duty

Category Miscellaneous

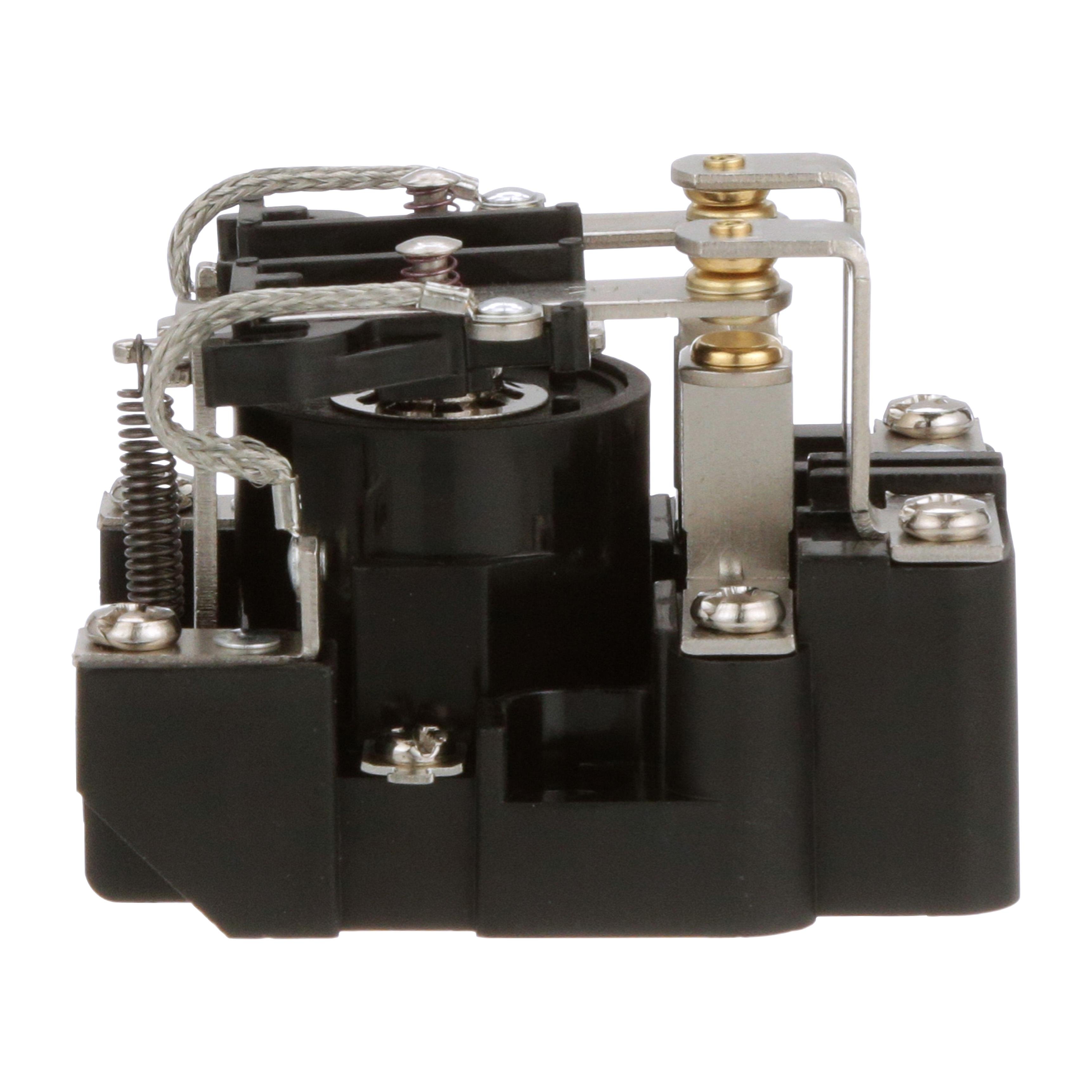

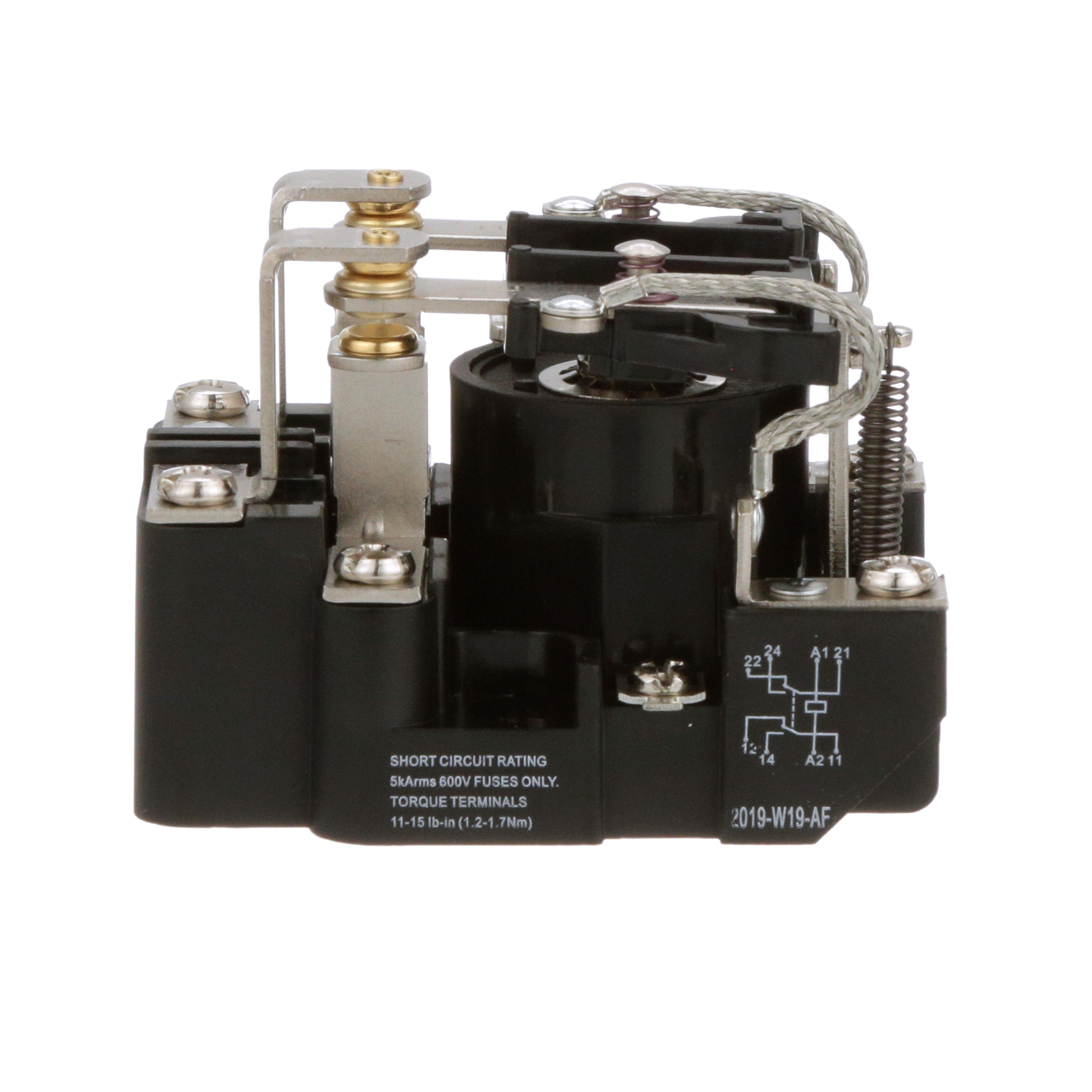

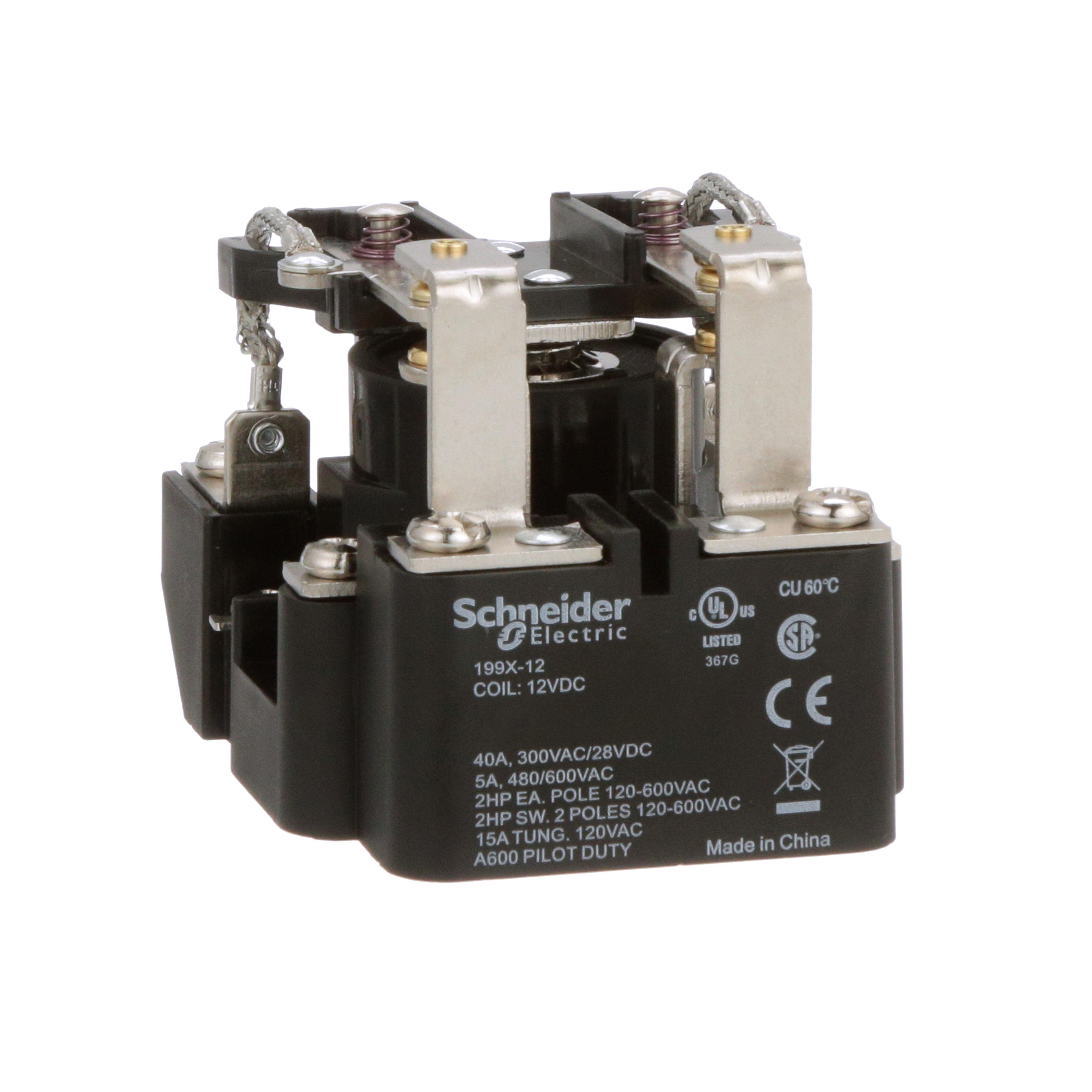

Picture of 199X-12 - Power relay, SE Relays, DPDT, 40A, 12 VDC, open type, heavy duty Picture of 199X-12 - Power relay, SE Relays, DPDT, 40A, 12 VDC, open type, heavy duty
Picture of 199X-12 - Power relay, SE Relays, DPDT, 40A, 12 VDC, open type, heavy duty Picture of 199X-12 - Power relay, SE Relays, DPDT, 40A, 12 VDC, open type, heavy duty
Picture of 199X-12 - Power relay, SE Relays, DPDT, 40A, 12 VDC, open type, heavy duty Picture of 199X-12 - Power relay, SE Relays, DPDT, 40A, 12 VDC, open type, heavy duty
Picture of 199X-12 - Power relay, SE Relays, DPDT, 40A, 12 VDC, open type, heavy duty Picture of 199X-12 - Power relay, SE Relays, DPDT, 40A, 12 VDC, open type, heavy duty
Schneider Electric

199X-12 - Power relay, SE Relays, DPDT, 40A, 12 VDC, open type, heavy duty

Item Code: 1195689
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 199X-12
Minimum order quantity 10

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The SE Relays 199 series, open type, heavy duty power relay offers high-capacity switching with high dielectric strength. High-power contacts rated of 40A resistive and 2hp at 120VAC to 600 VAC, input coil voltage 12VDC with DPDT silver alloy contact configuration. Riveted construction helps to increase the mechanical life of the relay.

Specifications

Weight

0.65

Height

2.5

Width

3.1

Length

2.29

AD All Features

Socket compatible models available

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

PWR RLY 40A 2CO 12VDC 10VA 50/60HZ

AD Item Features 01

Socket compatible models available

AD Item Features 02

Flux tight versions available

AD Item Features 03

Blowout magnet options for high DC voltage switching

AD Item Features 04

Feature-rich covers, mounting options and accessories to suit a multitude of applications

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.5000

AD Package Height UOM

IN

AD Package Length

2.2900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.6500

AD Package Weight UOM

LB

AD Package Width

3.1000

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

40

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

12

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2CO 2 Form C

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

Silver

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Power Rating

Spec 6 Attribute UOM

VA

Spec 6 Attribute Value

10

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg C

Spec 7 Attribute Value

-55 to 55
