Square D

1S43F - Transformer, buck boost, encapsulated, 1kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise

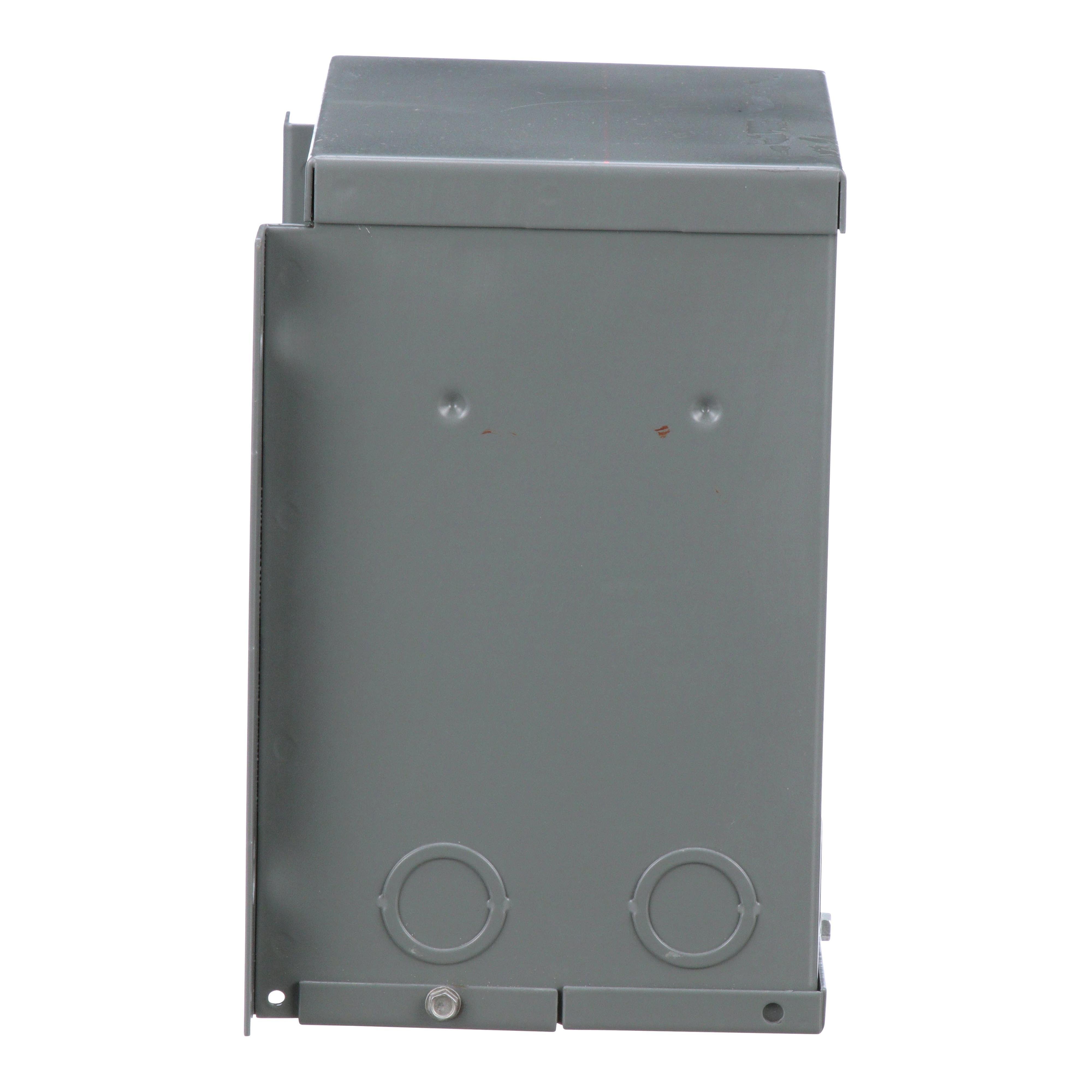

Picture of 1S43F - Transformer, buck boost, encapsulated, 1kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise Picture of 1S43F - Transformer, buck boost, encapsulated, 1kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise
Picture of 1S43F - Transformer, buck boost, encapsulated, 1kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise Picture of 1S43F - Transformer, buck boost, encapsulated, 1kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise
Square D

1S43F - Transformer, buck boost, encapsulated, 1kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise

Item Code: 17049
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 1S43F

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

A Buck and Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck and Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltage, and a 12V/24V secondary voltage. This transformer has a rated power of 1KVA. This transformer has a temperature rise of 115 °C. This product has a UL listed, cULus & CSA certifications.

Specifications

Weight

25.61lb

Height

9mm

Width

10.4mm

Length

11.39mm
