Square D

1S67F - [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 1kVA, 1 phase, multiple voltages, 7A, 115C rise

Category Dry Type Transformers 600V Or Less

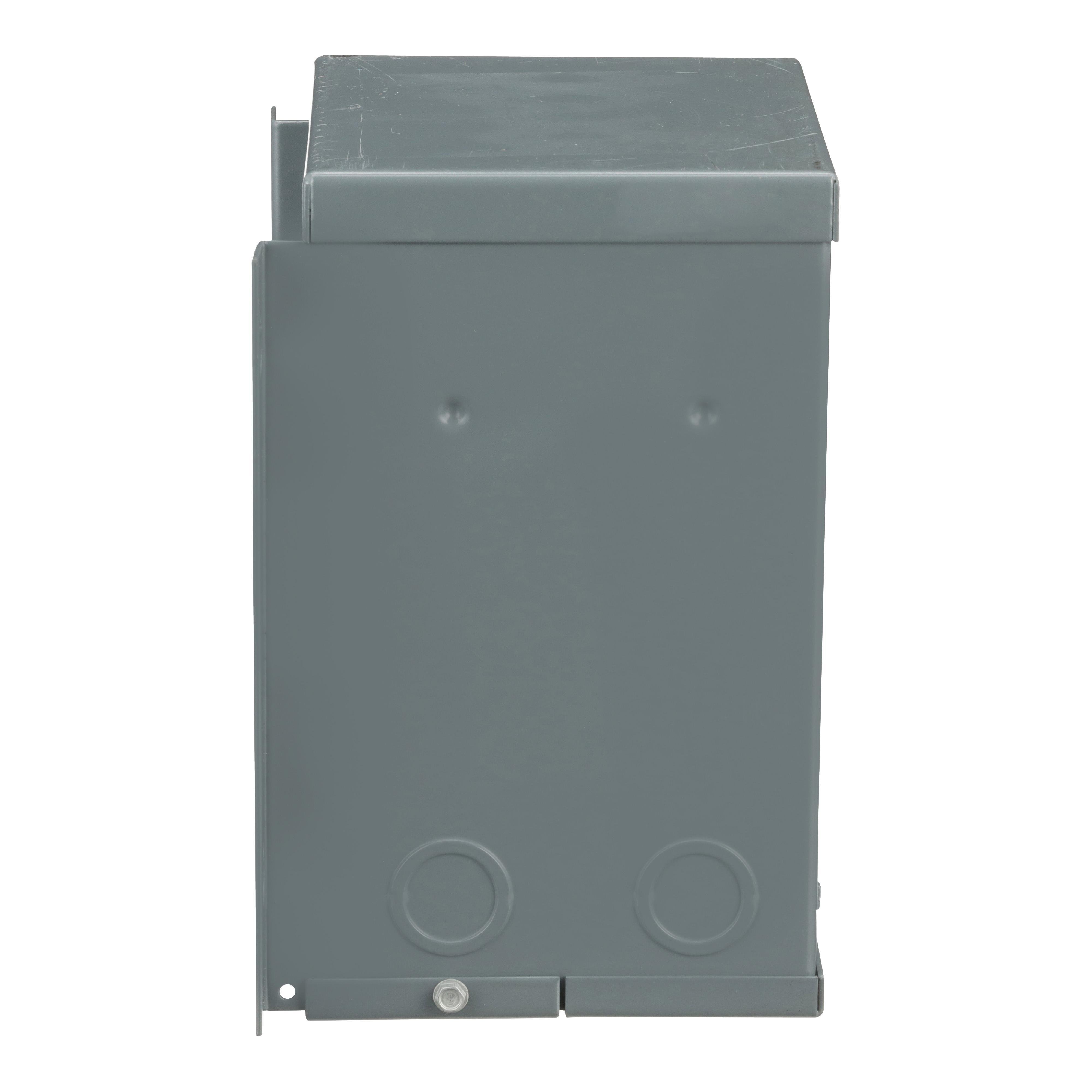

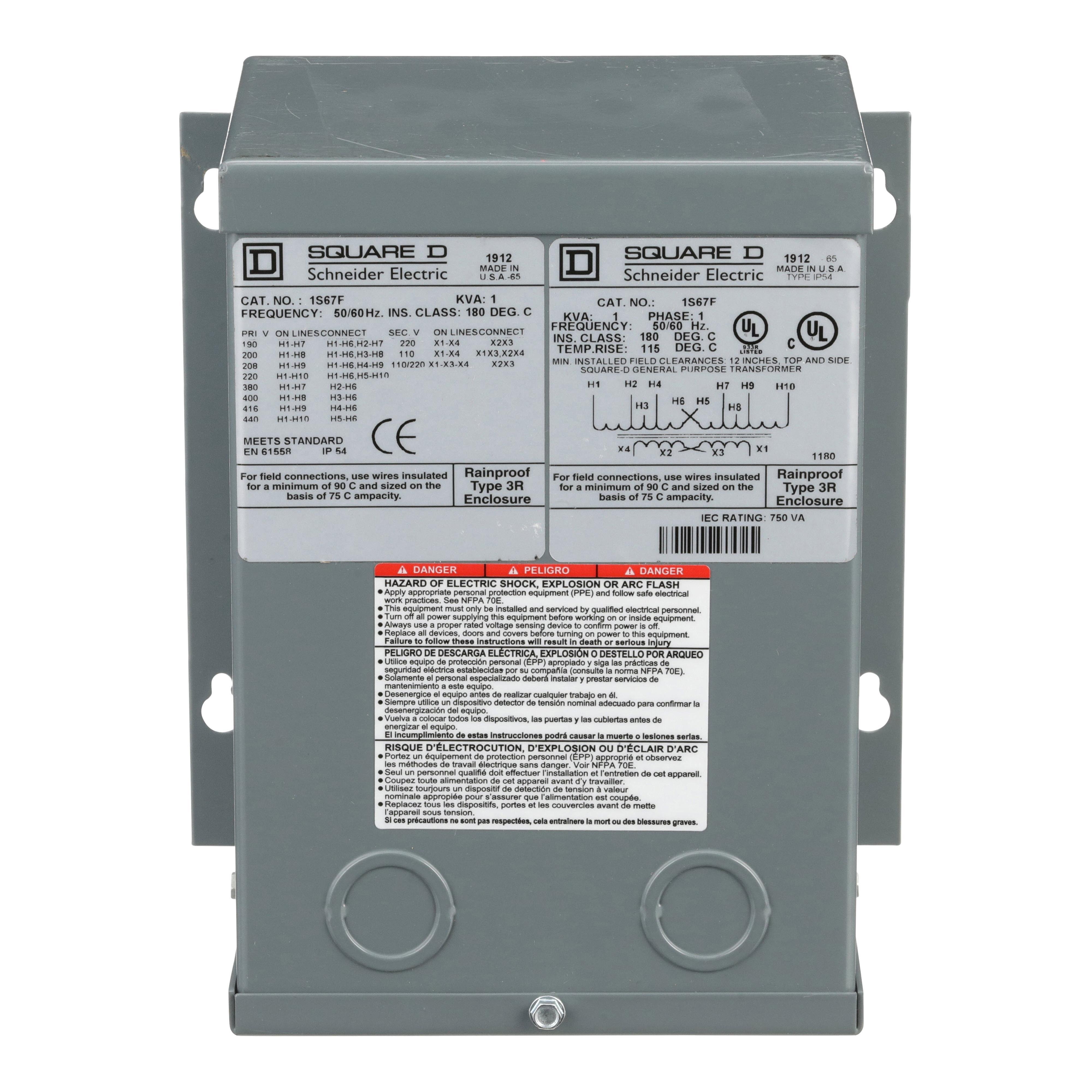

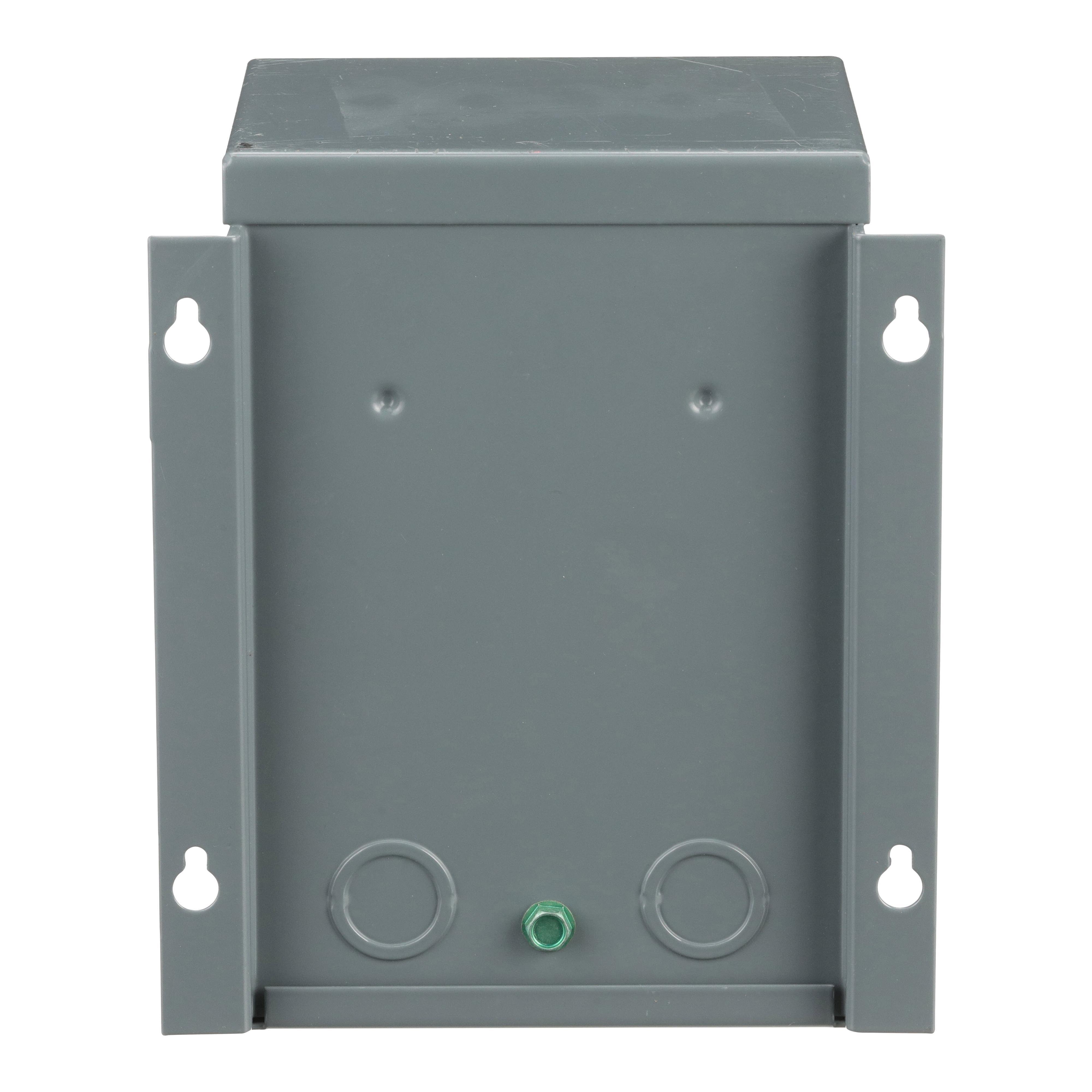

Picture of 1S67F - [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 1kVA, 1 phase, multiple voltages, 7A, 115C rise Picture of 1S67F - [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 1kVA, 1 phase, multiple voltages, 7A, 115C rise
Picture of 1S67F - [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 1kVA, 1 phase, multiple voltages, 7A, 115C rise Picture of 1S67F - [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 1kVA, 1 phase, multiple voltages, 7A, 115C rise
Picture of 1S67F - [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 1kVA, 1 phase, multiple voltages, 7A, 115C rise Picture of 1S67F - [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 1kVA, 1 phase, multiple voltages, 7A, 115C rise
Picture of 1S67F - [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 1kVA, 1 phase, multiple voltages, 7A, 115C rise Picture of 1S67F - [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 1kVA, 1 phase, multiple voltages, 7A, 115C rise
Square D

1S67F - [TAA, BAA, BABA, BAA_COTS] Transformer, dry type, encapsulated, 1kVA, 1 phase, multiple voltages, 7A, 115C rise

Item Code: 582358
Category Dry Type Transformers 600V Or Less
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 1S67F

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 1 KVA. This transformer has a primary voltage of 190/200/208/220 x 380/400/416/440 V, and a secondary voltage of 110/220 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 8.13 in (H), 6.94 in (W), 5.31 in (D). This product complys to UL & CSA standards.

Specifications

Weight

21.16lb

Height

8.13mm

Width

10.1mm

Length

11.09mm

Depth

5.31mm

AD All Features

Resin filled transformers are epoxy encoapsulated

AD Application

For intended for export, designed to accommodate voltage systems worldwide, OEM commercial and industrial markets

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

TRANSFORMER 110/220VAC 1KVA 50/60HZ

AD Item Features 01

Resin filled transformers are epoxy encoapsulated

AD Item Features 02

Individual enclosures from 50VA through 5kVA

AD Item Features 03

Can be configured into autotransformer

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

11.0900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

21.1600

AD Package Weight UOM

LB

AD Package Width

10.1000

AD Package Width UOM

IN

Brand

Square D

Category

DRY TYPE TRANSFORMERS 600V OR LESS

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

5.31 in L x 6.94 in W x 8.13 in H

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

110/220

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

115

Spec 12 Attribute

Type

Spec 12 Attribute Value

Dry Sealed Low Voltage

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 3R

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

50/60

Spec 4 Attribute

Housing Material

Spec 4 Attribute Value

Sheet Steel

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

kVA

Spec 8 Attribute Value

1

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

190/200/208/220 x 380/400/416/440
