Square D

2510FW1P - Manual Starter, fractional horsepower, 16A, 1 pole, 1 HP at 277 VAC, red indicator, NEMA 4 enclosure, 1 conduit opening

Category Manual Starters

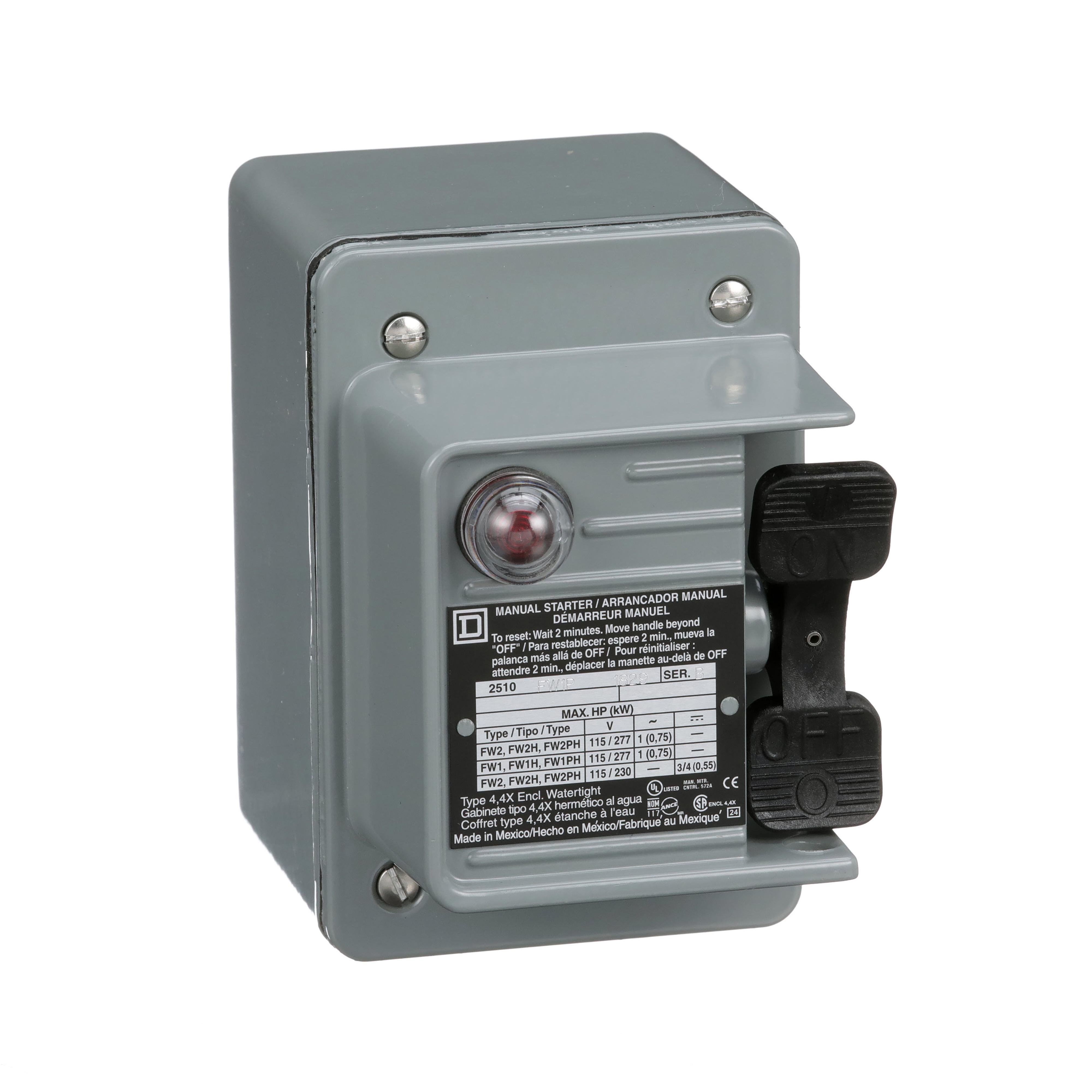

Picture of 2510FW1P - Manual Starter, fractional horsepower, 16A, 1 pole, 1 HP at 277 VAC, red indicator, NEMA 4 enclosure, 1 conduit opening Picture of 2510FW1P - Manual Starter, fractional horsepower, 16A, 1 pole, 1 HP at 277 VAC, red indicator, NEMA 4 enclosure, 1 conduit opening
Picture of 2510FW1P - Manual Starter, fractional horsepower, 16A, 1 pole, 1 HP at 277 VAC, red indicator, NEMA 4 enclosure, 1 conduit opening Picture of 2510FW1P - Manual Starter, fractional horsepower, 16A, 1 pole, 1 HP at 277 VAC, red indicator, NEMA 4 enclosure, 1 conduit opening
Square D

2510FW1P - Manual Starter, fractional horsepower, 16A, 1 pole, 1 HP at 277 VAC, red indicator, NEMA 4 enclosure, 1 conduit opening

Item Code: 661685
Category Manual Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2510FW1P

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This manual starter is 4.38 inches tall, 3.00 inches wide and 4.56 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified. Flush mounted units can be mounted in a standard switch box or in a machine cavity without a box.

Specifications

Weight

2.95

Height

3.5

Width

4.66

Length

5.35

AD All Features

This one pole device has a red pilot light indicator

AD Application

For providing overload protection as well as manual On/Off control for small motors in a variety of industrial and commercial installations

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

STARTER MNL 1 NEMA 4 600 VAC/250 VDC 16A

AD Item Features 01

This one pole device has a red pilot light indicator

AD Item Features 02

Typical applications include fans, conveyors, pumps and small machine tools

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.5000

AD Package Height UOM

IN

AD Package Length

5.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

88.8300

AD Package Volume UOM

cu-in

AD Package Weight

2.9500

AD Package Weight UOM

LB

AD Package Width

4.6600

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/yox3SJNlwPI

Brand

Square D

Category

MANUAL STARTERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

16

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Reset Type

Spec 11 Attribute Value

Manual

Spec 12 Attribute

Series

Spec 12 Attribute Value

2510F

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type F Fractional Horsepower Non-Reversing Single Unit

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute Value

600 V AC/250 V DC

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw clamp

Spec 3 Attribute

Control Type

Spec 3 Attribute Value

Toggle

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3 in W x 4.56 in D x 4.38 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 4

Spec 6 Attribute

Material

Spec 6 Attribute Value

Die Cast Zinc Alloy

Spec 7 Attribute

motor power

Spec 7 Attribute UOM

HP

Spec 7 Attribute Value

1

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

1

Spec 9 Attribute

Overload Relay

Spec 9 Attribute Value

Thermal Melting Alloy

Square D
