Square D

2510KG1B - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 230 VAC indicator, NEMA 1 enclosure

Category Manual Motor Switches & Accessories

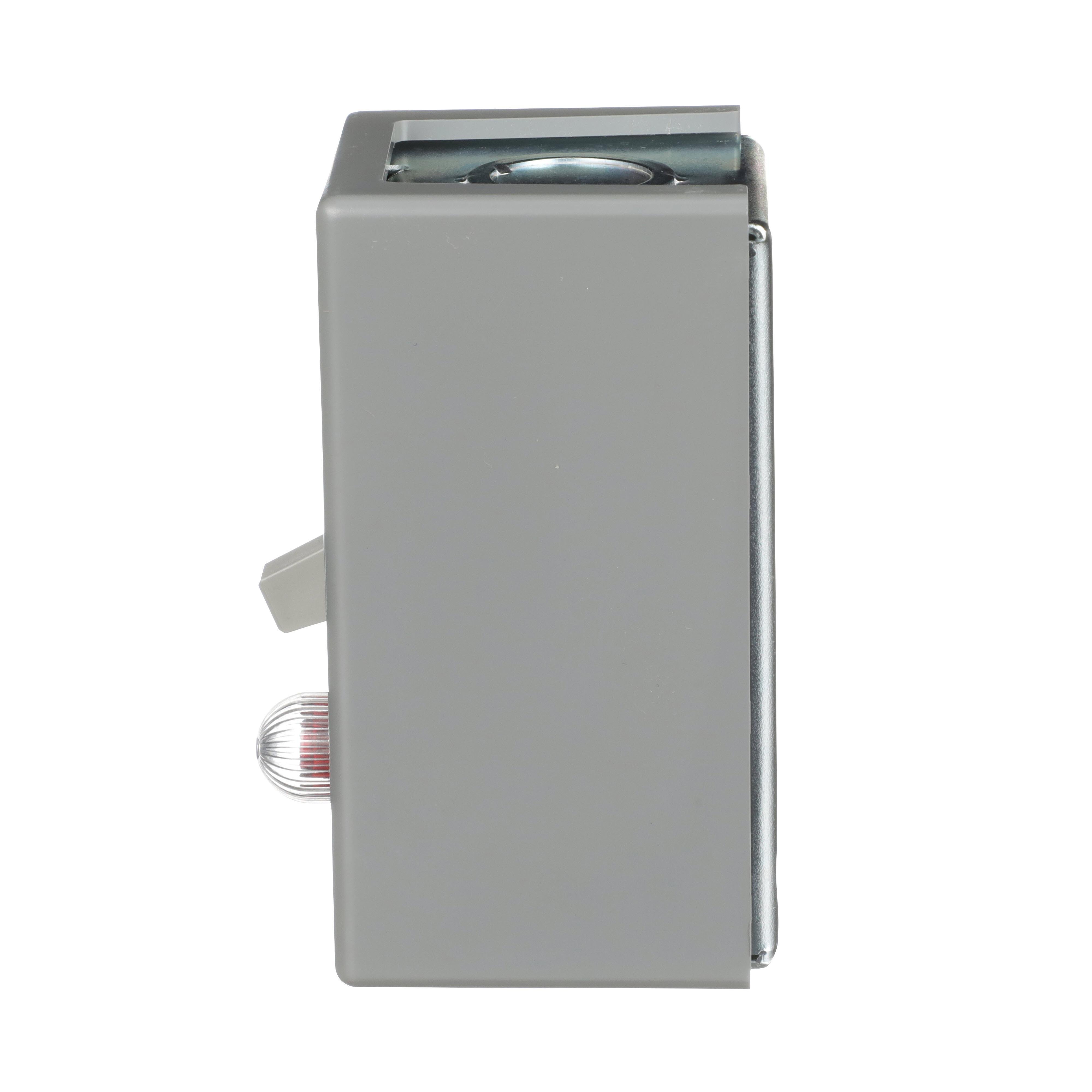

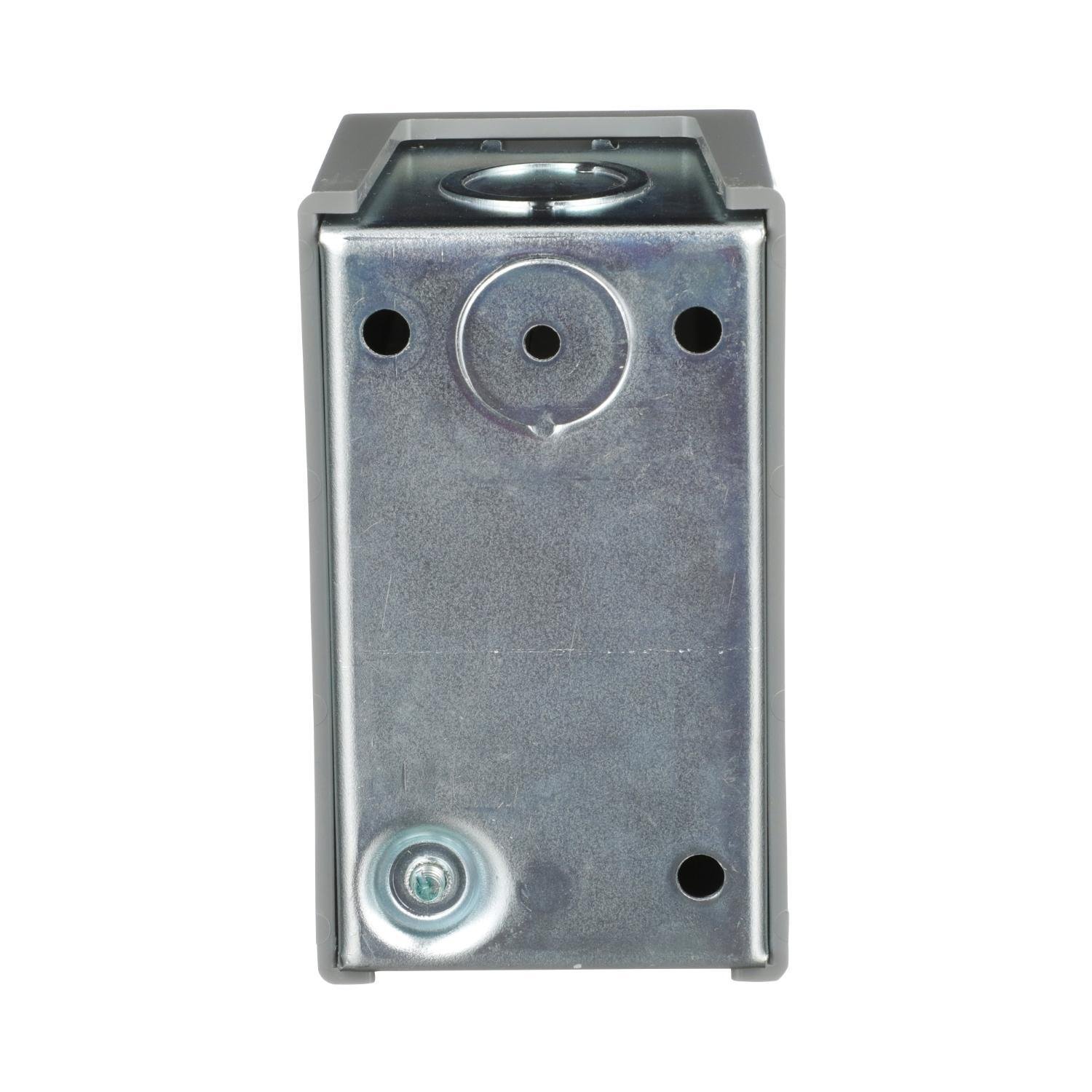

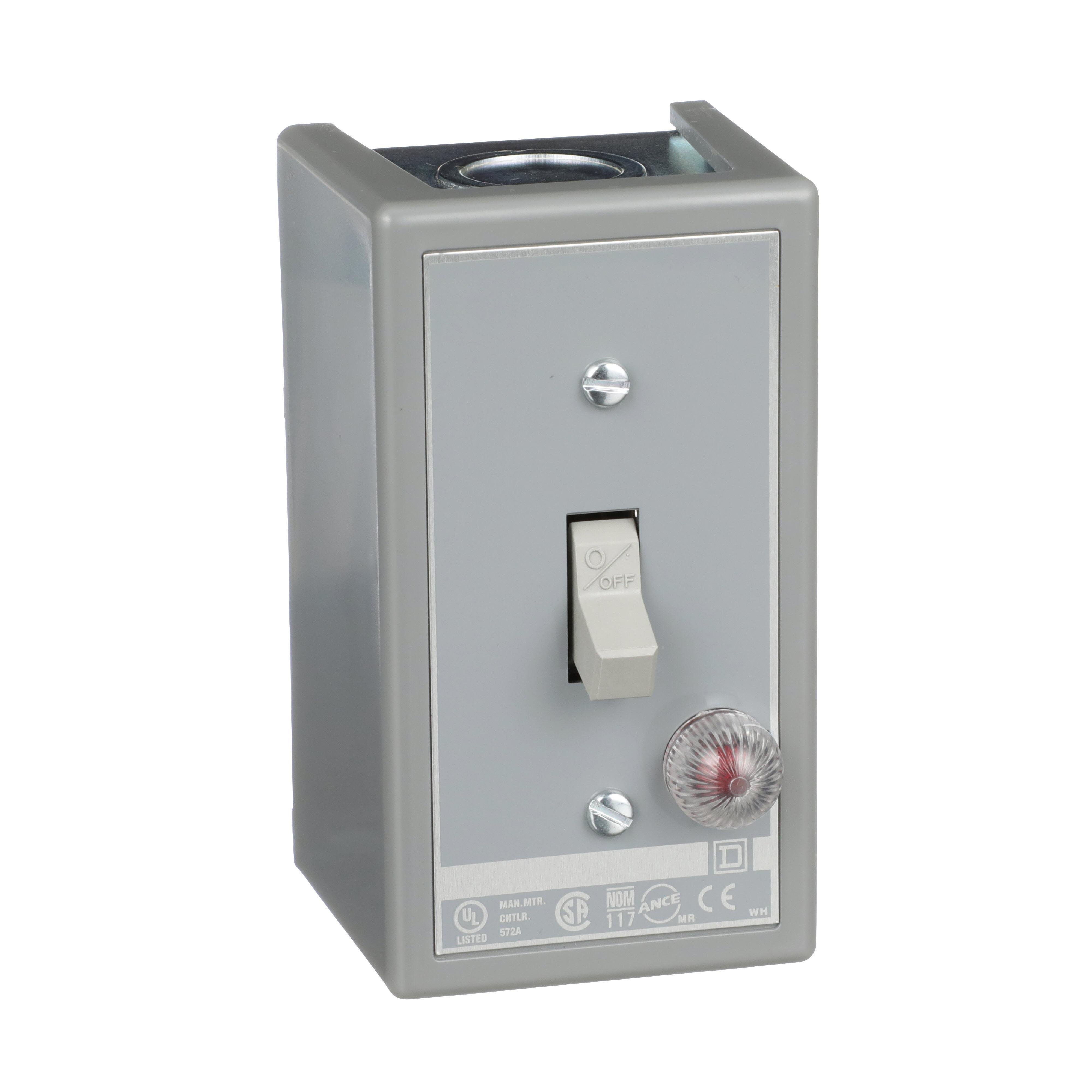

Picture of 2510KG1B - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 230 VAC indicator, NEMA 1 enclosure Picture of 2510KG1B - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 230 VAC indicator, NEMA 1 enclosure
Picture of 2510KG1B - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 230 VAC indicator, NEMA 1 enclosure Picture of 2510KG1B - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 230 VAC indicator, NEMA 1 enclosure
Picture of 2510KG1B - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 230 VAC indicator, NEMA 1 enclosure Picture of 2510KG1B - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 230 VAC indicator, NEMA 1 enclosure
Picture of 2510KG1B - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 230 VAC indicator, NEMA 1 enclosure Picture of 2510KG1B - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 230 VAC indicator, NEMA 1 enclosure
Square D

2510KG1B - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 230 VAC indicator, NEMA 1 enclosure

Item Code: 654303
Category Manual Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2510KG1B

Document
Document
Call for Availability
Add to Favorites
Compare

Description

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has a 230 VAC red pilot light indicator. This NEMA 1 general purpose enclosure is a surface mounting enclosure. The enclosure has has a 0.5 and 0.75 knockout on the top and bottom. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.

Specifications

Weight

0.86

Width

3.08

Length

4.76

AD All Features

This two pole, 30 Aswitch has a red pilot light indicator

AD Application

Simple Machine Control, HVAC, Self-Protected Motors and 3-ph AC Motors Rated up to 20 hp

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH SGL UNIT MNL 600/230VAC/VDC 30A 2

AD Item Features 01

This two pole, 30 Aswitch has a red pilot light indicator

AD Item Features 02

This NEMA 1 general purpose enclosure is a surface mounting enclosure

AD Item Features 03

This Type K Manual Switch is an economical on/off solution

AD Item Features 04

Simple design, small size and easy to install

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.7600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8600

AD Package Weight UOM

LB

AD Package Width

3.0800

AD Package Width UOM

IN

Brand

Square D

Category

MANUAL MOTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Series

Spec 10 Attribute Value

2510

Spec 11 Attribute

Type

Spec 11 Attribute Value

1-Phase Type K

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute Value

600 V AC/230 V DC

Spec 2 Attribute

Actuator

Spec 2 Attribute Value

Toggle

Spec 3 Attribute

Amperage Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

30

Spec 4 Attribute

Connection

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

2.44 in W x 2.75 in D x 4.25 in H

Spec 6 Attribute

Enclosure

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Indicator

Spec 7 Attribute Value

Red

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

Power Rating

Spec 9 Attribute Value

2 hp at 115/230 VAC/3 hp at 460/575 VAC
