Square D

2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure

Category Miscellaneous

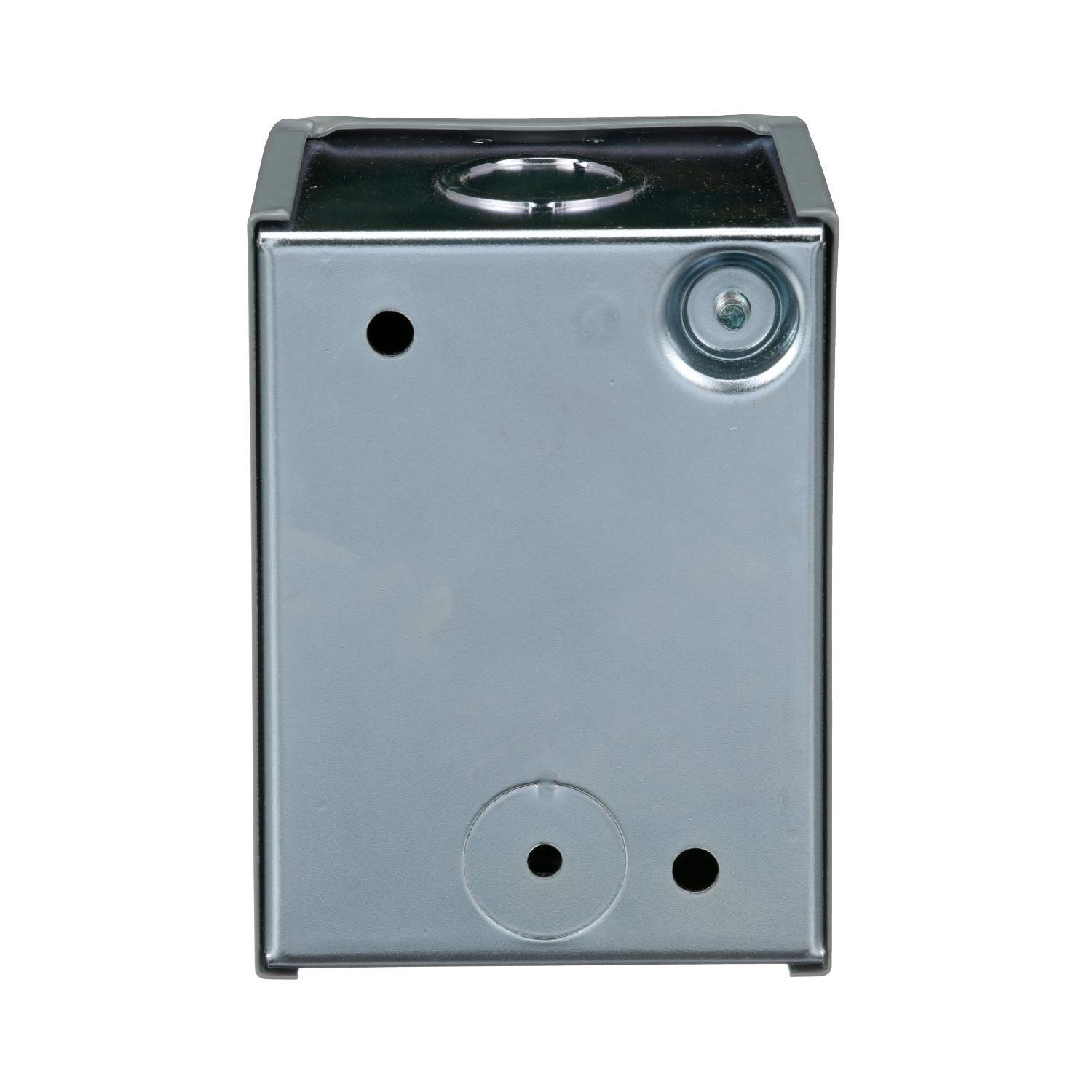

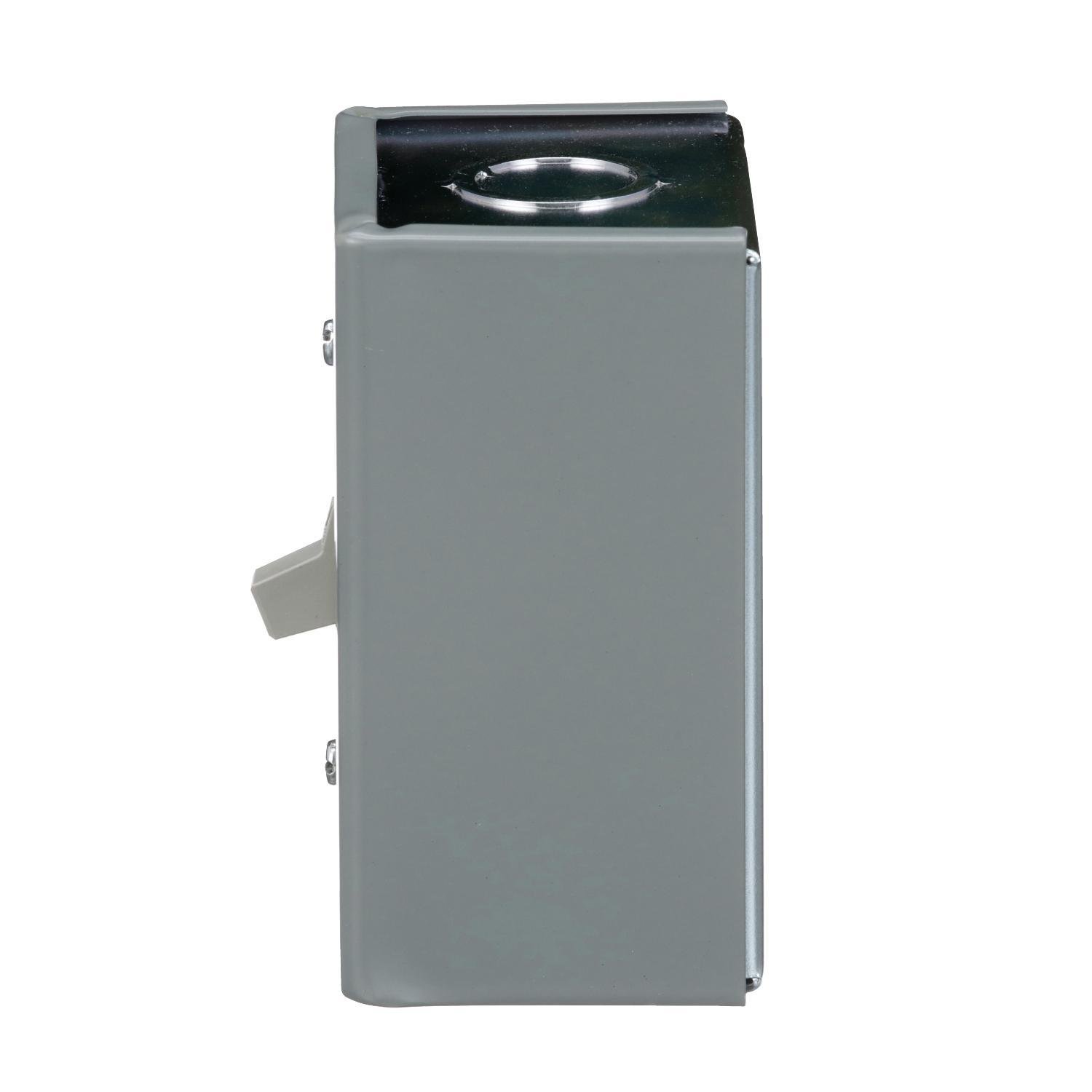

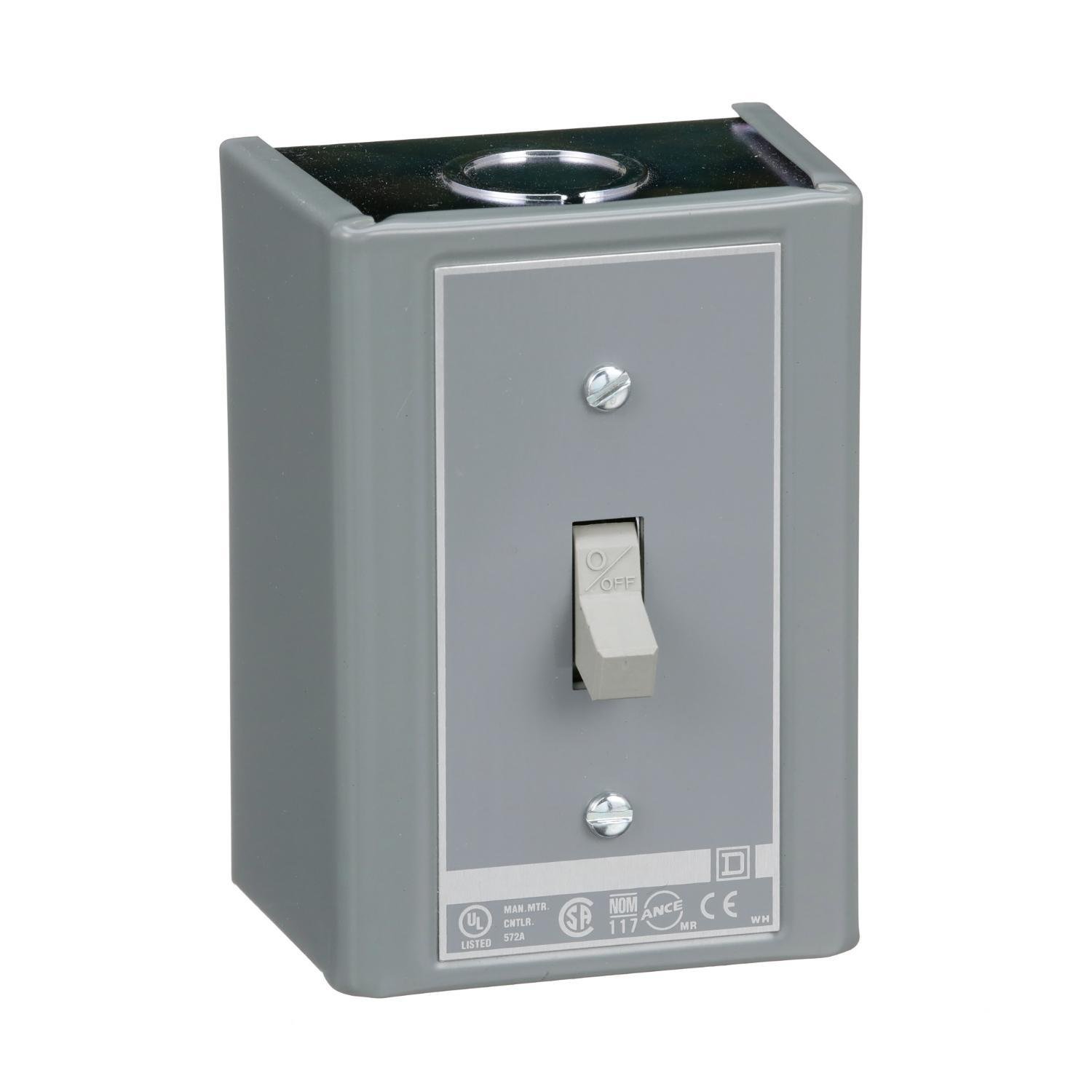

Picture of 2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure Picture of 2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure
Picture of 2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure Picture of 2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure
Picture of 2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure Picture of 2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure
Picture of 2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure Picture of 2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure
Square D

2510KGJ2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 jumbo enclosure

Item Code: 596247
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2510KGJ2

Document
Document
Call for Availability
Add to Favorites
Compare

Description

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This NEMA 1 oversized general purpose enclosure is a surface mounting enclosure. The enclosure has has a 0.5 and 0.75 knockout on the top and bottom. The enclosure is 4.25 inches tall, 2.88 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.

Specifications

Weight

1.13

Height

3.8

Width

3.78

Length

4.84

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2510KGJ2/2510KGJ2.spin

AD All Features

This three pole, 30 Aswitch is without a pilot light indicator

AD Alternative Part Number

8067878

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD EAN

0785901486534

AD Gtin

00785901486534

AD IDEA Index ID

8067878

AD Invoice Description

SWITCH MNL TYPE K NON-REVERSING 3 NEMA 1

AD Item Features 01

This three pole, 30 Aswitch is without a pilot light indicator

AD Item Features 02

This NEMA 1 general purpose jumbo enclosure is a surface mounting enclosure

AD Item Features 03

This Type K Manual Switch is an economical on/off solution

AD Item Features 04

Simple design, small size and easy to install

AD Keywords

2510KGJ2 Type K Non-Reversing Manual Switch, 3 Poles, NEMA 1 Enclosure ; Schneider Electric ; Square D ; 2510KGJ2 ; 2510KGJ2 ; 785901486534 ; Manual Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.8000

AD Package Height UOM

IN

AD Package Length

4.8400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

57.7200

AD Package Volume UOM

cu-in

AD Package Weight

1.1300

AD Package Weight UOM

LB

AD Package Width

3.7800

AD Package Width UOM

IN

AD Part Number Keywords

2510KGJ2 ; 8067878 ; 785901486534 ; 78590148653 ; 00785901486534 ; 0785901486534

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 10 Attribute

Reset Type

Spec 10 Attribute Value

Manual

Spec 11 Attribute

Series

Spec 11 Attribute Value

2510K

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type K Non-Reversing

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute Value

600 V AC/230 V DC

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw clamp

Spec 3 Attribute

Control Type

Spec 3 Attribute Value

Toggle

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

2.88 in W x 2.75 in D x 4.25 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Material

Spec 6 Attribute Value

Steel

Spec 7 Attribute

motor power

Spec 7 Attribute UOM

HP

Spec 7 Attribute Value

10

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
