Square D

2510KW1 - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening

Category Miscellaneous

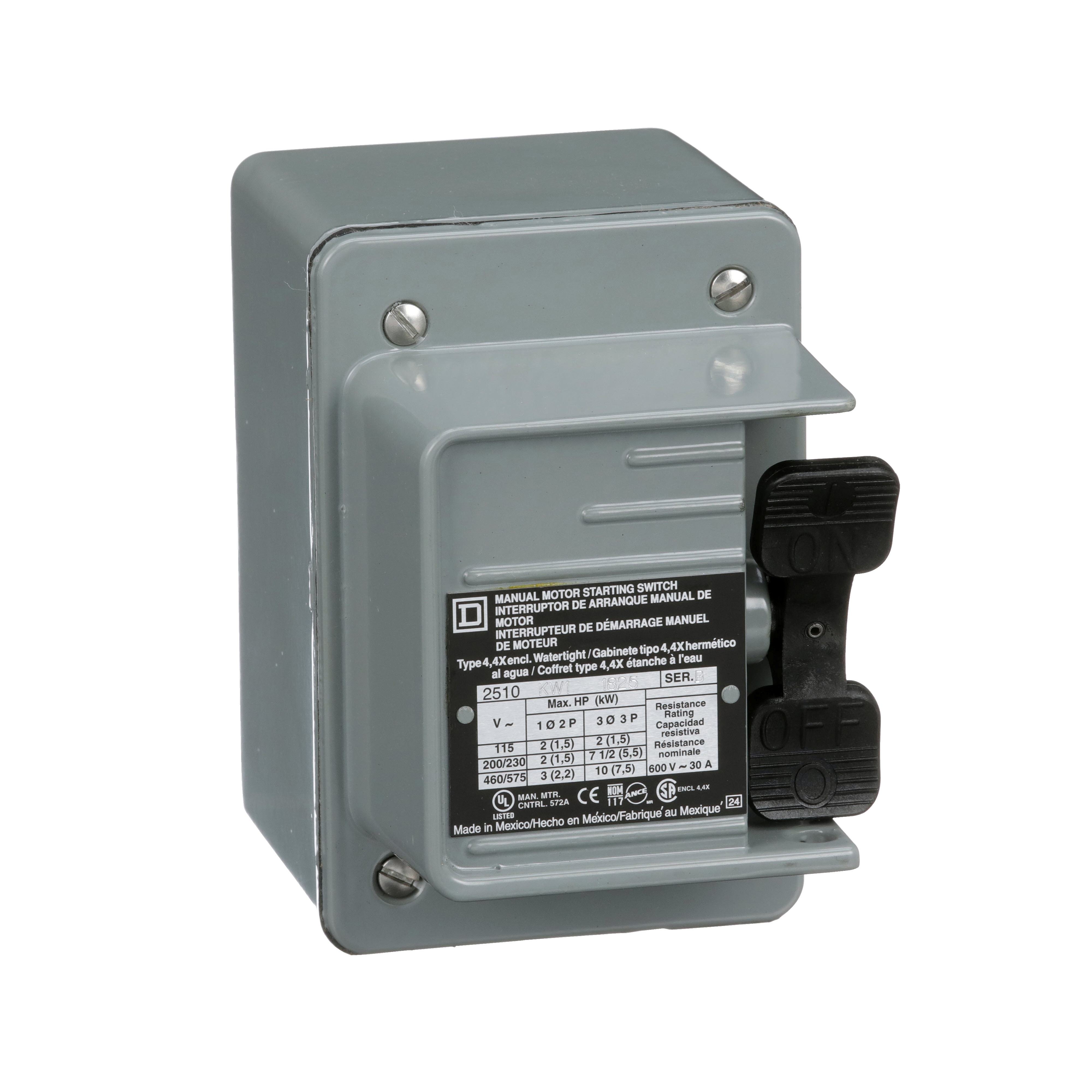

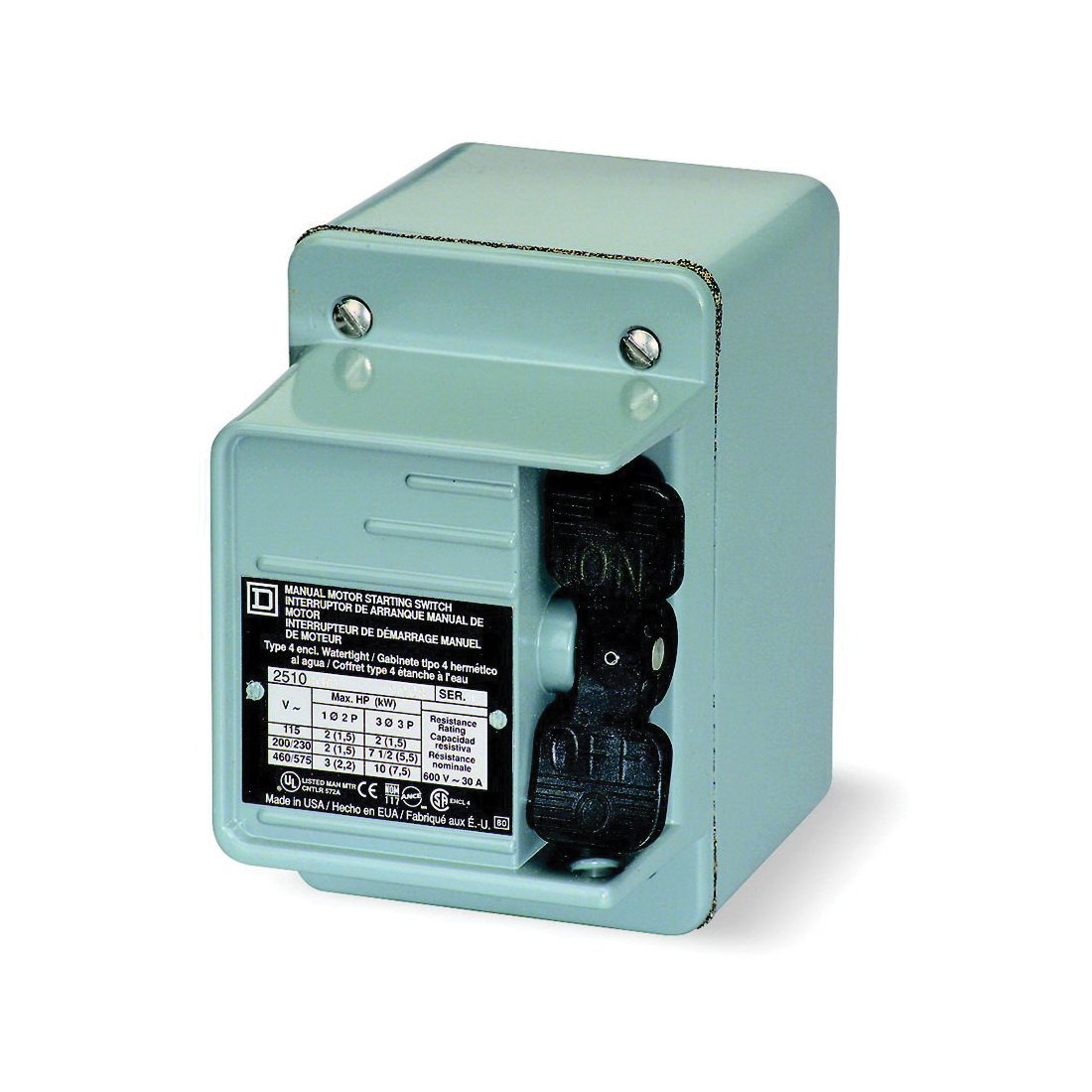

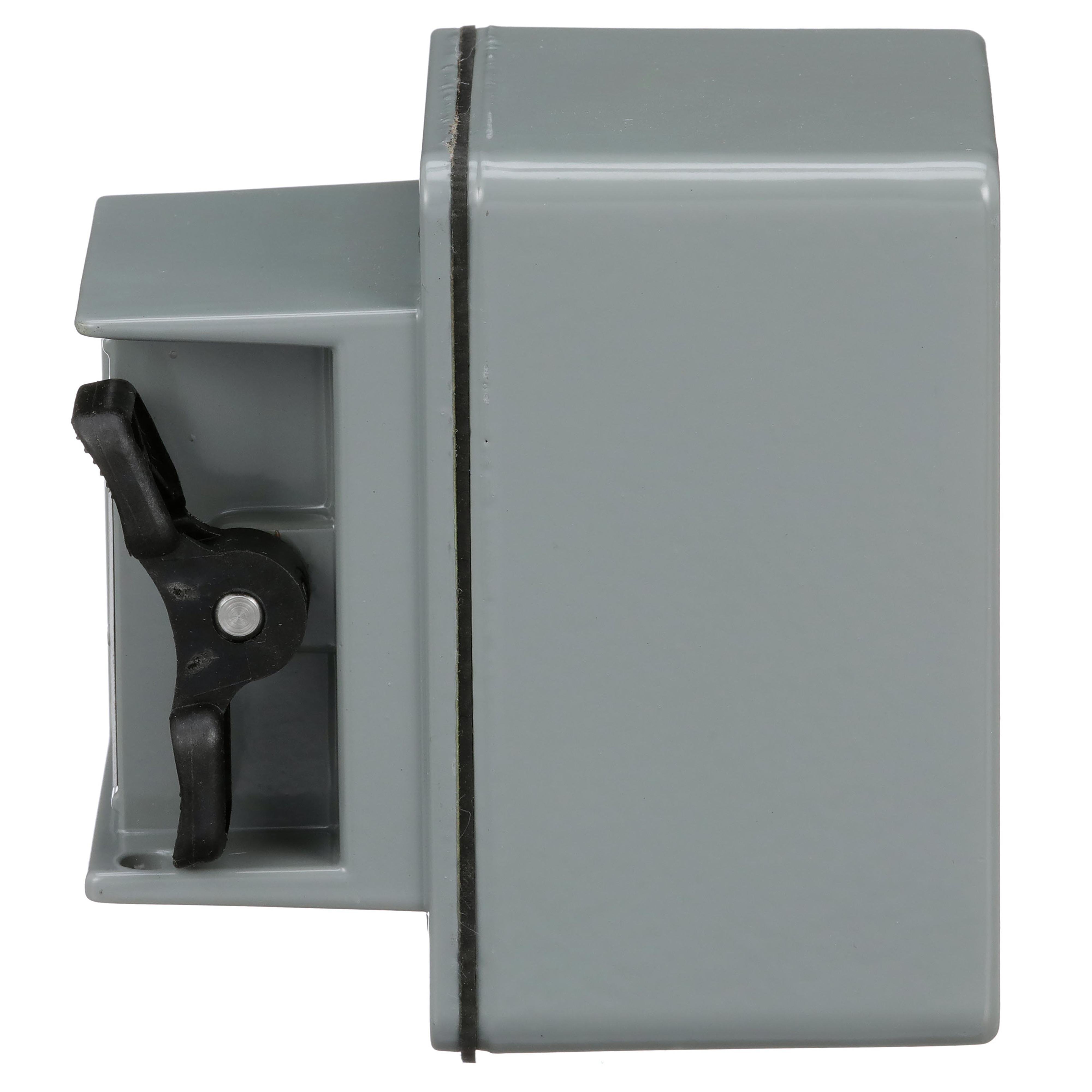

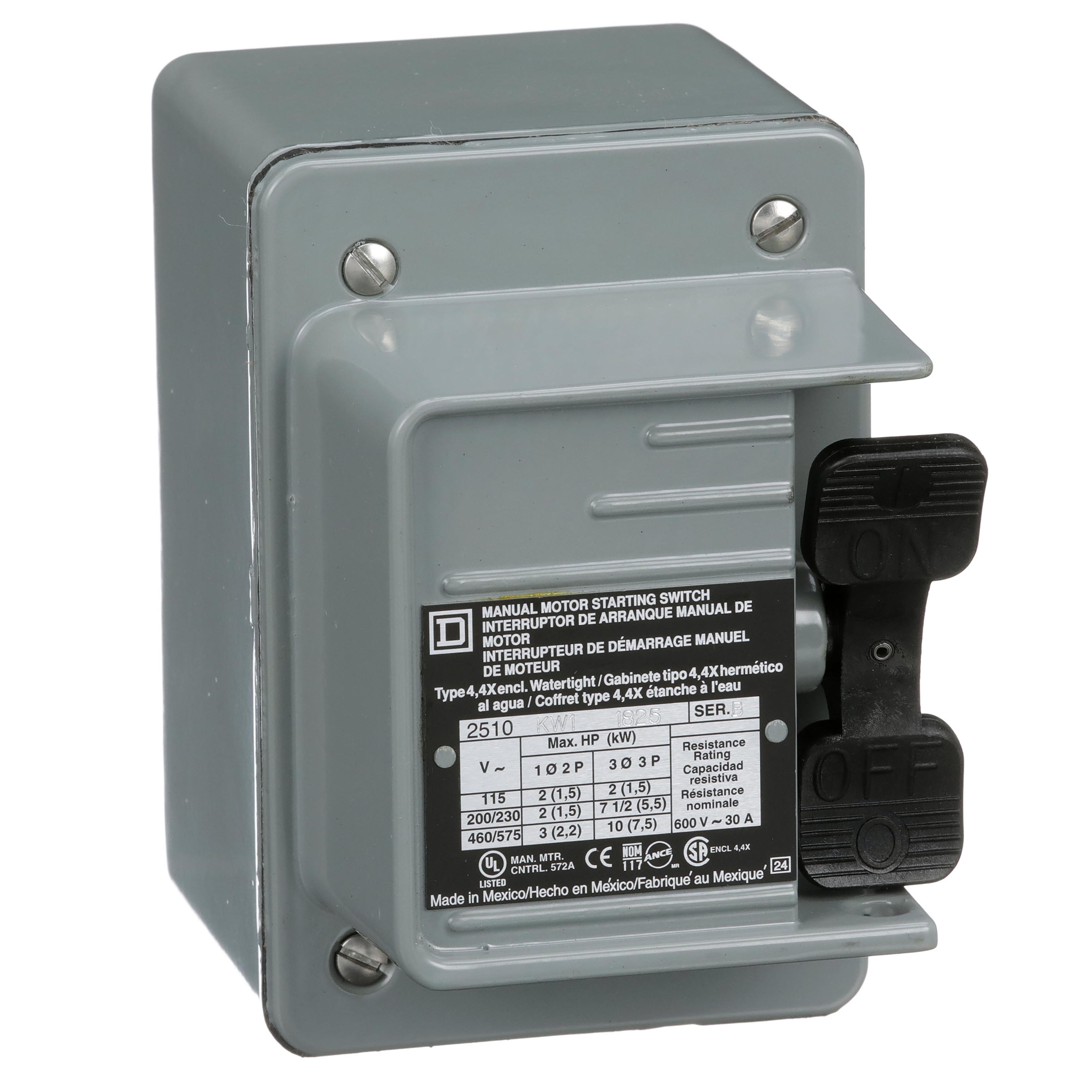

Picture of 2510KW1 - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening Picture of 2510KW1 - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening
Picture of 2510KW1 - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening Picture of 2510KW1 - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening
Picture of 2510KW1 - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening Picture of 2510KW1 - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening
Picture of 2510KW1 - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening Picture of 2510KW1 - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening
Square D

2510KW1 - Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, no indicator, NEMA 4 one conduit opening

Item Code: 525288
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2510KW1

Document
Document
Call for Availability
Add to Favorites
Compare

Description

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 20A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This device is 4.38 inches tall, 3.00 inches wide and 4.25 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.

Specifications

Weight

2.9

Height

3.8

Width

4.76

Length

5.34

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2510KW1/2510KW1.spin

AD All Features

This two pole, 30 Aswitch is without a pilot light indicator

AD Alternative Part Number

8089775

AD Application

Oiltight and Dusttight Environments

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD EAN

0785901554714

AD Gtin

00785901554714

AD IDEA Index ID

8089775

AD Invoice Description

SWITCH MNL TYPE K NON-REVERSING 2 NEMA 4

AD Item Features 01

This two pole, 30 Aswitch is without a pilot light indicator

AD Item Features 02

This Type K Manual Switch is an economical on/off solution

AD Item Features 03

Simple design, small size and easy to install

AD Keywords

2510KW1 Type K Manual Switch, Non-Reversing Action, 2 Poles, NEMA 4 Enclosure ; Schneider Electric ; Square D ; 2510KW1 ; 2510KW1 ; 785901554714 ; Manual Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.8000

AD Package Height UOM

IN

AD Package Length

5.3400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

98.5000

AD Package Volume UOM

cu-in

AD Package Weight

2.9000

AD Package Weight UOM

LB

AD Package Width

4.7600

AD Package Width UOM

IN

AD Part Number Keywords

2510KW1 ; 8089775 ; 785901554714 ; 78590155471 ; 00785901554714 ; 0785901554714

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Reset Type

Spec 11 Attribute Value

Manual

Spec 12 Attribute

Series

Spec 12 Attribute Value

2510K

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type K

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute Value

600 V AC/230 V DC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

30

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Control Type

Spec 4 Attribute Value

Toggle

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

3 in W x 4.25 in D x 4.38 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 4

Spec 7 Attribute

Material

Spec 7 Attribute Value

Die Cast Zinc Alloy

Spec 8 Attribute

motor power

Spec 8 Attribute Value

3 hp, 1-1/2 hp

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
