Square D

2510KW2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 4, one conduit opening

Category Miscellaneous

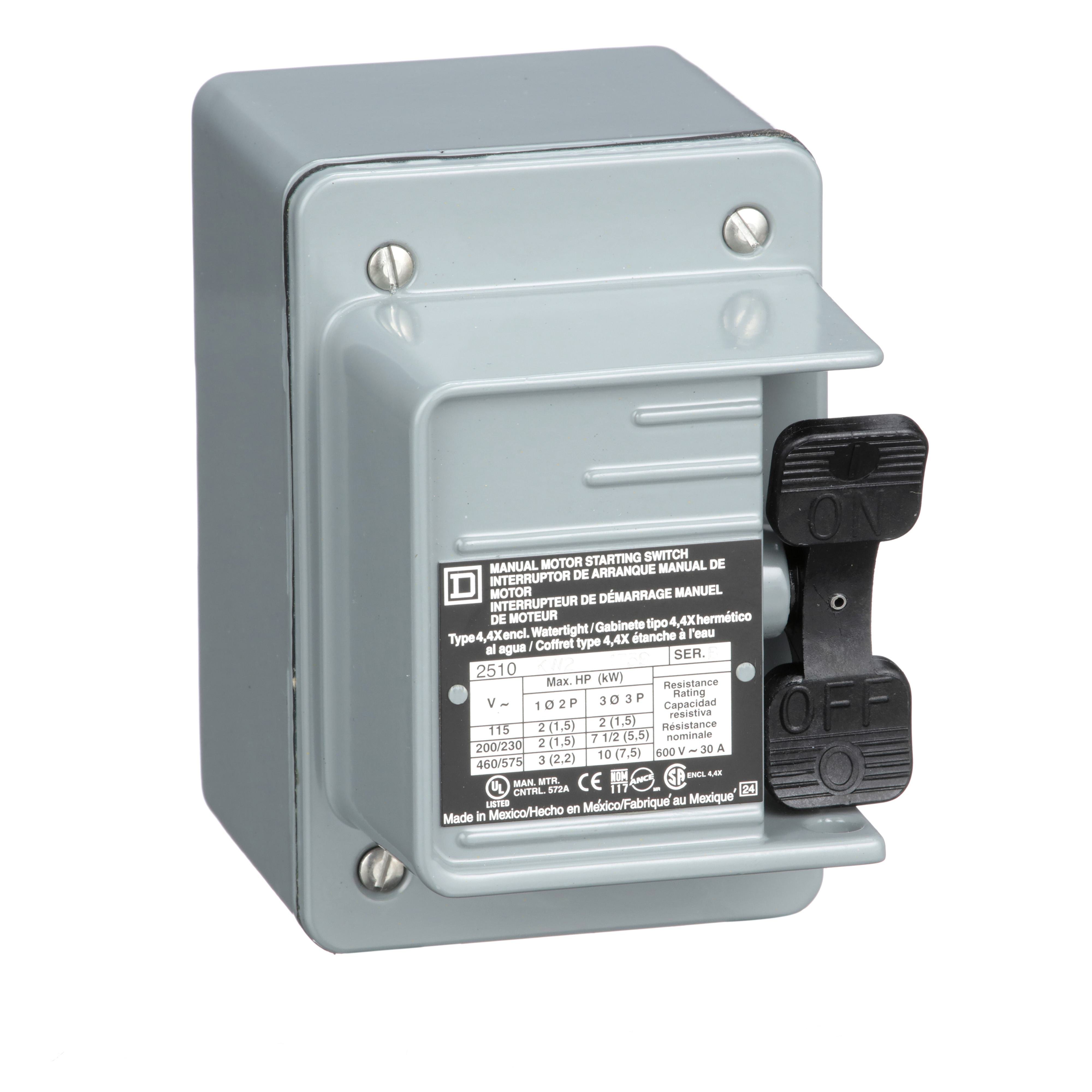

Picture of 2510KW2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 4, one conduit opening
Square D

2510KW2 - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 4, one conduit opening

Item Code: 525200
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2510KW2

Document
Document
Call for Availability
Add to Favorites
Compare

Description

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This device is 4.38 inches tall, 3.00 inches wide and 4.25 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.

Specifications

Weight

2.94

Height

3.7

Width

4.75

Length

5.35

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2510KW2/2510KW2.spin

AD All Features

This three pole, 30 Aswitch is without a pilot light indicator

AD Alternative Part Number

8007882

AD Application

For providing manual ON/OFF control of 1 or 3-phase AC motors where overload protection is not required or provided separately and general purpose applications

AD Brand (Description)

Square D

AD Competitor

Grainger - 1H409

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD EAN

0785901077053

AD Gtin

00785901077053

AD IDEA Index ID

8007882

AD Invoice Description

SWITCH MNL 600 VAC 230 VDC 30A 3 TGL

AD Item Features 01

This three pole, 30 Aswitch is without a pilot light indicator

AD Item Features 02

This Type K Manual Switch is an economical on/off solution

AD Item Features 03

Simple design, small size and easy to install

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.7000

AD Package Height UOM

IN

AD Package Length

5.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

95.9000

AD Package Volume UOM

cu-in

AD Package Weight

2.9400

AD Package Weight UOM

LB

AD Package Width

4.7500

AD Package Width UOM

IN

AD Part Number Keywords

2510KW2 ; 8007882 ; 785901077053 ; 78590107705 ; 00785901077053 ; 0785901077053

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Series

Spec 10 Attribute Value

2510

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type K 3-Phase 1-Unit Standard

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute Value

600 V AC/230 V DC

Spec 2 Attribute

Actuator

Spec 2 Attribute Value

Toggle

Spec 3 Attribute

Amperage Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

30

Spec 4 Attribute

Connection

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

3 in W x 4.25 in D x 4.38 in H

Spec 6 Attribute

Enclosure

Spec 6 Attribute Value

NEMA 4

Spec 7 Attribute

Material

Spec 7 Attribute Value

Die Cast Zinc Alloy

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Power Rating

Spec 9 Attribute Value

1 hp at 90 VDC/1-1/2 hp at 230 VDC/2 hp at 115 VAC/115 VDC/7-1/2 hp at 230 VAC/230 VDC/600 VAC/10 hp at 575 VAC/460 VAC
