Square D

2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure

Category Miscellaneous

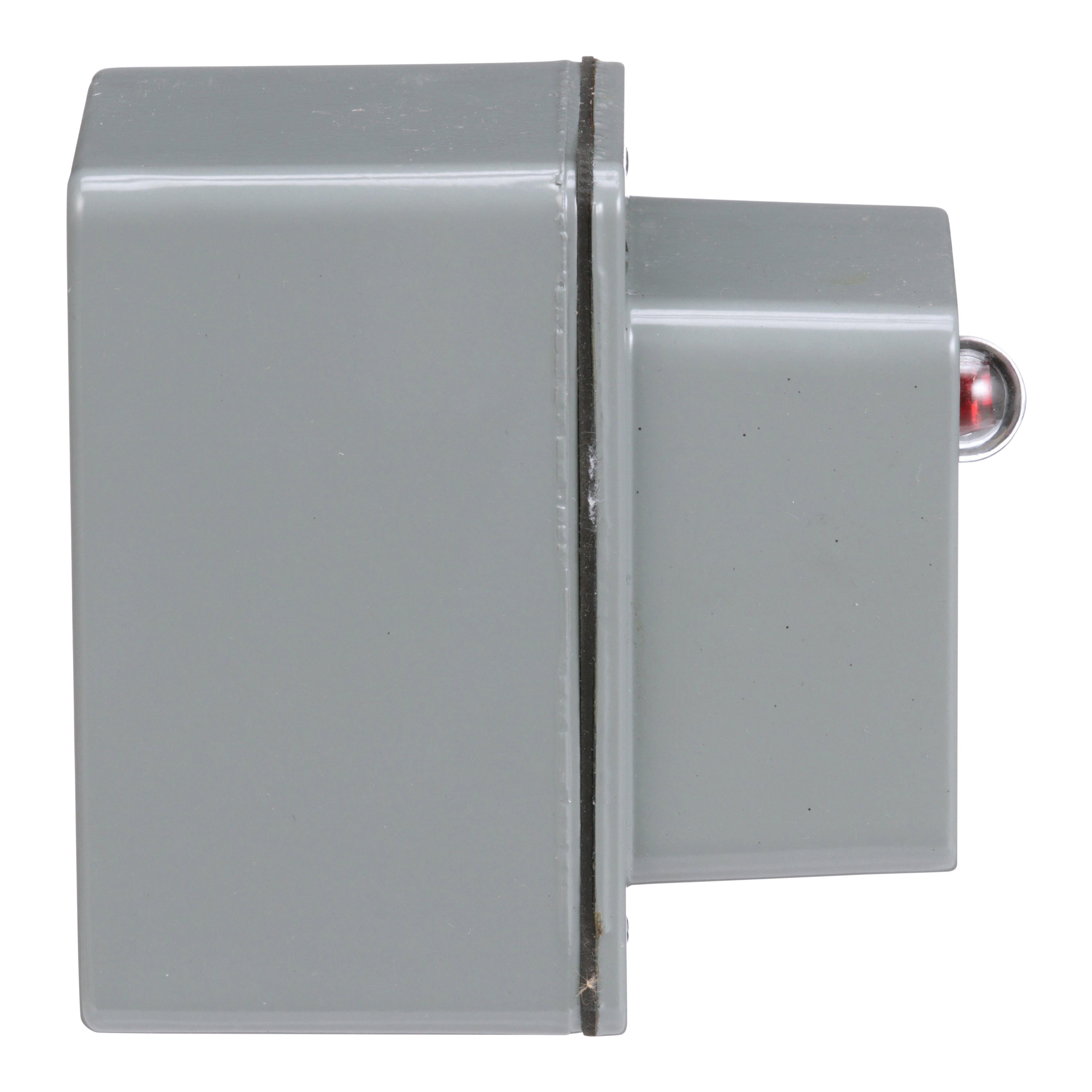

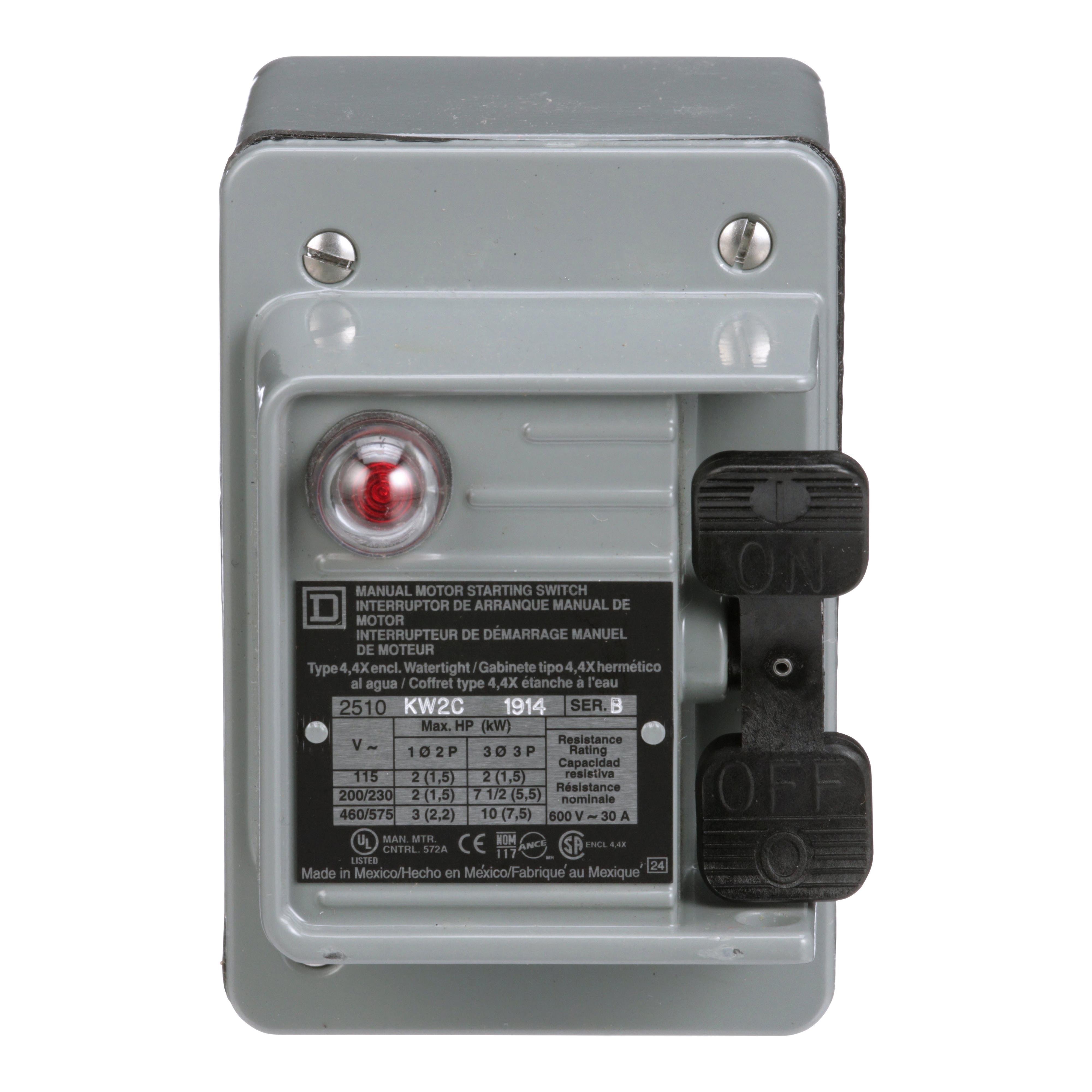

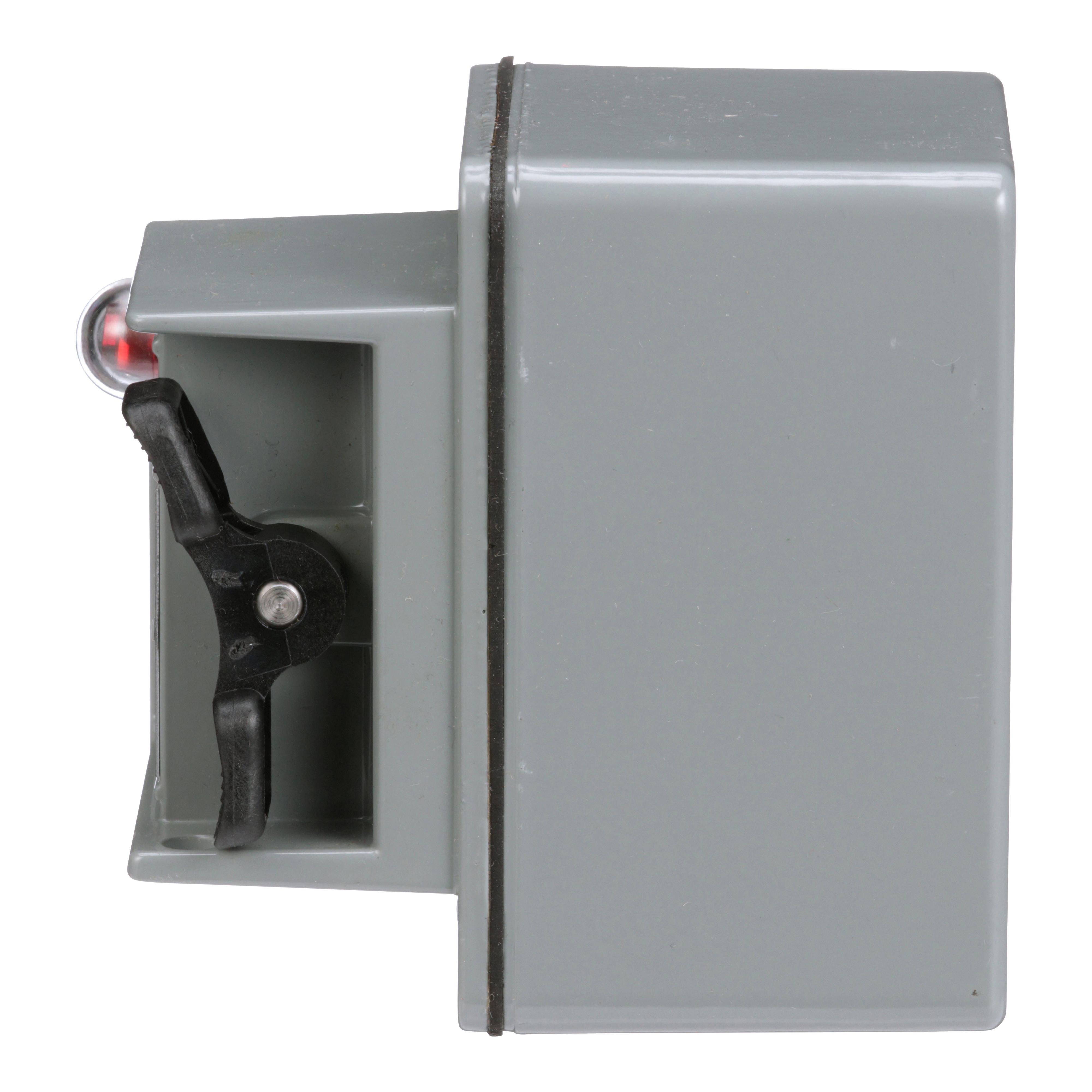

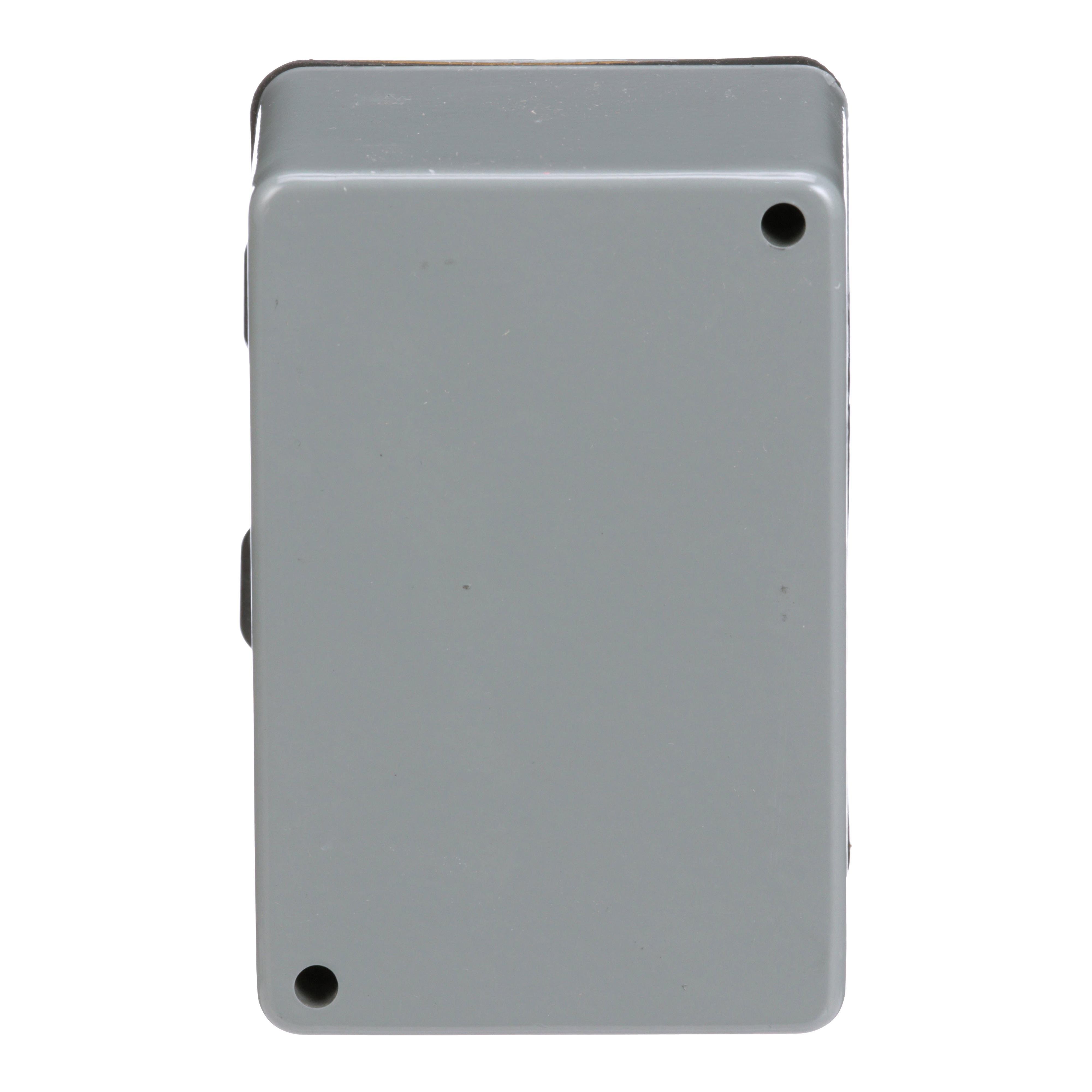

Picture of 2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure Picture of 2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure
Picture of 2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure Picture of 2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure
Picture of 2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure Picture of 2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure
Picture of 2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure Picture of 2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure
Picture of 2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure Picture of 2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure
Square D

2510KW2C - Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, red 440/600 VAC indicator, NEMA 4 enclosure

Item Code: 587060
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2510KW2C

Document
Document
Call for Availability
Add to Favorites
Compare

Description

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This device has a 440 to 600 V red pilot light indicator. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This device is 4.38 inches tall, 3.00 inches wide and 4.56 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.

Specifications

Weight

2.92

Width

4.66

Length

5.35

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2510KW2C/2510KW2C.spin

AD All Features

This three pole, 30 Aswitch has a red pilot light indicator

AD Alternative Part Number

8048068

AD Application

Oiltight and Dusttight Environments

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Owners/User Manual

AD EAN

0785901436584

AD Gtin

00785901436584

AD IDEA Index ID

8048068

AD Invoice Description

SWITCH MNL TYPE K NON-REVERSING 3 NEMA 4

AD Item Features 01

This three pole, 30 Aswitch has a red pilot light indicator

AD Item Features 02

This Type K Manual Switch is an economical on/off solution

AD Item Features 03

Simple design, small size and easy to install

AD Keywords

2510KW2C Type K Manual Switch, Non-Reversing Action, 3 Poles, NEMA 4 Enclosure ; Schneider Electric ; Square D ; 2510KW2C ; 2510KW2C ; 785901436584 ; Manual Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

5.3500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.9200

AD Package Weight UOM

LB

AD Package Width

4.6600

AD Package Width UOM

IN

AD Part Number Keywords

2510KW2C ; 8048068 ; 785901436584 ; 78590143658 ; 00785901436584 ; 0785901436584

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Reset Type

Spec 11 Attribute Value

Manual

Spec 12 Attribute

Series

Spec 12 Attribute Value

2510K

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type K

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute Value

600 V AC/230 V DC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

30

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Control Type

Spec 4 Attribute Value

Toggle

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

3 in W x 4.56 in D x 4.38 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 4

Spec 7 Attribute

Material

Spec 7 Attribute Value

Die Cast Zinc Alloy

Spec 8 Attribute

motor power

Spec 8 Attribute Value

10 hp, 7-1/2 hp

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
