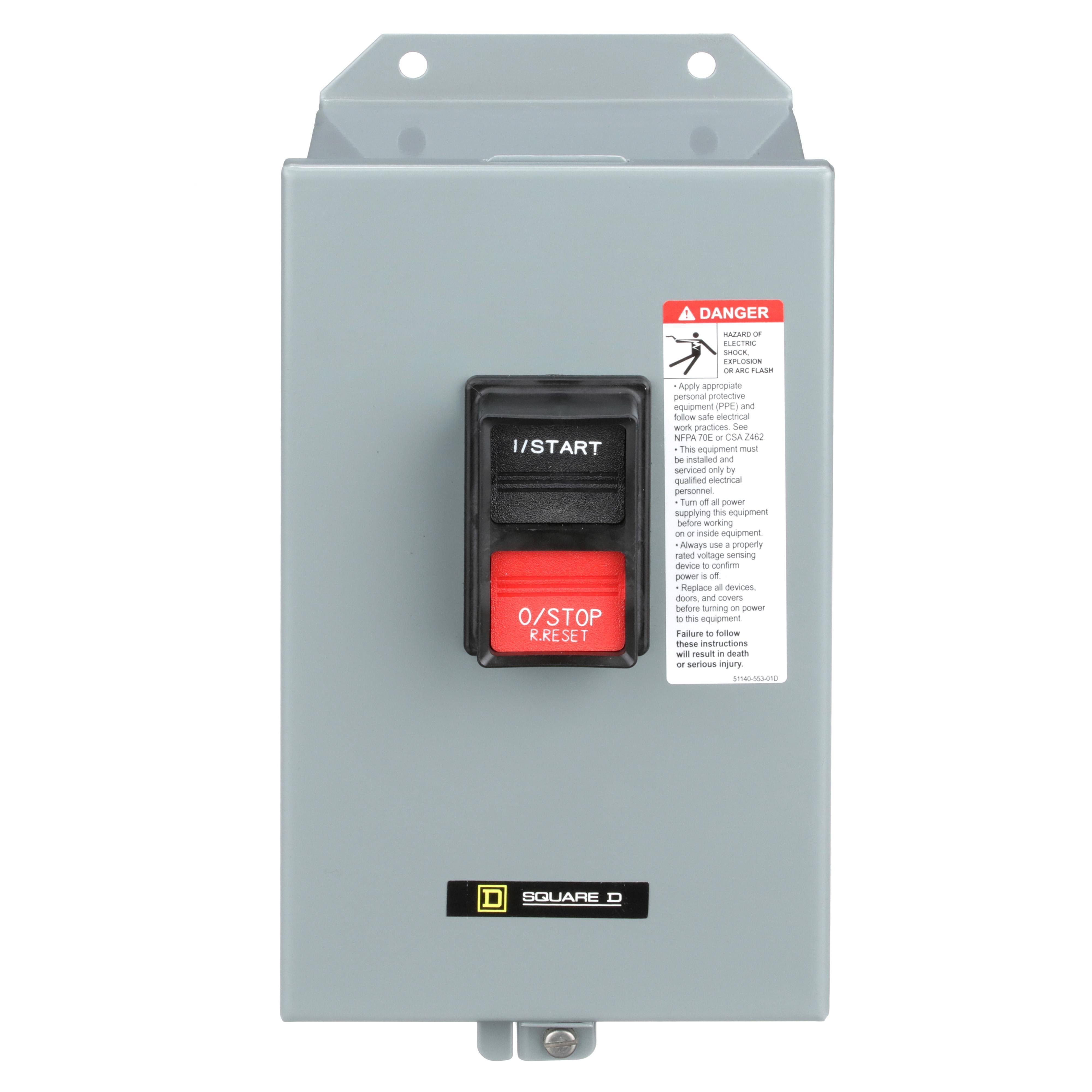

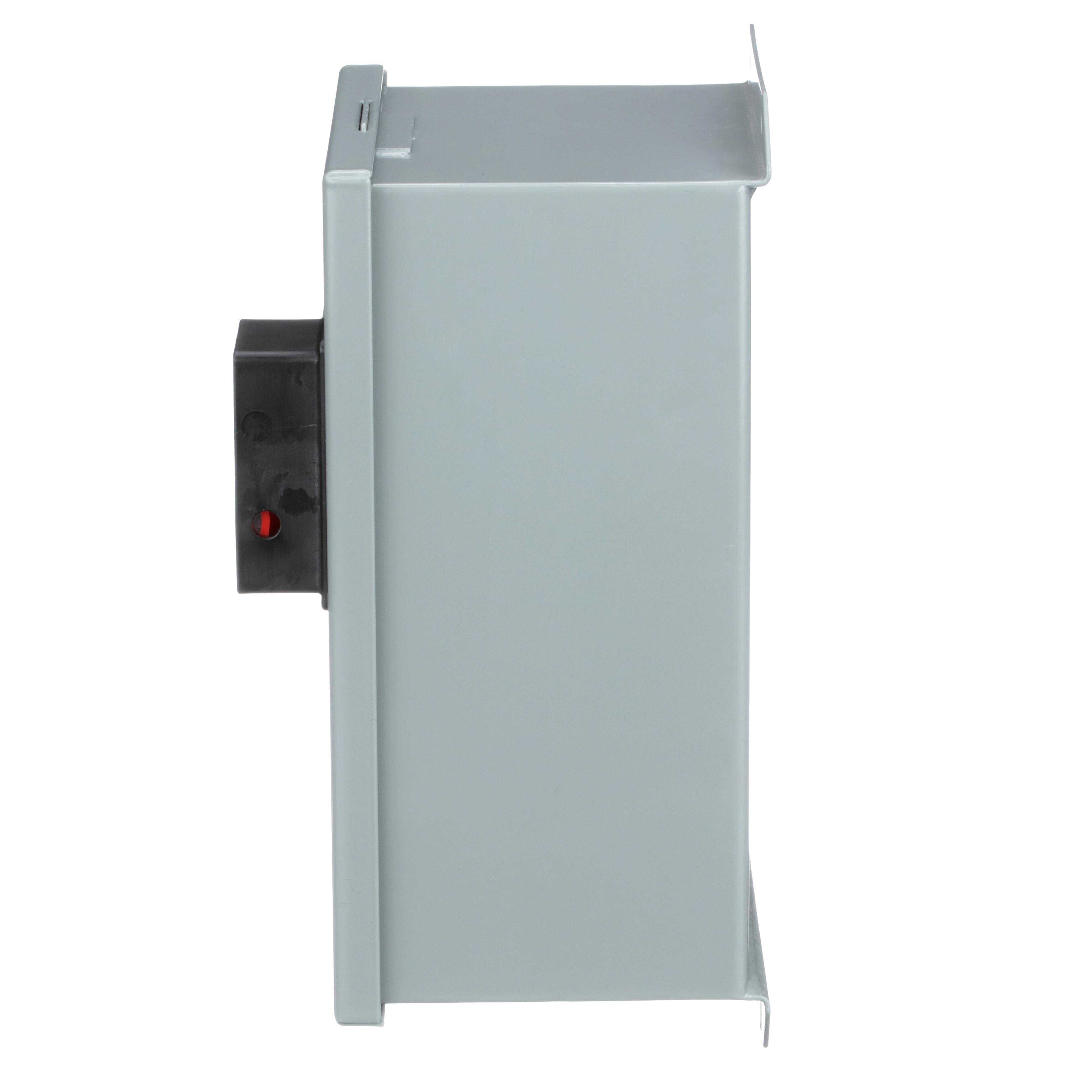

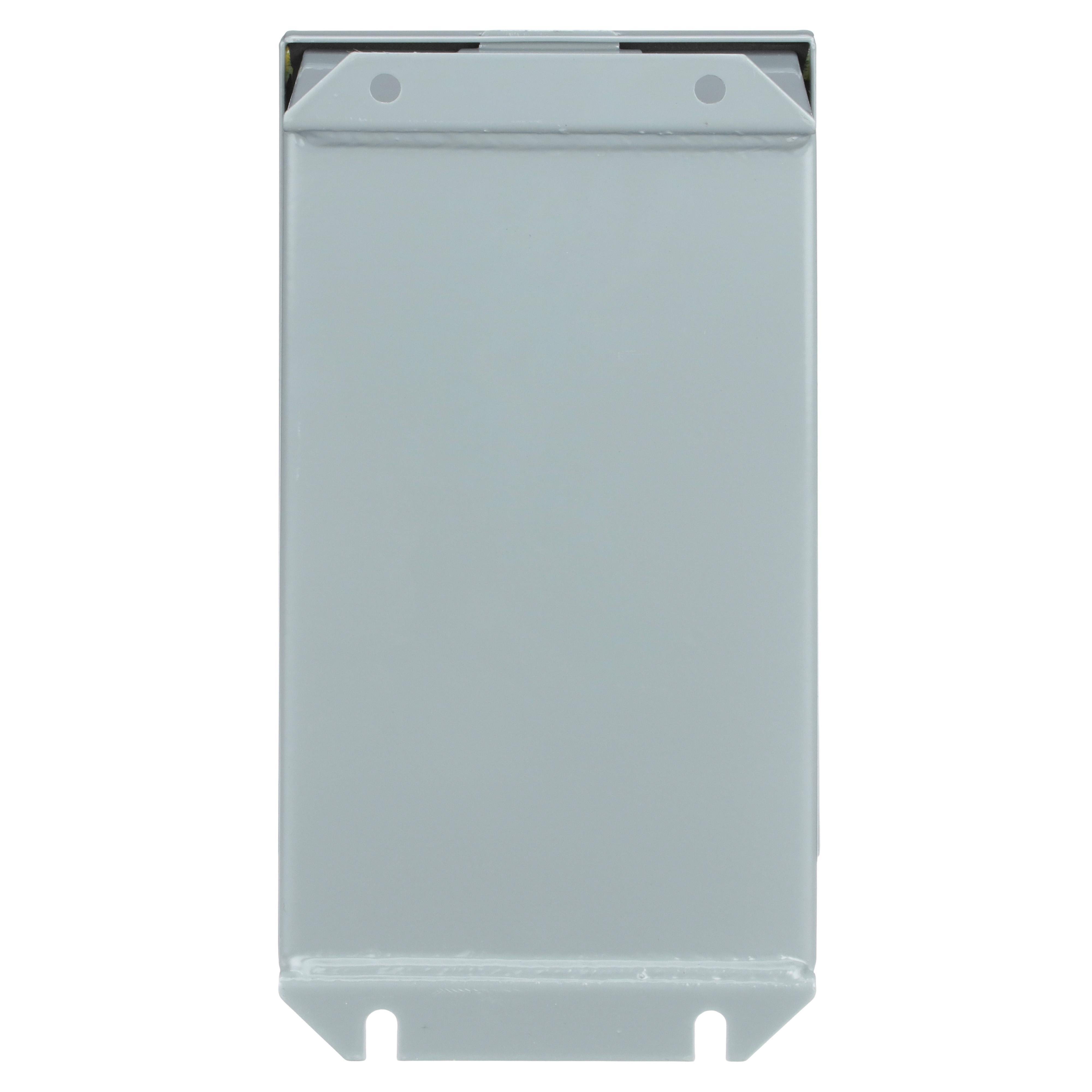

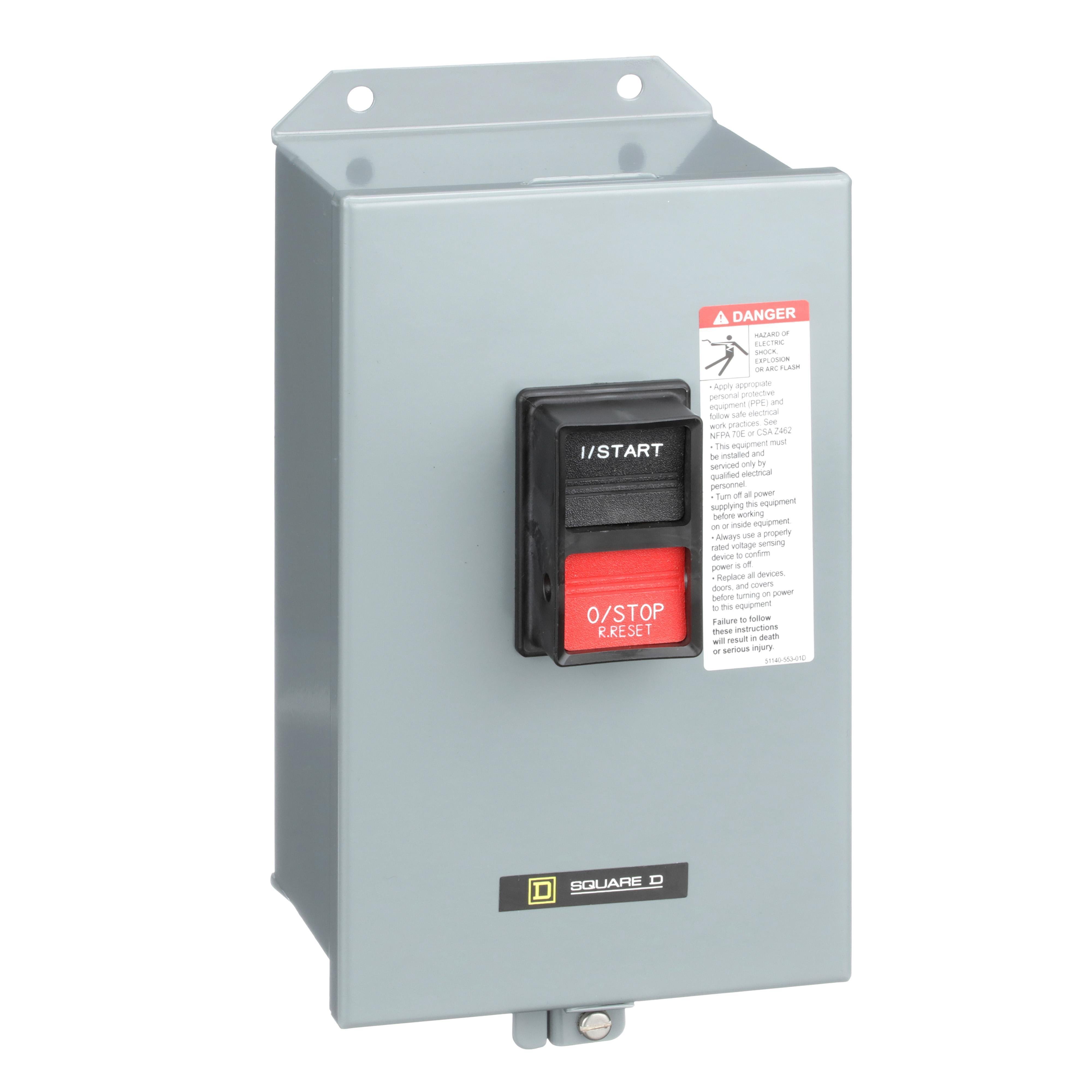

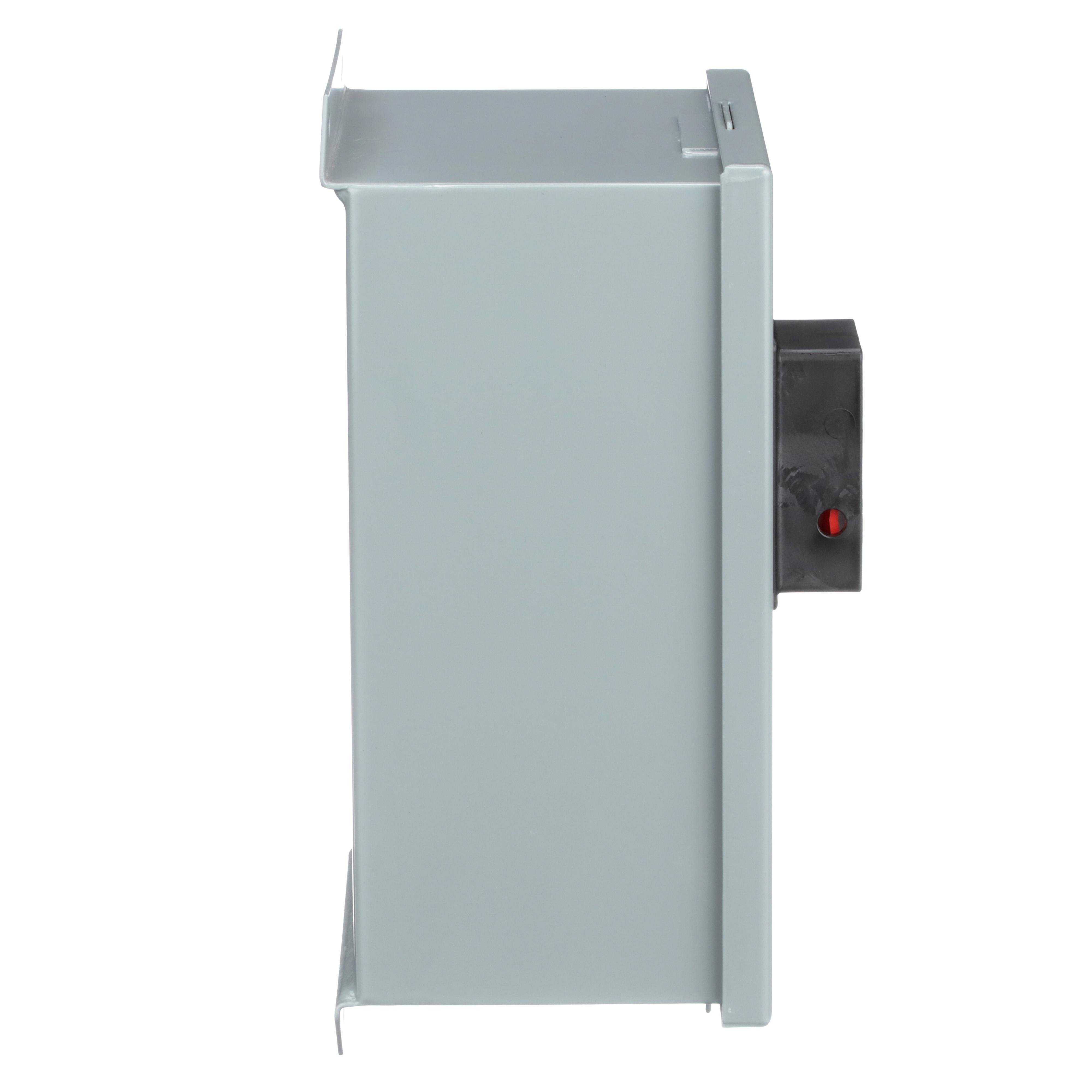

Picture of 2510MBA2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 3 phase, no indicator, NEMA 12

2510MBA2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 3 phase, no indicator, NEMA 12

Item Code: 51445

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref 2510MBA2

Document
Document
Document
Document
Watch video

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-0 three pole starter is rated for 3 HP at 200 to 230 VAC and 5 HP at 380 to 575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. The thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 12 dusttight and driptight industrial use enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 10.92 inches tall, 5.78 inches wide and 5.76 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.

Specifications

Weight

7.15

Height

6.8

Width

6.63

Length

11.31

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2510MBA2/2510MBA2.spin

AD All Features

Inexpensive motor control where low voltage protection is NOT required

AD Alternative Part Number

8047968

AD Application

Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901829720

AD Gtin

00785901829720

AD IDEA Index ID

8047968

AD Invoice Description

STARTER TYPE M INT HP NON-REVERSING

AD Item Features 01

Inexpensive motor control where low voltage protection is NOT required

AD Item Features 02

Simple operation

AD Keywords

2510MBA2 Type M Integral Horsepower Non-Reversing Starter, 3 Poles, NEMA 12 Enclosure ; Schneider Electric ; Square D ; 2510MBA2 ; 2510MBA2 ; 7.85902E+11 ; Manual Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.8000

AD Package Height UOM

AD Package Length

11.3100

AD Package Length UOM

AD Package Quantity

AD Package Volume

484.8400

AD Package Volume UOM

cu-in

AD Package Weight

7.1500

AD Package Weight UOM

AD Package Width

6.6300

AD Package Width UOM

AD Part Number Keywords

2510MBA2 ; 8047968 ; 785901829720 ; 78590182972 ; 00785901829720 ; 0785901829720

AD Video Links

https://www.youtube.com/embed/Pu1pZuhYFxk

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

Spec 1 Attribute Value

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

Spec 11 Attribute

Reset Type

Spec 11 Attribute Value

Manual

Spec 12 Attribute

Series

Spec 12 Attribute Value

2510M

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type M Integral Horsepower Non-Reversing

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Pressure Wire Clamp

Spec 3 Attribute

Control Type

Spec 3 Attribute Value

Pushbutton

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.78 in W x 5.76 in D x 10.92 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 12

Spec 6 Attribute

Material

Spec 6 Attribute Value

Sheet Steel

Spec 7 Attribute

motor power

Spec 7 Attribute UOM

Spec 7 Attribute Value

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

Spec 9 Attribute

Overload Relay

Spec 9 Attribute Value

Thermal Melting Alloy
