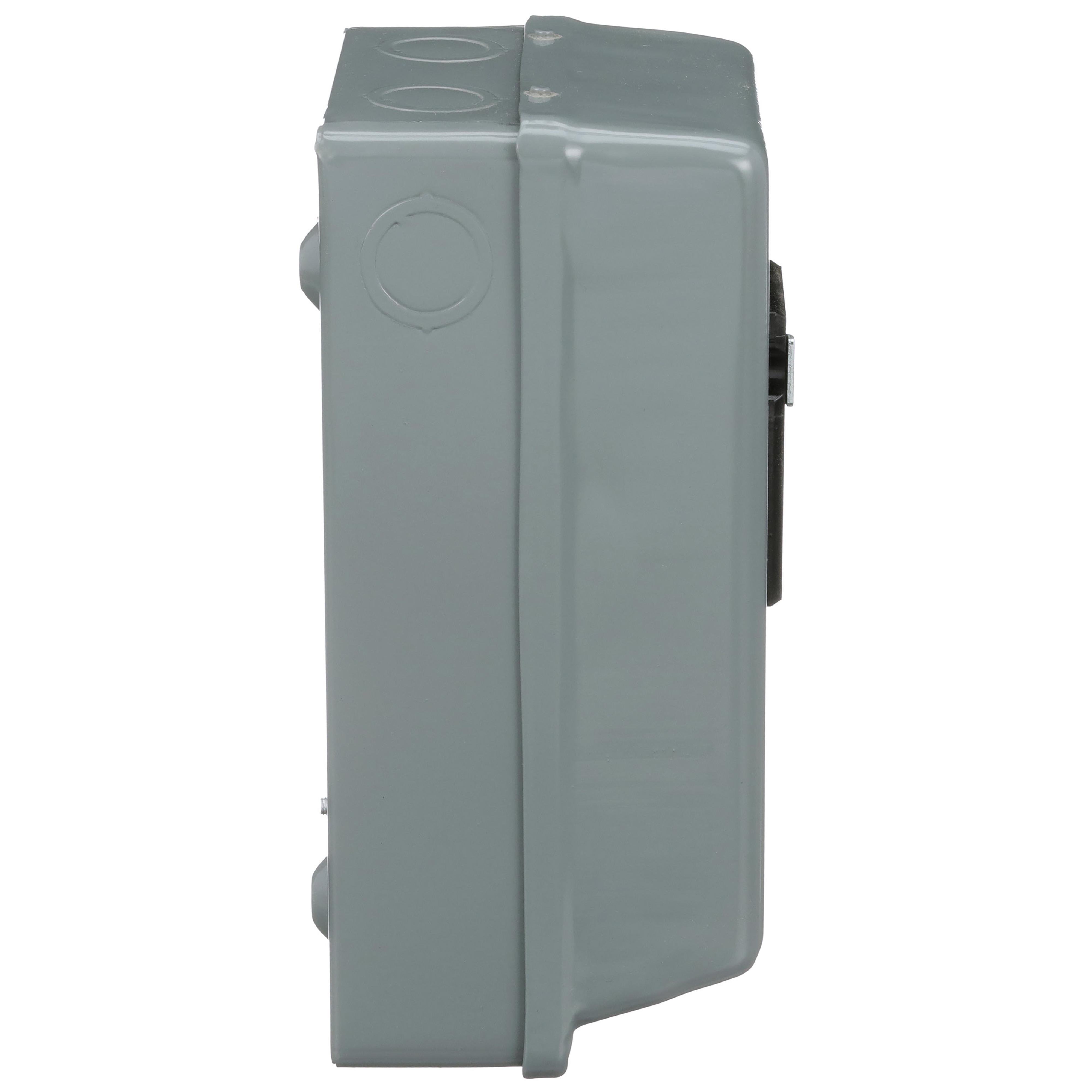

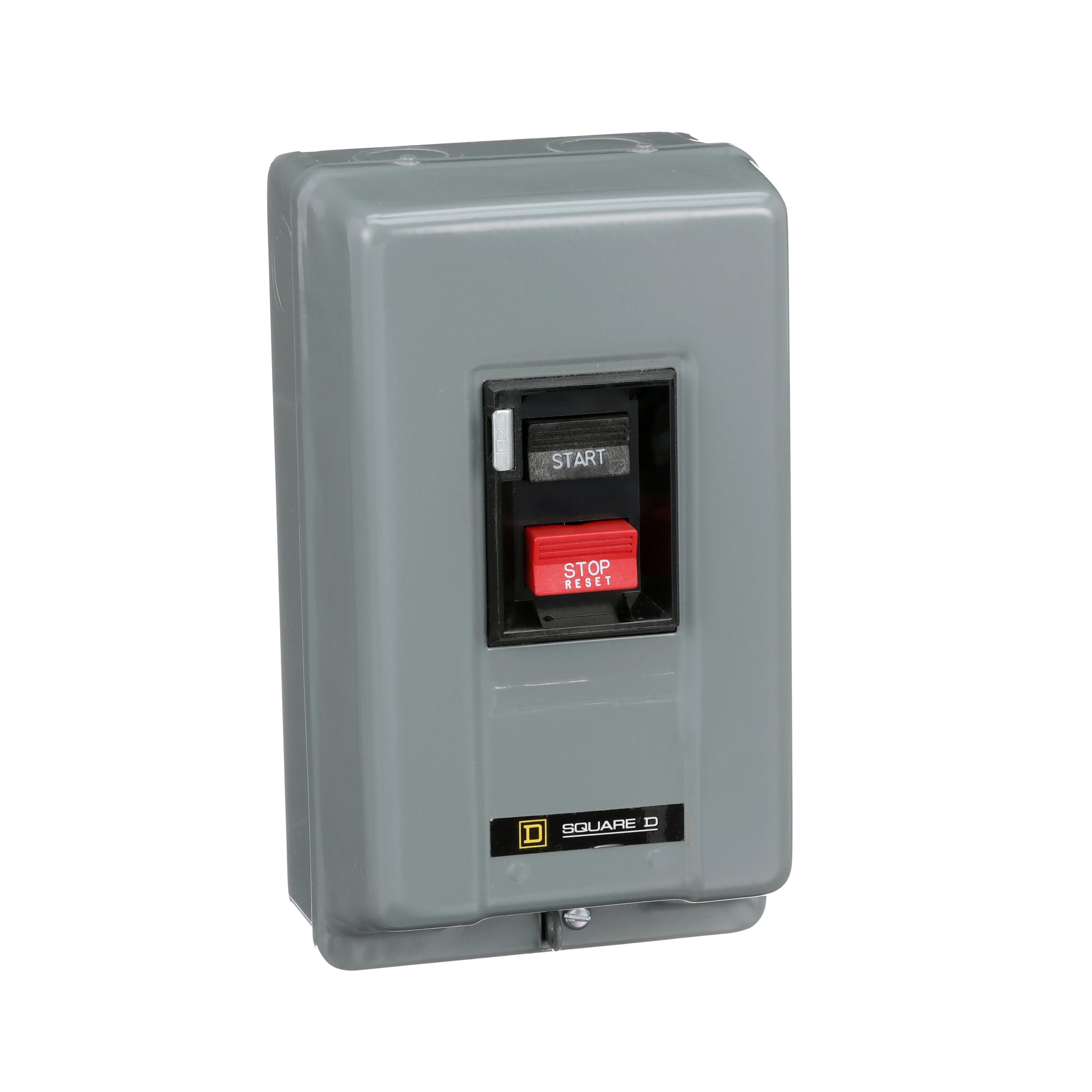

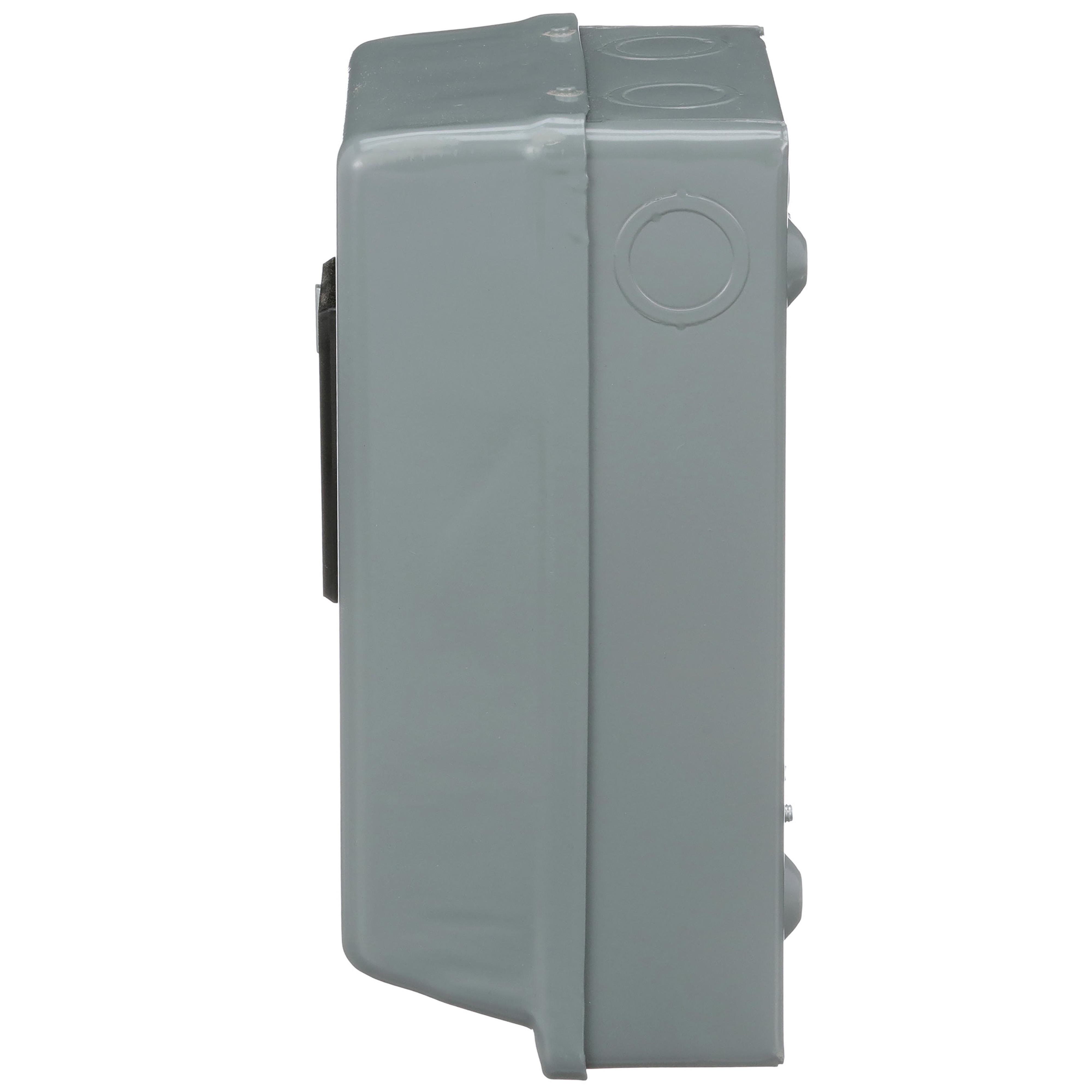

Picture of 2510MBG1 - Manual starter, integral horsepower, NEMA M0, 600VAC, 2 pole, 2HP at 230VAC, 1 phase, no indicator, NEMA 1

2510MBG1 - Manual starter, integral horsepower, NEMA M0, 600VAC, 2 pole, 2HP at 230VAC, 1 phase, no indicator, NEMA 1

Item Code: 17064

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref 2510MBG1

Document
Document
Document
Document
Watch video

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-0 two pole starter is rated for 1 HP at 115 VAC and 2 HP at 230 VAC single phase. A melting alloy thermal unit is used with this manual starter to sense over current conditions. This thermal unit is ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.

Specifications

Weight

4.03

Height

4.5

Width

5.66

Length

9.13

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2510MBG1/2510MBG1.spin

AD All Features

Inexpensive motor control where low voltage protection is NOT required

AD Alternative Part Number

8034028

AD Application

Simple Machine Control, HVAC, Small Machine Tools, Pumps, Fans and Conveyors

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901792529

AD Gtin

00785901792529

AD IDEA Index ID

8034028

AD Invoice Description

STARTER MNL TYPE M INT HP 2 NEMA 1 18A 1

AD Item Features 01

Inexpensive motor control where low voltage protection is NOT required

AD Item Features 02

Simple operation

AD Keywords

2510MBG1 Type M Integral Horsepower Manual Starter, 2 Poles, NEMA 1 Enclosure ; Schneider Electric ; Square D ; 2510MBG1 ; 2510MBG1 ; 785901792529 ; Manual Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.5000

AD Package Height UOM

AD Package Length

9.1300

AD Package Length UOM

AD Package Quantity

AD Package Volume

229.3200

AD Package Volume UOM

cu-in

AD Package Weight

4.0300

AD Package Weight UOM

AD Package Width

5.6600

AD Package Width UOM

AD Part Number Keywords

2510MBG1 ; 8034028 ; 785901792529 ; 78590179252 ; 00785901792529 ; 0785901792529

AD Video Links

https://www.youtube.com/embed/Pu1pZuhYFxk

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

Spec 1 Attribute Value

Spec 10 Attribute

Overload Relay

Spec 10 Attribute Value

Thermal Melting Alloy

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

Spec 12 Attribute

Reset Type

Spec 12 Attribute Value

Manual

Spec 13 Attribute

Series

Spec 13 Attribute Value

2510

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type M Integral Horsepower

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Pressure Wire Clamp

Spec 3 Attribute

Control Type

Spec 3 Attribute Value

Push button switch

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5 in W x 4.13 in D x 8.63 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Material

Spec 6 Attribute Value

Sheet Steel

Spec 7 Attribute

motor power

Spec 7 Attribute Value

1 hp at 115 VAC, 2 hp at 230 VAC

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

Spec 9 Attribute

Operating Temperature

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

0 To 40
