Square D

2510MBO2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 phase, no indicator, open

Category Miscellaneous

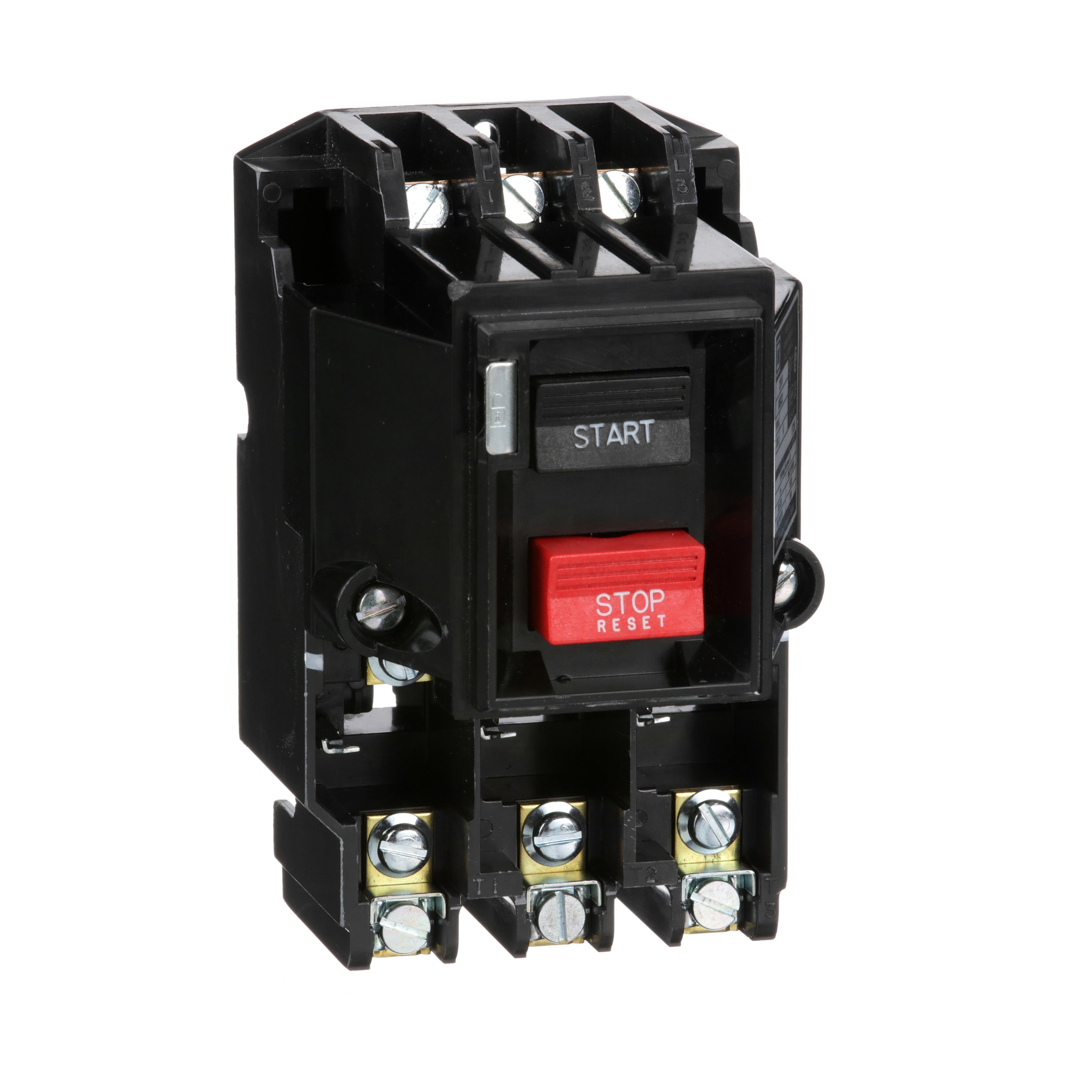

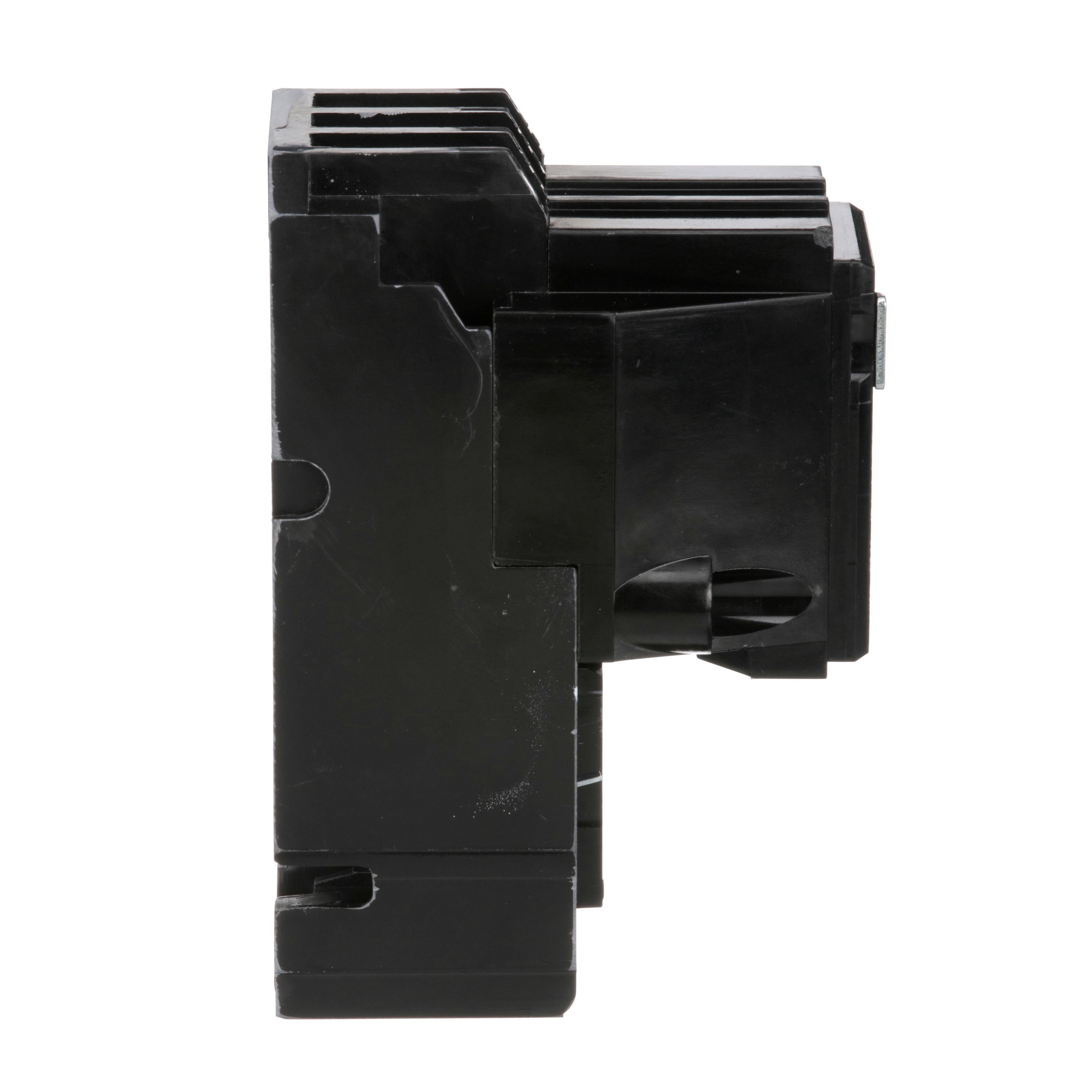

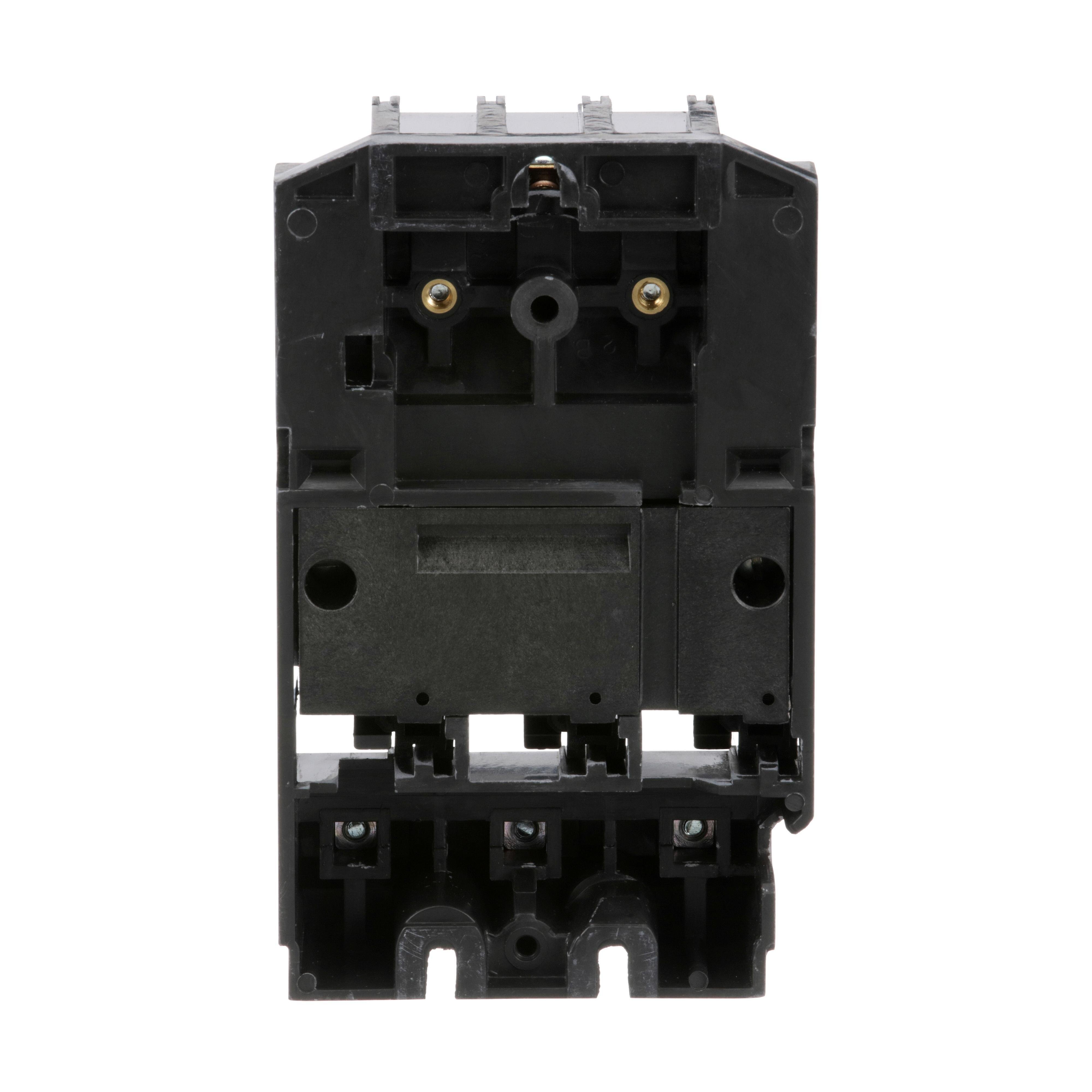

Picture of 2510MBO2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 phase, no indicator, open Picture of 2510MBO2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 phase, no indicator, open
Picture of 2510MBO2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 phase, no indicator, open Picture of 2510MBO2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 phase, no indicator, open
Picture of 2510MBO2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 phase, no indicator, open Picture of 2510MBO2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 phase, no indicator, open
Picture of 2510MBO2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 phase, no indicator, open Picture of 2510MBO2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 phase, no indicator, open
Square D

2510MBO2 - Manual starter, integral horsepower, NEMA M0, 600VAC, 3 pole, 5HP at 380/575VAC, 1 phase, no indicator, open

Item Code: 568906
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2510MBO2

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-0 three pole starter is rated for 3 HP at 200 to 230 VAC and 5 HP at 380 to 575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. The thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. This manual motor starter is not supplied with an enclosure. This manual starter is 5.72 inches tall, 3.50 inches wide and 4.03 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.

Specifications

Weight

2.19

Height

6.3

Width

6.43

Length

8.62

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2510MBO2/2510MBO2.spin

AD All Features

Inexpensive motor control where low voltage protection is NOT required

AD Alternative Part Number

8034105

AD Application

For provide convenient on-off operation of small single phase, polyphase or DC motors applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901792833

AD Gtin

00785901792833

AD IDEA Index ID

8034105

AD Invoice Description

STARTER TYPE M INT HP NON-REVERSING

AD Item Features 01

Inexpensive motor control where low voltage protection is NOT required

AD Keywords

2510MBO2 Type M Integral Horsepower Non-Reversing Starter, 3 Poles, Open Enclosure ; Schneider Electric ; Square D ; 2510MBO2 ; 2510MBO2 ; 785901792833 ; Manual Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.3000

AD Package Height UOM

IN

AD Package Length

8.6200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

277.2000

AD Package Volume UOM

cu-in

AD Package Weight

2.1900

AD Package Weight UOM

LB

AD Package Width

6.4300

AD Package Width UOM

IN

AD Part Number Keywords

2510MBO2 ; 8034105 ; 785901792833 ; 78590179283 ; 00785901792833 ; 0785901792833

AD Video Links

https://www.youtube.com/embed/Pu1pZuhYFxk

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

18

Spec 10 Attribute

Reset Type

Spec 10 Attribute Value

Manual

Spec 11 Attribute

Series

Spec 11 Attribute Value

2510M

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type M Integral Horsepower Non-Reversing

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Pressure Wire Clamp

Spec 3 Attribute

Control Type

Spec 3 Attribute Value

Pushbutton

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3.5 in W x 4.03 in D x 5.72 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

motor power

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

5

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

Overload Relay

Spec 8 Attribute Value

Thermal Melting Alloy

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
