Square D

2510MBW1 - Manual starter, integral horsepower, NEMA M0, 600VAC, 2 pole, 2HP at 230VAC, 1 phase, no indicator, NEMA 4/4X

Category Manual Starters

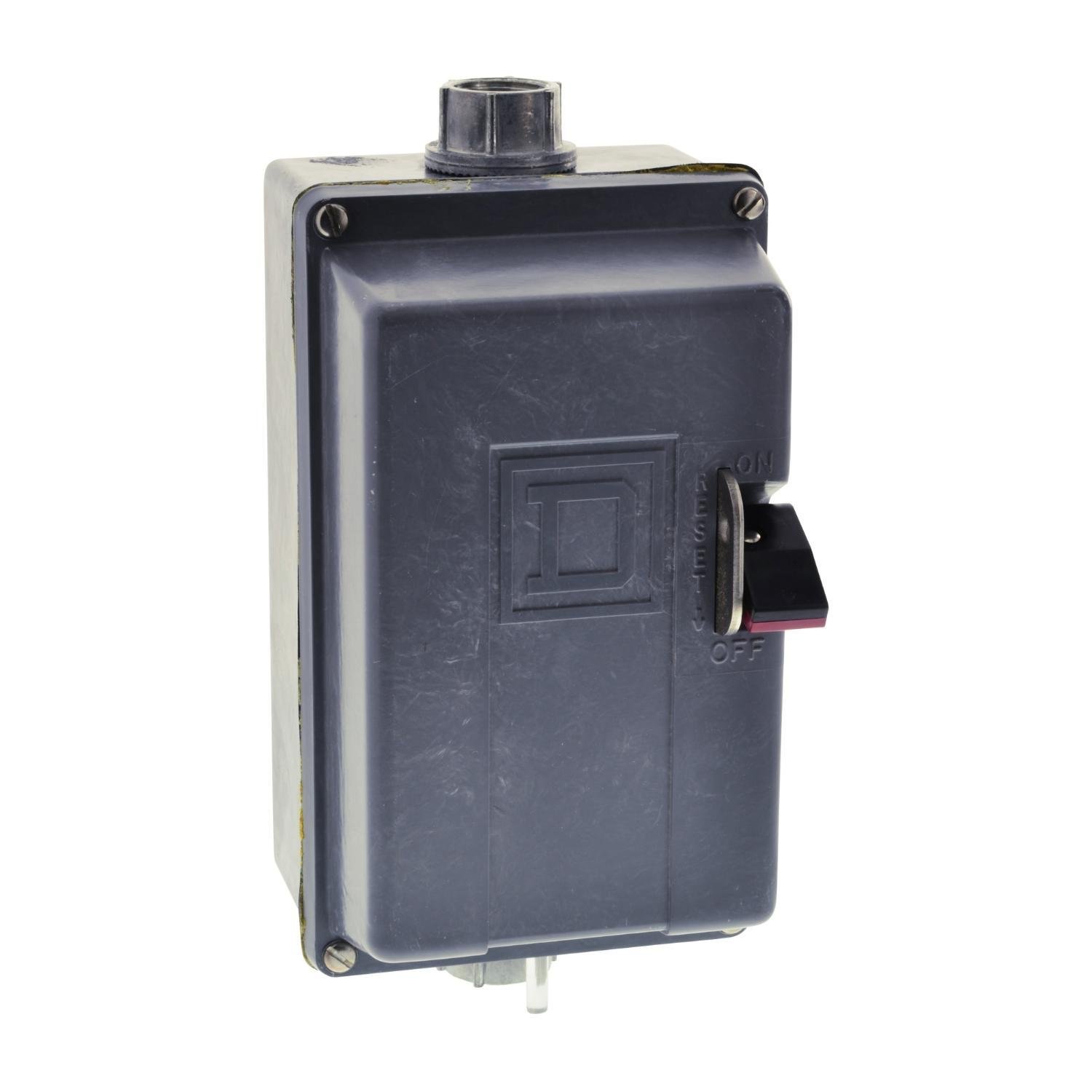

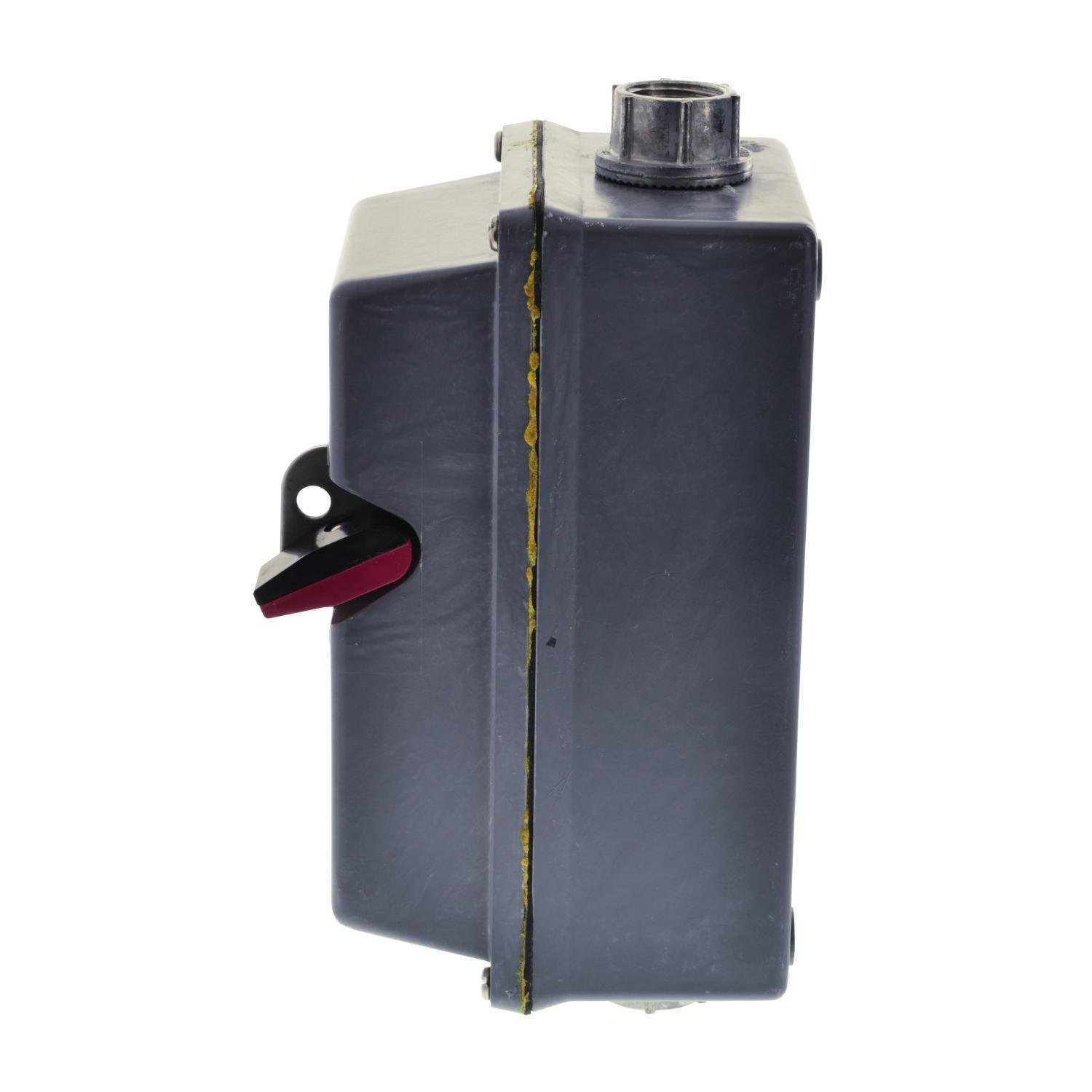

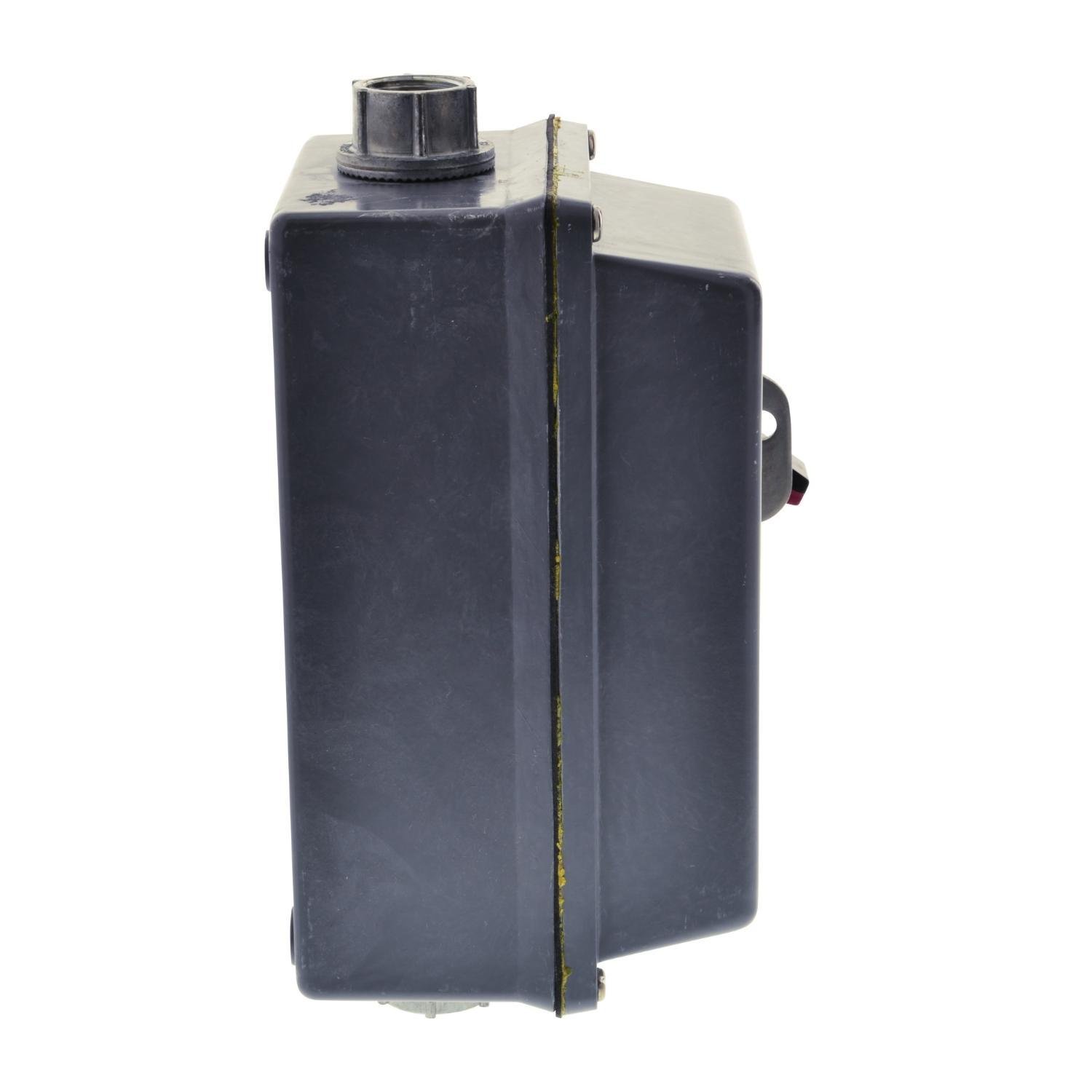

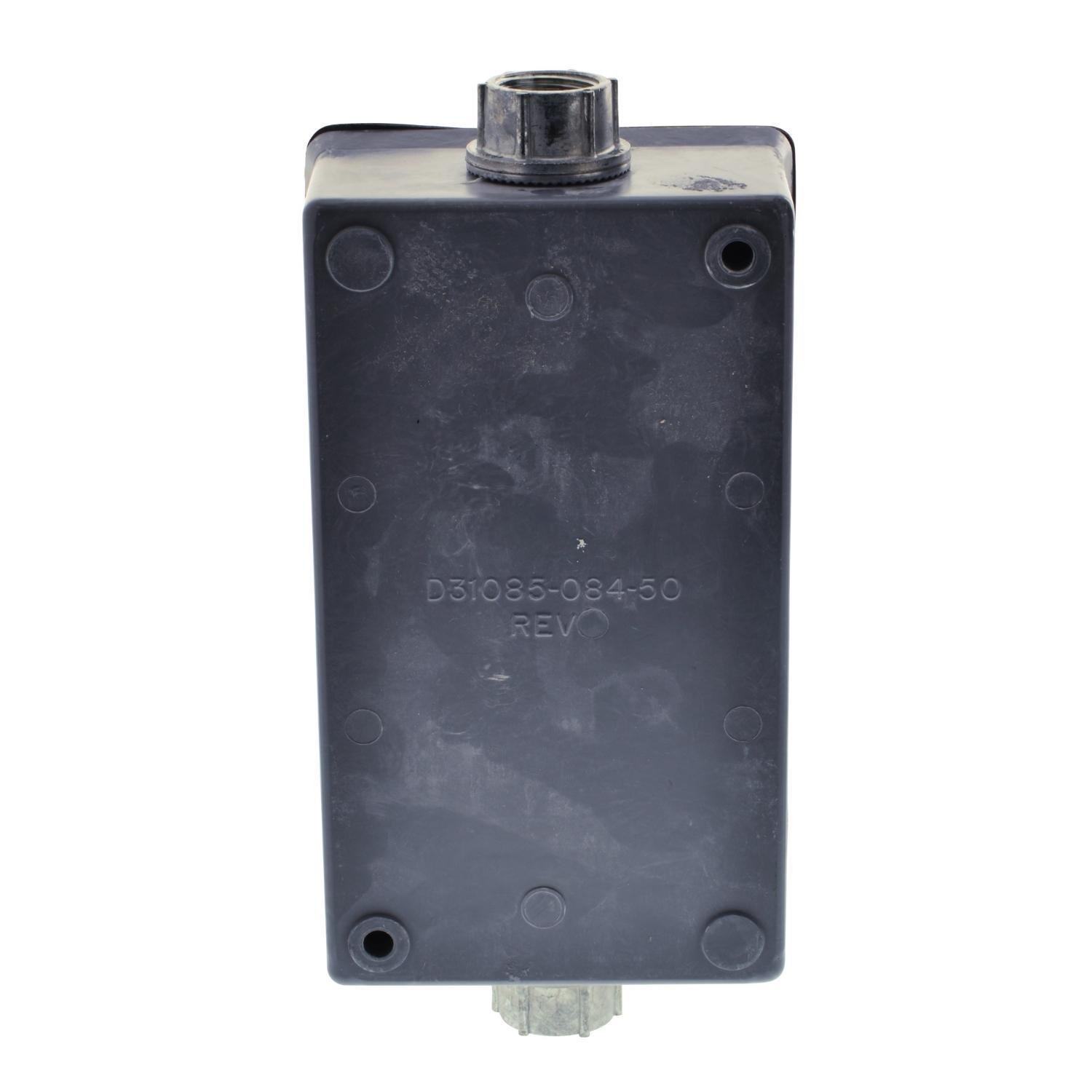

Picture of 2510MBW1 - Manual starter, integral horsepower, NEMA M0, 600VAC, 2 pole, 2HP at 230VAC, 1 phase, no indicator, NEMA 4/4X
Square D

2510MBW1 - Manual starter, integral horsepower, NEMA M0, 600VAC, 2 pole, 2HP at 230VAC, 1 phase, no indicator, NEMA 4/4X

Item Code: 688733
Category Manual Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2510MBW1

Owners User Manual
RoHS
Specification Sheet
Watch video
Call for Availability
Add to Favorites
Compare

Description

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This NEMA Size M-0 two pole starter is rated for 1 HP at 115 VAC and 2 HP at 230 VAC single phase. A melting alloy thermal unit is used with this manual starter to sense over current conditions. This thermal unit is ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 4/4X watertight, dusttight and corrosion resistant glass polyester enclosure is used to protect this integral horsepower manual starter. This enclosure has one 0.75 inch conduit entry on the bottom and one on the top. Enclosure is 10.34 inches tall, 5.13 inches wide and 5.78 inches deep. A toggle handle is used to turn the manual switch on and off. The toggle handle can be padlocked in the off or stop position. 2510M integral horsepower starters are UL listed and CSA certified.

Specifications

Weight

5.66

Width

6.74

Length

11.29

Amperage Rating

18 A

Brand

Square D

Category

MANUAL STARTERS

Connection Type

Pressure Wire Clamp

Control Type

Push button switch

Dimensions

5.13 in W x 5.78 in D x 10.34 in H

Enclosure Type

NEMA 4/4x

Material

Glass Polyester

Motor Power

1 hp at 115 VAC/2 hp at 230 VAC

Number Of Poles

2

Operating Temperature

0 To 40 Deg C

Overload Relay

Thermal Melting Alloy

Phase

1

Reset Type

Manual

Series

2510

Type

Type M

Voltage Rating

600 V AC/250 V DC
