Square D

2510TBG2 - Manual Starter, integral horsepower, NEMA M0, 600 VAC, 3 pole, 5 HP at 380/575 VAC, three phase, no indicator, NEMA 1

Category Miscellaneous

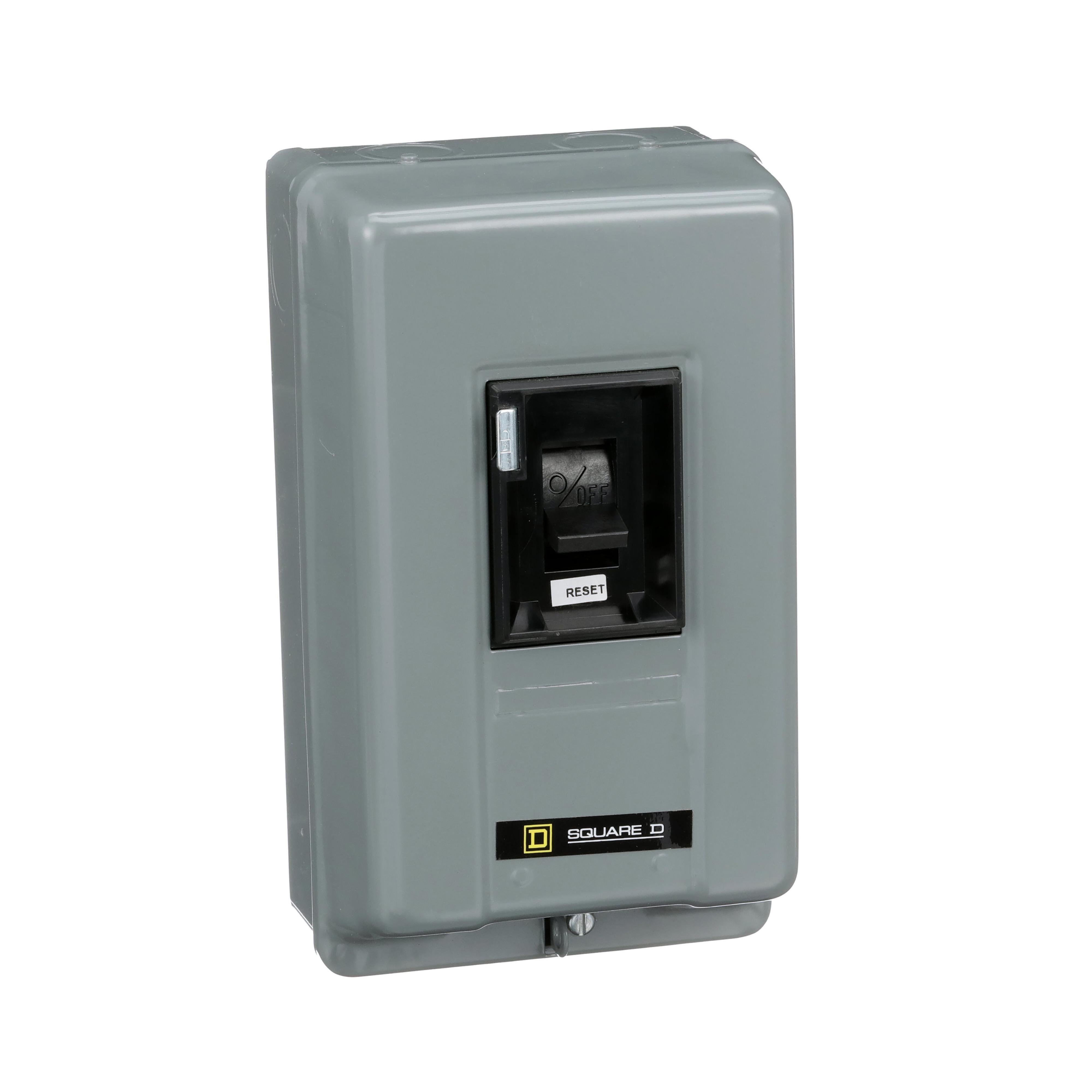

Picture of 2510TBG2 - Manual Starter, integral horsepower, NEMA M0, 600 VAC, 3 pole, 5 HP at 380/575 VAC, three phase, no indicator, NEMA 1
Square D

2510TBG2 - Manual Starter, integral horsepower, NEMA M0, 600 VAC, 3 pole, 5 HP at 380/575 VAC, three phase, no indicator, NEMA 1

Item Code: 32410
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2510TBG2

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has a toggle swirch. This NEMA Size M-0 three pole starter is rated for 3 HP at 200 to 230 VAC and 5 HP at 380 to 575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. The thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 8.63 inches tall, 5.00 inches wide and 4.13 inches deep. This device weighs 4.14 lbs. 2510M integral horsepower starters are UL listed and CSA certified.

Specifications

Weight

4.23

Height

4.5

Width

5.94

Length

8.92

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2510TBG2/2510TBG2.spin

AD All Features

Inexpensive motor control where low voltage protection is NOT required

AD Alternative Part Number

8035518

AD Application

General Purpose and Indoor Small Machine Tools, Pumps, Fans and Conveyors Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901795612

AD Gtin

00785901795612

AD IDEA Index ID

8035518

AD Invoice Description

STARTER MNL TYPE T INT HP SURF MT 3 18A

AD Item Features 01

Inexpensive motor control where low voltage protection is NOT required

AD Item Features 02

Simple operation

AD Keywords

2510TBG2 Type T Integral Horsepower Surface Mount Manual Starter, Non-Reversing Action, 3 Poles, NEMA 1 Enclosure ; Schneider Electric ; Square D ; 2510TBG2 ; 2510TBG2 ; 785901795612 ; Manual Starters

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.5000

AD Package Height UOM

IN

AD Package Length

8.9200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

243.0000

AD Package Volume UOM

cu-in

AD Package Weight

4.2300

AD Package Weight UOM

LB

AD Package Width

5.9400

AD Package Width UOM

IN

AD Part Number Keywords

2510TBG2 ; 8035518 ; 785901795612 ; 78590179561 ; 00785901795612 ; 0785901795612

AD Video Links

https://www.youtube.com/embed/Pu1pZuhYFxk

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Non-reversing

Spec 10 Attribute

Overload Relay

Spec 10 Attribute Value

Thermal Melting Alloy

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

3

Spec 12 Attribute

Reset Type

Spec 12 Attribute Value

Manual

Spec 13 Attribute

Series

Spec 13 Attribute Value

2510T

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type T Integral Horsepower Surface Mount

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

18

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Pressure Wire Clamp

Spec 4 Attribute

Control Type

Spec 4 Attribute Value

Toggle

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

5 in W x 4.13 in D x 8.63 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Material

Spec 7 Attribute Value

Sheet Steel

Spec 8 Attribute

motor power

Spec 8 Attribute UOM

HP

Spec 8 Attribute Value

5

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
