Square D

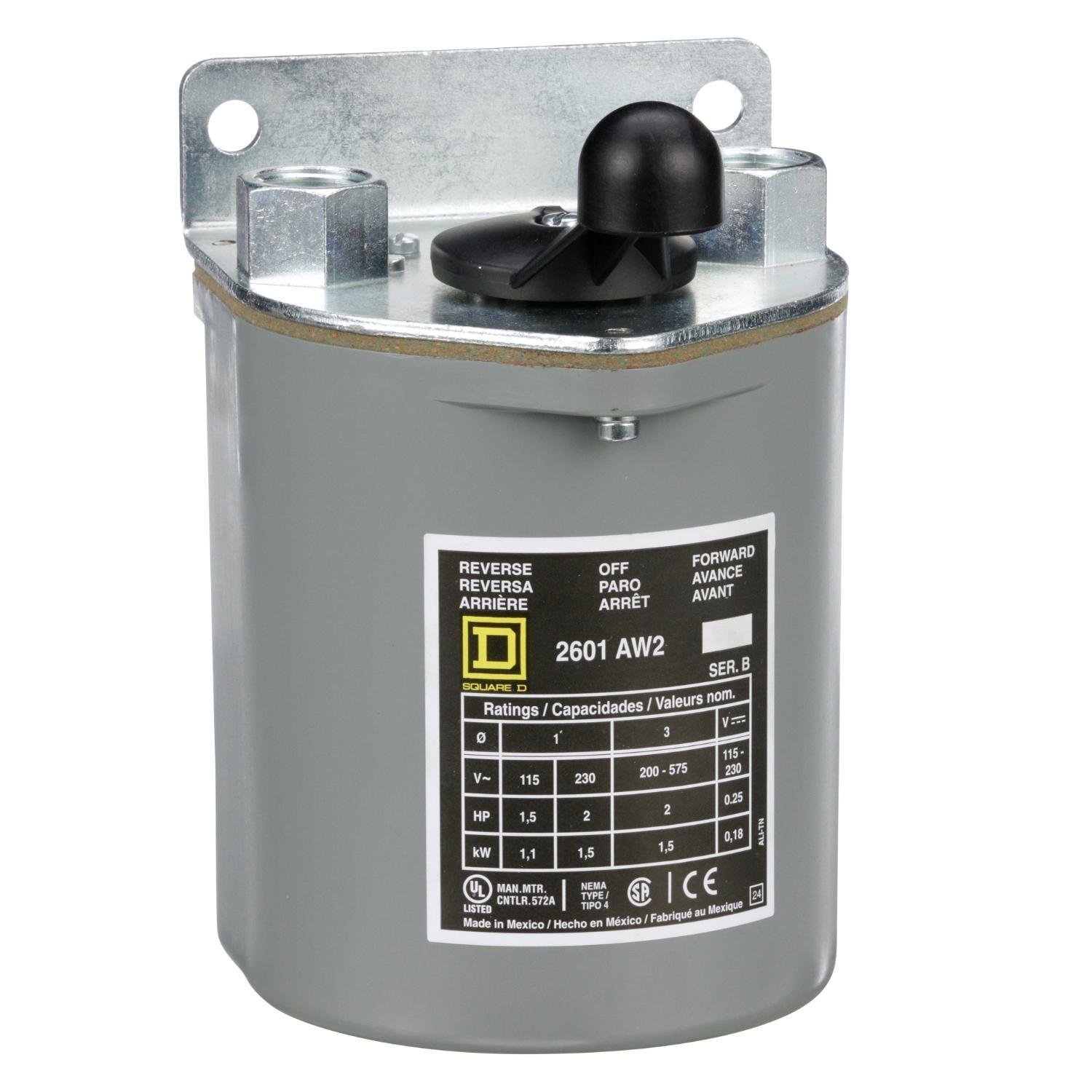

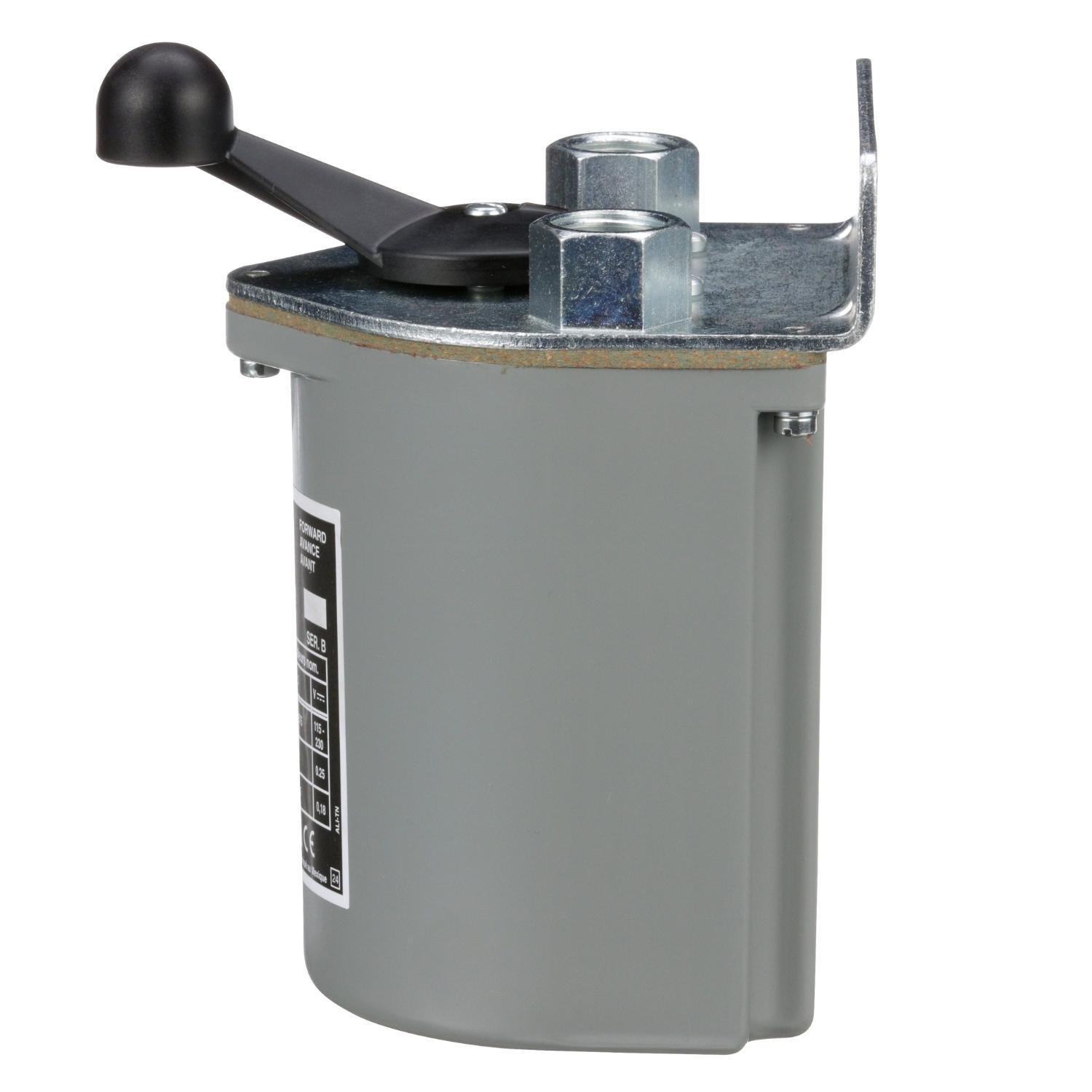

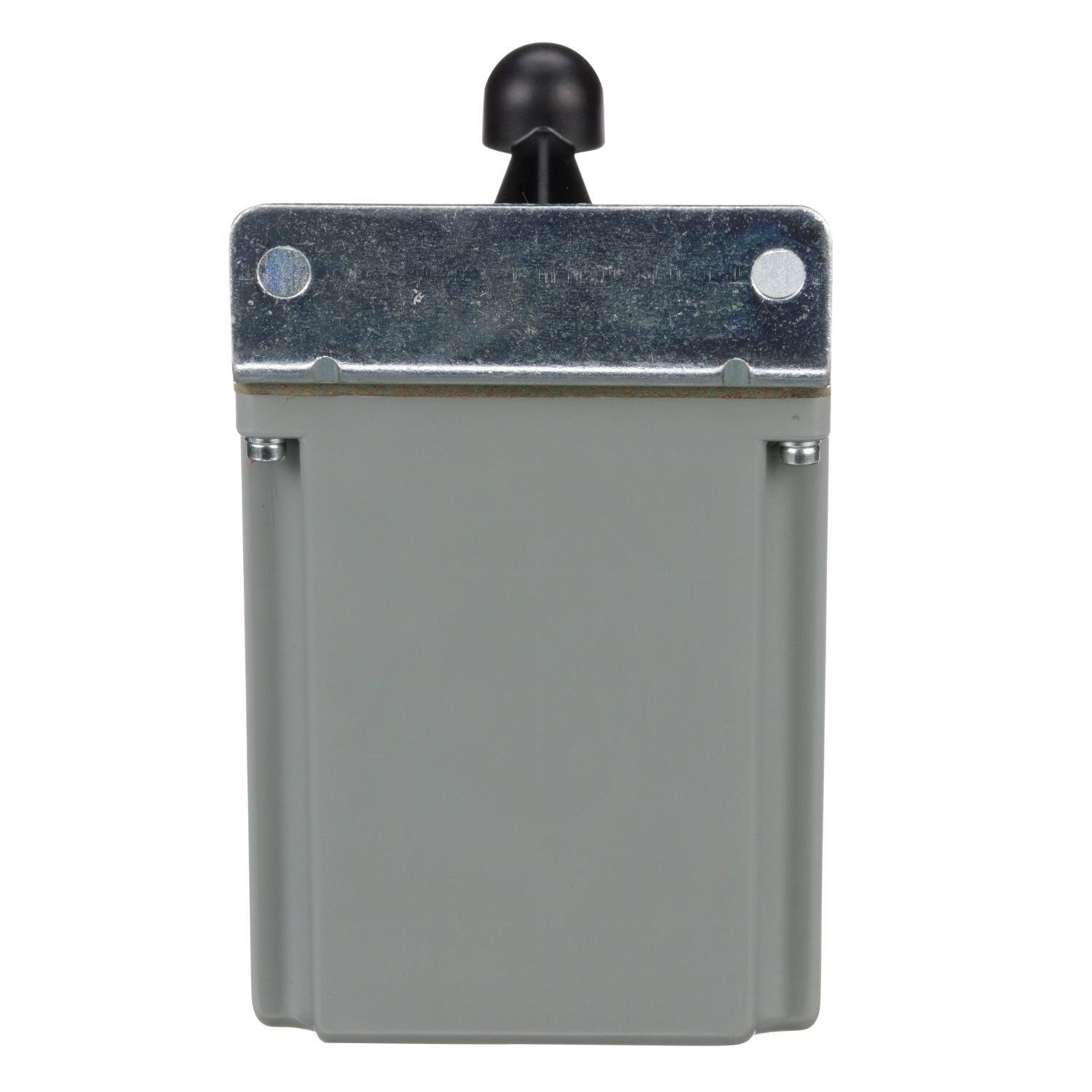

2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure

Category Miscellaneous
Picture of 2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure Picture of 2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure
Picture of 2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure Picture of 2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure
Picture of 2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure Picture of 2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure
Picture of 2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure Picture of 2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure
Picture of 2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure Picture of 2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure
Square D

2601AW2 - Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure

Item Code: 556878
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2601AW2

Document
Call for Availability
Add to Favorites
Compare

Description

2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 4 watertight enclosure. Drum switches are UL listed and CSA certified for global applications.

Specifications

Weight

2.62

Width

5.55

Length

7.83

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2601AW2/2601AW2.spin

AD All Features

600VAC and 250VDC maximum

AD Alternative Part Number

8030191

AD Application

For designed to start and reverse motors by connecting them directly across the line in manual reversing control applications such as machine tools, wood working machines and similar types of equipment and indoor/outdoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD EAN

0785901784432

AD Gtin

00785901784432

AD IDEA Index ID

8030191

AD Invoice Description

SWITCH DRUM 600 VAC 250 VDC 2HP 3 FL

AD Item Features 01

600VAC and 250VDC maximum

AD Item Features 02

Contacts are not replaceable

AD Item Features 03

Wide range of enclosures available

AD Keywords

2601AW2 A Series Type AW Class 2601 Dust/Watertight Drum Switch, 600 V AC/250 V DC, 2 hp Power Rating, 3 Poles ; Schneider Electric ; Square D ; 2601AW2 ; 2601AW2 ; 785901784432 ; Drum Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.8300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.6200

AD Package Weight UOM

LB

AD Package Width

5.5500

AD Package Width UOM

IN

AD Part Number Keywords

2601AW2 ; 8030191 ; 785901784432 ; 78590178443 ; 00785901784432 ; 0785901784432

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Reversing

Spec 10 Attribute

Series

Spec 10 Attribute Value

A Series

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type AW Class 2601 Dust/Watertight

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute Value

600 V AC/250 V DC

Spec 2 Attribute

Actuator

Spec 2 Attribute Value

Standard Handle

Spec 3 Attribute

Contact Rating

Spec 3 Attribute Value

2 hp at 230/575 V AC

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.5 in W x 6.89 in H

Spec 5 Attribute

Enclosure

Spec 5 Attribute Value

NEMA 4

Spec 6 Attribute

Material

Spec 6 Attribute Value

304 Stainless Steel

Spec 7 Attribute

Mounting

Spec 7 Attribute Value

Flush

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

HP

Spec 9 Attribute Value

2
