Square D

2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure

Category Miscellaneous

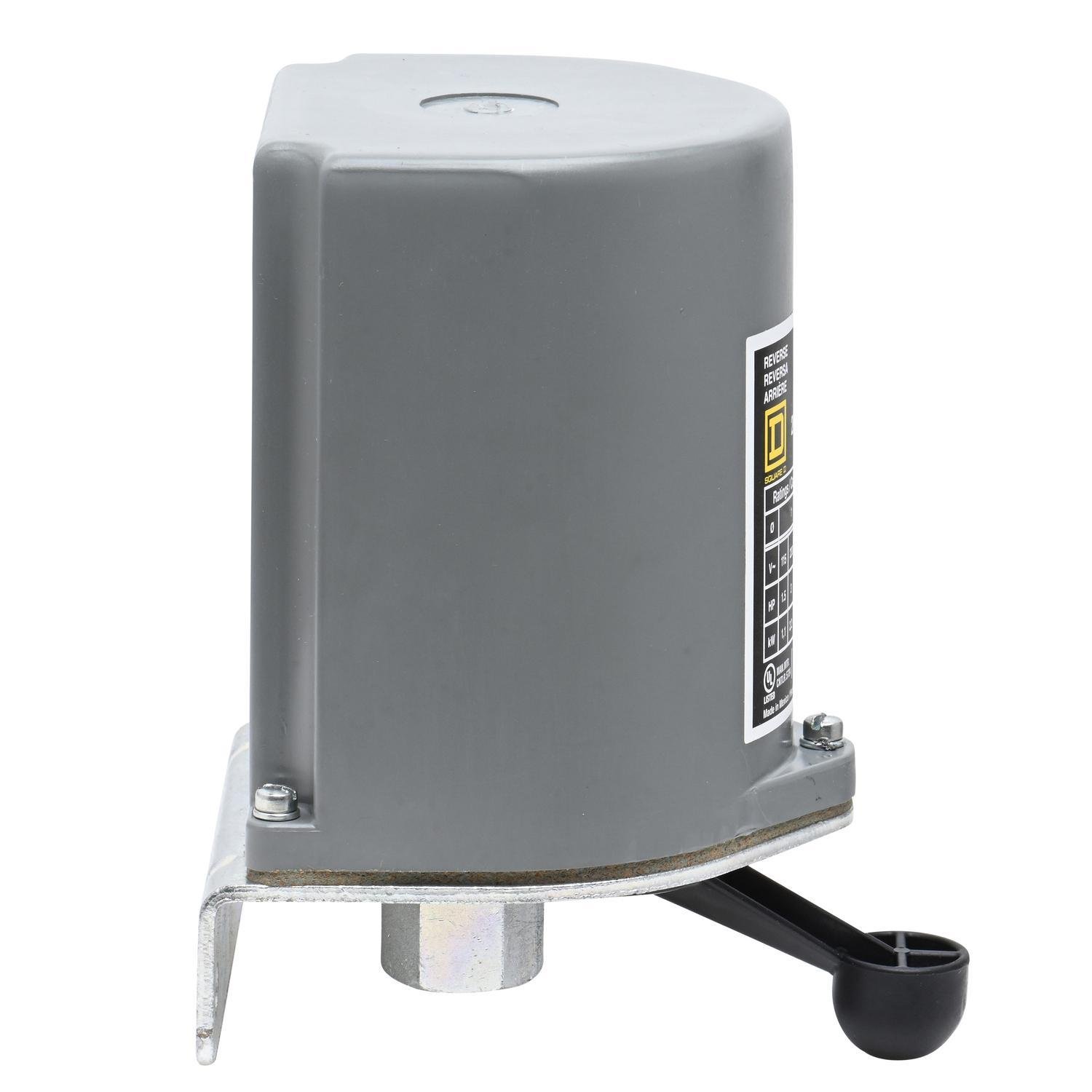

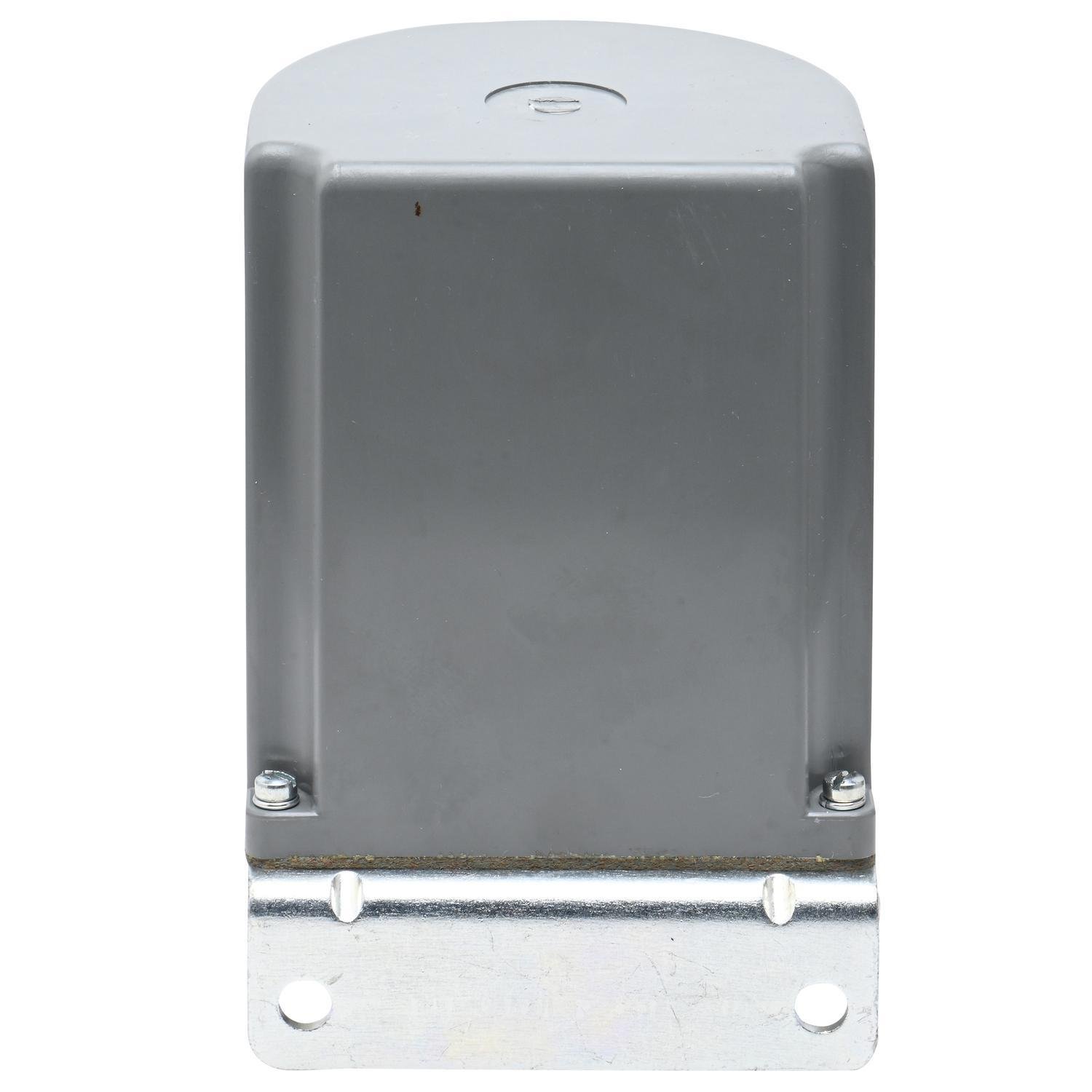

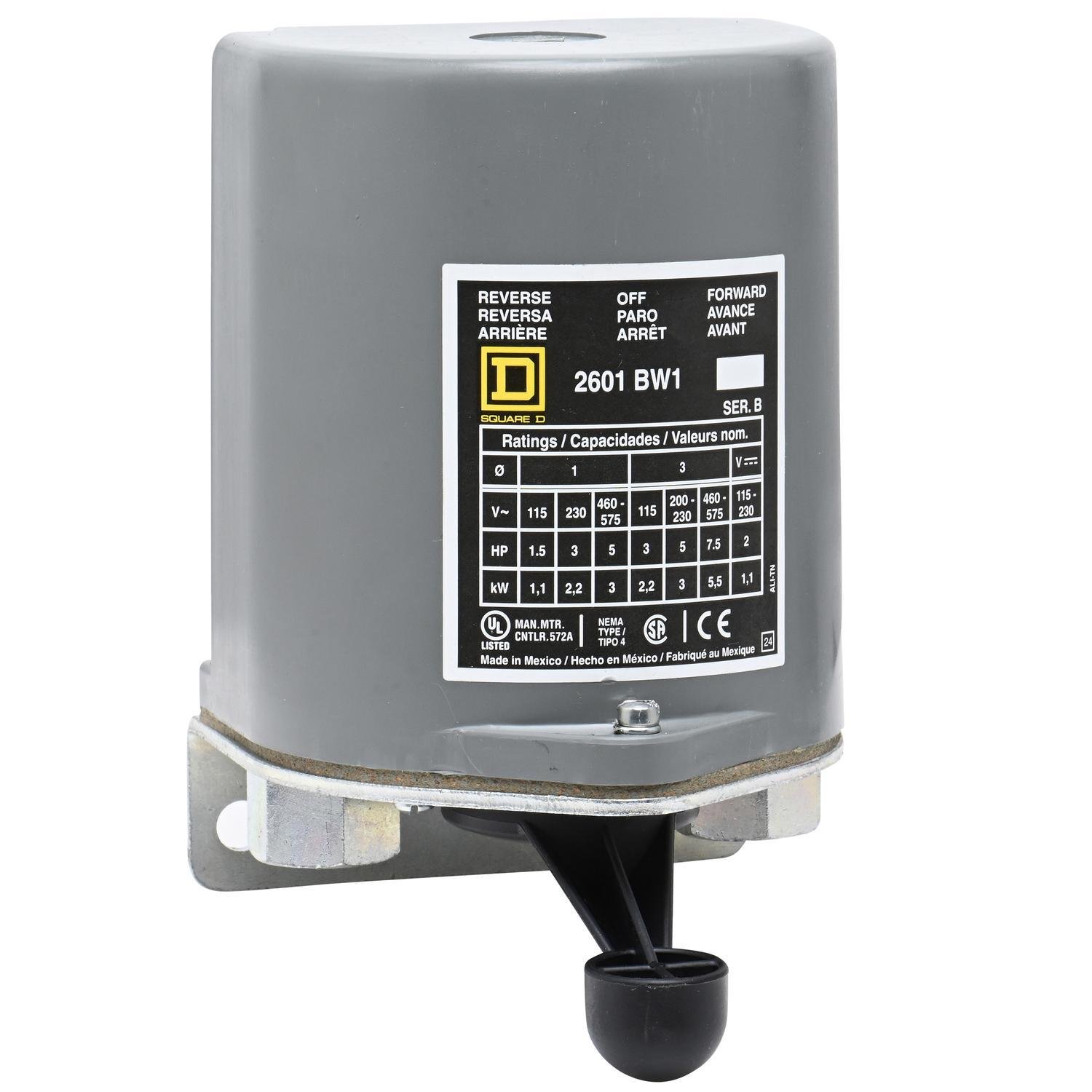

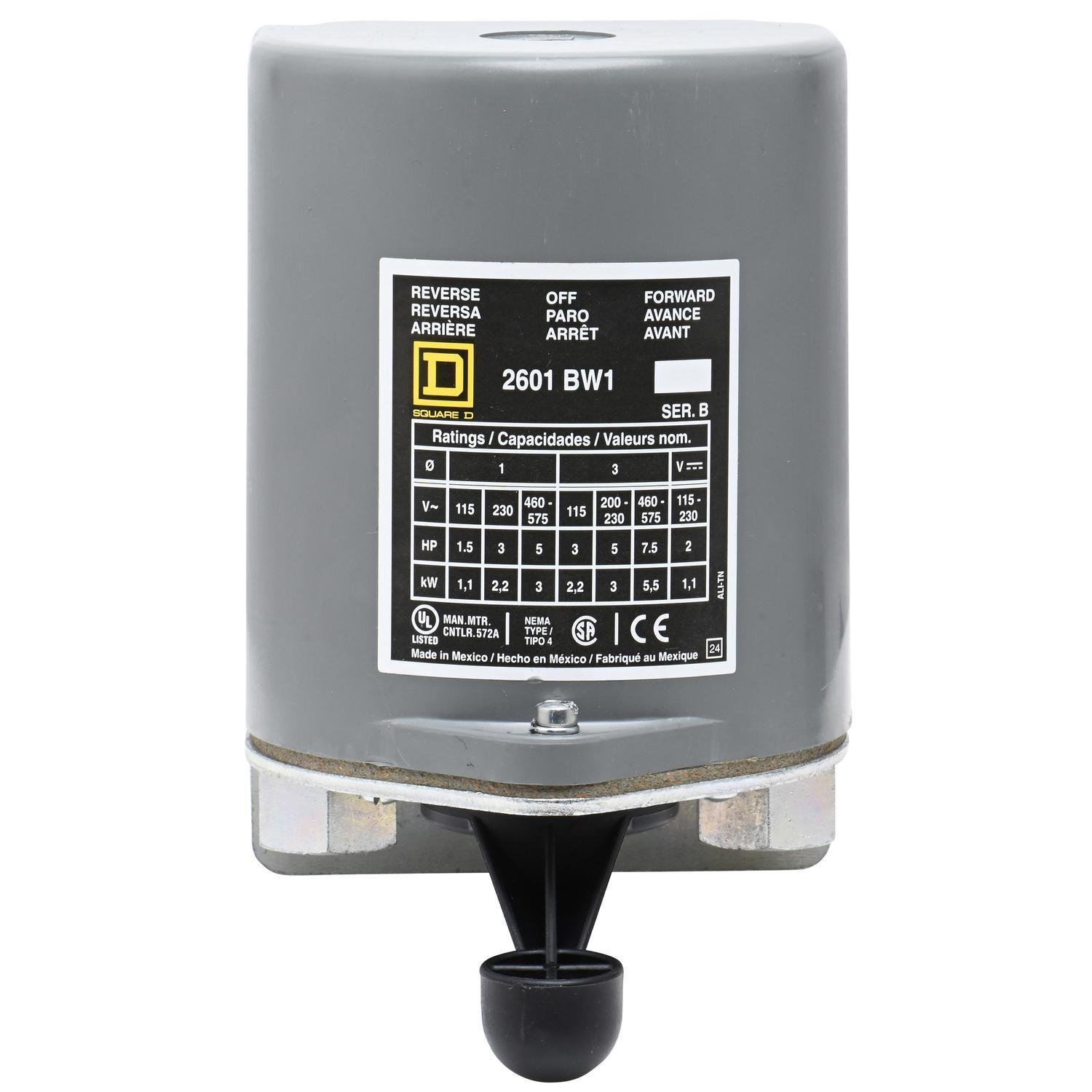

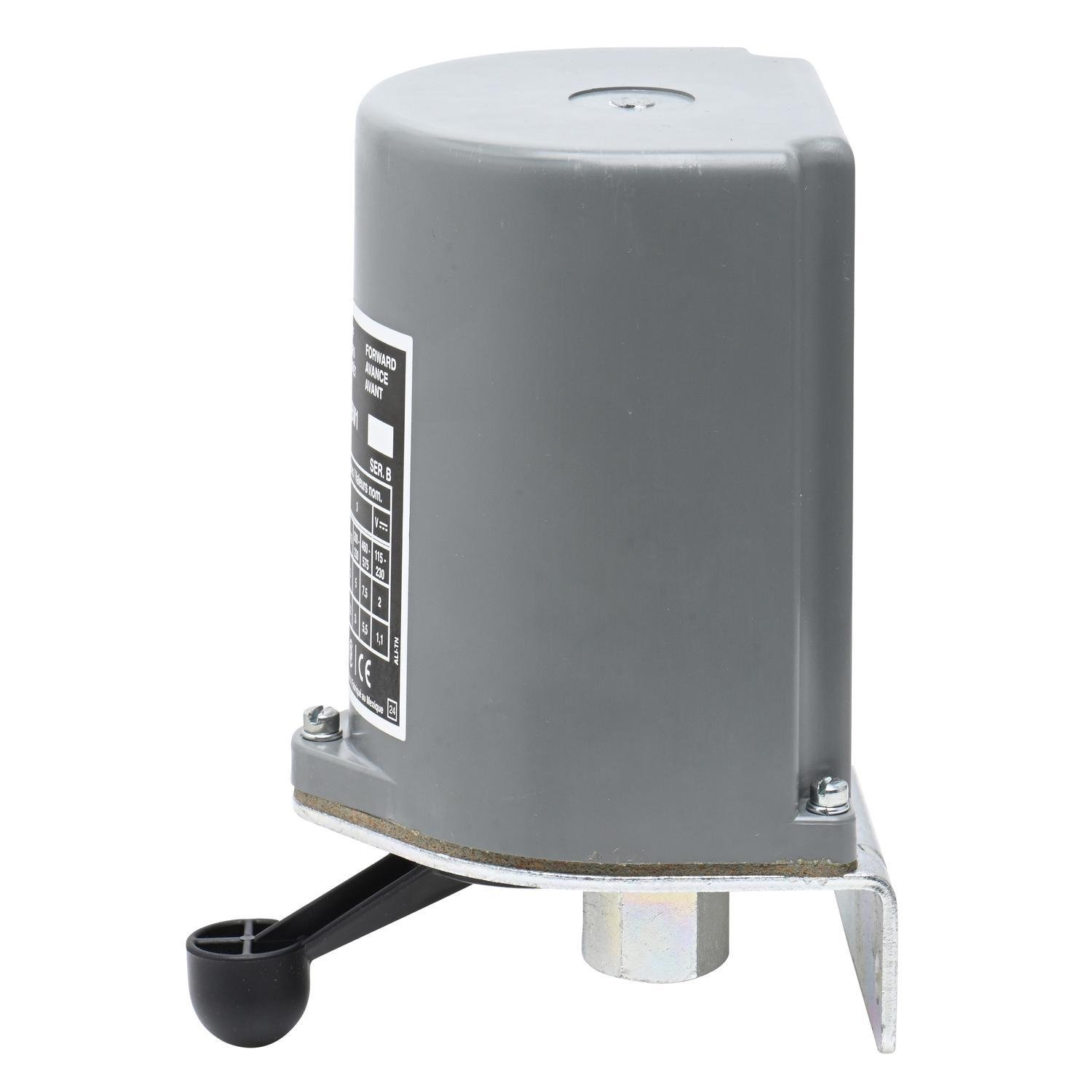

Picture of 2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure Picture of 2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure
Picture of 2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure Picture of 2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure
Picture of 2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure Picture of 2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure
Picture of 2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure Picture of 2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure
Picture of 2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure Picture of 2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure
Square D

2601BW1 - Switch, reversing drum, 5HP at 575VAC single phase, 7.5HP at 575VAC polyphase, handle operated, NEMA 4 enclosure

Item Code: 32415
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2601BW1

Document
Call for Availability
Add to Favorites
Compare

Description

2601 reversing drum switches are designed to starting and reversing motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. A NEMA 4 watertight and dusttight enclosure is used to protect this switch. Enclosure is 6.89 inches tall, 4.40 inches wide and 5.50 inches deep. Drum switches are UL listed and CSA certified.

Specifications

Weight

3.52

Height

4.8

Width

4.95

Length

7.92

AD All Features

600VAC and 250VDC maximum

AD Alternative Part Number

8030199

AD Application

For designed to start and reverse motors by connecting them directly across the line in manual reversing control applications such as machine tools, wood working machines and similar types of equipment and indoor/outdoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

Specification Sheet

AD EAN

0785901784449

AD Gtin

00785901784449

AD IDEA Index ID

8030199

AD Invoice Description

SWITCH DRUM 600 VAC 250 VDC 7-1/2HP

AD Item Features 01

600VAC and 250VDC maximum

AD Item Features 02

Contacts are not replaceable

AD Item Features 03

Wide range of enclosures available

AD Keywords

2601BW1 B Series Type BW Class 2601 Dust/Watertight Drum Switch, 600 V AC/250 V DC, 7-1/2 hp Power Rating, 3 Poles ; Schneider Electric ; Square D ; 2601BW1 ; 2601BW1 ; 785901784449 ; Drum Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.8000

AD Package Height UOM

IN

AD Package Length

7.9200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

192.0000

AD Package Volume UOM

cu-in

AD Package Weight

3.5200

AD Package Weight UOM

LB

AD Package Width

4.9500

AD Package Width UOM

IN

AD Part Number Keywords

2601BW1 ; 8030199 ; 785901784449 ; 78590178444 ; 00785901784449 ; 0785901784449

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Reversing

Spec 10 Attribute

Series

Spec 10 Attribute Value

B Series

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type BW Class 2601 Dust/Watertight

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute Value

600 V AC/250 V DC

Spec 2 Attribute

Actuator

Spec 2 Attribute Value

Standard Handle

Spec 3 Attribute

Contact Rating

Spec 3 Attribute Value

5 hp, 7-1/2 hp at 575 V AC

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.5 in W x 6.89 in H

Spec 5 Attribute

Enclosure

Spec 5 Attribute Value

NEMA 4

Spec 6 Attribute

Material

Spec 6 Attribute Value

304 Stainless Steel

Spec 7 Attribute

Mounting

Spec 7 Attribute Value

Flush

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

HP

Spec 9 Attribute Value

7/1/2002
