Square D

2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise

Category Miscellaneous

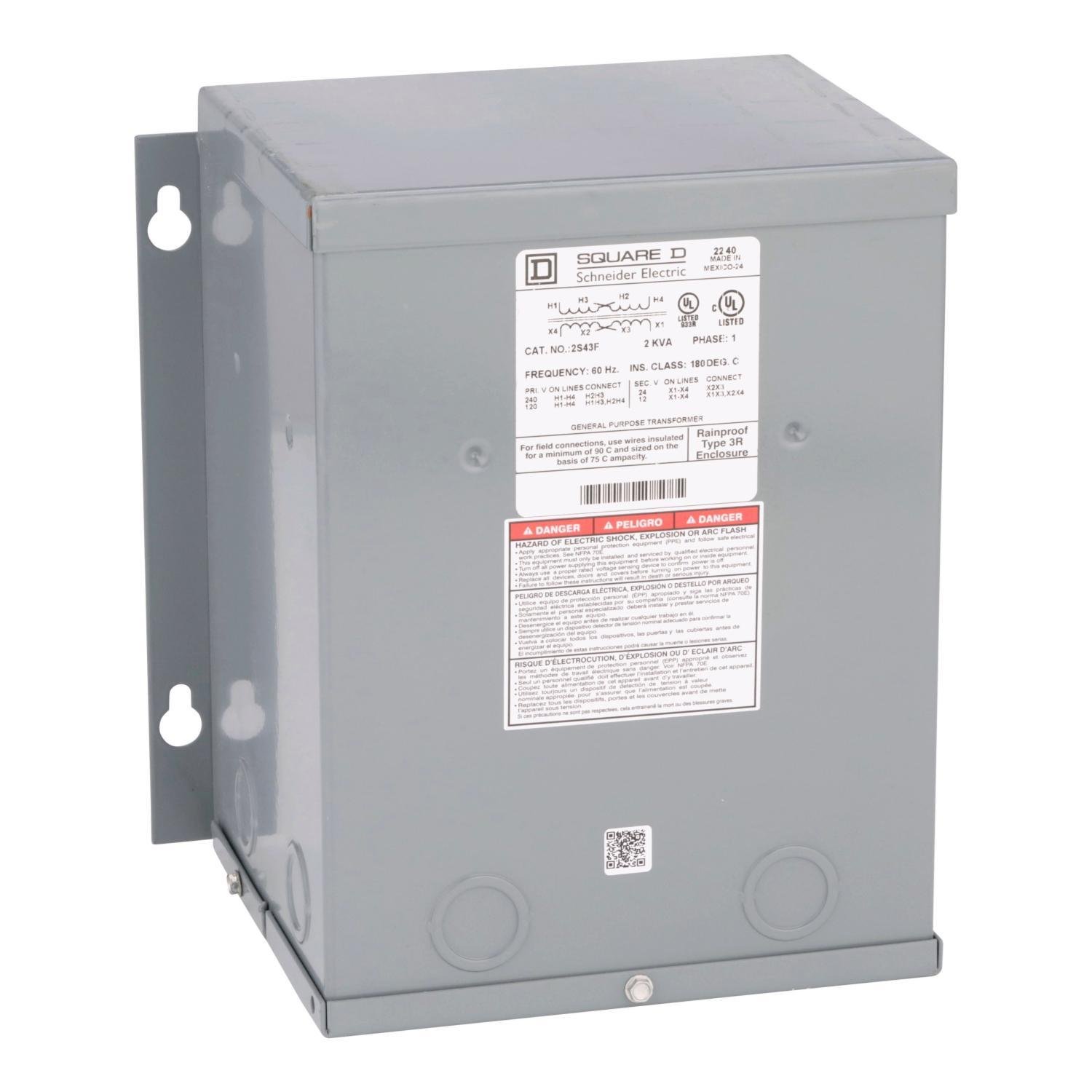

Picture of 2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise Picture of 2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise

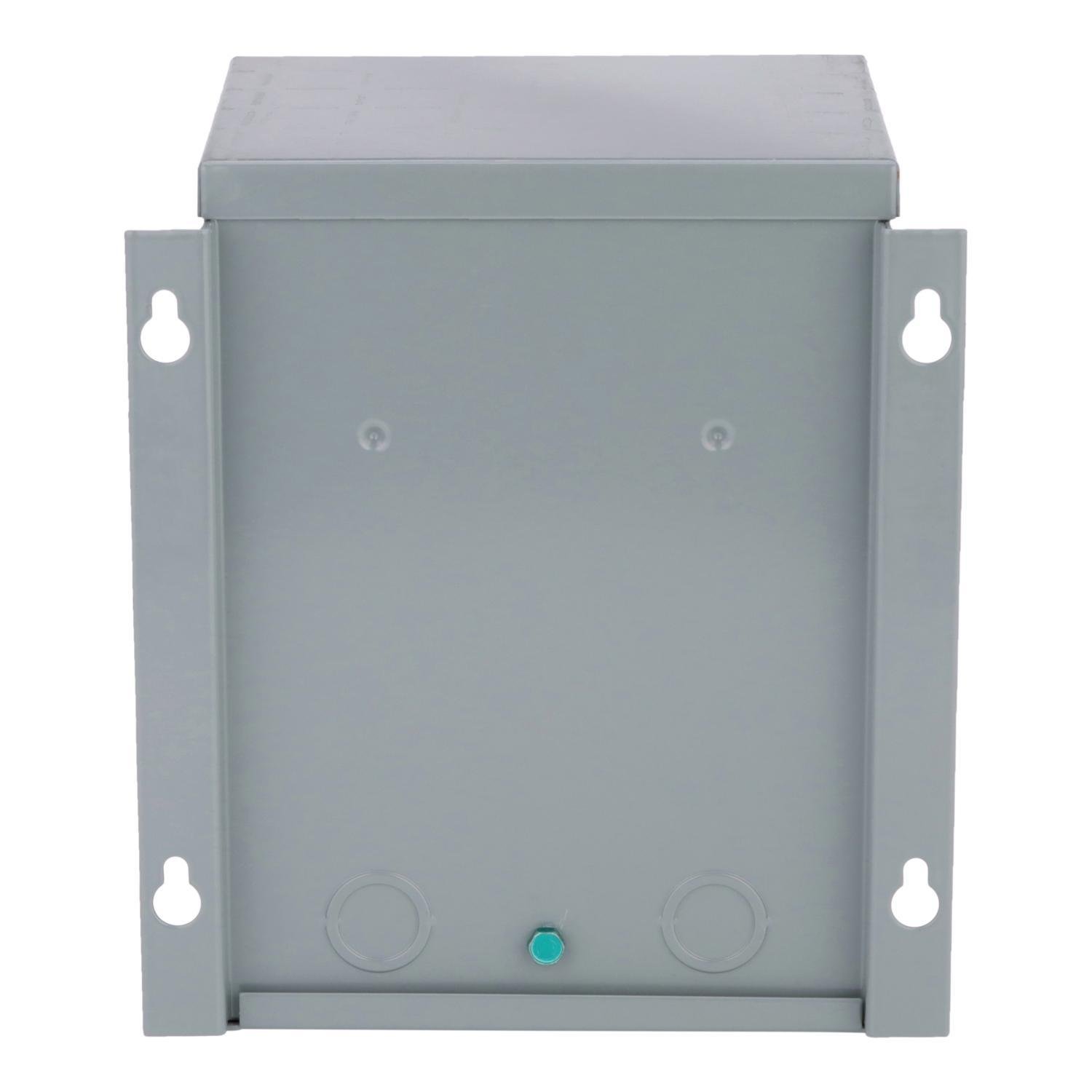

Picture of 2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise Picture of 2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise

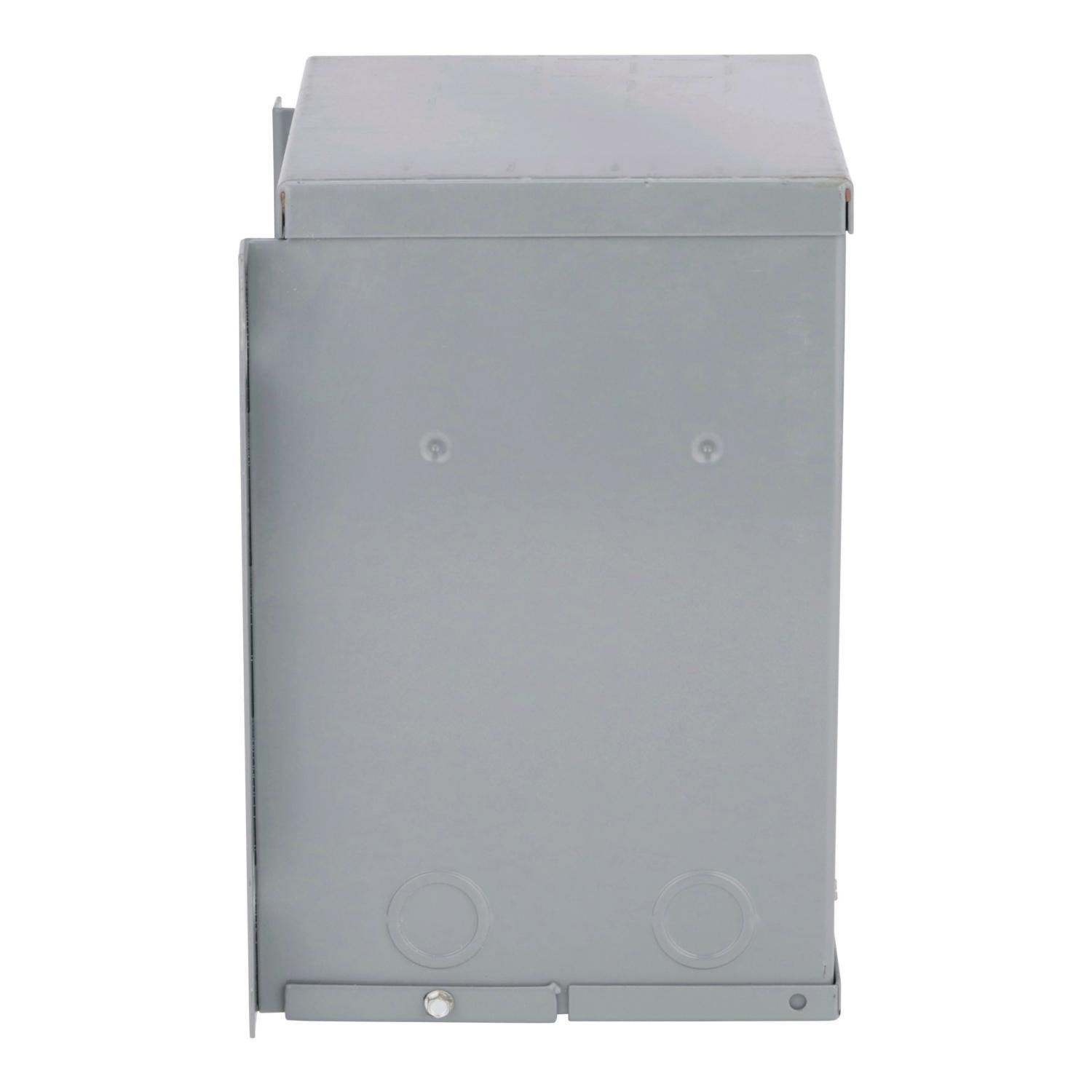

Picture of 2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise Picture of 2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise

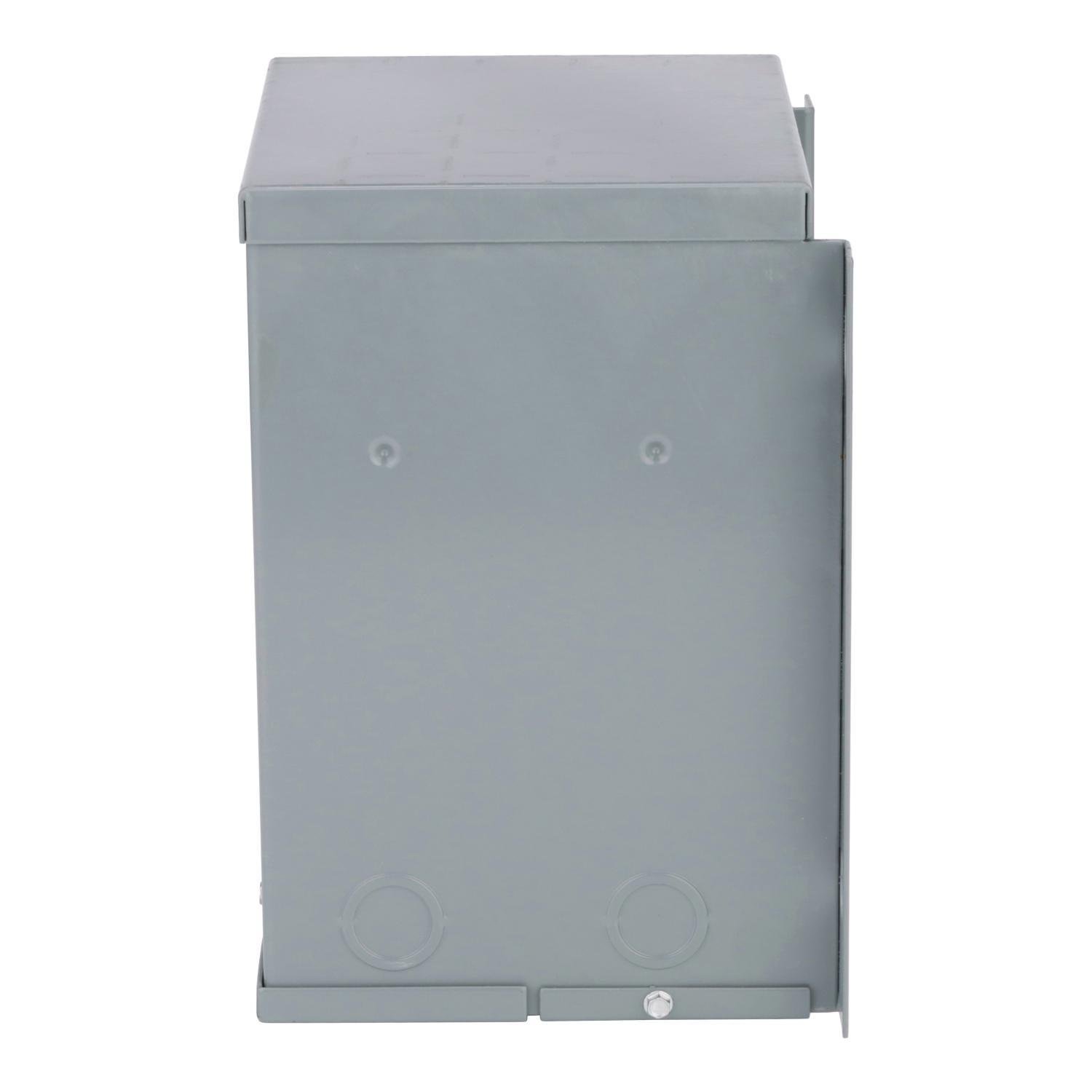

Picture of 2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise Picture of 2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise
Picture of 2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise Picture of 2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise
Square D

2S43F - Transformer, buck boost, encapsulated, 2kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 115C rise

Item Code: 17074
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2S43F

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed. This Buck and Boost Transformer is a 1 phase, and has a NEMA 3R enclosure rating. This transformer has a primary voltage of 120 x 240 V and a secondary voltage of 12/24 V. This product have a temperature rise of 115 °C. Dimensions for this product are 243 mm (H), 220 mm (W), 167 mm(D), and a weight of 39.1 lb(US).

Specifications

Weight

49.19

Height

9.8

Width

10.8

Length

12.38

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2S43F/2S43F.spin

AD All Features

Designed to supply 12/24, 16/32, or 24/48 circuits

AD Alternative Part Number

8073235

AD Application

For buck and boost primary use is that the primary and secondary can be interconnected for use as an autotransformer

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901876489

AD Gtin

00785901876489

AD IDEA Index ID

8073235

AD Invoice Description

BUCK AND BOOST TRANSFORMER 120/240VAC

AD Item Features 01

Designed to supply 12/24, 16/32, or 24/48 circuits

AD Item Features 02

Unique enclosures for each kVA size

AD Item Features 03

All possible solutions with pare numbers and wiring diagrams

AD Keywords

2S43F Dry Buck and Boost Transformer, 120/240 V AC Primary, 12/24 VAC Secondary, 2 kVA Power Rating, 60 Hz, 1 Phase ; Schneider Electric ; Square D ; 2S43F ; 2S43F ; 785901876489 ; Buck Boost Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

9.8000

AD Package Height UOM

IN

AD Package Length

12.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1335.2500

AD Package Volume UOM

cu-in

AD Package Weight

49.1900

AD Package Weight UOM

LB

AD Package Width

10.8000

AD Package Width UOM

IN

AD Part Number Keywords

2S43F ; 8073235 ; 785901876489 ; 78590187648 ; 00785901876489 ; 0785901876489

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

9.56 in H x 8.68 in W x 6.56 in D

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

24-Dec

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

115

Spec 12 Attribute

Type

Spec 12 Attribute Value

Dry

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 3R/IP54

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

60

Spec 4 Attribute

Housing Material

Spec 4 Attribute Value

Steel

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

kVA

Spec 8 Attribute Value

2

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

120/240
