Square D

2S67F - Transformer, dry type, encapsulated, 2kVA, 1 phase, multiple voltages, 9A, 115C rise [TAA]

Category Miscellaneous

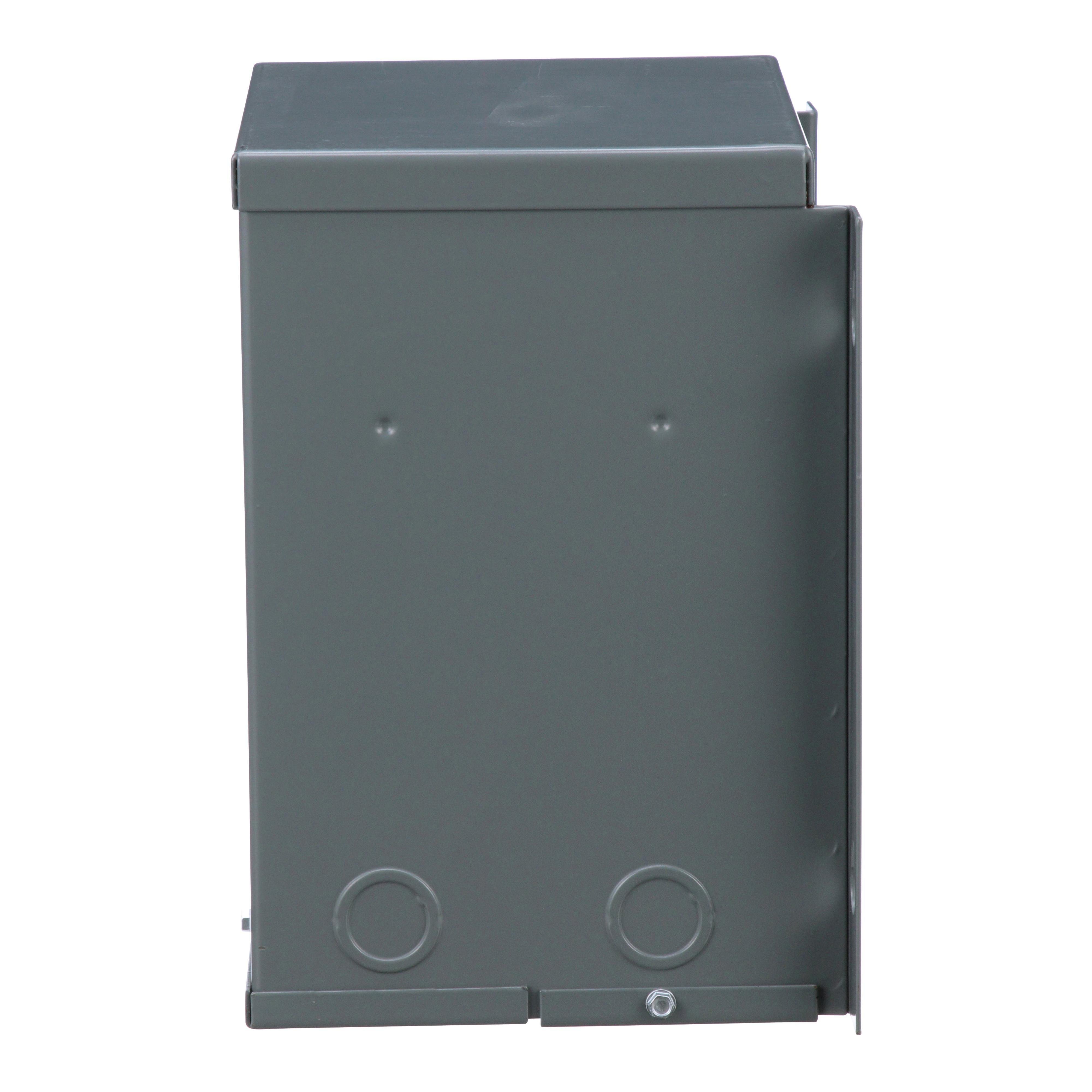

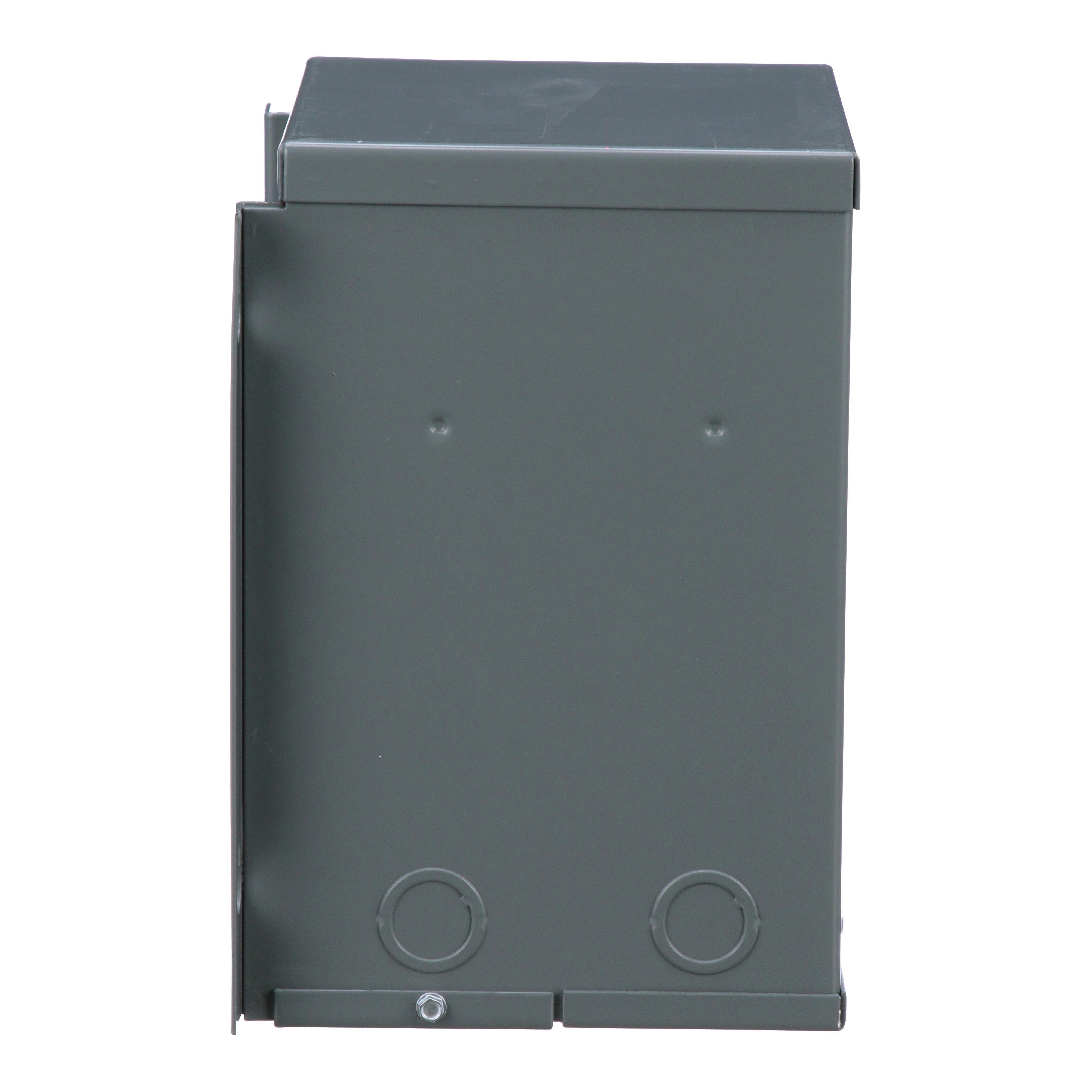

Picture of 2S67F - Transformer, dry type, encapsulated, 2kVA, 1 phase, multiple voltages, 9A, 115C rise [TAA] Picture of 2S67F - Transformer, dry type, encapsulated, 2kVA, 1 phase, multiple voltages, 9A, 115C rise [TAA]
Picture of 2S67F - Transformer, dry type, encapsulated, 2kVA, 1 phase, multiple voltages, 9A, 115C rise [TAA] Picture of 2S67F - Transformer, dry type, encapsulated, 2kVA, 1 phase, multiple voltages, 9A, 115C rise [TAA]
Picture of 2S67F - Transformer, dry type, encapsulated, 2kVA, 1 phase, multiple voltages, 9A, 115C rise [TAA] Picture of 2S67F - Transformer, dry type, encapsulated, 2kVA, 1 phase, multiple voltages, 9A, 115C rise [TAA]
Square D

2S67F - Transformer, dry type, encapsulated, 2kVA, 1 phase, multiple voltages, 9A, 115C rise [TAA]

Item Code: 568884
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 2S67F

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 2 KVA. This transformer has a primary voltages of 190/200/208/220 x 380/400/416/440 V, and a secondary voltage of 110/220 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 9.56 in (H), 8.68 in (W), 6.56 in (D). This product complys to UL & CSA standards.

Specifications

Weight

49.4

Height

9.7

Width

11.19

Length

12.28

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/2S67F/2S67F.spin

AD All Features

Resin filled transformers are epoxy encoapsulated

AD Alternative Part Number

8070254

AD Application

For general purpose, intended for export, designed to accommodate voltage systems worldwide

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901868989

AD Gtin

00785901868989

AD IDEA Index ID

8070254

AD Invoice Description

TRANSFORMER 220/440VAC 110/220VAC 2KVA

AD Item Features 01

Resin filled transformers are epoxy encoapsulated

AD Item Features 02

Individual enclosures from 50VA through 5kVA

AD Item Features 03

Can be configured into autotransformer

AD Keywords

2S67F Dry Sealed Encapsulated Multi-Tap Transformer, 220/440 V AC Primary, 110/220 VAC Secondary, 2 kVA Power Rating, 50/60 Hz, 1 Phase ; Schneider Electric ; Square D ; 2S67F ; 2S67F ; 785901868989 ; General Purpose - Multi-Use Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

9.7000

AD Package Height UOM

IN

AD Package Length

12.2800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1359.1600

AD Package Volume UOM

cu-in

AD Package Weight

49.4000

AD Package Weight UOM

LB

AD Package Width

11.1900

AD Package Width UOM

IN

AD Part Number Keywords

2S67F ; 8070254 ; 785901868989 ; 78590186898 ; 00785901868989 ; 0785901868989

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

9.56 in H x 8.68 in W x 6.56 in D

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

110/220

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

115

Spec 12 Attribute

Type

Spec 12 Attribute Value

Dry Sealed Encapsulated Multi-Tap

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 3R

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

50/60

Spec 4 Attribute

Housing Material

Spec 4 Attribute Value

Steel

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

kVA

Spec 8 Attribute Value

2

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

220/440
