Schneider Electric

3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA

Category Power Meters

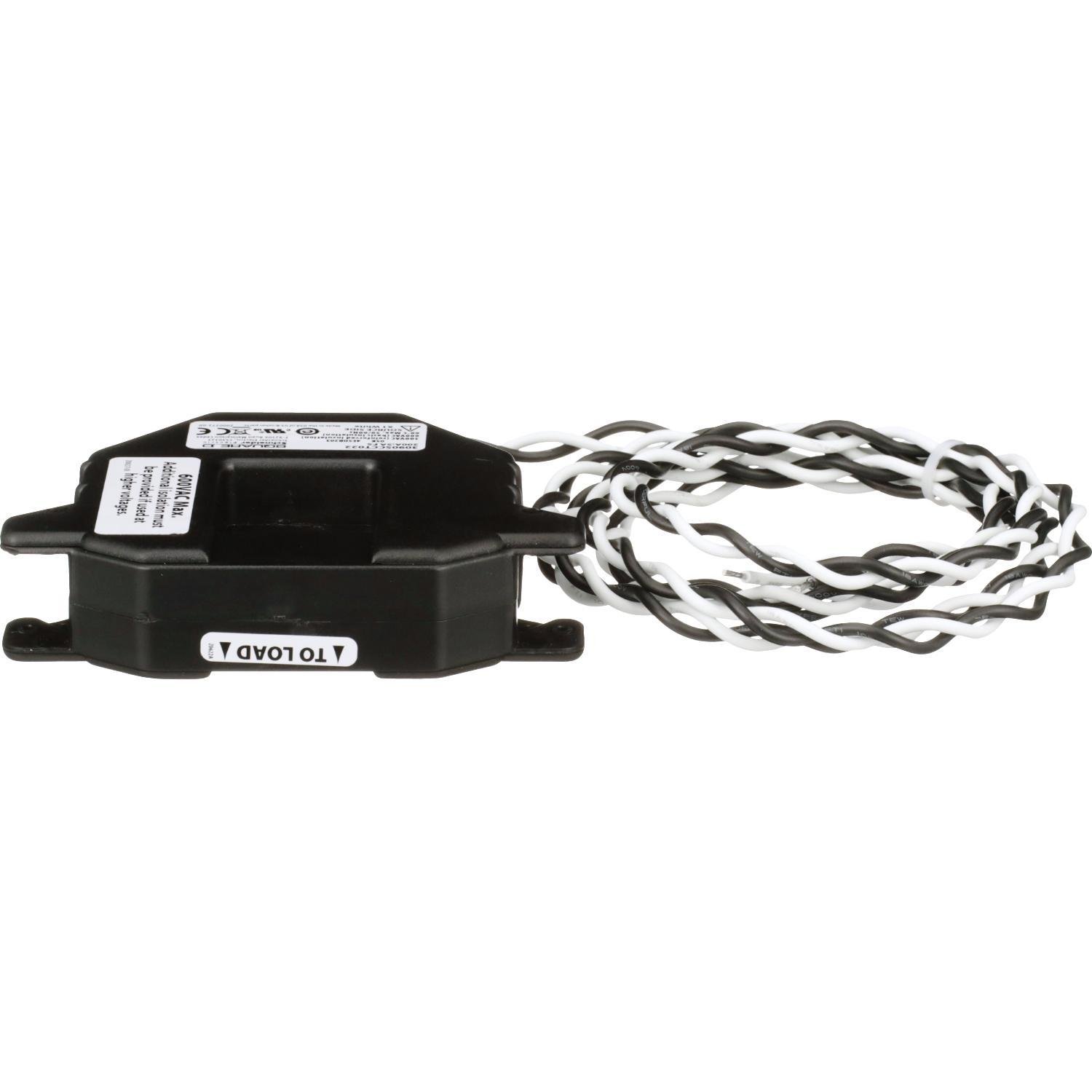

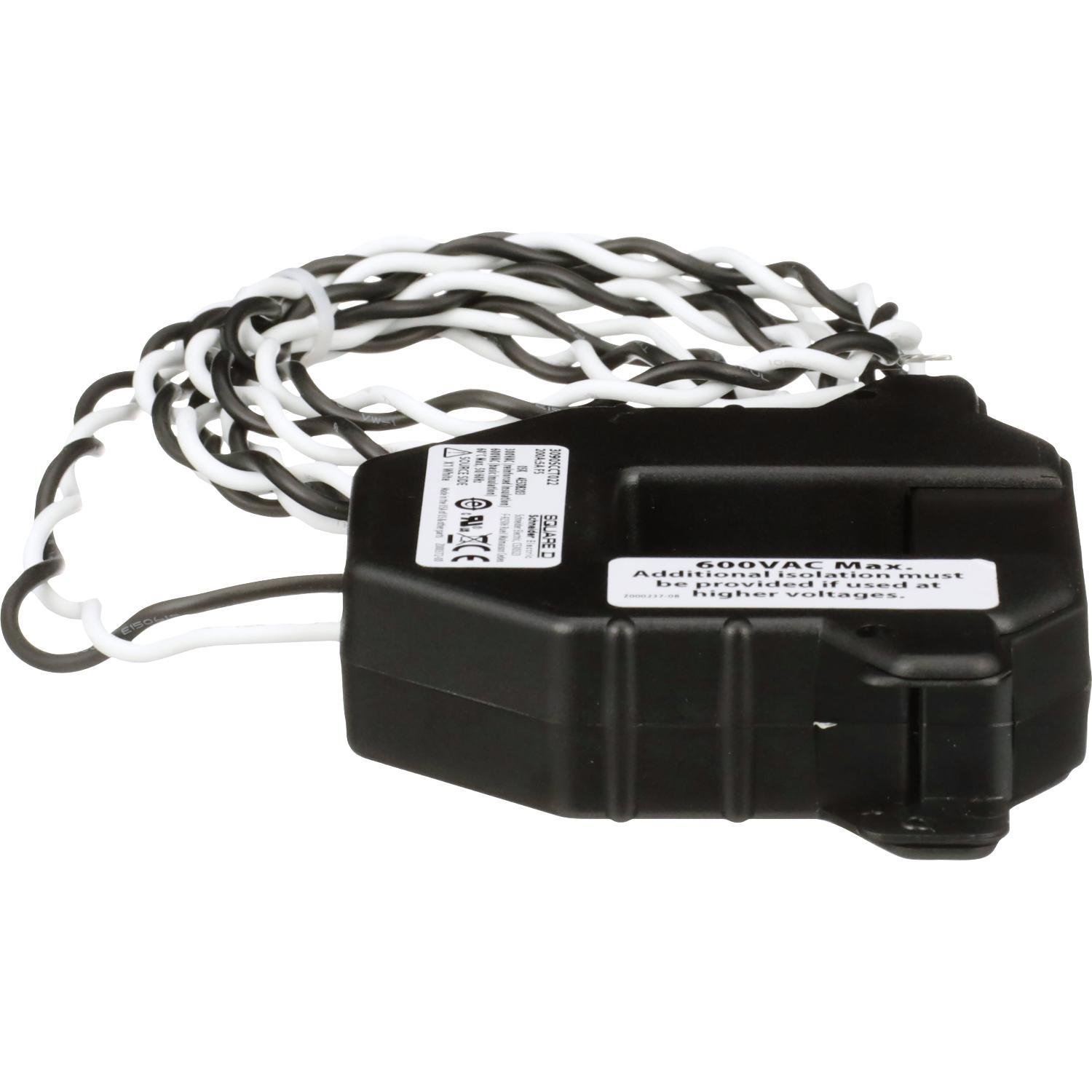

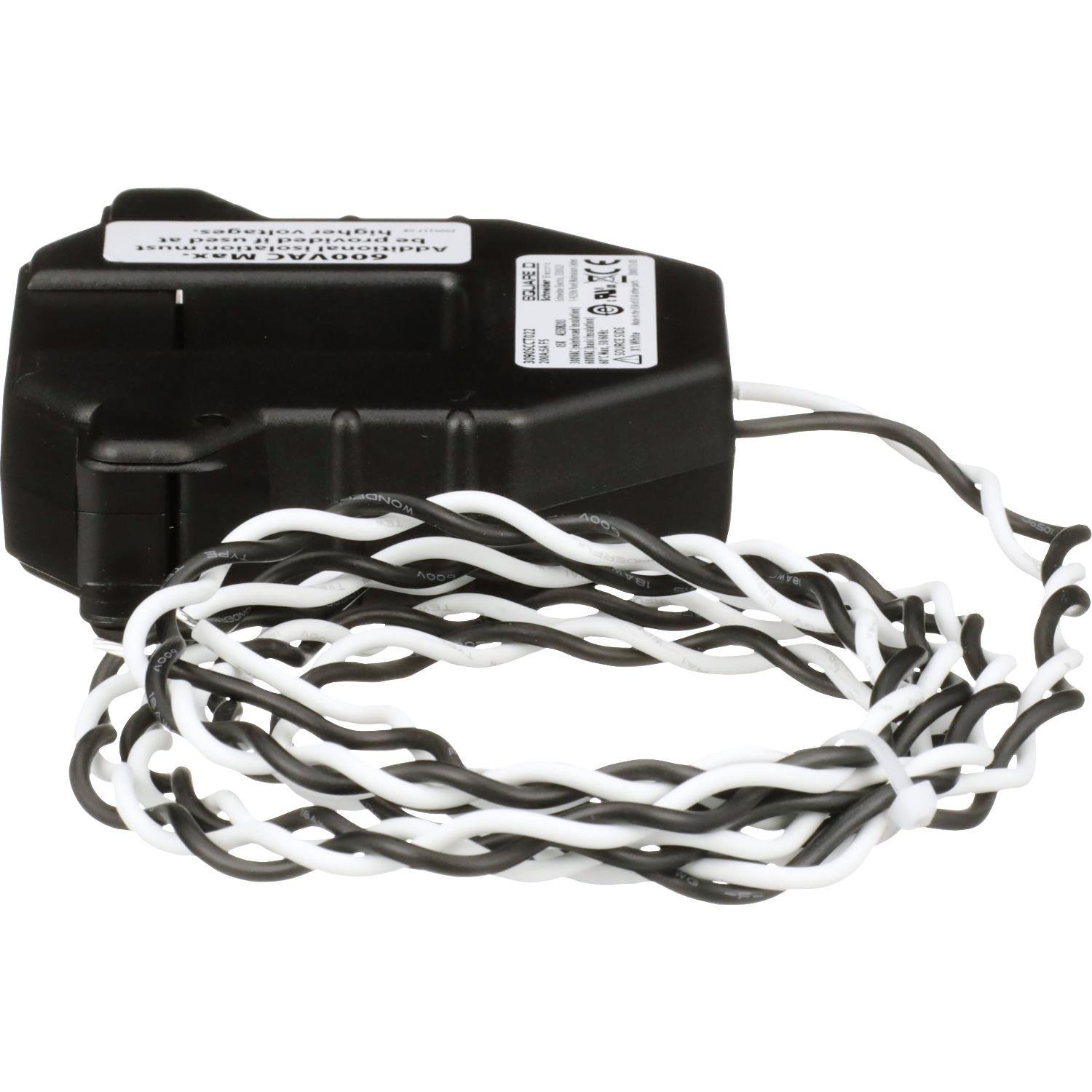

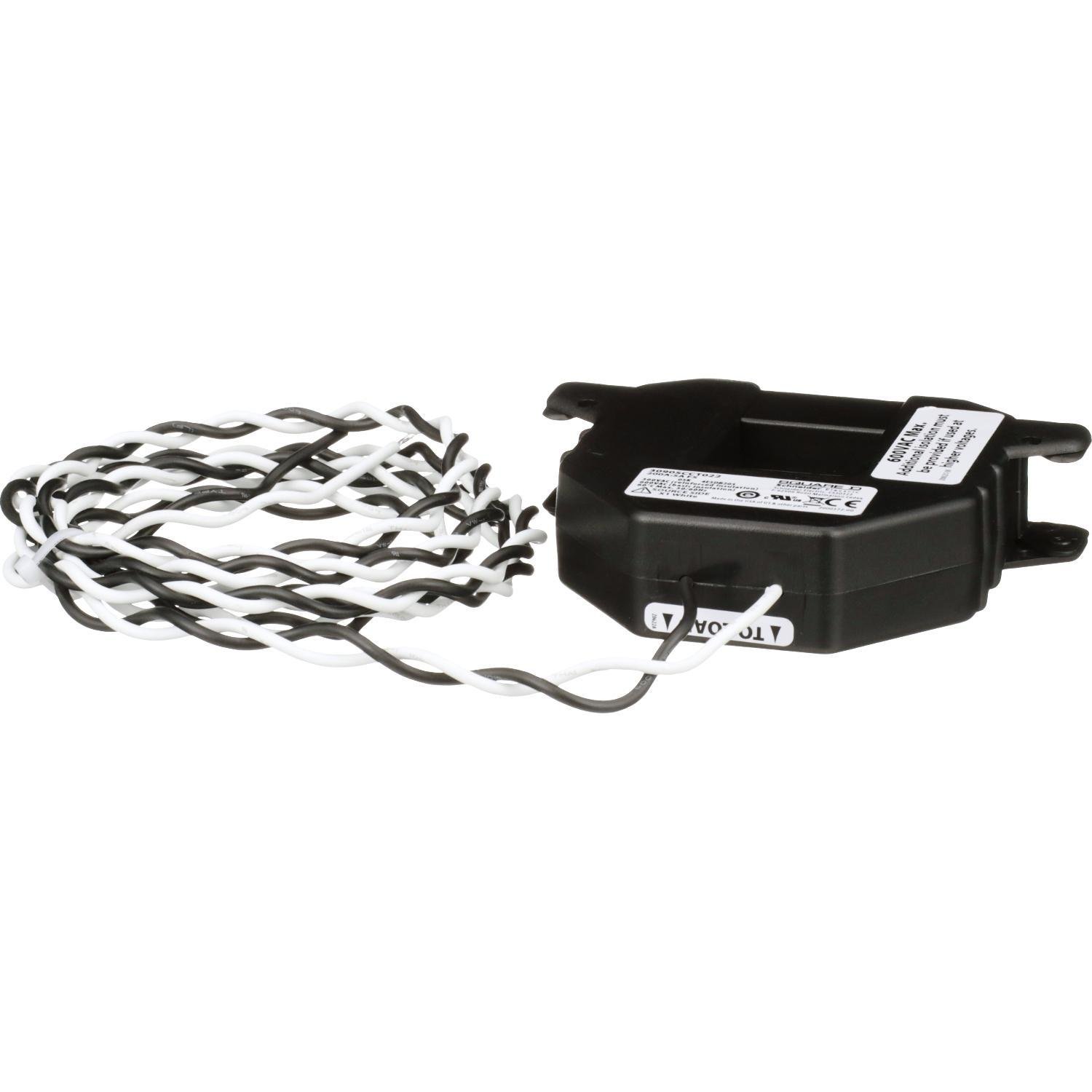

Picture of 3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA Picture of 3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA
Picture of 3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA Picture of 3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA
Picture of 3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA Picture of 3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA
Picture of 3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA Picture of 3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA
Picture of 3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA Picture of 3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA
Schneider Electric

3090SCCT022 - Square D - PowerLogic 3090 SCCT - split core CT - 200/5 A - size 2 - 2.5 VA

Item Code: 593886
Category Power Meters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 3090SCCT022

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This current transformer, has a line rated current of 0200 A and a secondary current rating of 5 A. Size type 2 with core opening of 1.25 inches by 1.51 inches. Compatible with PowerLogic family of meters, and Acti 9 energy meters. Burden and accuracy class as follows class 1 maximum power 2.5 VA.

Specifications

Weight

1.76

Width

3.82

Length

4.72

AD Application

Circuit Monitor, Power Meter, Transducer, Control Station, Other Instruments and Indoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

TRANSFORMER CUR 200:5 200A 5A 50/60HZ 1%

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.7200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.7600

AD Package Weight UOM

LB

AD Package Width

3.8200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/5oM8IMwBJns

Brand

Square D

Category

Power Meters

Spec 1 Attribute

Accuracy

Spec 1 Attribute UOM

%

Spec 1 Attribute Value

1

Spec 10 Attribute

Series

Spec 10 Attribute Value

3090

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-15 to 60

Spec 12 Attribute

Type

Spec 12 Attribute Value

Split Core

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

600

Spec 2 Attribute

Cable Size

Spec 2 Attribute UOM

AWG

Spec 2 Attribute Value

18

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Flying Lead

Spec 4 Attribute

Current Ratio

Spec 4 Attribute Value

200:05:00

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

121 mm W x 29 mm D x 107 mm H

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Power Rating

Spec 7 Attribute UOM

VA

Spec 7 Attribute Value

2/1/2002

Spec 8 Attribute

Primary Current

Spec 8 Attribute UOM

A

Spec 8 Attribute Value

200

Spec 9 Attribute

Secondary Current

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

5
