Square D

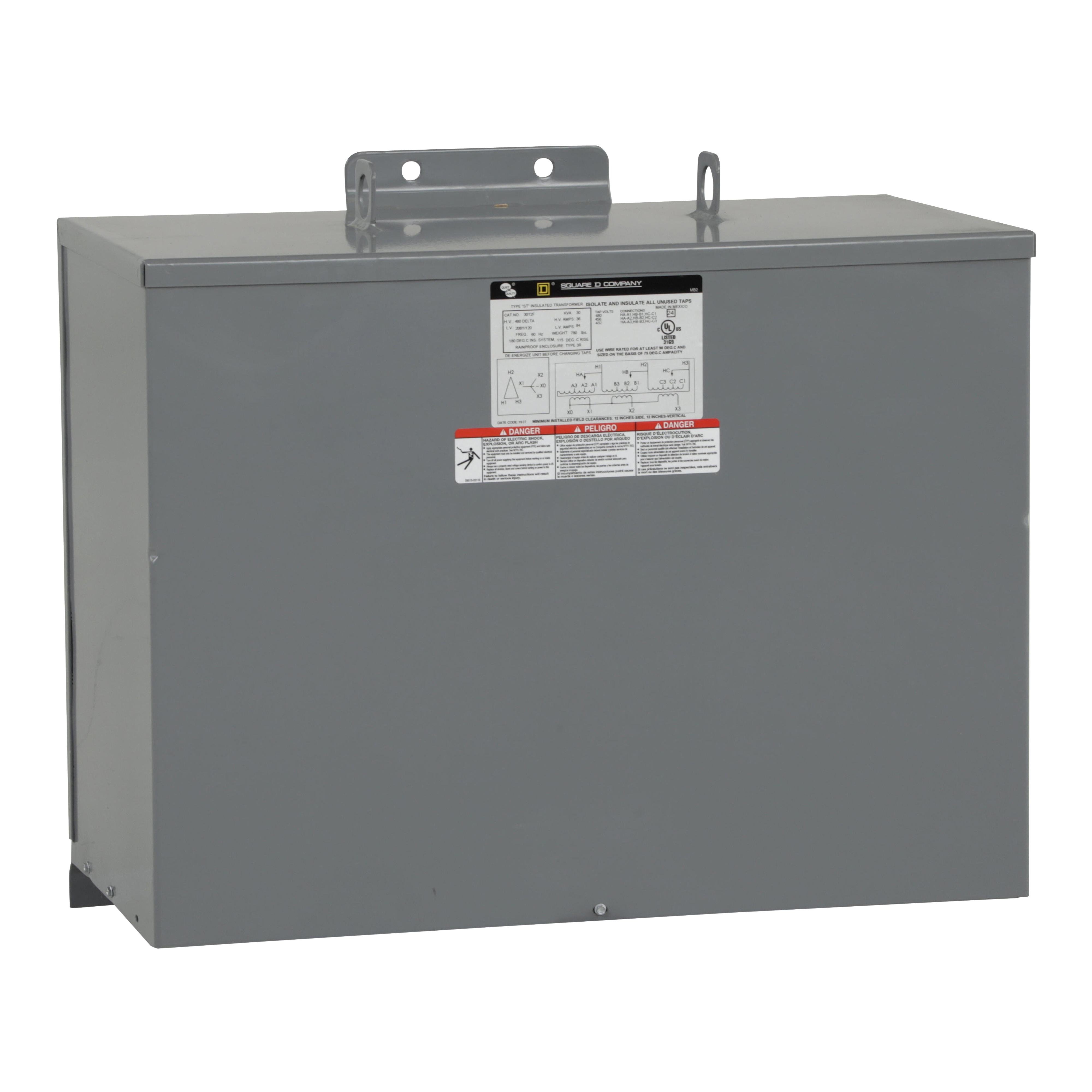

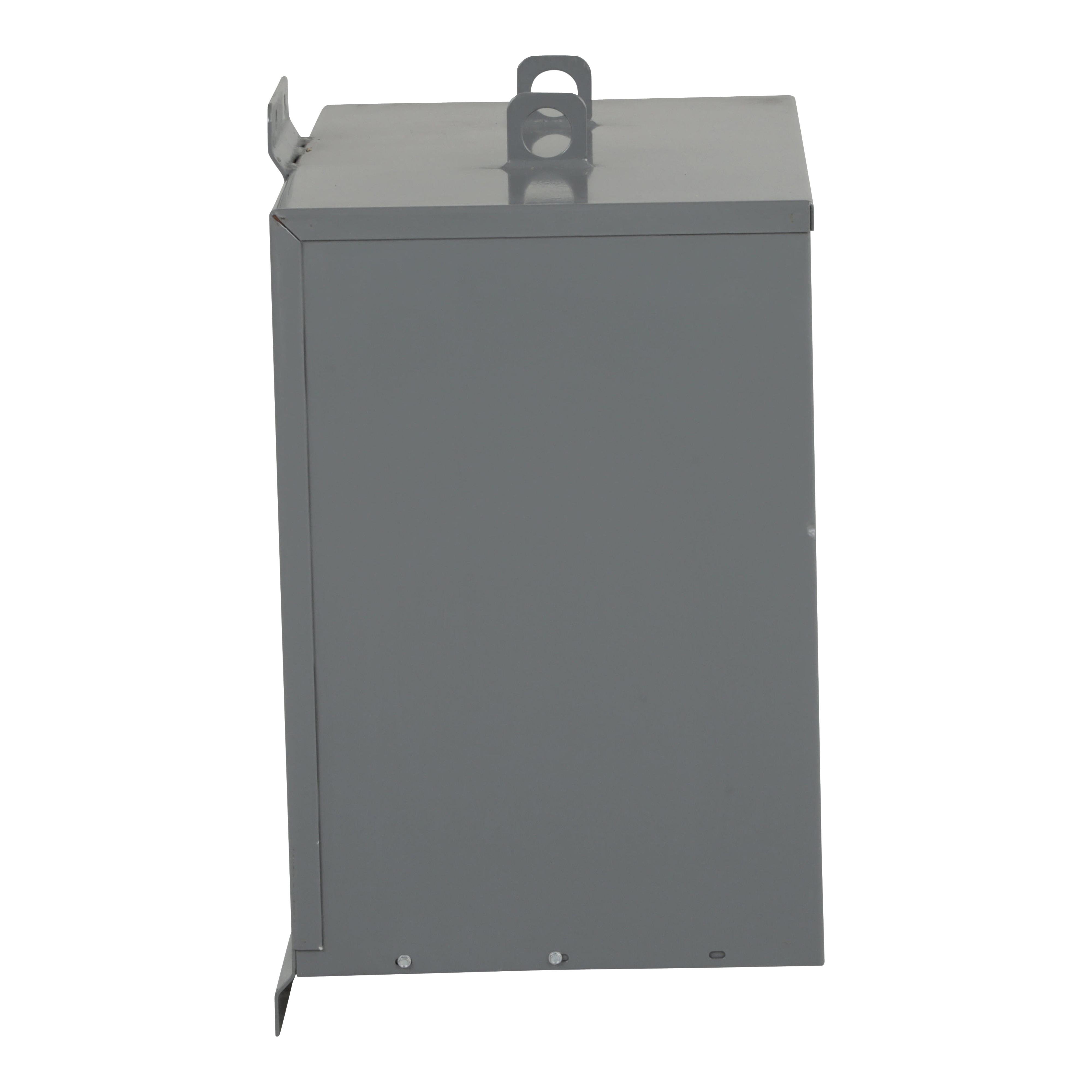

30T2F - Transformer, dry type, encapsulated, 30kVA, 3 phase, 480V primary, 208Y/120V secondary, 16C, 115C rise [TAA]

Category Miscellaneous
Picture of 30T2F - Transformer, dry type, encapsulated, 30kVA, 3 phase, 480V primary, 208Y/120V secondary, 16C, 115C rise [TAA] Picture of 30T2F - Transformer, dry type, encapsulated, 30kVA, 3 phase, 480V primary, 208Y/120V secondary, 16C, 115C rise [TAA]
Picture of 30T2F - Transformer, dry type, encapsulated, 30kVA, 3 phase, 480V primary, 208Y/120V secondary, 16C, 115C rise [TAA] Picture of 30T2F - Transformer, dry type, encapsulated, 30kVA, 3 phase, 480V primary, 208Y/120V secondary, 16C, 115C rise [TAA]
Square D

30T2F - Transformer, dry type, encapsulated, 30kVA, 3 phase, 480V primary, 208Y/120V secondary, 16C, 115C rise [TAA]

Item Code: 49008
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 30T2F

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 3 phase, and has a rated power of 30 KVA. This transformer has a primary voltage of 480 V, and a secondary voltage of 208Y/120 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 22 in (H), 25 in (W), 13.5 in (D). This product complys to UL & CSA standards.

Specifications

Weight

778.36

Width

24.77

Length

13.37

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/30T2F/30T2F.spin

AD All Features

Resin filled transformers are epoxy encoapsulated

AD Alternative Part Number

7986309

AD Application

For intended power, heating, lighting applications, OEM commercial and industrial markets

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901039402

AD Gtin

00785901039402

AD IDEA Index ID

7986309

AD Invoice Description

TRANSFORMER LV 480 DELTA VAC 208Y/120VAC

AD Item Features 01

Resin filled transformers are epoxy encoapsulated

AD Item Features 02

Individual enclosures from 50VA through 5kVA

AD Item Features 03

Can be configured into autotransformer

AD Keywords

30T2F Dry Sealed Low Voltage Low Voltage Transformer, 480 Delta V AC Primary, 208Y/120 VAC Secondary, 30 kVA Power Rating, 60 Hz, 3 Phase ; Schneider Electric ; Square D ; 30T2F ; 30T2F ; 785901039402 ; General Purpose - Multi-Use Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

13.3700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

778.3600

AD Package Weight UOM

LB

AD Package Width

24.7700

AD Package Width UOM

IN

AD Part Number Keywords

30T2F ; 7986309 ; 785901039402 ; 78590103940 ; 00785901039402 ; 0785901039402

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

13-1/2 in L x 25 in W x 22 in H

Spec 10 Attribute

Primary Voltage

Spec 10 Attribute Value

480 Delta V AC

Spec 11 Attribute

Secondary Voltage

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

208Y/120

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

115

Spec 13 Attribute

Type

Spec 13 Attribute Value

Dry Sealed Low Voltage

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 3R

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

60

Spec 4 Attribute

Housing Material

Spec 4 Attribute Value

Sheet Steel

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

Number of Taps

Spec 7 Attribute Value

2

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

3

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

kVA

Spec 9 Attribute Value

30
