Square D

3104140051 - NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting

Category Starter Renewal Parts

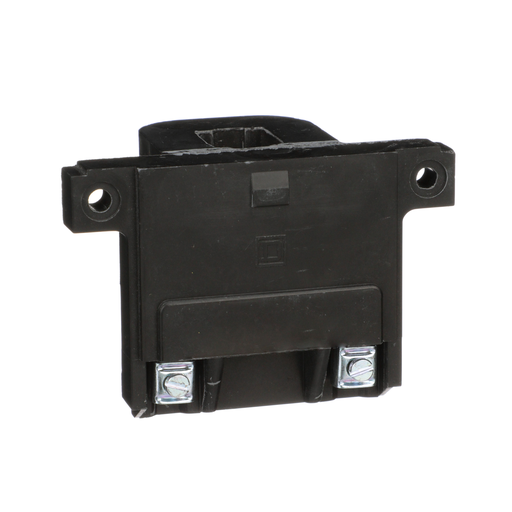

Picture of 3104140051 - NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting Picture of 3104140051 - NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting
Picture of 3104140051 - NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting Picture of 3104140051 - NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting
Picture of 3104140051 - NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting Picture of 3104140051 - NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting
Picture of 3104140051 - NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting Picture of 3104140051 - NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting
Square D

3104140051 - NEMA Motor Starter, Type S, replacement coil, 220/240VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting

Item Code: 17080
Category Starter Renewal Parts
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 3104140051

Document
Document
Call for Availability
Add to Favorites
Compare

Description

The coil can be easily replaced in Type S contactors or starters. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SA, series A, 8502SB, or 8502SC contactor, in an 8536SA, series A, 8536SB, or 8536SC starter or an 8903SM lighting contactor. This coil is rated for 220/240 VAC 50/60 Hz. The inrush power of this coil is 245 VA. It has an average sealed consumption of 27 VA. This coil has a height of 54.7 mm, a width of 81.5 mm and a depth of 48.3 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.

Specifications

Weight

0.44lb

Height

54.7mm

Width

2.77mm

Length

3.27mm

Depth

48.3mm

AD All Features

Screw clamp terminal connections

AD Application

Contactors and Starters Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

COIL NEMA 00/0/1/1-P 220/240VAC 50/60HZ

AD Item Features 01

Screw clamp terminal connections

AD Item Features 02

Direct Mount

AD Item Features 03

40 deg c ambient operating temperature

AD Item Features 04

30 a current rating

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.2700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4400

AD Package Weight UOM

LB

AD Package Width

2.7700

AD Package Width UOM

IN

Brand

Square D

Category

STARTER RENEWAL PARTS

Spec 1 Attribute

Frequency Rating

Spec 1 Attribute UOM

HZ

Spec 1 Attribute Value

50/60

Spec 2 Attribute

Size

Spec 2 Attribute Value

NEMA 00/0/1/1-P

Spec 3 Attribute

Suitable For Use With

Spec 3 Attribute Value

Class 8536 Type SA (Series A)/SB/SC Starter, Class 8502 Type SA (Series A)/SB/SC Contactor and Class 8903 Type SM Lighting Contactor

Spec 4 Attribute

Voltage Rating

Spec 4 Attribute UOM

V AC

Spec 4 Attribute Value

220/240
