Square D

3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting

Category Starter Renewal Parts

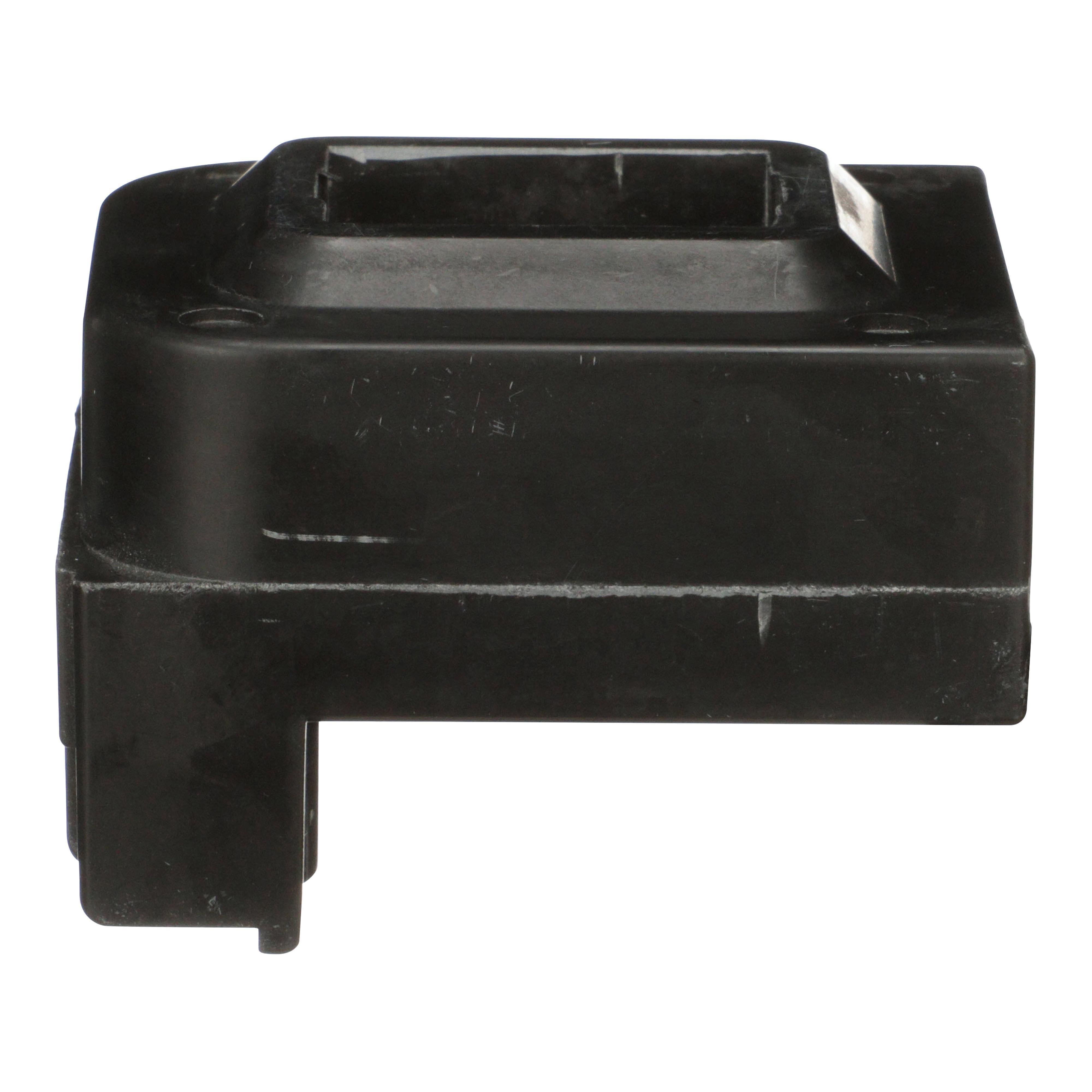

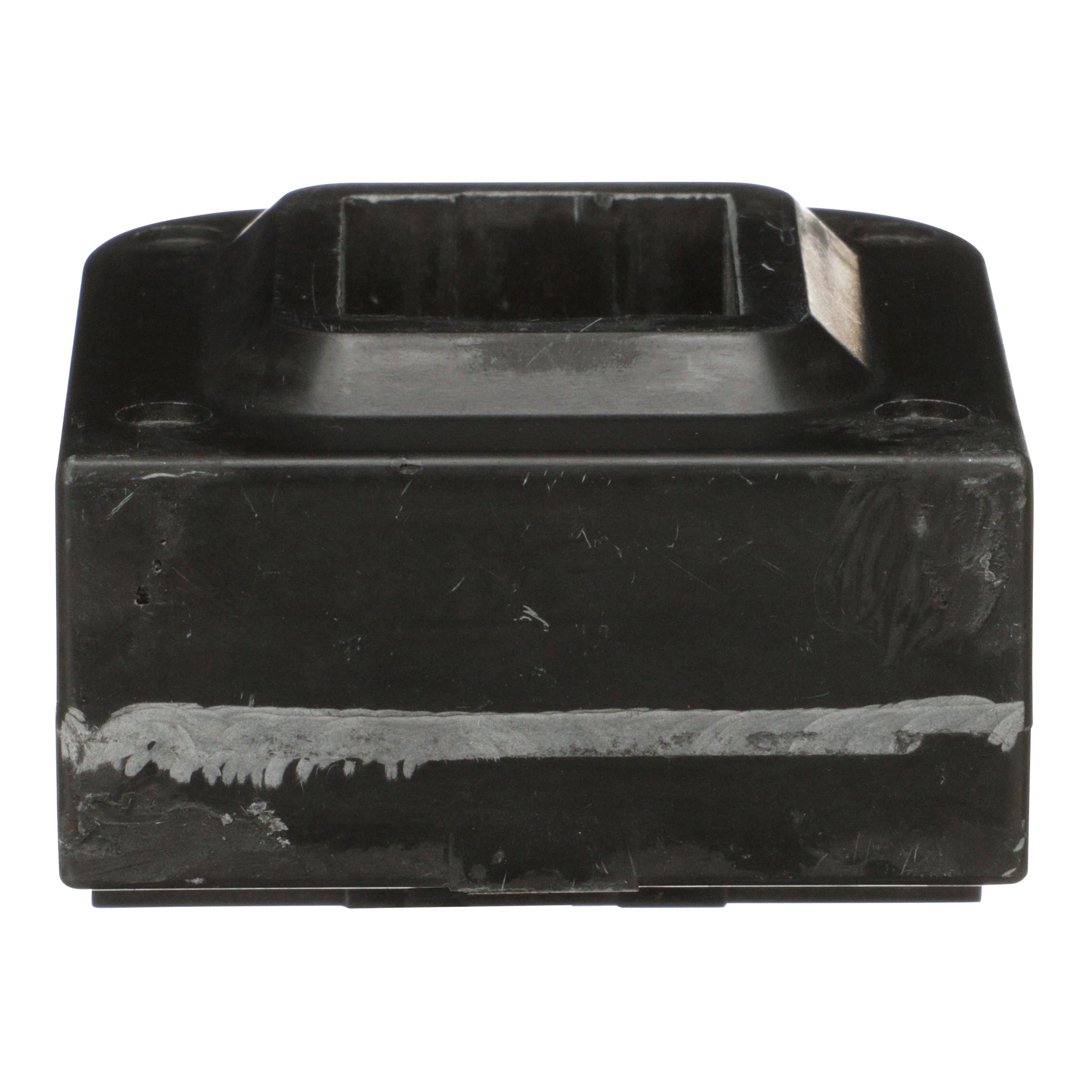

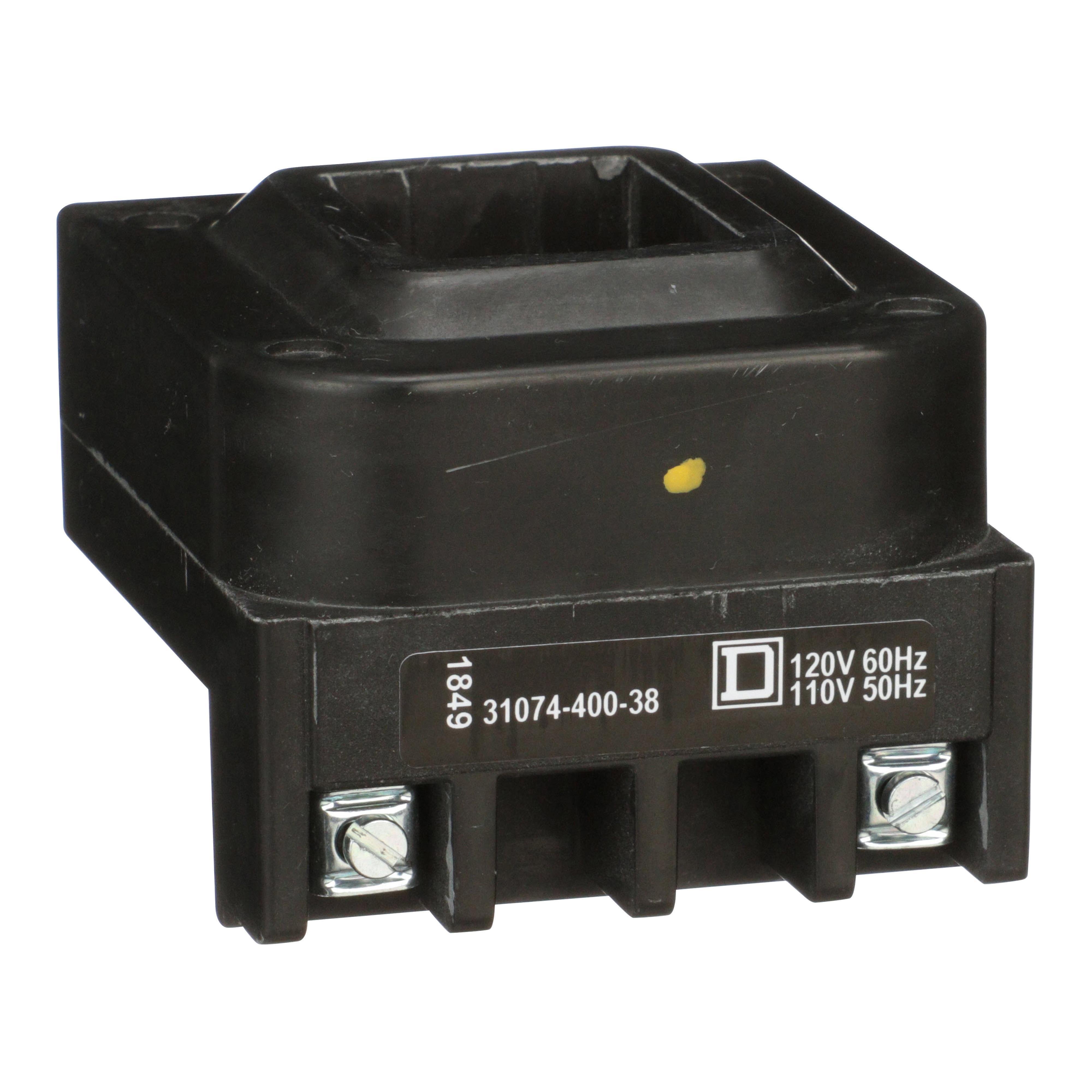

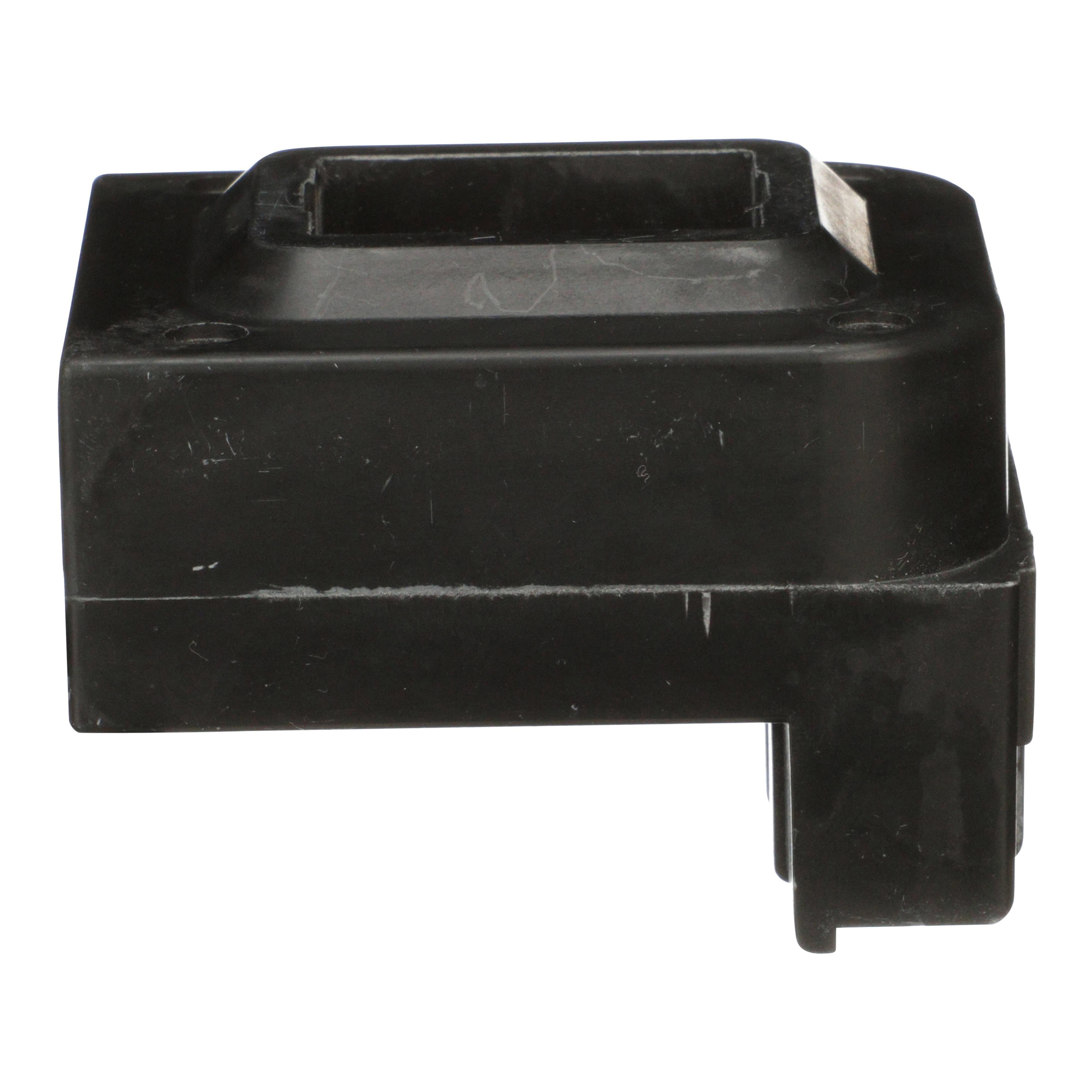

Picture of 3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting Picture of 3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting
Picture of 3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting Picture of 3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting
Picture of 3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting Picture of 3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting
Picture of 3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting Picture of 3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting
Picture of 3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting Picture of 3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting
Square D

3107440038 - NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, 2 or 3 pole, NEMA size 3 starter and 8903SQ lighting

Item Code: 17094
Category Starter Renewal Parts
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 3107440038

Document
Call for Availability
Add to Favorites
Compare

Description

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SE contactor, an 8536SE starter, an 8903SQ lighting contactor or an 8910DPA12 definite purpose contactor. This coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 700 VA. It has an average sealed consumption of 46 VA. This coil has a height of 73 mm, a width of 65 mm and a depth of 53.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.

Specifications

Weight

0.84lb

Height

73mm

Width

2.77mm

Length

3.27mm

Depth

2.09mm

AD All Features

Screw clamp terminal connections

AD Application

Contactors and Starters Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

COIL NEMA 3 110/115/120VAC 50/60HZ

AD Item Features 01

Screw clamp terminal connections

AD Item Features 02

Direct Mount

AD Item Features 03

40 deg c ambient operating temperature

AD Item Features 04

100 a current rating

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.2700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8400

AD Package Weight UOM

LB

AD Package Width

2.7700

AD Package Width UOM

IN

Brand

Square D

Category

STARTER RENEWAL PARTS

Spec 1 Attribute

Frequency Rating

Spec 1 Attribute UOM

HZ

Spec 1 Attribute Value

50/60

Spec 2 Attribute

Size

Spec 2 Attribute Value

NEMA 3

Spec 3 Attribute

Suitable For Use With

Spec 3 Attribute Value

Class 8903 Type SQ, Class 8502 Type SE, Class 8910 Type DPA12/SYD138 2/3-Poles Contactor/Starter

Spec 4 Attribute

Voltage Rating

Spec 4 Attribute UOM

V AC

Spec 4 Attribute Value

110/115/120
