Schneider Electric

56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY

Category Fault Or Failure Relays & Accessories

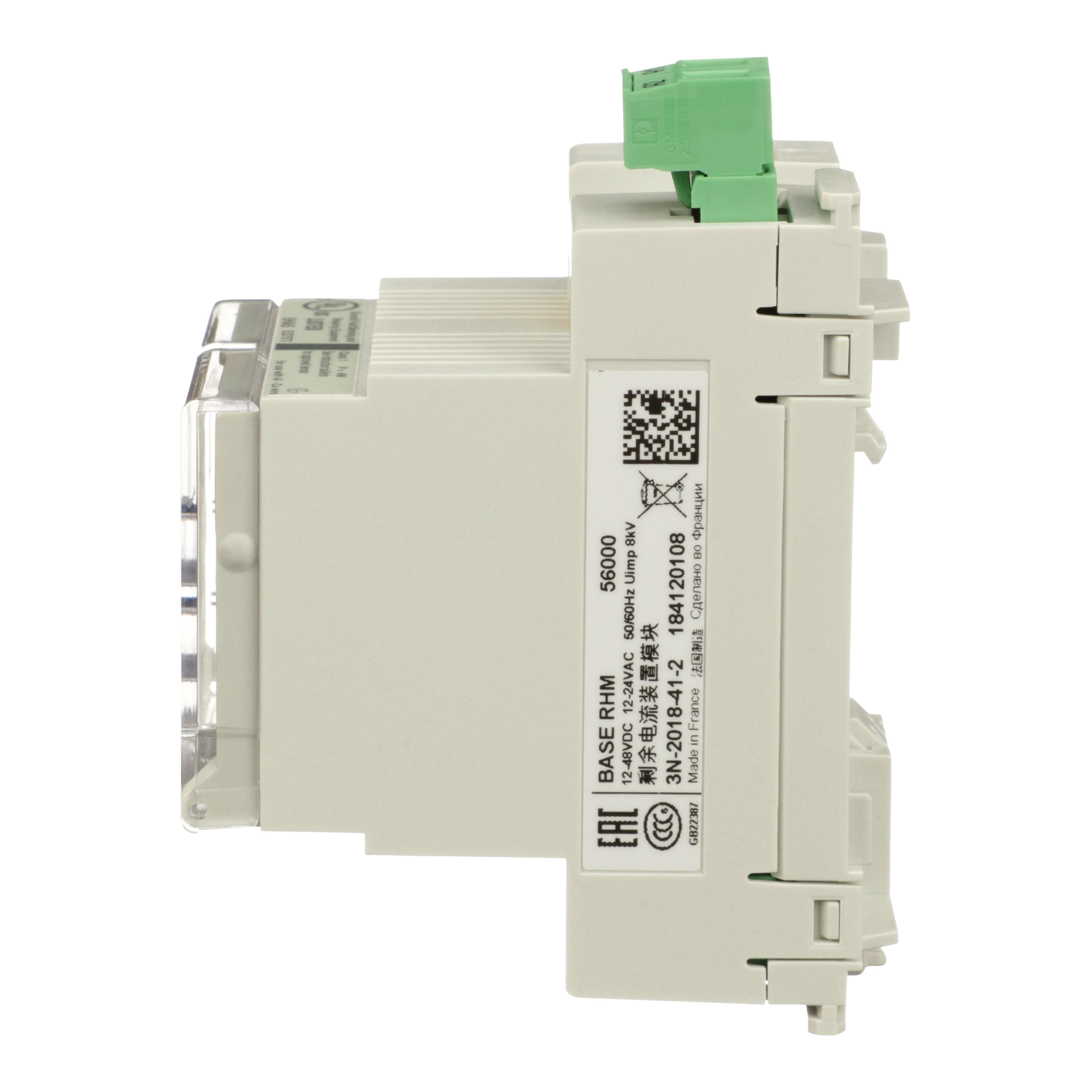

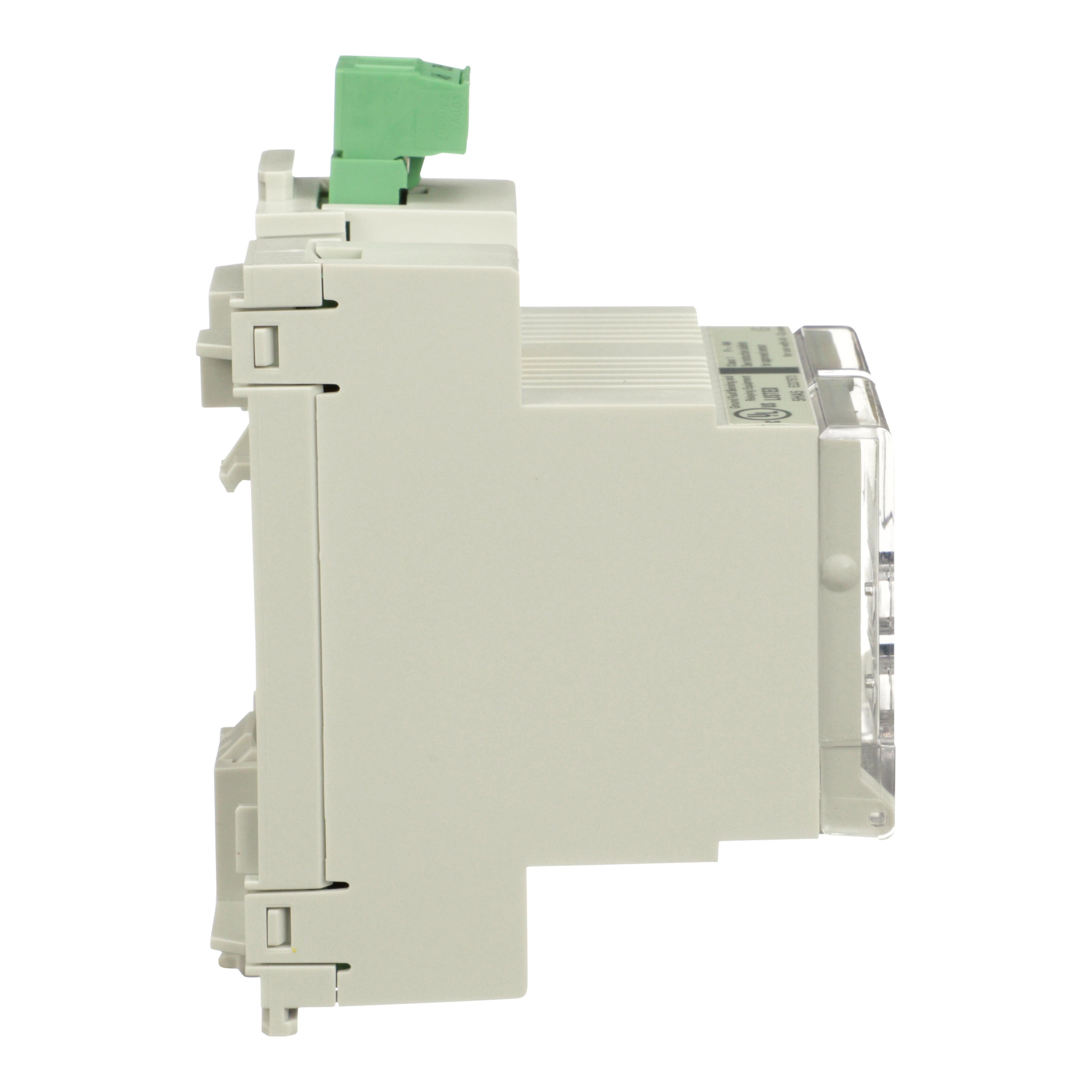

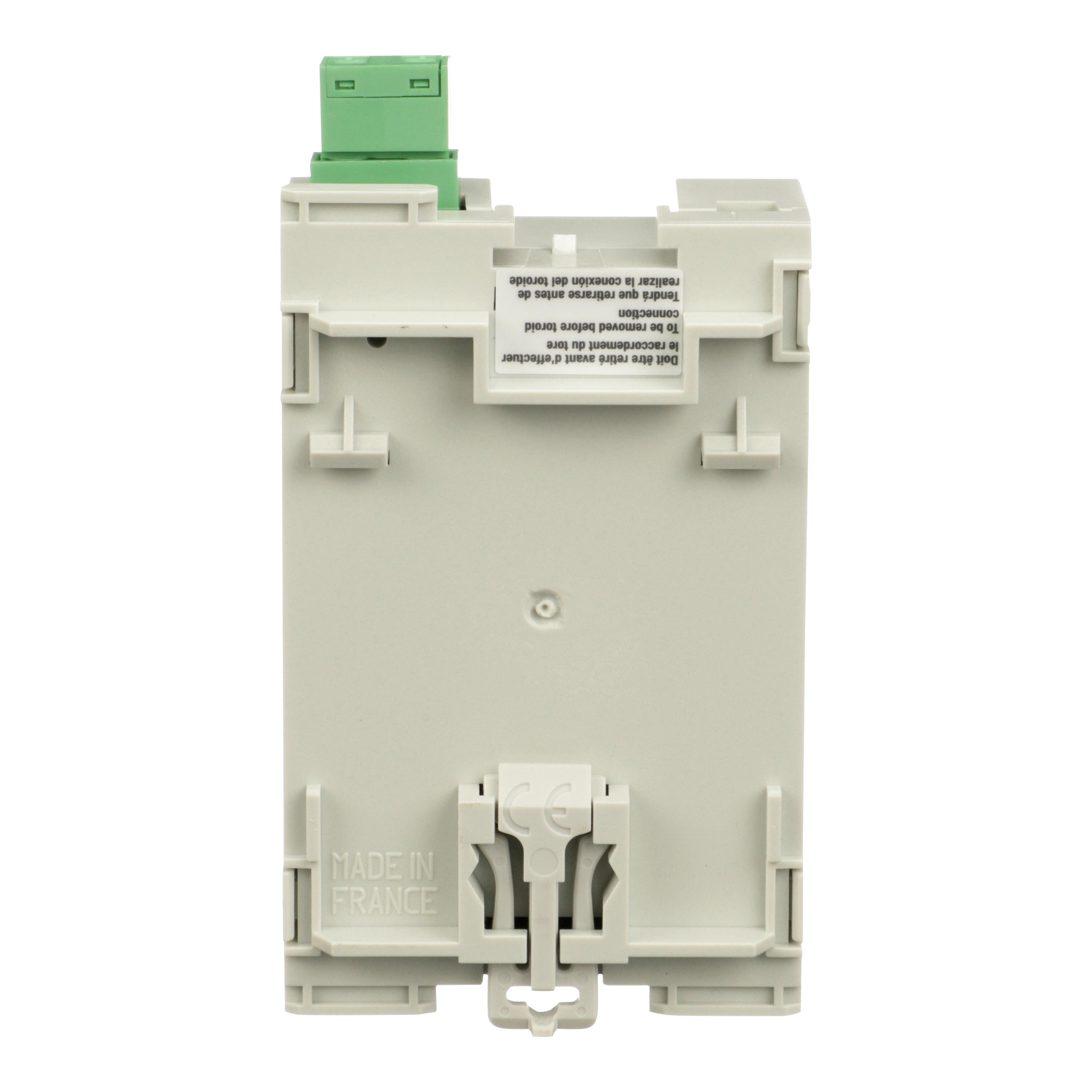

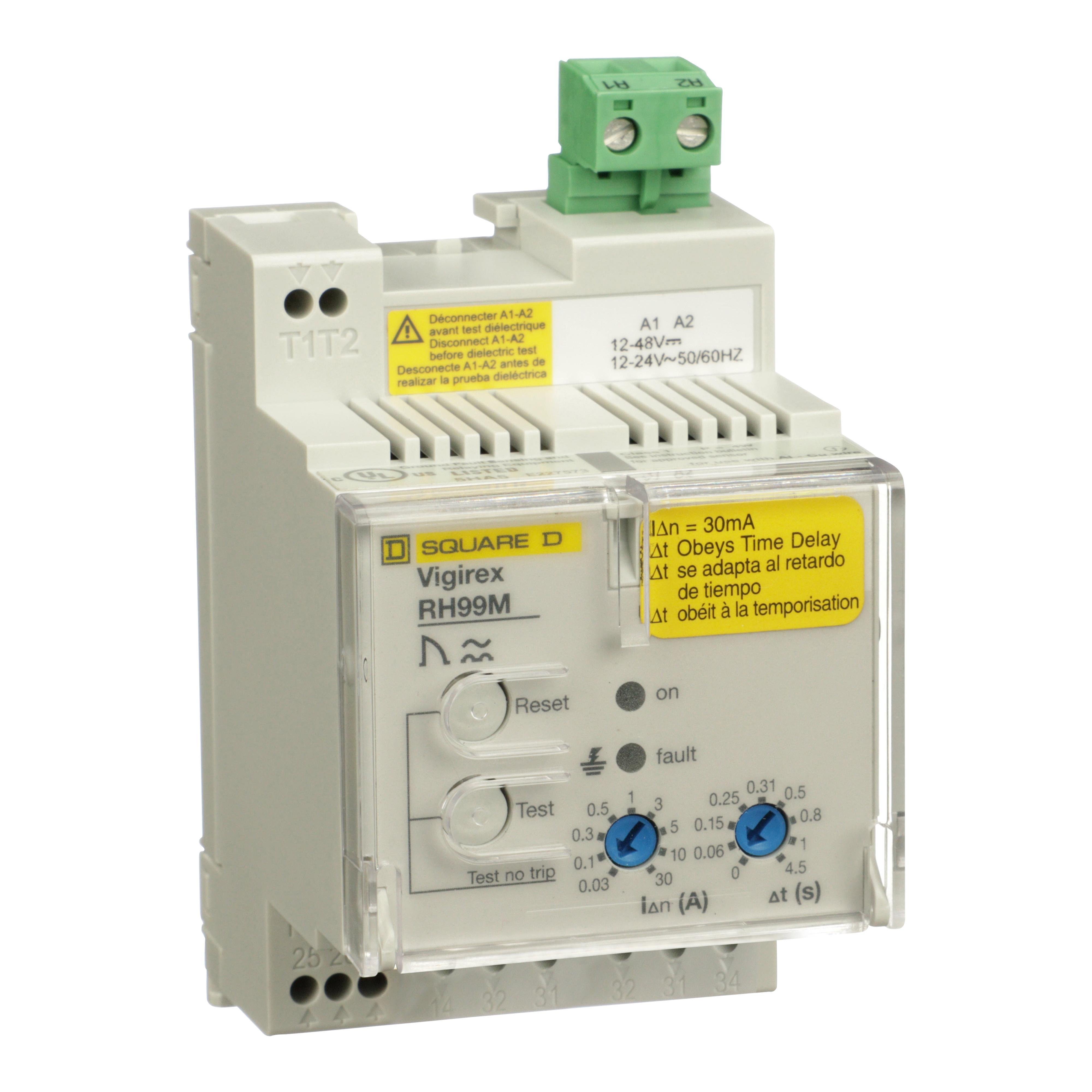

Picture of 56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY Picture of 56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY
Picture of 56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY Picture of 56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY
Picture of 56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY Picture of 56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY
Picture of 56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY Picture of 56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY
Picture of 56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY Picture of 56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY
Schneider Electric

56370TD - RH99M GRD FLT RLY W/ 30MA DELAY UL ONLY

Item Code: 957486
Category Fault Or Failure Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 56370TD

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The purpose of ground-fault protection is to measure the ground leakage current of an electrical installation, or part of an installation, and interrupt the power supply if the ground-fault current becomes dangerous to property. Vigirex ground-fault relays, with associated sensors (current transformers), measure the leakage current in an electrical installation to detect levels that may be damaging. When used for protection, they cause an associated circuit breaker or switch to interrupt the supply of power to the protected system. They may also be used for monitoring only, with output to an alarm. The Vigirex product line can be used with loads up to 3200A. It includes fixed sensitivities from 30mA to 1A and adjustable sensitivities up to 30A, providing a solution that offers both flexibility and performance. The responsiveness of the Vigirex relay is determined from a combination of their sensitivity (measured in milliamperes or amps) and their time delays (duration that the threshold of ground-fault is exceeded). These can range from instantaneous (no intentional delay) to 4.5 seconds. The shortest delay will provide the greatest protection, while the longest will minimize nuisance tripping. The range of time delays is also helpful when providing a coordinated ground-fault protection scheme. This Vigirex, time delay switch is front panel mounted. This product complys to UL standards.

Specifications

Weight

0.53

Width

3.07

Length

3.47

AD Application

Automotive, Healthcare Facilities, Semiconductor Machines and Industrial Markets

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

RELAY FLT GND 12TO24VAC DIN RAIL

AD Item Features 01

Vigirex relays ensure coordination with ComPacT circuit breakers (switch off within 40ms)

AD Item Features 02

Continuous monitoring of the power supply, the relay/toroid link and internal electronics

AD Item Features 03

Reinforced insulation of Vigirex relays (overvoltage category IV)

AD Item Features 04

Access to settings protected by a lead-sealable cover or password

AD Item Features 05

Enhanced sustainability with Environmental Data program

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.4700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.5300

AD Package Weight UOM

LB

AD Package Width

3.0700

AD Package Width UOM

IN

Brand

Square D

Category

FAULT OR FAILURE RELAYS & ACCESSORIES

Spec 1 Attribute

Mounting Type

Spec 1 Attribute Value

DIN Rail

Spec 2 Attribute

Response Delay

Spec 2 Attribute Value

0 s Instantaneous, 60/150/250/310/500/800 ms, 1/4.5 s

Spec 3 Attribute

Series

Spec 3 Attribute Value

Vigirex™ RH99M

Spec 4 Attribute

Specifications

Spec 4 Attribute Value

9-User Selectable Thresholds: 30/100/300/500 mA, 1/3/5/10/30 A Sensitivity

Spec 5 Attribute

Type

Spec 5 Attribute Value

Manual Reset

Spec 6 Attribute

Voltage Rating

Spec 6 Attribute UOM

V AC

Spec 6 Attribute Value

12 to 24
