Square D

5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA]

Category Dry Type Transformers 600V Or Less

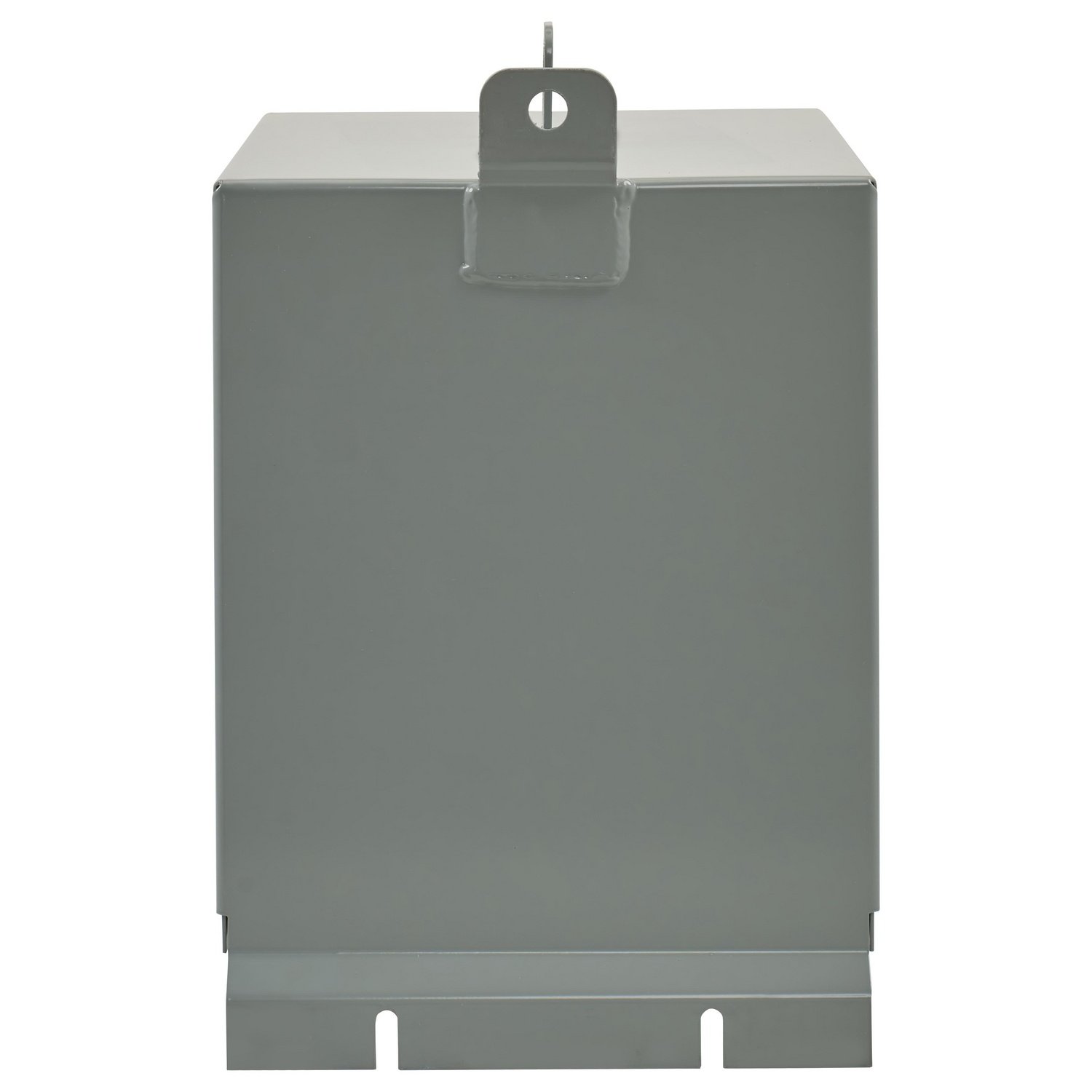

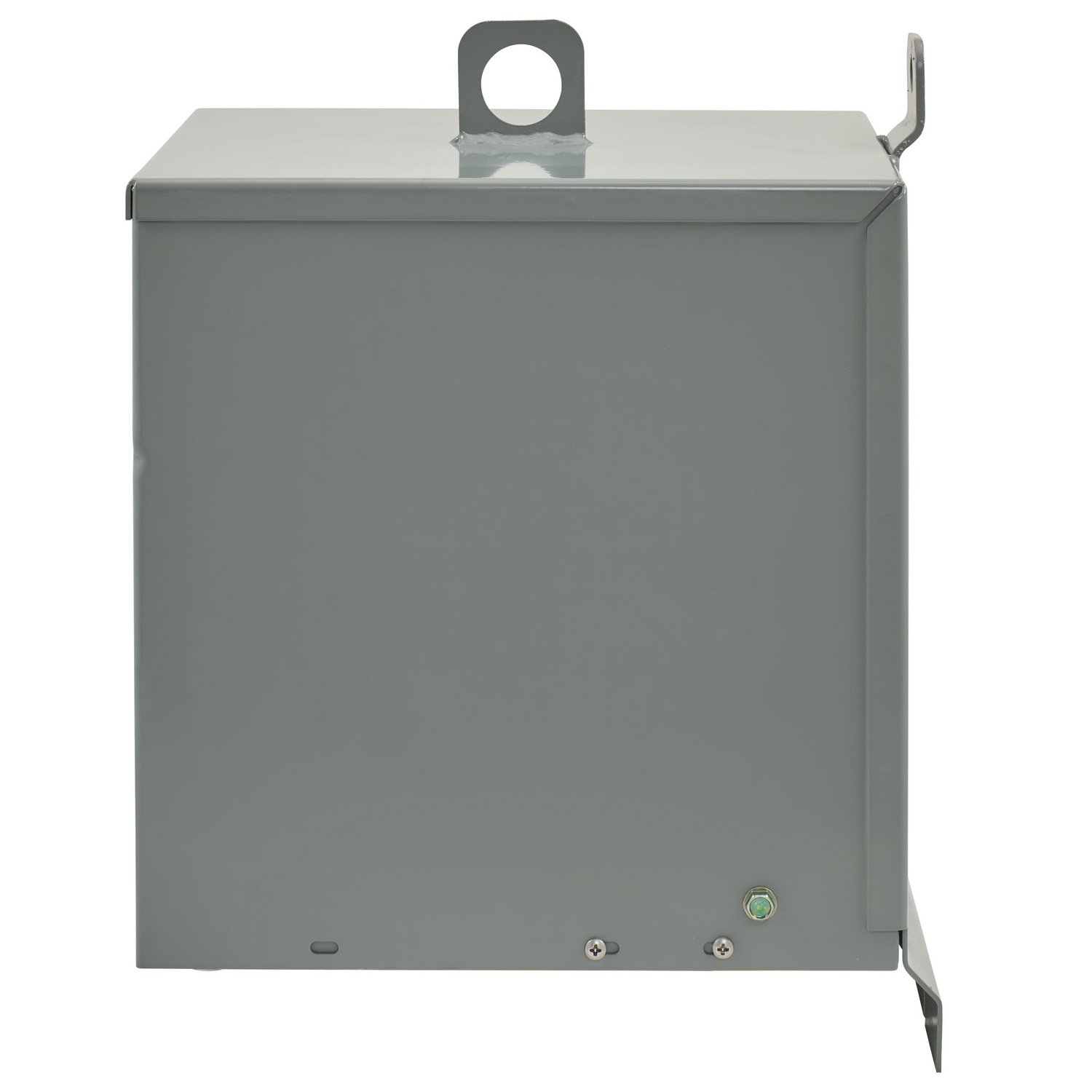

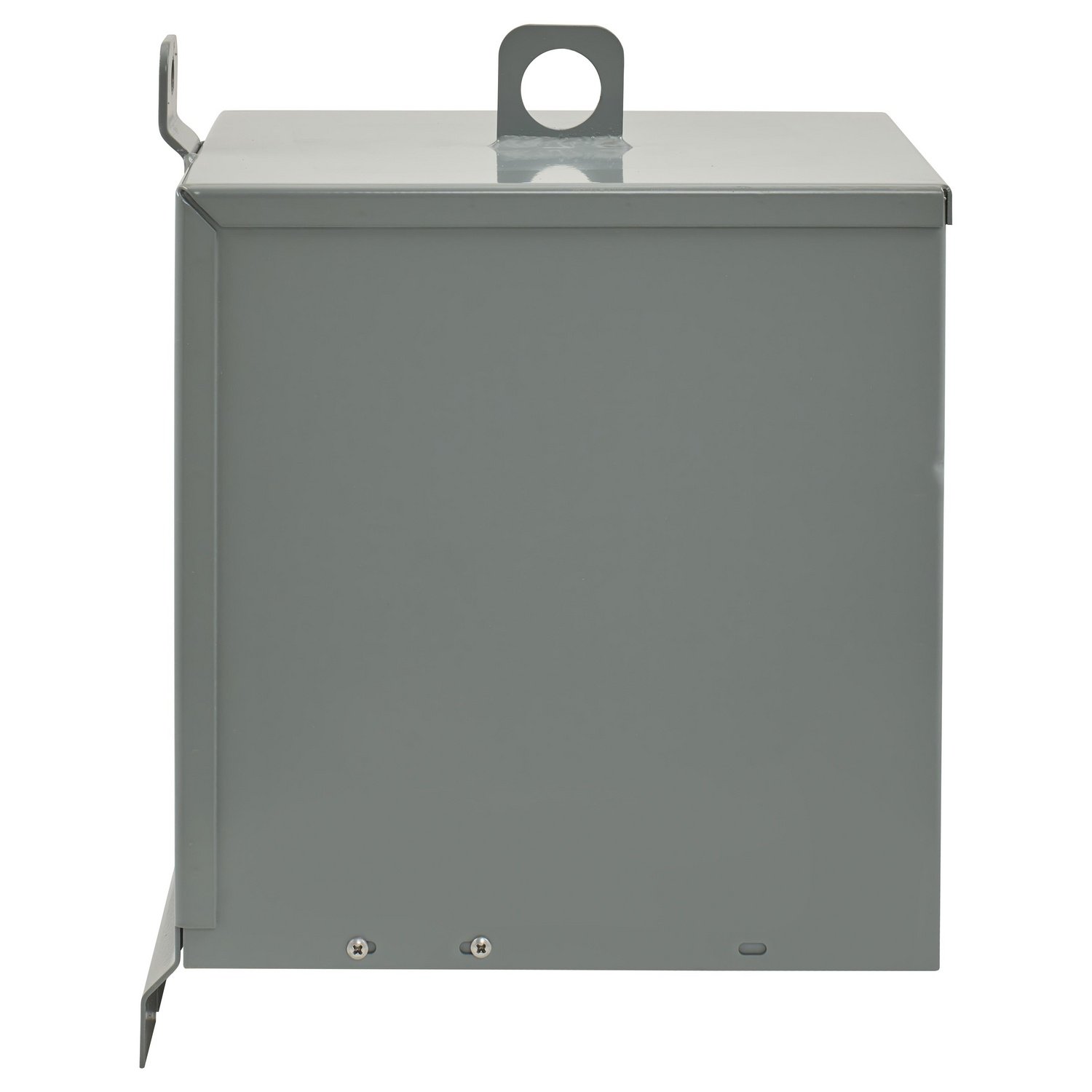

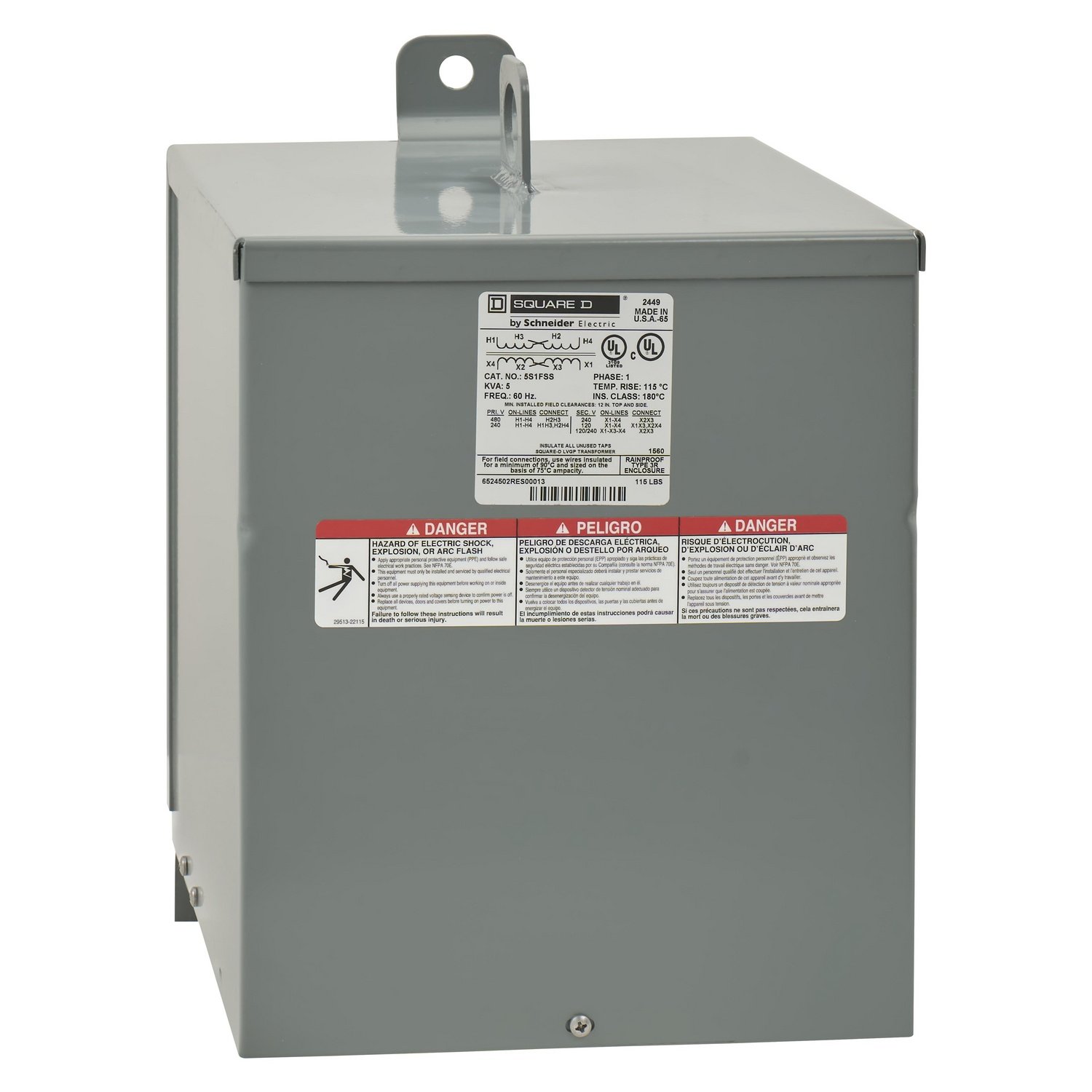

Picture of 5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA]
Picture of 5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA]
Picture of 5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA]
Picture of 5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA]
Picture of 5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA]
Square D

5S1FSS - Transformer, dry type, encapsulated, 5kVA, 1 phase, 240x480V primary, 120/240V secondary, 13B, 115C rise [TAA]

Item Code: 623168
Category Dry Type Transformers 600V Or Less
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 5S1FSS

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 5 KVA. This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of stainless steel. Dimensions for this transformer are 14.75 in (H), 9.75 in (W), 11.75 in (D). This product complys to UL & CSA standards.

Specifications

Weight

114.76

Width

14.07

Length

10.7

AD All Features

Resin filled transformers are epoxy encoapsulated

AD Application

For intended power, heating, lighting applications, OEM commercial and industrial markets

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

TRANSFORMER 240/480VAC 120/240VAC 5KVA

AD Item Features 01

Resin filled transformers are epoxy encoapsulated

AD Item Features 02

Individual enclosures from 50VA through 5kVA

AD Item Features 03

Can be configured into autotransformer

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

10.7000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

114.7600

AD Package Weight UOM

LB

AD Package Width

14.0700

AD Package Width UOM

IN

Brand

Square D

Category

DRY TYPE TRANSFORMERS 600V OR LESS

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

11-3/4 in L x 9-3/4 in W x 14-3/4 in H

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120/240

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

115

Spec 12 Attribute

Type

Spec 12 Attribute Value

Dry Sealed Low Voltage

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 3R

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

60

Spec 4 Attribute

Housing Material

Spec 4 Attribute Value

316 Stainless Steel

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

kVA

Spec 8 Attribute Value

5

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

240/480
