Schneider Electric

70-725-1 - Socket, SE Relays, 30A, 6 pins, screw connectors, separate contact, for 725 power relay

Category Miscellaneous

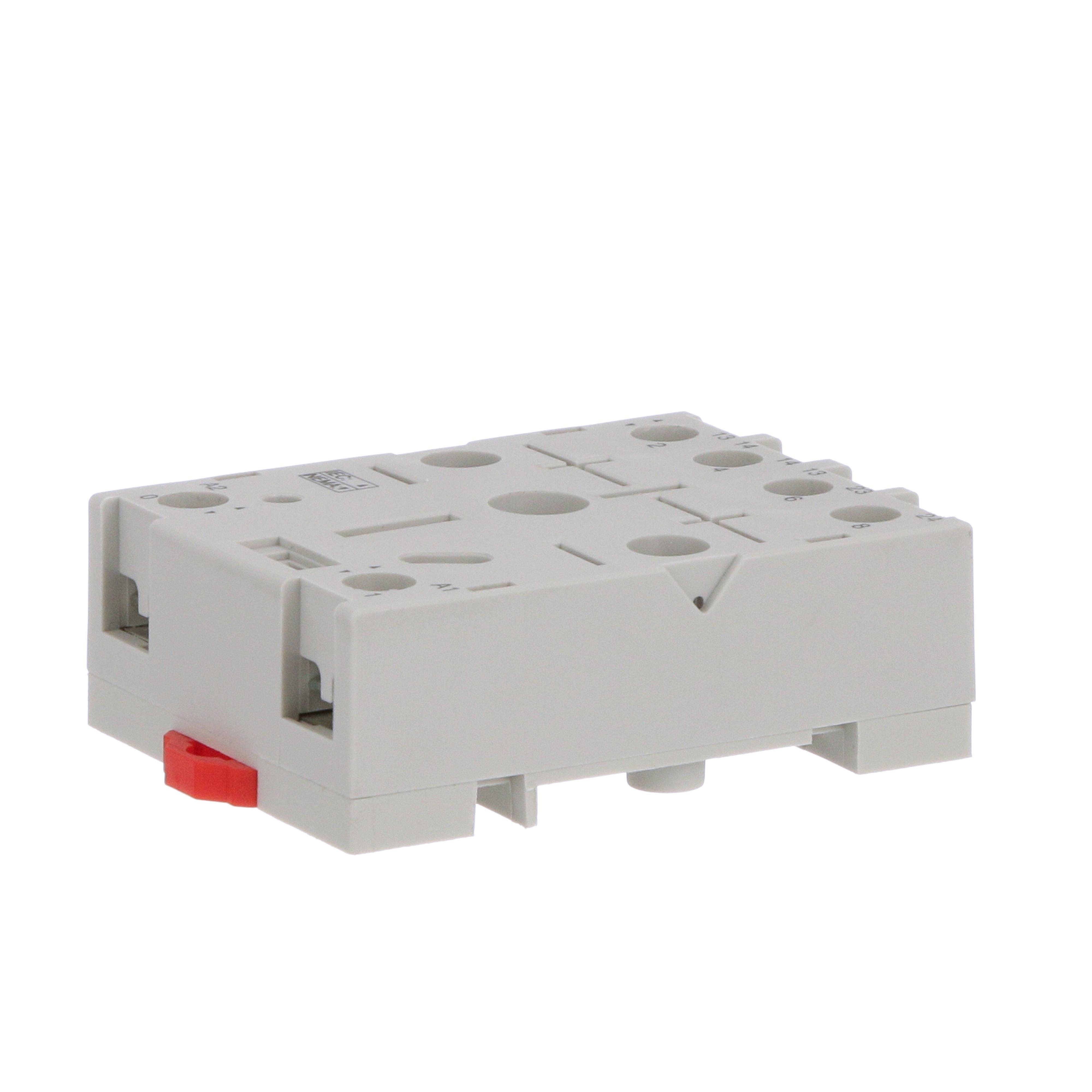

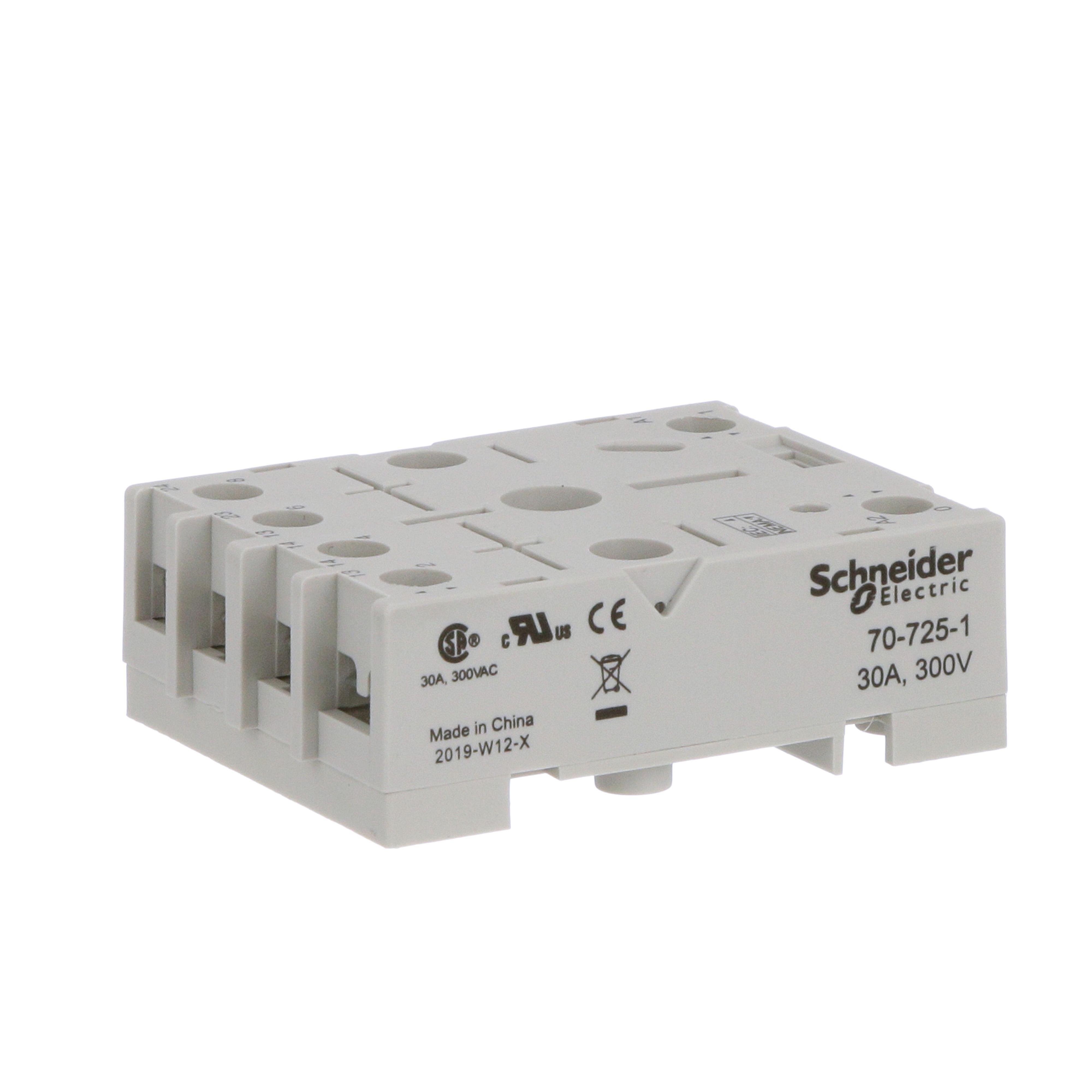

Picture of 70-725-1 - Socket, SE Relays, 30A, 6 pins, screw connectors, separate contact, for 725 power relay Picture of 70-725-1 - Socket, SE Relays, 30A, 6 pins, screw connectors, separate contact, for 725 power relay
Picture of 70-725-1 - Socket, SE Relays, 30A, 6 pins, screw connectors, separate contact, for 725 power relay Picture of 70-725-1 - Socket, SE Relays, 30A, 6 pins, screw connectors, separate contact, for 725 power relay
Picture of 70-725-1 - Socket, SE Relays, 30A, 6 pins, screw connectors, separate contact, for 725 power relay Picture of 70-725-1 - Socket, SE Relays, 30A, 6 pins, screw connectors, separate contact, for 725 power relay
Schneider Electric

70-725-1 - Socket, SE Relays, 30A, 6 pins, screw connectors, separate contact, for 725 power relay

Item Code: 1196668
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 70-725-1

Document
Call for Availability
Add to Favorites
Compare

Description

Legacy general purpose relay series accessory , optional socket for 725 series relays with DPDT configuration contacts rated 30A at 300V. Screw clamping connect terminals 6 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.

Specifications

Weight

0.15

Height

2.1

Width

2.11

Length

0.92

AD Application

For 725 series relays with DPDT configuration contacts rated 30A at 300V

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

TW

AD Invoice Description

PWR RLY 30A 2NO DPST DIN RAIL SKT

AD Item Features 01

Maximum of 4 Contacts

AD Item Features 02

Current rating from 3A up to 30A

AD Item Features 03

Wide choice of control voltage

AD Item Features 04

Several terminal types available: screw connector, screw clamp and spring/push-in terminal

AD Item Features 05

Flexible "add-on" accessories: protection module, timing module, maintaining clamp and marking legend

AD Item Features 06

6 number of terminals

AD Item Features 07

300 V rated voltage

AD Item Features 08

Clip-on 35 mm symmetrical DIN rail fixing mode

AD Item Features 09

2.36 oz (67 g) product weight

AD Item Features 10

UL94-V0 flame retardance

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.1000

AD Package Height UOM

IN

AD Package Length

0.9200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

6.3000

AD Package Volume UOM

cu-in

AD Package Weight

0.1500

AD Package Weight UOM

LB

AD Package Width

2.1100

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

2NO 2 Form A DPST

Spec 3 Attribute

Mounting Type

Spec 3 Attribute Value

DIN Rail

Spec 4 Attribute

Number of Pins

Spec 4 Attribute Value

6

Spec 5 Attribute

Series

Spec 5 Attribute Value

725 Series

Spec 6 Attribute

Type

Spec 6 Attribute Value

Socket
