Schneider Electric

70-781D5R-1A - Socket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V

Category Miscellaneous

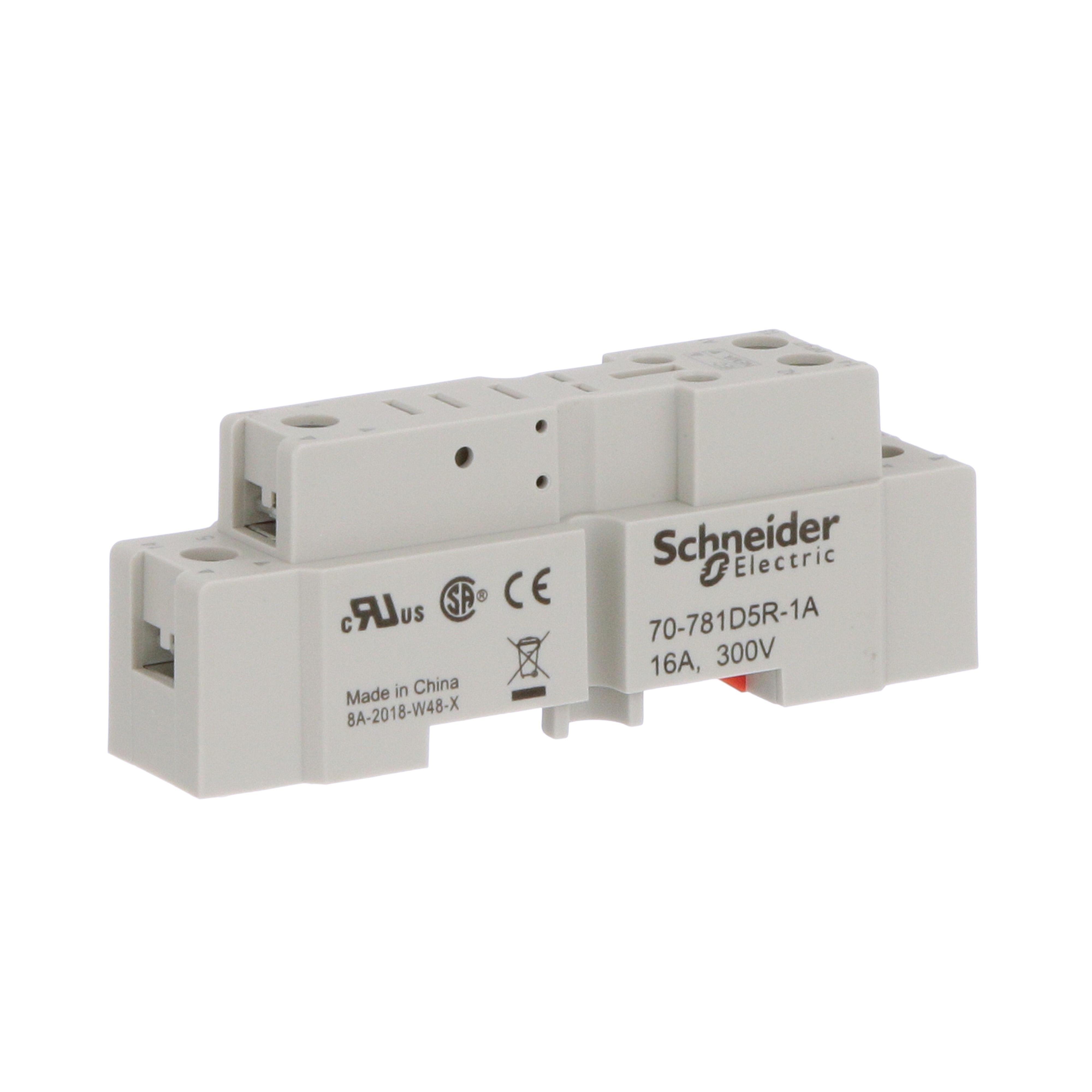

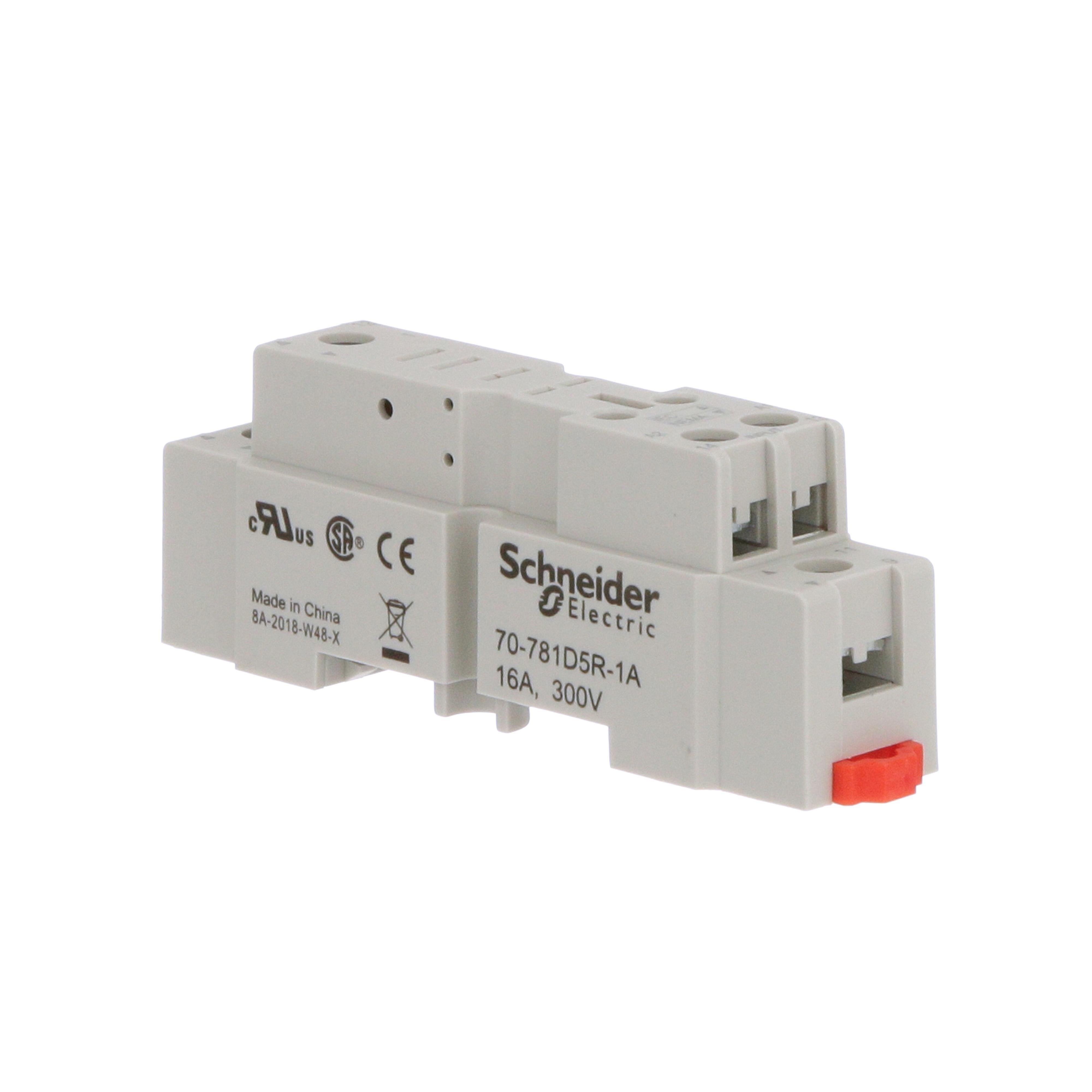

Picture of 70-781D5R-1A - Socket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V Picture of 70-781D5R-1A - Socket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V
Picture of 70-781D5R-1A - Socket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V Picture of 70-781D5R-1A - Socket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V
Picture of 70-781D5R-1A - Socket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V Picture of 70-781D5R-1A - Socket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V
Schneider Electric

70-781D5R-1A - Socket, General Purpose Relays, for 781 relays, SPDT, 5 pins, screws clamp terminals, 16A, 300V

Item Code: 1251847
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 70-781D5R-1A

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Legacy general purpose relay series accessory , optional socket for 781R series relays with SPDT configuration contacts rated 16A at 300V. Screw clamping connect terminals 5 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.

Specifications

Weight

0.07

Height

1.3

Width

0.66

Length

1.17

AD All Features

Compatible with plug in control relay Schneider Electric

AD Application

For 781R series relays with SPDT configuration contacts rated 16A at 300V

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

RLY & TMR BSKT 300V 16A -40TO131DEG F

AD Item Features 01

Compatible with plug in control relay Schneider Electric

AD Item Features 02

It is flexibility design for space-saving

AD Item Features 03

Easy installation and connect to the relay from its socket

AD Item Features 04

Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.3000

AD Package Height UOM

IN

AD Package Length

1.1700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3.8600

AD Package Volume UOM

cu-in

AD Package Weight

0.0700

AD Package Weight UOM

LB

AD Package Width

0.6600

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

16

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

0.83 in W x 2.24 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

IP20

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

DIN Rail

Spec 5 Attribute

Number of Pins

Spec 5 Attribute Value

5

Spec 6 Attribute

Series

Spec 6 Attribute Value

LEGACY

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg F

Spec 7 Attribute Value

-40 To 131

Spec 8 Attribute

Type

Spec 8 Attribute Value

Socket

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V

Spec 9 Attribute Value

300
