Square D

750SV46F - Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 115C rise

Category Dry Type Transformers 600V Or Less

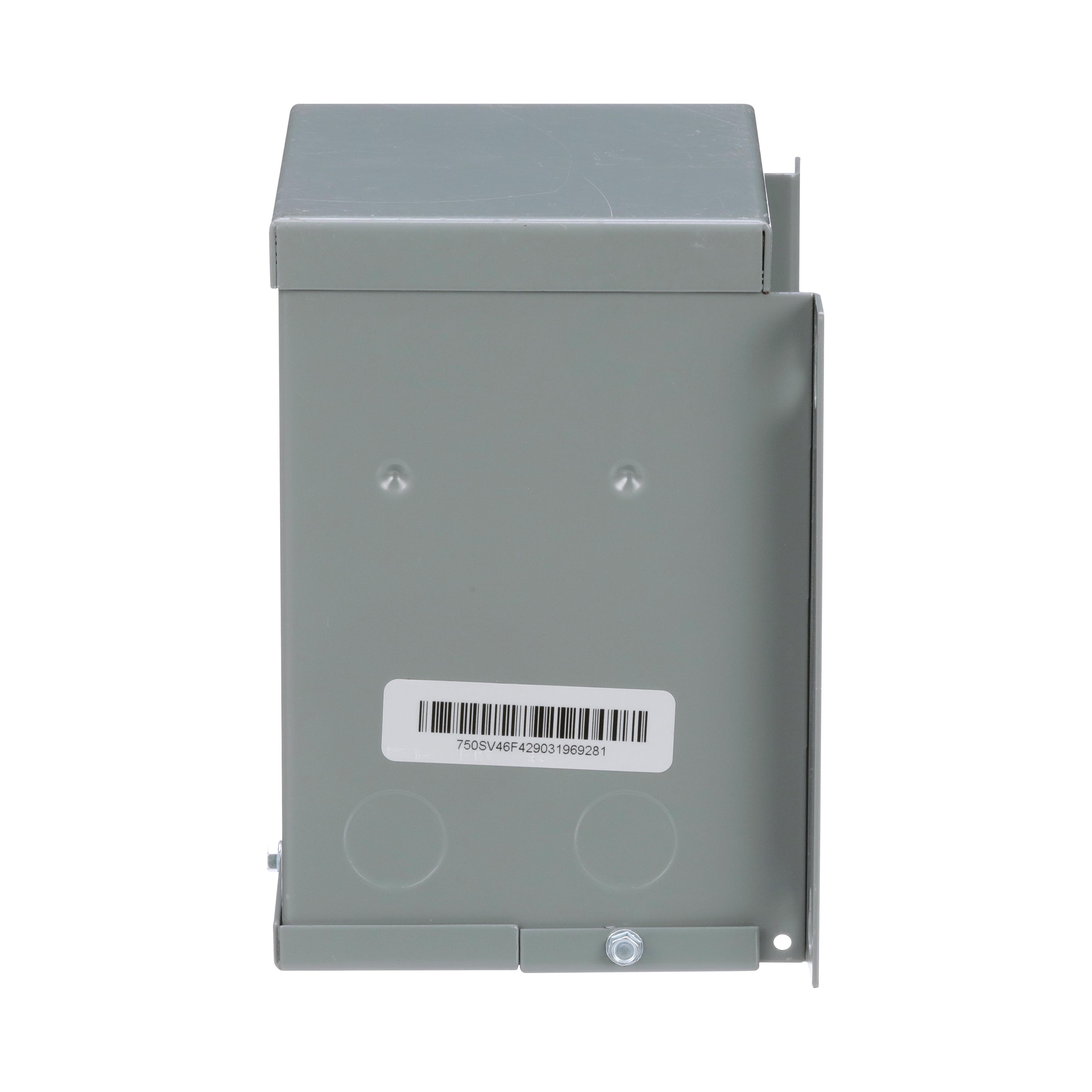

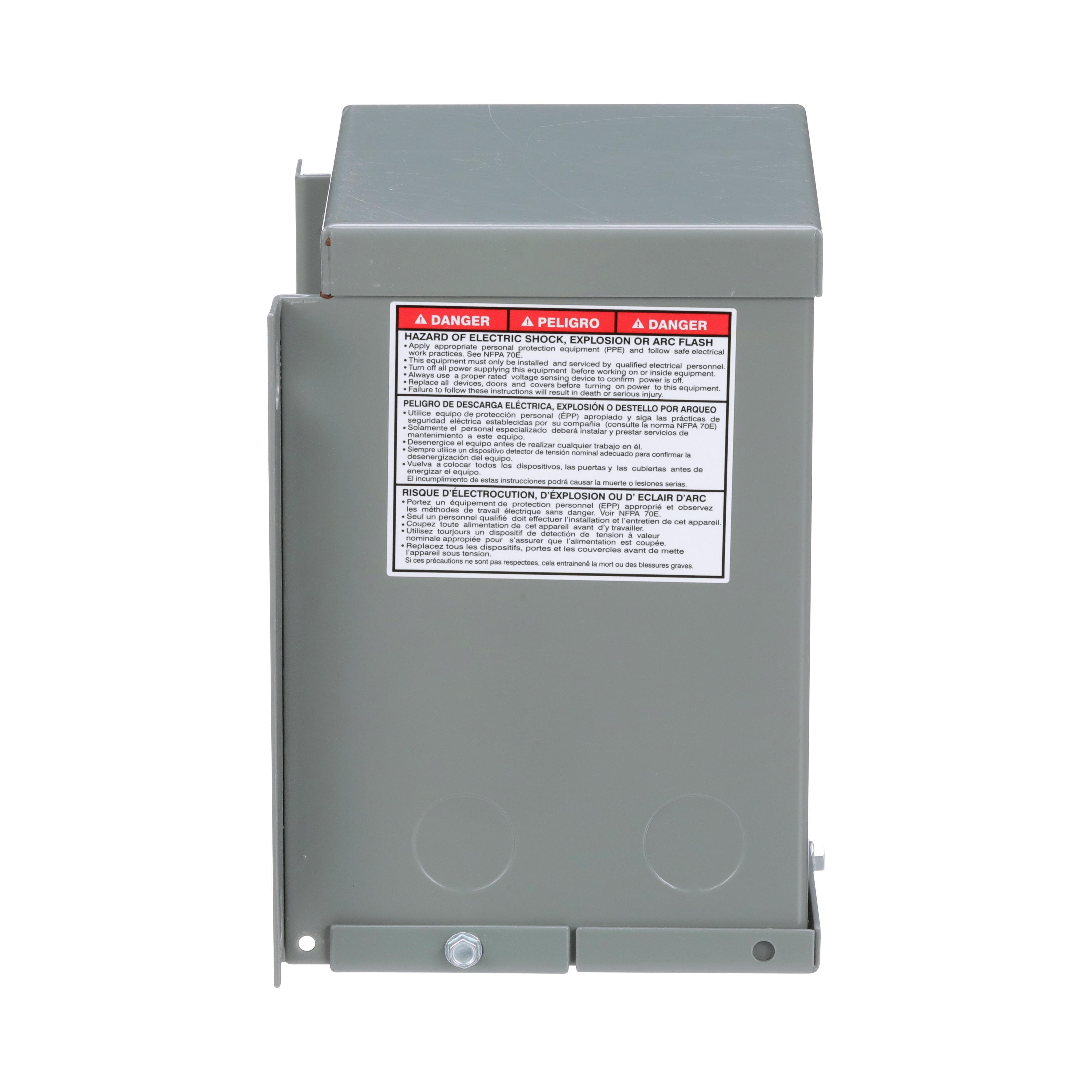

Picture of 750SV46F - Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 115C rise Picture of 750SV46F - Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 115C rise
Picture of 750SV46F - Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 115C rise Picture of 750SV46F - Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 115C rise
Picture of 750SV46F - Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 115C rise Picture of 750SV46F - Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 115C rise
Square D

750SV46F - Transformer, buck boost, encapsulated, 0.75kVA, 1 phase, 120x240V primary, 16/32V secondary, NEMA 3R, 115C rise

Item Code: 17121
Category Dry Type Transformers 600V Or Less
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 750SV46F

Document
Document
Call for Availability
Add to Favorites
Compare

Description

A Buck & Boost Transformer is an insulating transformer with either a 120 V x 240 V primary with a 12/24 V or 16/32 V secondary, or a 240 V x 480 V primary with a 24/48 V secondary. A Buck & Boost Transformer is also useful in applications where the primary and secondary are interconnected for use as an autotransformer. The equipment enclosure is designed and constructed for indoor or outdoor use and is NEMA 3R rated. Square D Buck and Boost Transformers are UL and cUL listed (UL 506). Autotransformers can carry loads in excess of their nameplate rating. This Buck and Boost Transformer has a NEMA 3R rating, has a 120 x 240V primary voltag, and a 16/32V secondary voltage. This trandformer has a rated power of 0.75KVA. This transformer has a temperature rise of 115 °C. This product has a UL listed, cULus & CSA certifications.

Specifications

Weight

17.31lb

Height

7.3mm

Width

8.22mm

Length

8.72mm

AD All Features

Designed to supply 12/24, 16/32, or 24/48 circuits

AD Application

For buck and boost primary use is that the primary and secondary can be interconnected for use as an autotransformer

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BUCK AND BOOST TRANSFORMER 120/240VAC

AD Item Features 01

Designed to supply 12/24, 16/32, or 24/48 circuits

AD Item Features 02

Unique enclosures for each kVA size

AD Item Features 03

All possible solutions with pare numbers and wiring diagrams

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.3000

AD Package Height UOM

IN

AD Package Length

8.7200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

17.3100

AD Package Weight UOM

LB

AD Package Width

8.2200

AD Package Width UOM

IN

Brand

Square D

Category

DRY TYPE TRANSFORMERS 600V OR LESS

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

6.69 in H x 6.19 in W x 4.69 in D

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

16/32

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

115

Spec 12 Attribute

Type

Spec 12 Attribute Value

Dry

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

NEMA 3R/IP54

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

60

Spec 4 Attribute

Housing Material

Spec 4 Attribute Value

Steel

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

kVA

Spec 8 Attribute Value

0.75

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

120/240
