Schneider Electric

781XAXRM4L-24A - Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO

Category Miscellaneous

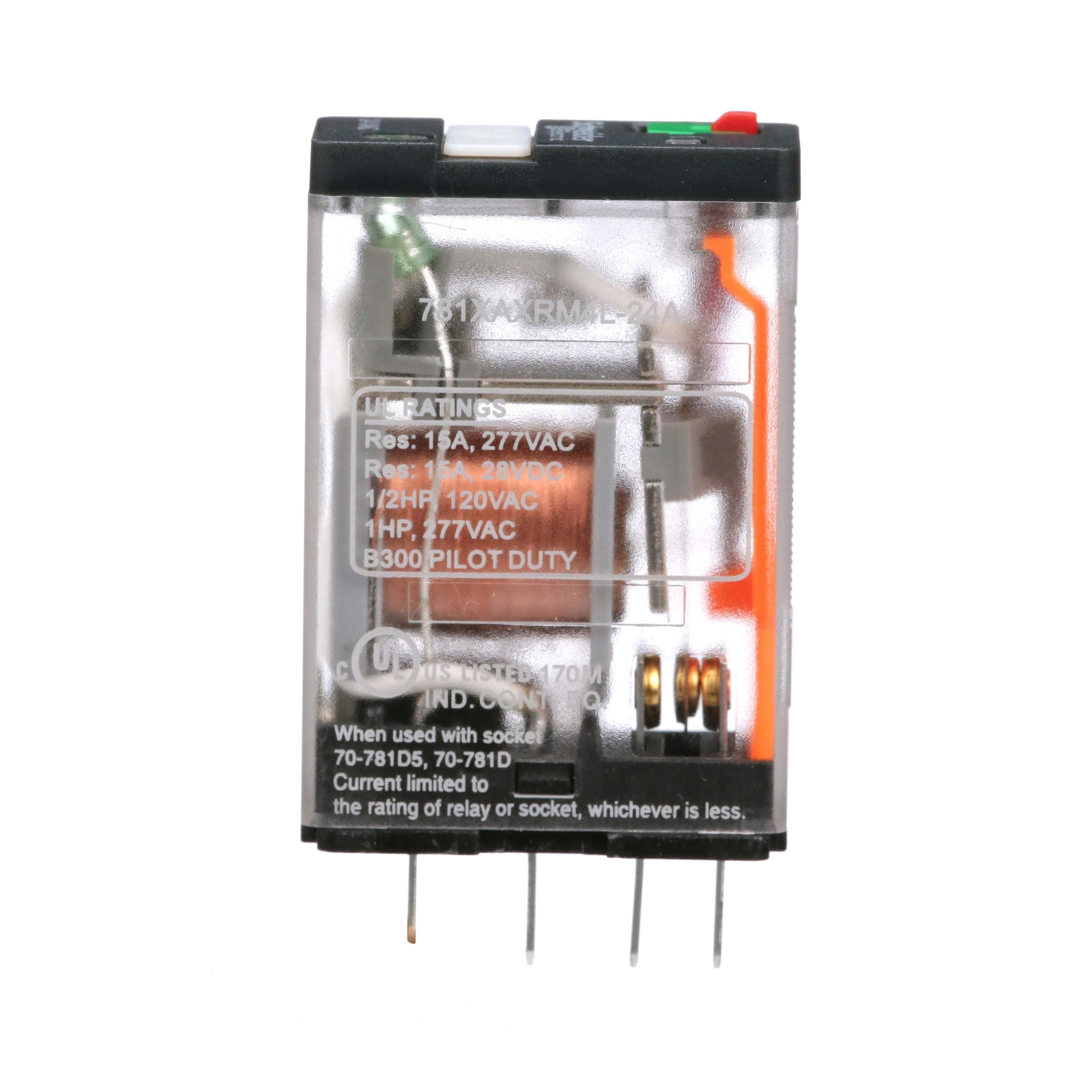

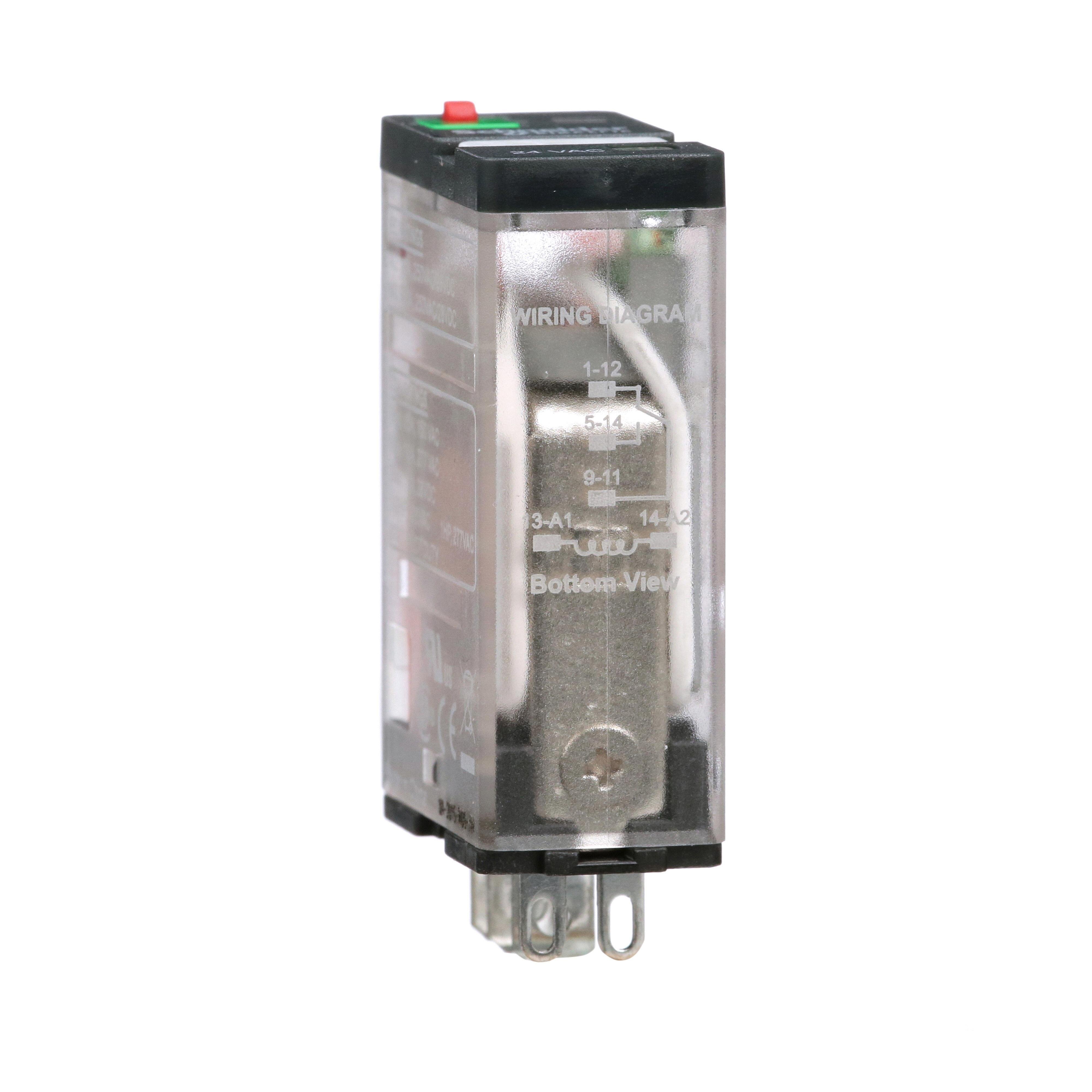

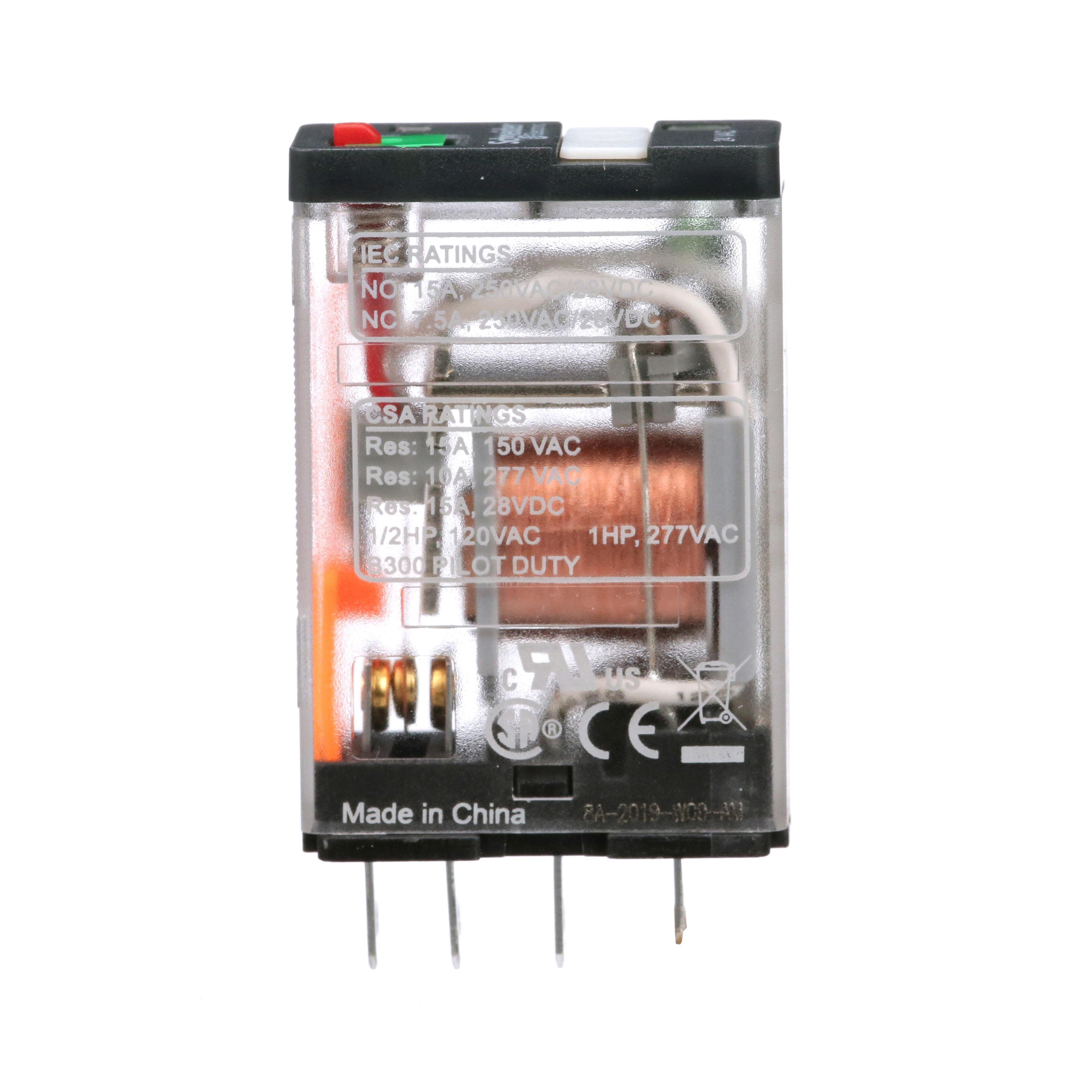

Picture of 781XAXRM4L-24A - Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO Picture of 781XAXRM4L-24A - Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO
Picture of 781XAXRM4L-24A - Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO Picture of 781XAXRM4L-24A - Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO
Picture of 781XAXRM4L-24A - Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO Picture of 781XAXRM4L-24A - Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO
Picture of 781XAXRM4L-24A - Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO Picture of 781XAXRM4L-24A - Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO
Schneider Electric

781XAXRM4L-24A - Power Relay, General Purpose Relays, SPDT, LED clear cover, lock push button, faston terminals, 15A, 24V AC, 1NC + 1NO

Item Code: 1205080
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 781XAXRM4L24A
Minimum order quantity 10

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The SE Relays 781R series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 10A resistive at 277VAC, motor 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact SPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Slim design of 14 mm width saves valuable space. Mechanical standard flag indicator displays the relay status during testing or operation.

Specifications

Weight

0.06

Height

0.6

Width

0.55

Length

2.04

AD All Features

Used in robust conditions

AD Application

For automation panels and controls

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

PWR RLY 15A SPDT (1FORM C) 24VAC 1.9VAC

AD Item Features 01

Used in robust conditions

AD Item Features 02

Durable, open frame construction

AD Item Features 03

With optional blowout magnet for DC switching

AD Item Features 04

2HP motor load rating

AD Item Features 05

Wide range of operating temperature from -30 deg C to 50 deg C

AD Manufacturer (Description)

Schneider Electric

AD Package Height

0.6000

AD Package Height UOM

IN

AD Package Length

2.0400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1.2500

AD Package Volume UOM

cu-in

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

0.5500

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

15

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1 Form C SPDT

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

1.57 in H x 0.83 in W x 1.07 in D

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Panel

Spec 6 Attribute

Power Rating

Spec 6 Attribute UOM

VAC

Spec 6 Attribute Value

1.9

Spec 7 Attribute

Series

Spec 7 Attribute Value

781R Series

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg F

Spec 8 Attribute Value

-40 To 131

Spec 9 Attribute

Type

Spec 9 Attribute Value

General Purpose
