Square D

7S40F - Transformer, dry type, encapsulated, 7.5kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA]

Category Miscellaneous

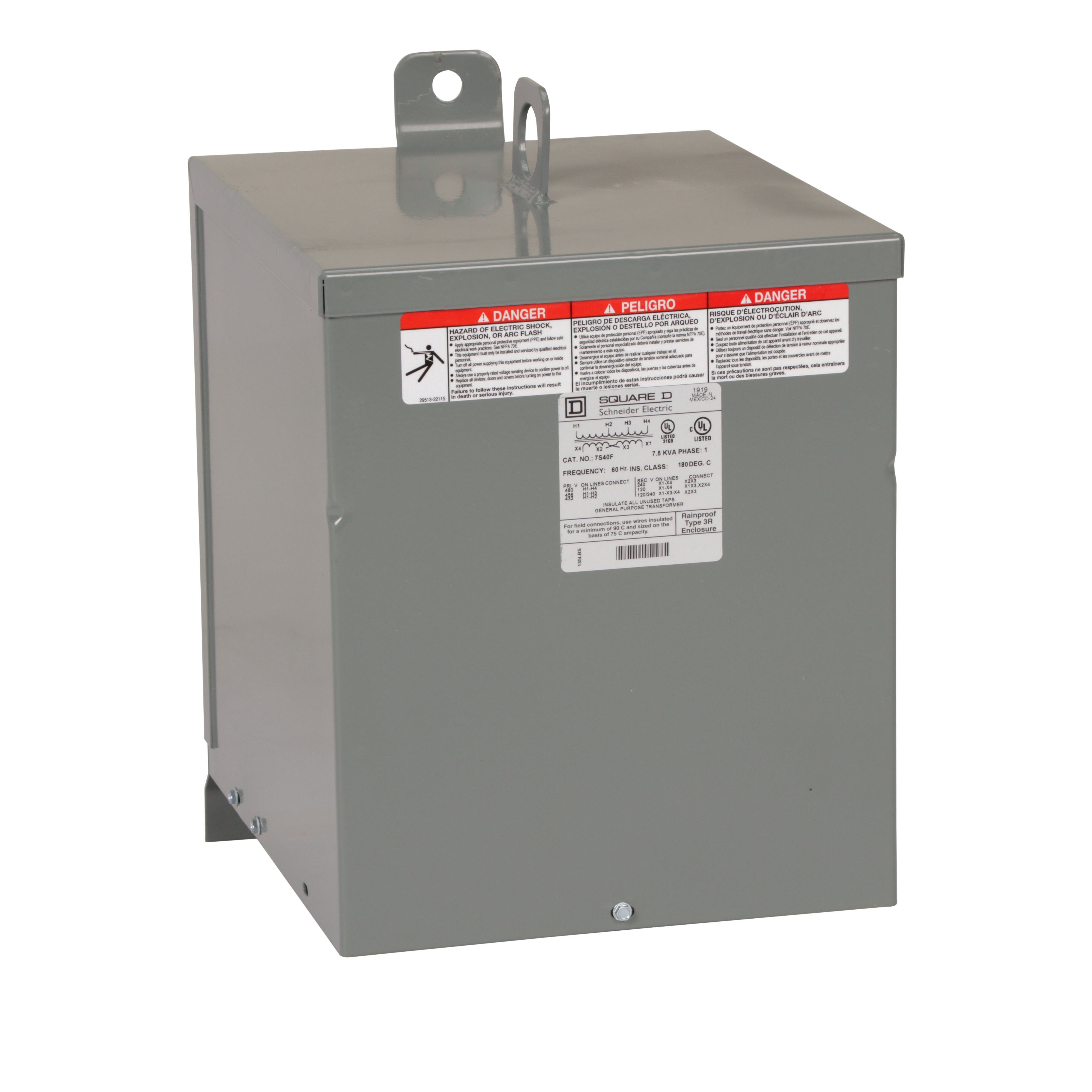

Picture of 7S40F - Transformer, dry type, encapsulated, 7.5kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 7S40F - Transformer, dry type, encapsulated, 7.5kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA]

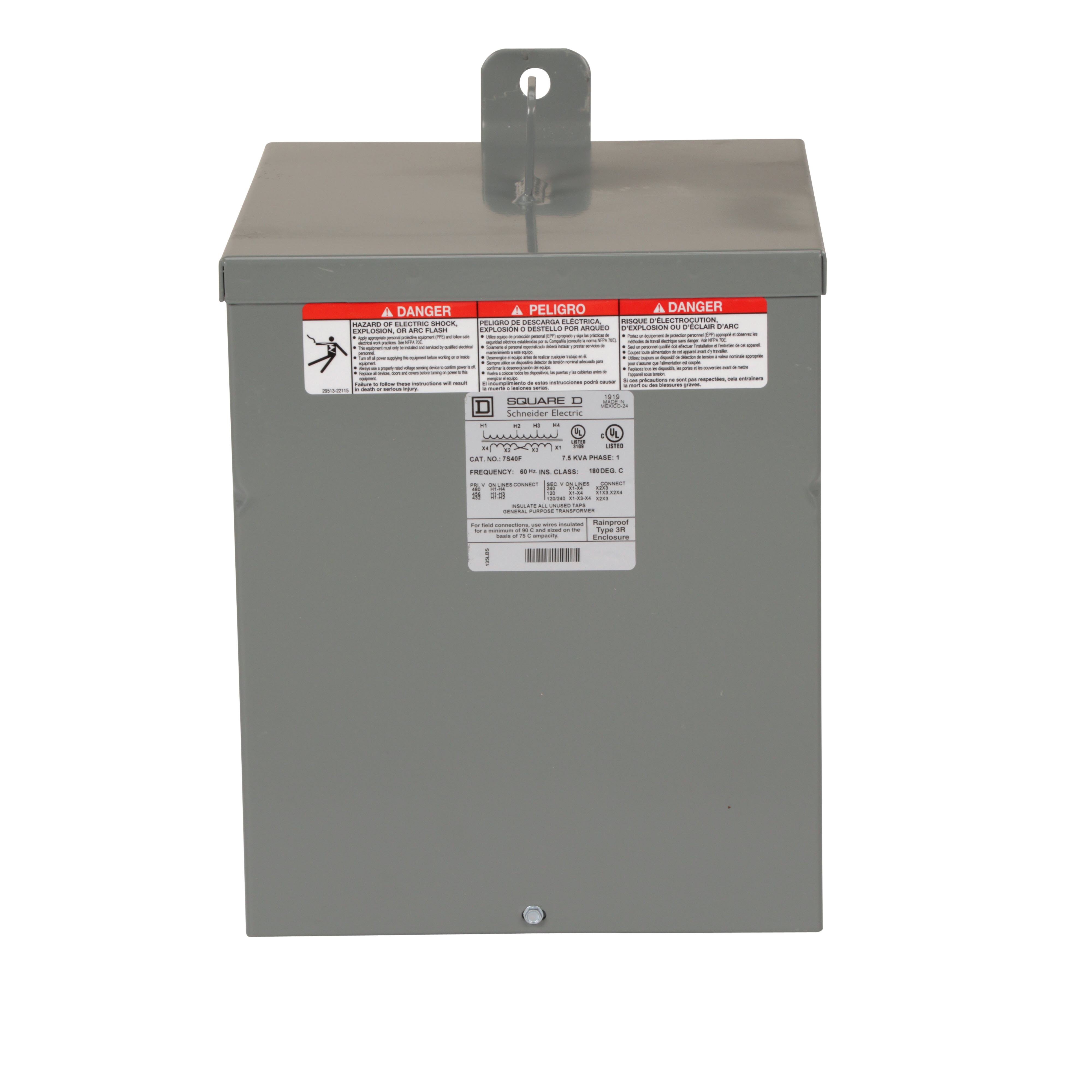

Picture of 7S40F - Transformer, dry type, encapsulated, 7.5kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 7S40F - Transformer, dry type, encapsulated, 7.5kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA]

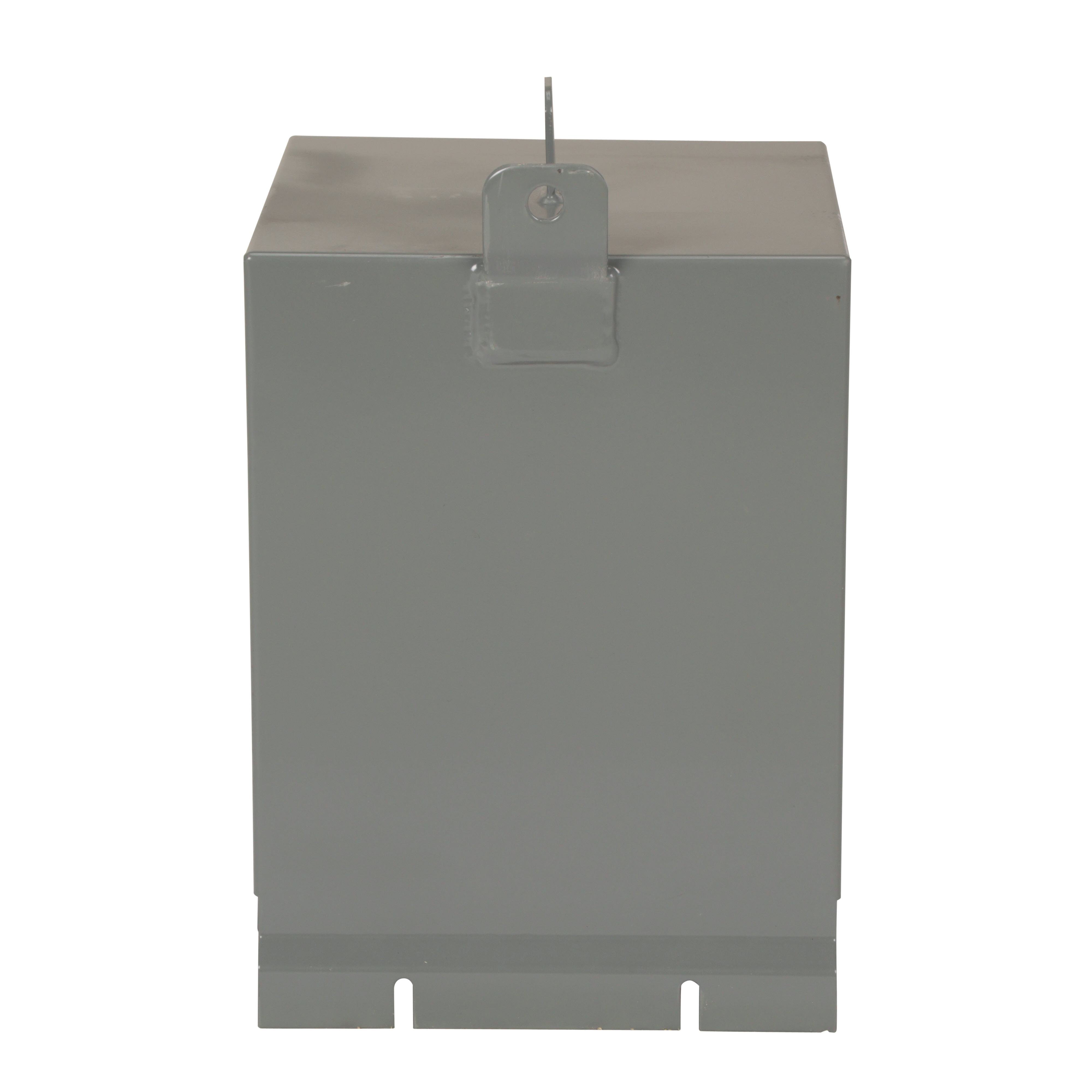

Picture of 7S40F - Transformer, dry type, encapsulated, 7.5kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA] Picture of 7S40F - Transformer, dry type, encapsulated, 7.5kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA]
Square D

7S40F - Transformer, dry type, encapsulated, 7.5kVA, 1 phase, 480V primary, 120/240V secondary, 13B, 115C rise [TAA]

Item Code: 32432
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 7S40F

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 7.5 KVA. This transformer has a primary voltage of 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 14.75 in (H), 9.75 in (W), 11.75 in (D). This product complys to UL & CSA standards.

Specifications

Weight

134.72

Width

9.66

Length

11.64

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/7S40F/7S40F.spin

AD All Features

Resin filled transformers are epoxy encoapsulated

AD Alternative Part Number

8002720

AD Application

For intended power, heating and lighting, OEM commercial, industrial markets and indoor/outdoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901359586

AD Gtin

00785901359586

AD IDEA Index ID

8002720

AD Invoice Description

TRANSFORMER 240/480VAC 120/240VAC 7.5KVA

AD Item Features 01

Resin filled transformers are epoxy encoapsulated

AD Item Features 02

Individual enclosures from 50VA through 5kVA

AD Item Features 03

Can be configured into autotransformer

AD Keywords

7S40F Dry Sealed Low Voltage Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 7.5 kVA Power Rating, 60 Hz, 1 Phase ; Schneider Electric ; Square D ; 7S40F ; 7S40F ; 785901359586 ; General Purpose - Multi-Use Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Length

11.6400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

134.7200

AD Package Weight UOM

LB

AD Package Width

9.6600

AD Package Width UOM

IN

AD Part Number Keywords

7S40F ; 8002720 ; 785901359586 ; 78590135958 ; 00785901359586 ; 0785901359586

Brand

Square D

Spec 1 Attribute

Frequency Rating

Spec 1 Attribute UOM

HZ

Spec 1 Attribute Value

60

Spec 10 Attribute

Type

Spec 10 Attribute Value

Dry Sealed Low Voltage

Spec 2 Attribute

Housing Material

Spec 2 Attribute Value

Sheet Steel

Spec 3 Attribute

Mounting Type

Spec 3 Attribute Value

Wall

Spec 4 Attribute

Number of Taps

Spec 4 Attribute Value

2

Spec 5 Attribute

PHASE

Spec 5 Attribute Value

1

Spec 6 Attribute

Power Rating

Spec 6 Attribute UOM

kVA

Spec 6 Attribute Value

7.5

Spec 7 Attribute

Primary Voltage

Spec 7 Attribute UOM

V AC

Spec 7 Attribute Value

240/480

Spec 8 Attribute

Secondary Voltage

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120/240

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

115
