Square D

8501CO16V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil

Category General Purpose Plug-In Relays & Accessories

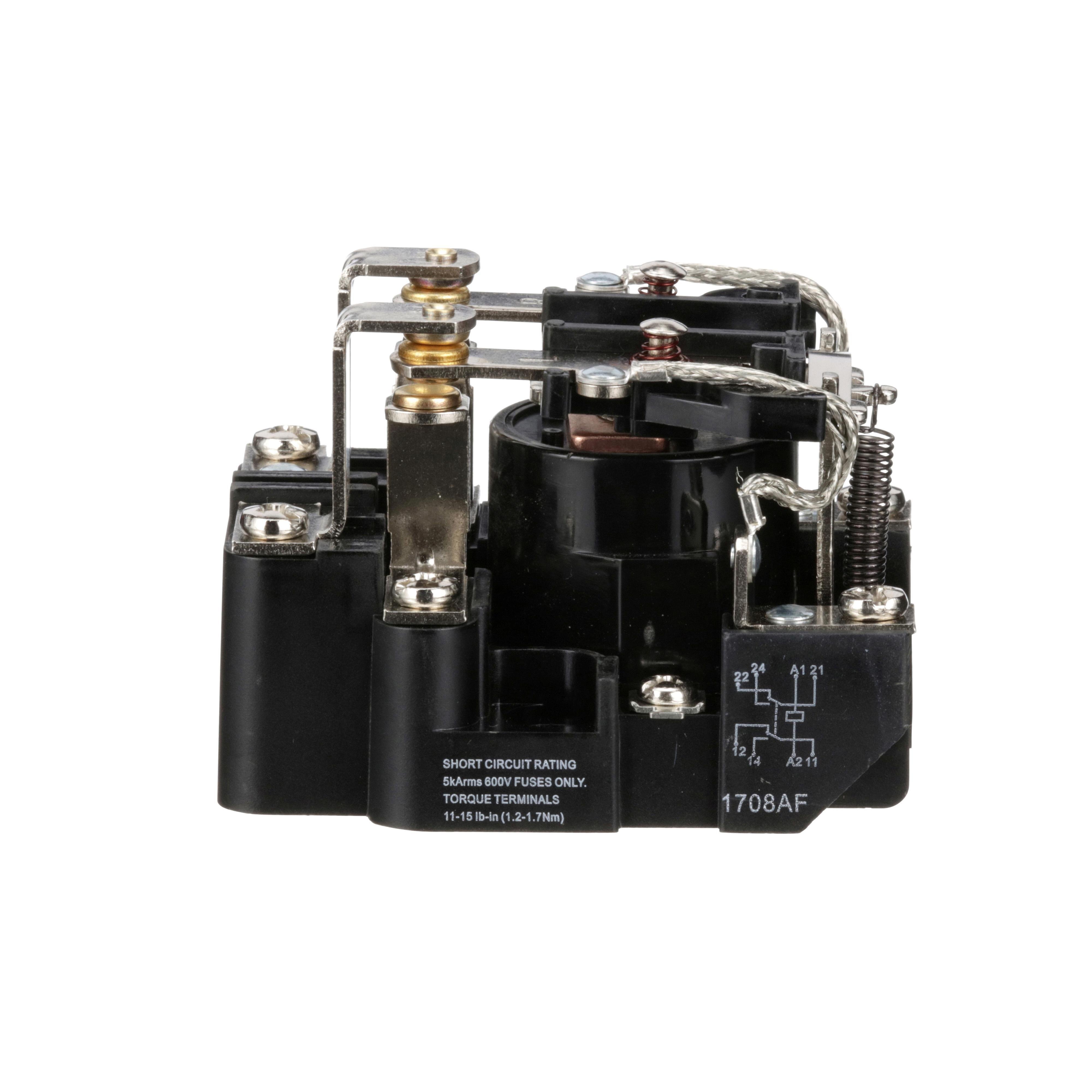

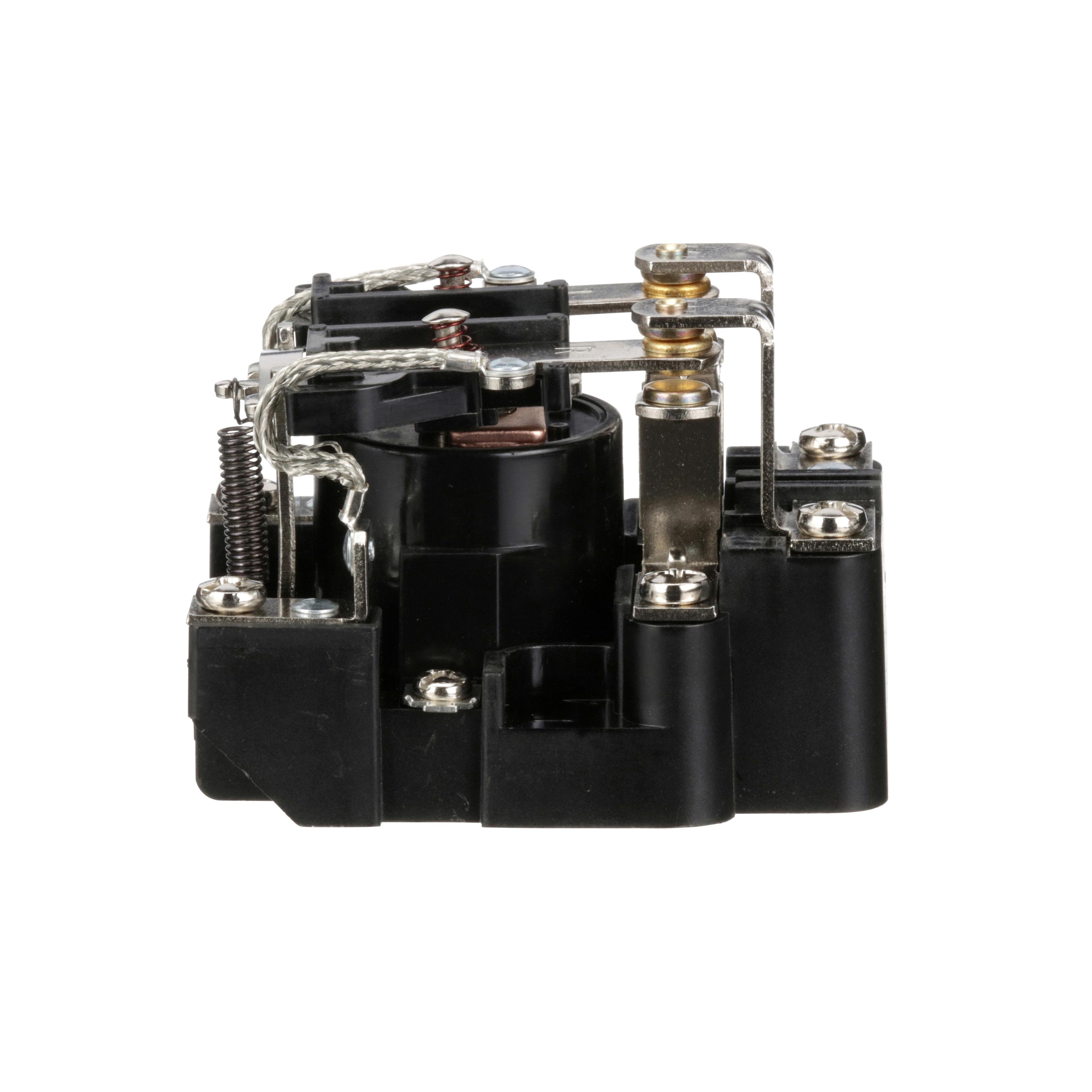

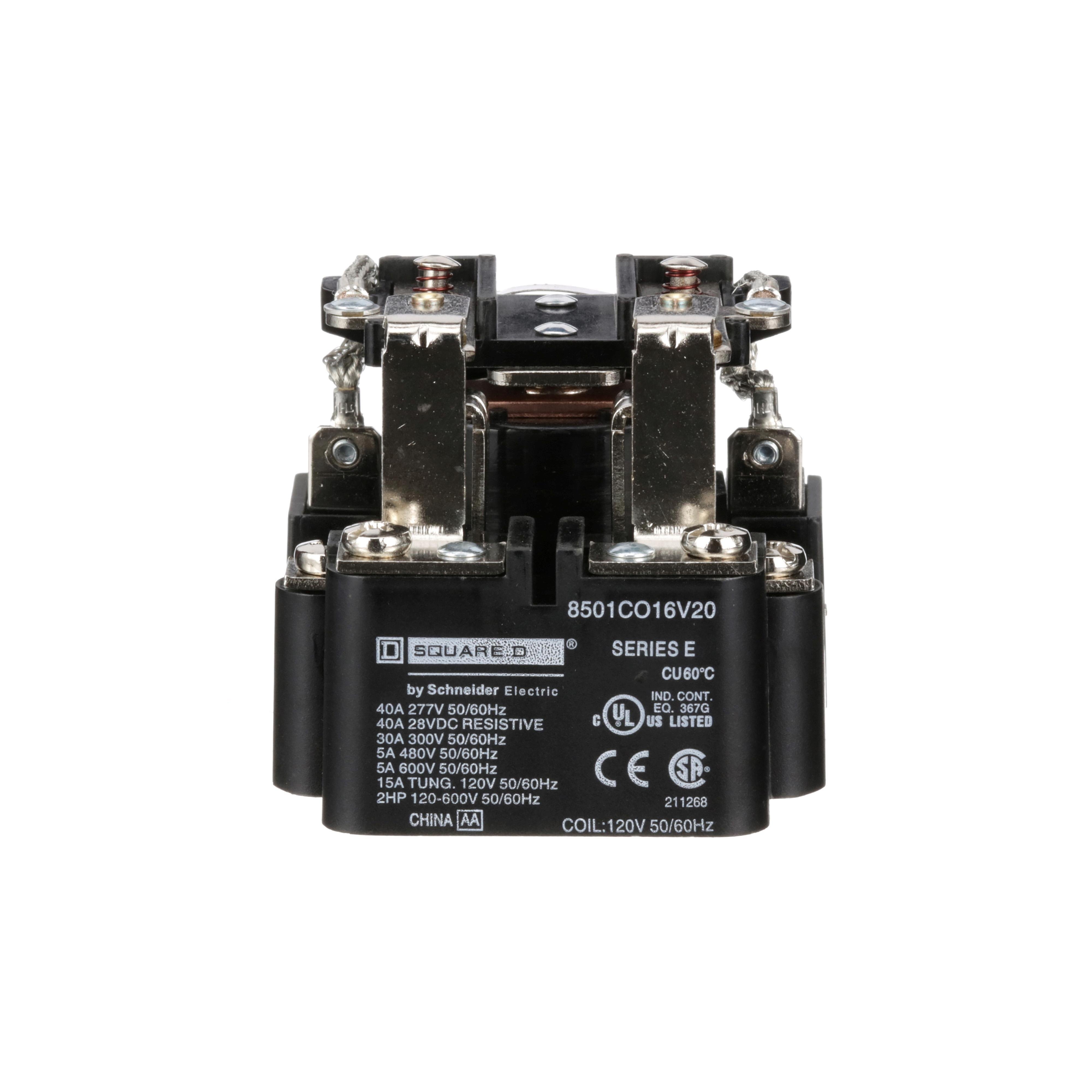

Picture of 8501CO16V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil Picture of 8501CO16V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
Picture of 8501CO16V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil Picture of 8501CO16V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
Picture of 8501CO16V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil Picture of 8501CO16V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
Picture of 8501CO16V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil Picture of 8501CO16V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
Square D

8501CO16V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil

Item Code: 17135
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501CO16V20

Document
Document
Call for Availability
Add to Favorites
Compare

Description

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration with two normally open and two normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.

Specifications

Weight

0.63lb

Height

2.6mm

Width

2.97mm

Length

3.96mm

Depth

2.31mm

AD All Features

Used in robust conditions

AD Application

Suited For Controlling Small Single Phase Motors and Other Light Loads Such As Electric Heaters, Pilot Lights Or Audible Signals Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

RELAY PWR 30A 1.5HP 50/60HZ 120VAC PNL

AD Item Features 01

Used in robust conditions

AD Item Features 02

Durable, open frame construction

AD Item Features 03

With optional blowout magnet for DC switching

AD Item Features 04

2HP motor load rating

AD Item Features 05

Wide range of operating temperature from -22 deg F to 122 deg F

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.6000

AD Package Height UOM

IN

AD Package Length

3.9600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.6300

AD Package Weight UOM

LB

AD Package Width

2.9700

AD Package Width UOM

IN

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Screw

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type C 1-Phase

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

120

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO-2NC 2 Form C DPDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

30 A at 600 V AC

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

Power Rating

Spec 7 Attribute UOM

HP

Spec 7 Attribute Value

1.5

Spec 8 Attribute

Series

Spec 8 Attribute Value

8501C

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

-22 To 122
