Square D

8501CO7V14 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 24 VAC coil

Category General Purpose Plug-In Relays & Accessories

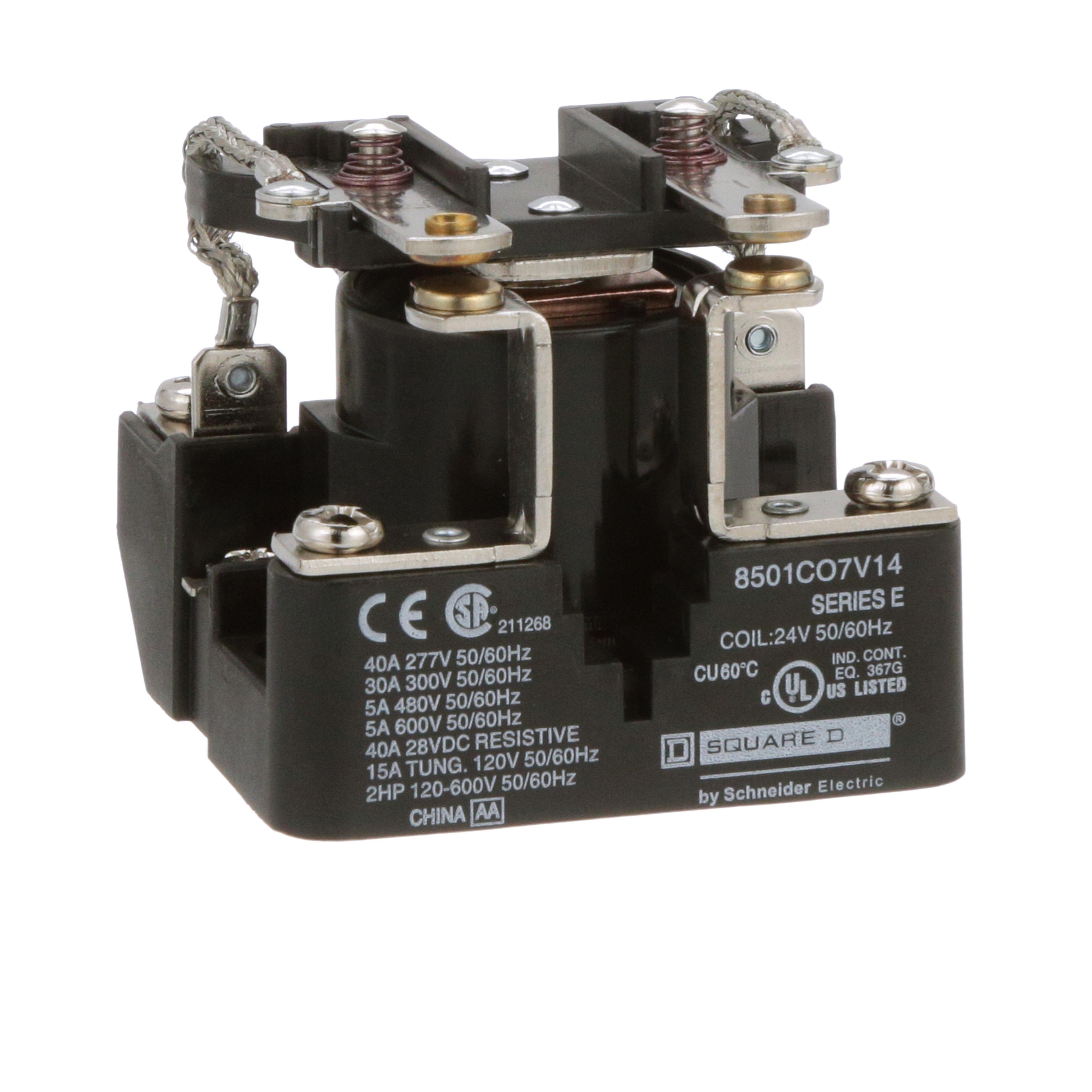

Picture of 8501CO7V14 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 24 VAC coil Picture of 8501CO7V14 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 24 VAC coil

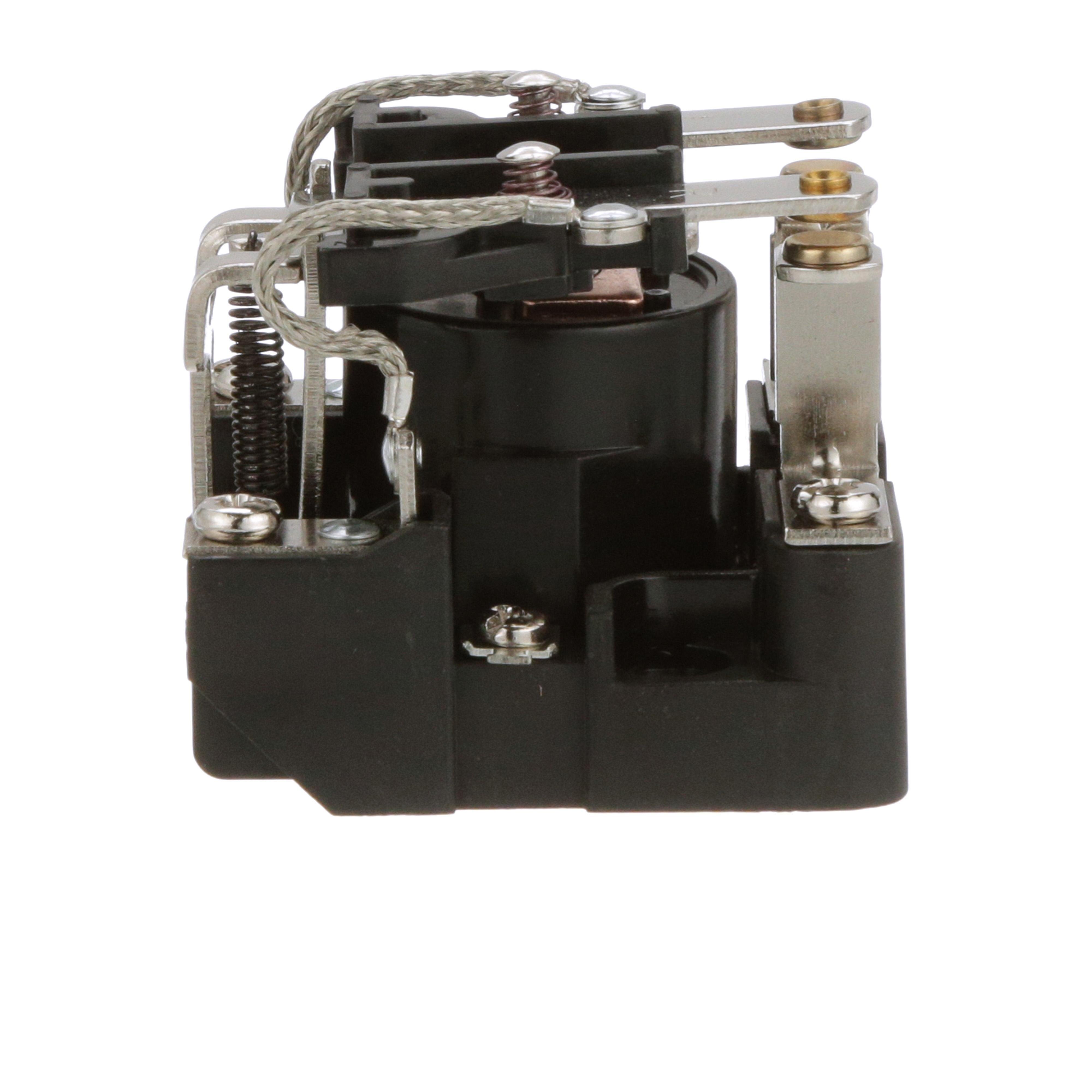

Picture of 8501CO7V14 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 24 VAC coil Picture of 8501CO7V14 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 24 VAC coil
Picture of 8501CO7V14 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 24 VAC coil Picture of 8501CO7V14 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 24 VAC coil
Square D

8501CO7V14 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 24 VAC coil

Item Code: 17142
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501CO7V14

Document
Document
Call for Availability
Add to Favorites
Compare

Description

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPST contact configuration with two normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 24 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.

Specifications

Weight

0.55lb

Height

2.3mm

Width

2.48mm

Length

2.48mm

Depth

2.25mm

AD All Features

Visible contacts

AD Application

Controlling Small Single Phase Motors and Other Light Loads such as Electric Heaters, Pilot Lights or Audible Signals, Pumps, Conveyors and Material Handling Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

RELAY PWR 30A 2NO-DPST 24VAC 1-1/2HP 2

AD Item Features 01

Visible contacts

AD Item Features 02

Low cost

AD Item Features 03

Horsepower rated

AD Item Features 04

8501 type C open frame Power Relays

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.3000

AD Package Height UOM

IN

AD Package Length

2.4800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

14.3800

AD Package Volume UOM

cu-in

AD Package Weight

0.5500

AD Package Weight UOM

LB

AD Package Width

2.4800

AD Package Width UOM

IN

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 10 Attribute

Power Rating

Spec 10 Attribute UOM

HP

Spec 10 Attribute Value

1/1/2002

Spec 11 Attribute

Series

Spec 11 Attribute Value

8501C

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-22 To 122

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw

Spec 14 Attribute

Type

Spec 14 Attribute Value

General Purpose Type C

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO 2 Form A DPST

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

30 A at 300 V AC, 5 A at 600 V AC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

2.43 in W x 2.5 in D x 2.25 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Panel

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
