Square D

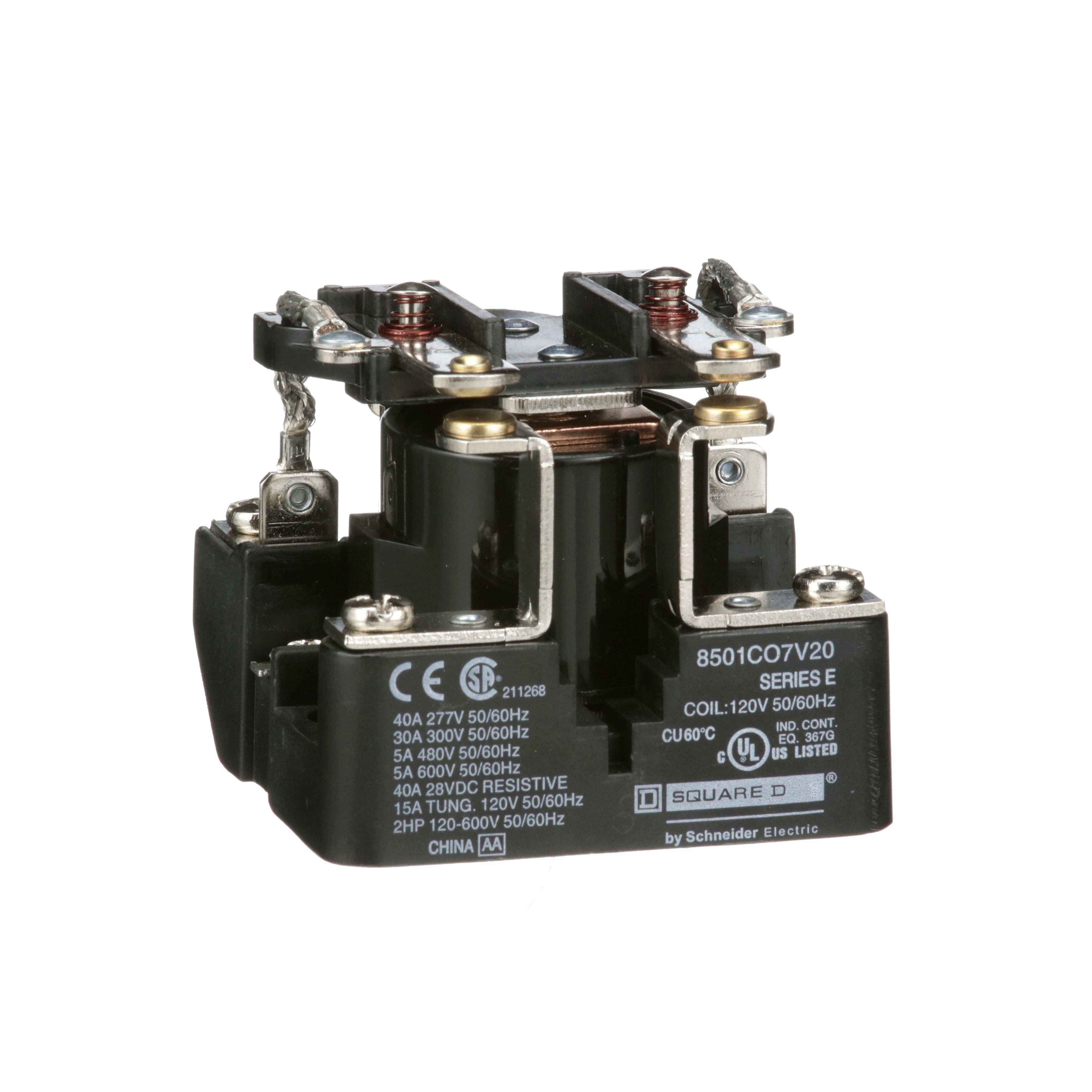

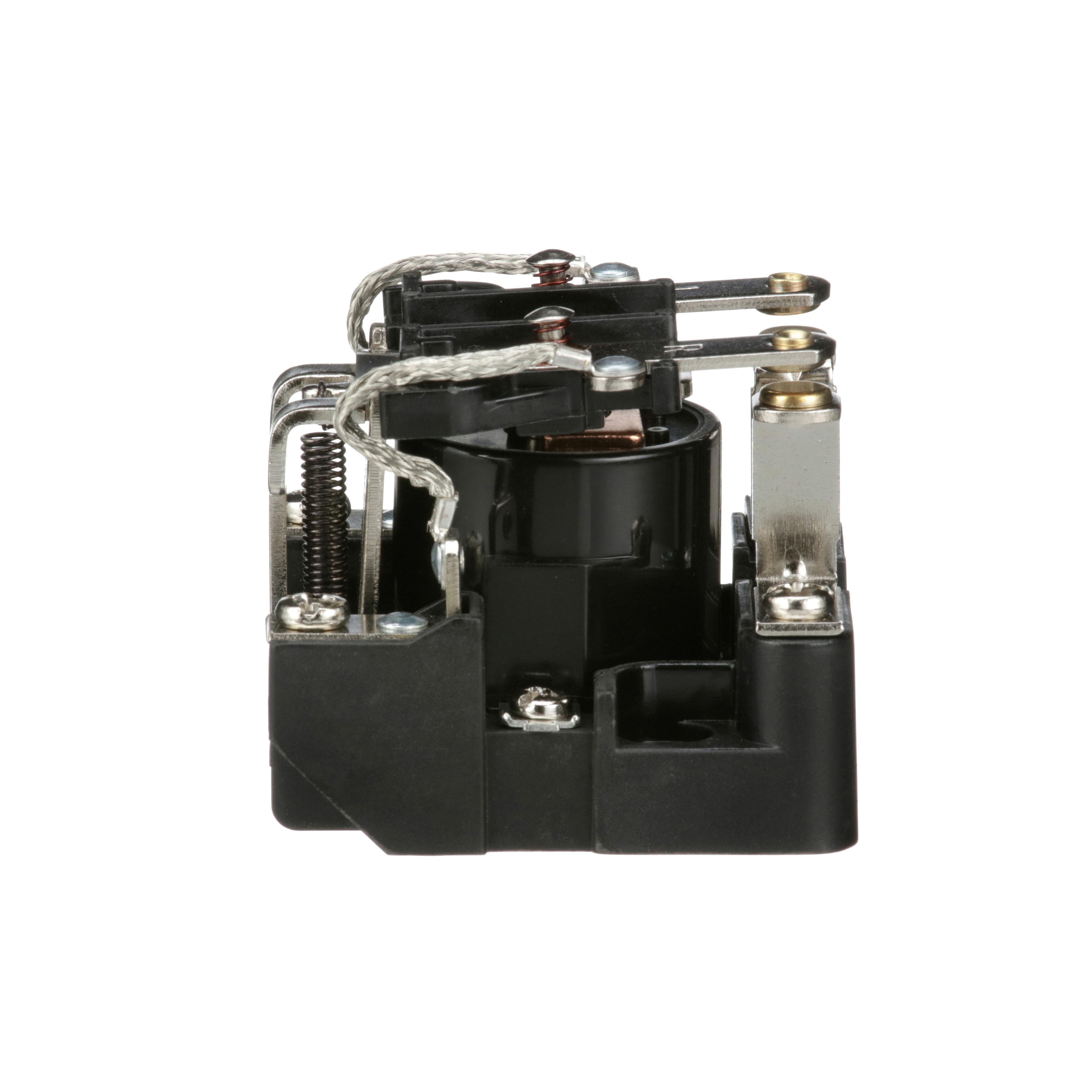

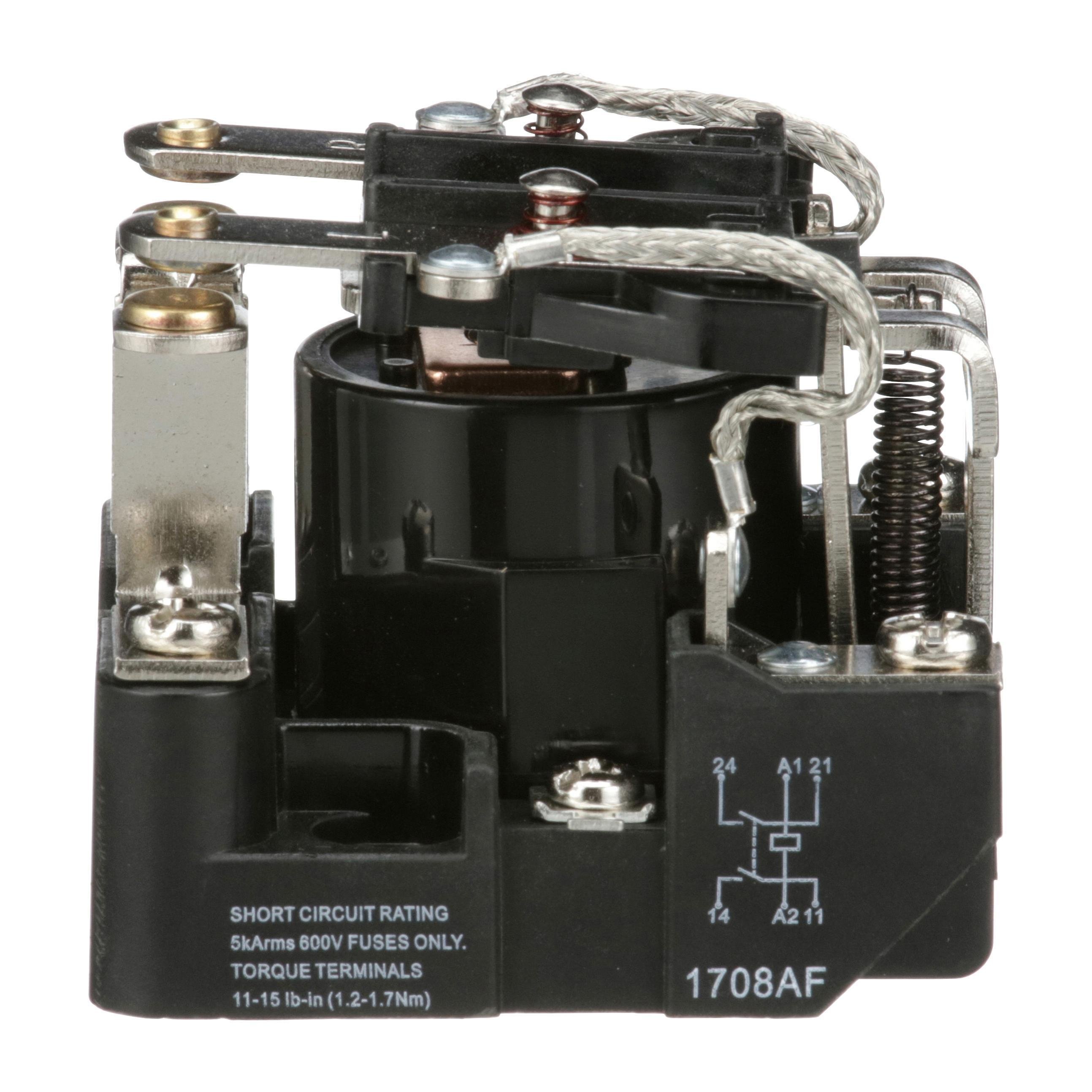

8501CO7V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil

Picture of 8501CO7V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil Picture of 8501CO7V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil
Picture of 8501CO7V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil Picture of 8501CO7V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil
Picture of 8501CO7V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil Picture of 8501CO7V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil
Picture of 8501CO7V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil Picture of 8501CO7V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil
Square D

8501CO7V20 - Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, DPST, 2 normally open contacts, 120 VAC coil

Item Code: 17143
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501CO7V20

Document
Document
Call for Availability
Add to Favorites
Compare

Description

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPST contact configuration with two normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.

Specifications

Weight

0.64lb

Height

3mm

Width

2.48mm

Length

3.27mm

Depth

2.25mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8501CO7V20/8501CO7V20.spin

AD All Features

Used in robust conditions

AD Alternative Part Number

7994332

AD Application

Suited For Controlling Small Single Phase Motors and Other Light Loads Such As Electric Heaters, Pilot Lights Or Audible Signals Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

CN

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901052258

AD Gtin

00785901052258

AD IDEA Index ID

7994332

AD Invoice Description

RELAY PWR 30A 1.5HP 50/60HZ 120VAC 2 PNL

AD Item Features 01

Used in robust conditions

AD Item Features 02

Durable, open frame construction

AD Item Features 03

With optional blowout magnet for DC switching

AD Item Features 04

2HP motor load rating

AD Item Features 05

Wide range of operating temperature from -22 deg F to 122 deg F

AD Keywords

8501CO7V20 General Purpose Type C Power Relay, 30 A, 2NO 2 Form A DPST Contact, 120 V AC V Coil ; Schneider Electric ; Square D ; 8501CO7V20 ; 8501CO7V20 ; 785901052258 ; Power Relays

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.0000

AD Package Height UOM

IN

AD Package Length

3.2700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

24.7500

AD Package Volume UOM

cu-in

AD Package Weight

0.6400

AD Package Weight UOM

LB

AD Package Width

2.4800

AD Package Width UOM

IN

AD Part Number Keywords

8501CO7V20 ; 7994332 ; 785901052258 ; 78590105225 ; 00785901052258 ; 0785901052258

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 10 Attribute

Power Rating

Spec 10 Attribute UOM

HP

Spec 10 Attribute Value

1.5

Spec 11 Attribute

Series

Spec 11 Attribute Value

8501C

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-22 To 122

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw

Spec 14 Attribute

Type

Spec 14 Attribute Value

General Purpose Type C

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

120

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO 2 Form A DPST

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

30 A at 300 V AC, 5 A at 600 V AC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

2.43 in W x 2.5 in D x 2.25 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Panel

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
