Square D

8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC

Category General Purpose Plug-In Relays & Accessories

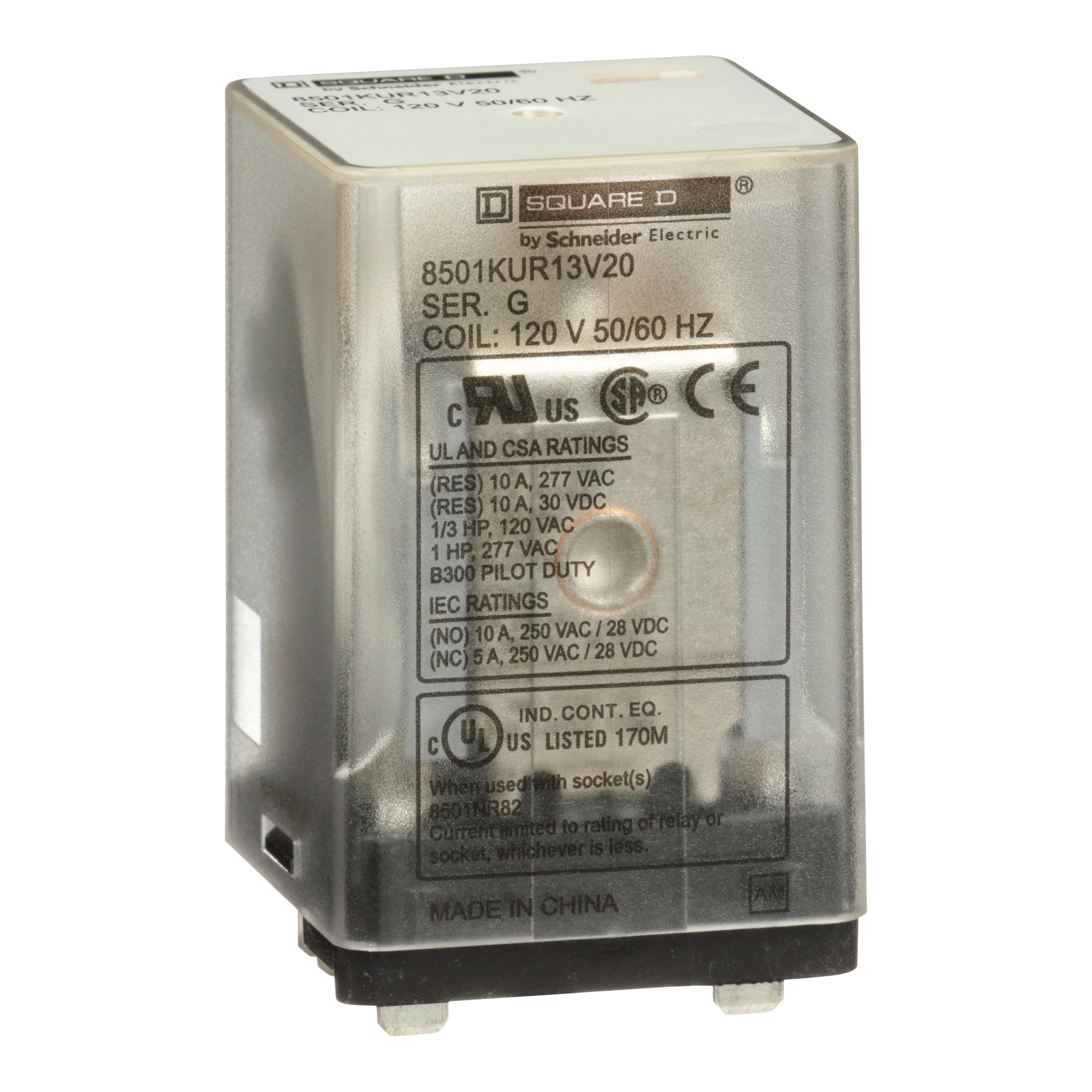

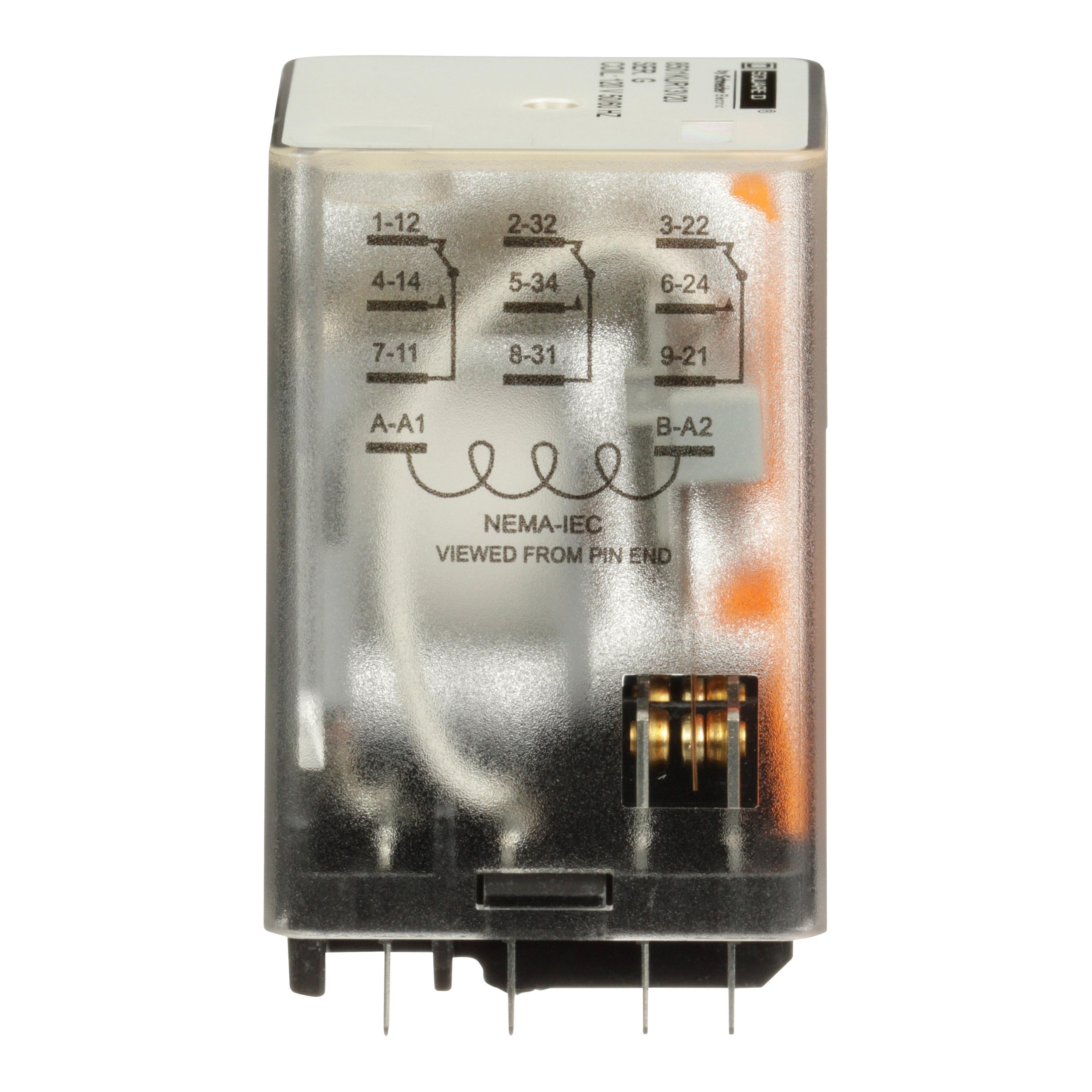

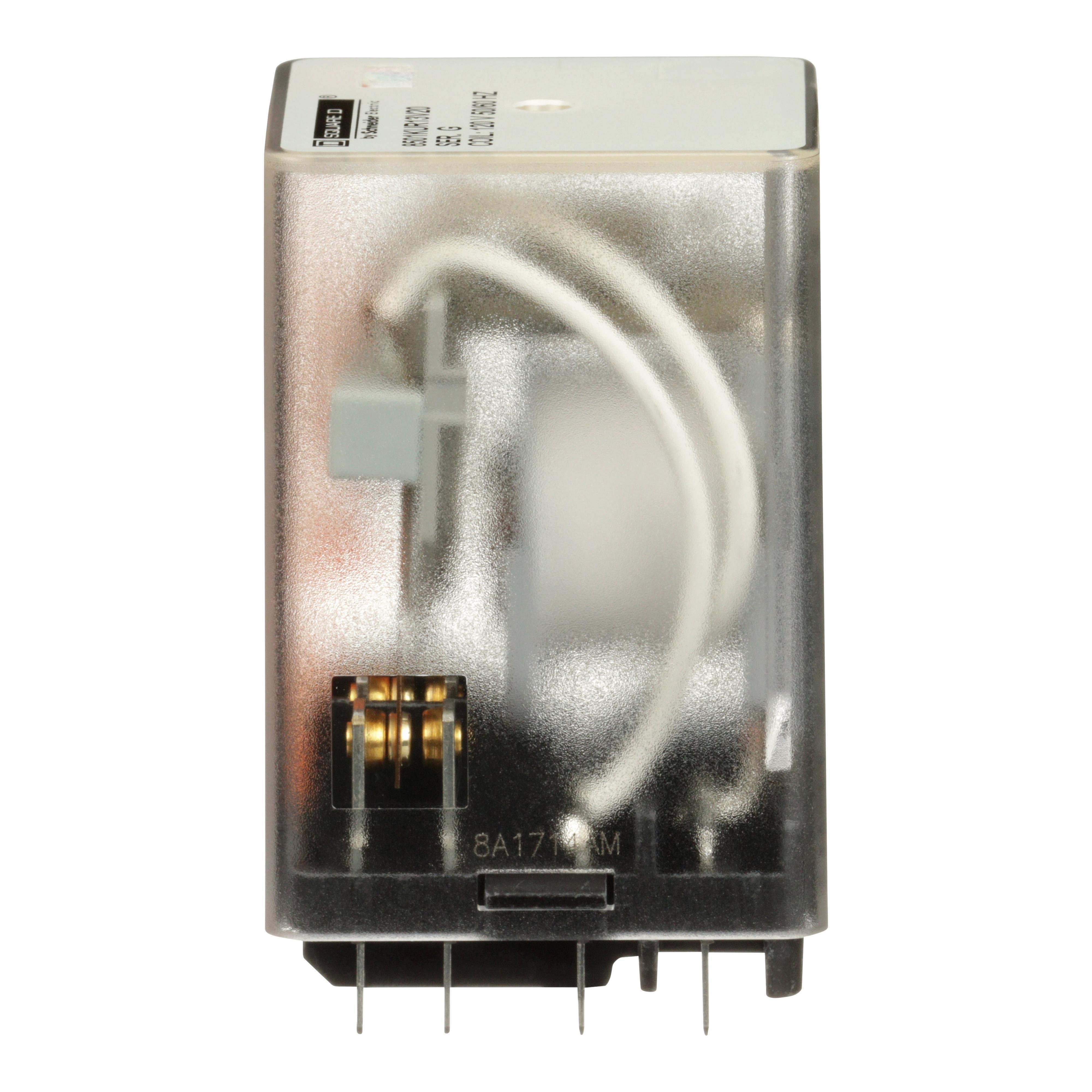

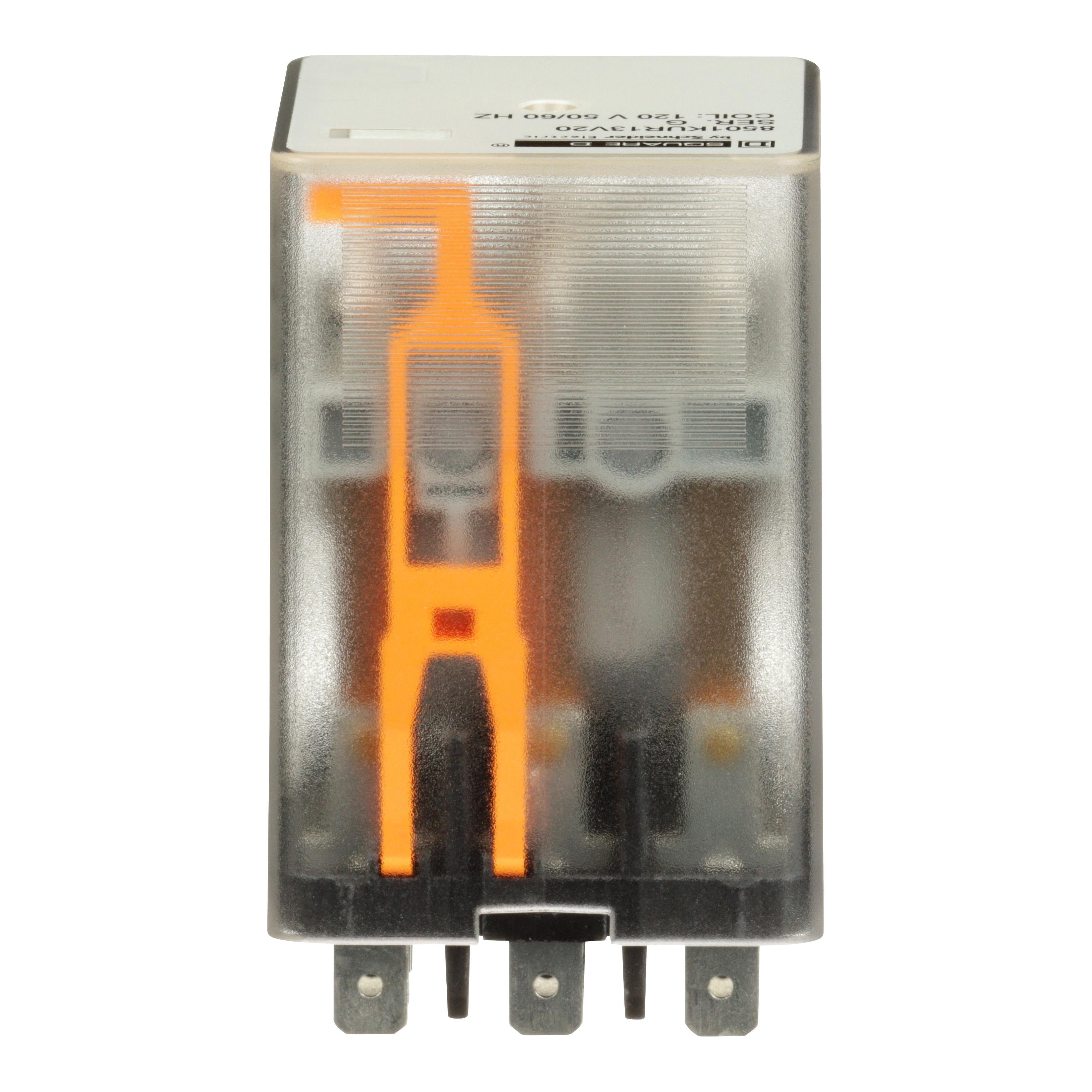

Picture of 8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC Picture of 8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC
Picture of 8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC Picture of 8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC
Picture of 8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC Picture of 8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC
Picture of 8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC Picture of 8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC
Picture of 8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC Picture of 8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC
Square D

8501KUR13V20 - Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC

Item Code: 978987
Category General Purpose Plug-In Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501KUR13V20

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a 3PDT contact arrangements. It has three normally open and three normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Specifications

Weight

0.2

Width

1.68

Length

2.97

AD All Features

Modular construction for greater design flexibility

AD Application

For general purpose and multipole switching applicationsat 240 VAC applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

RELAY PLUG-IN 6.6A 0.33HP 3PDT SKT 8501K

AD Item Features 01

Modular construction for greater design flexibility

AD Item Features 02

High reliability and ease of maintenance

AD Item Features 03

Wide range of operating temperature from -40 deg C to 71 deg C

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.9700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2000

AD Package Weight UOM

LB

AD Package Width

1.6800

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/zaDOKFz6F6U

Brand

Square D

Category

GENERAL PURPOSE PLUG-IN RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

6.6

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

300 V AC, 30 V DC

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3 Form C 3PDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

10 A at 240 V AC

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Socket

Spec 6 Attribute

Power Rating

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

0.33

Spec 7 Attribute

Series

Spec 7 Attribute Value

8501K

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg F

Spec 8 Attribute Value

-40 To 131

Spec 9 Attribute

Type

Spec 9 Attribute Value

Type KU
