Square D

8501NR43 - Plug in relay, Type N, relay socket, 11 blade, for 8510R relays

Category Miscellaneous

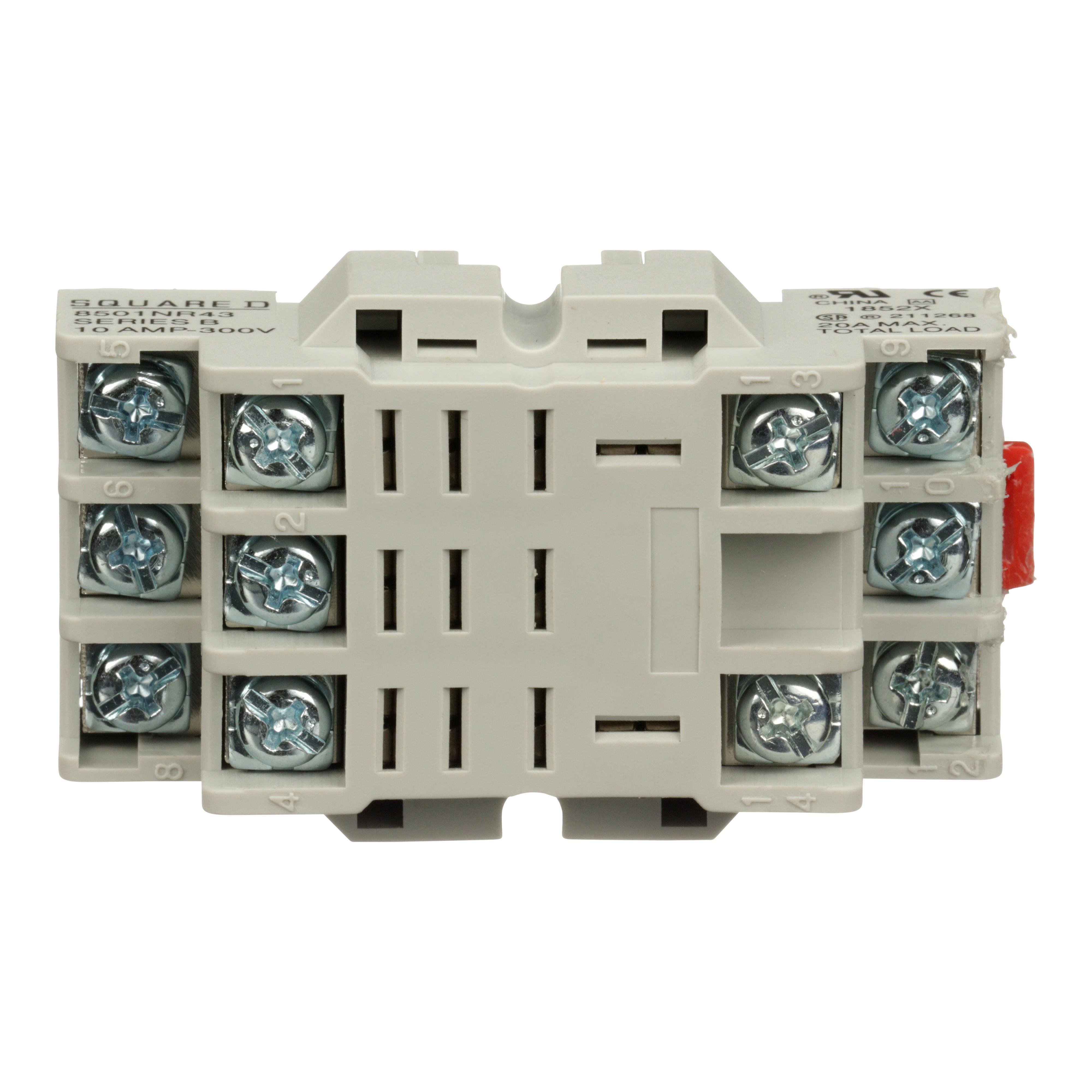

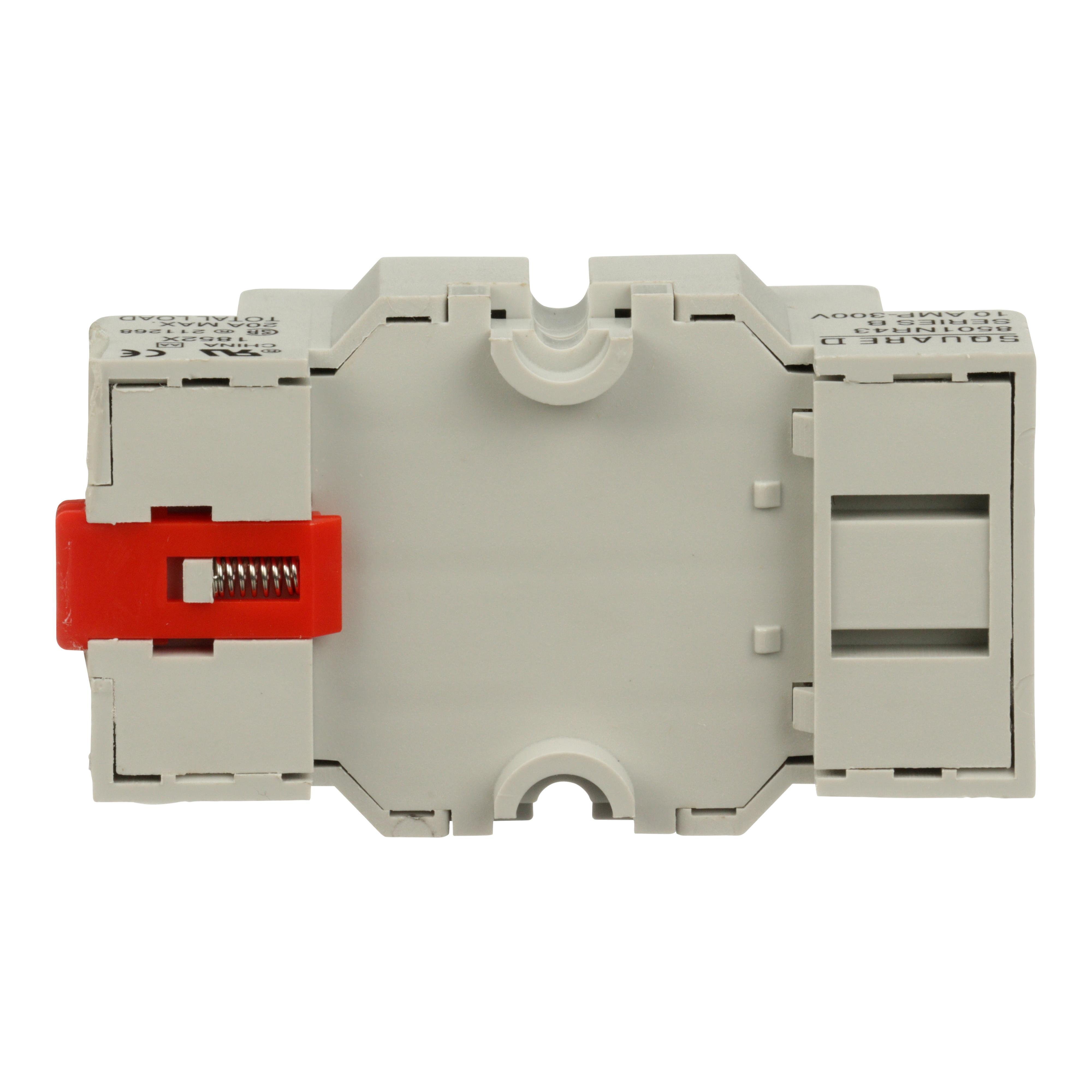

Picture of 8501NR43 - Plug in relay, Type N, relay socket, 11 blade, for 8510R relays Picture of 8501NR43 - Plug in relay, Type N, relay socket, 11 blade, for 8510R relays
Picture of 8501NR43 - Plug in relay, Type N, relay socket, 11 blade, for 8510R relays Picture of 8501NR43 - Plug in relay, Type N, relay socket, 11 blade, for 8510R relays
Picture of 8501NR43 - Plug in relay, Type N, relay socket, 11 blade, for 8510R relays Picture of 8501NR43 - Plug in relay, Type N, relay socket, 11 blade, for 8510R relays
Square D

8501NR43 - Plug in relay, Type N, relay socket, 11 blade, for 8510R relays

Item Code: 17170
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501NR43

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS43 or 8501RSD43 relay will plug into this relay socket which is designed for 11 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.

Specifications

Weight

0.15

Height

1.1

Width

1.68

Length

2.77

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8501NR43/8501NR43.spin

AD All Features

Spade pins

AD Alternative Part Number

8042848

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901137290

AD Gtin

00785901137290

AD IDEA Index ID

8042848

AD Invoice Description

SOCKET RLY 300VAC 10A 11 DIN RAIL/PNL

AD Item Features 01

Spade pins

AD Keywords

8501NR43 Type R Double Tier Relay Socket, 300 V AC, 10 A, For Use With Class 8501 Series Miniature Plug-In Relay, 11 Pin ; Schneider Electric ; Square D ; 8501NR43 ; 8501NR43 ; 785901137290 ; Relay & Timer Bases-Sockets

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.1000

AD Package Height UOM

IN

AD Package Length

2.7700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

5.2400

AD Package Volume UOM

cu-in

AD Package Weight

0.1500

AD Package Weight UOM

LB

AD Package Width

1.6800

AD Package Width UOM

IN

AD Part Number Keywords

8501NR43 ; 8042848 ; 785901137290 ; 78590113729 ; 00785901137290 ; 0785901137290

AD Video Links

https://www.youtube.com/embed/Hq-lwURWDPs

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

2.74 in L x 1.159 in W x 1.09 in H

Spec 3 Attribute

Mounting Type

Spec 3 Attribute Value

DIN Rail/Panel

Spec 4 Attribute

Number of Pins

Spec 4 Attribute Value

11

Spec 5 Attribute

Series

Spec 5 Attribute Value

8501N

Spec 6 Attribute

Suitable For Use With

Spec 6 Attribute Value

Class 8501 Series Miniature Plug-In Relay

Spec 7 Attribute

Terminal Type

Spec 7 Attribute Value

Screw clamp

Spec 8 Attribute

Type

Spec 8 Attribute Value

Type R Double Tier

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

300
