Square D

8501NR62 - Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers

Category Miscellaneous

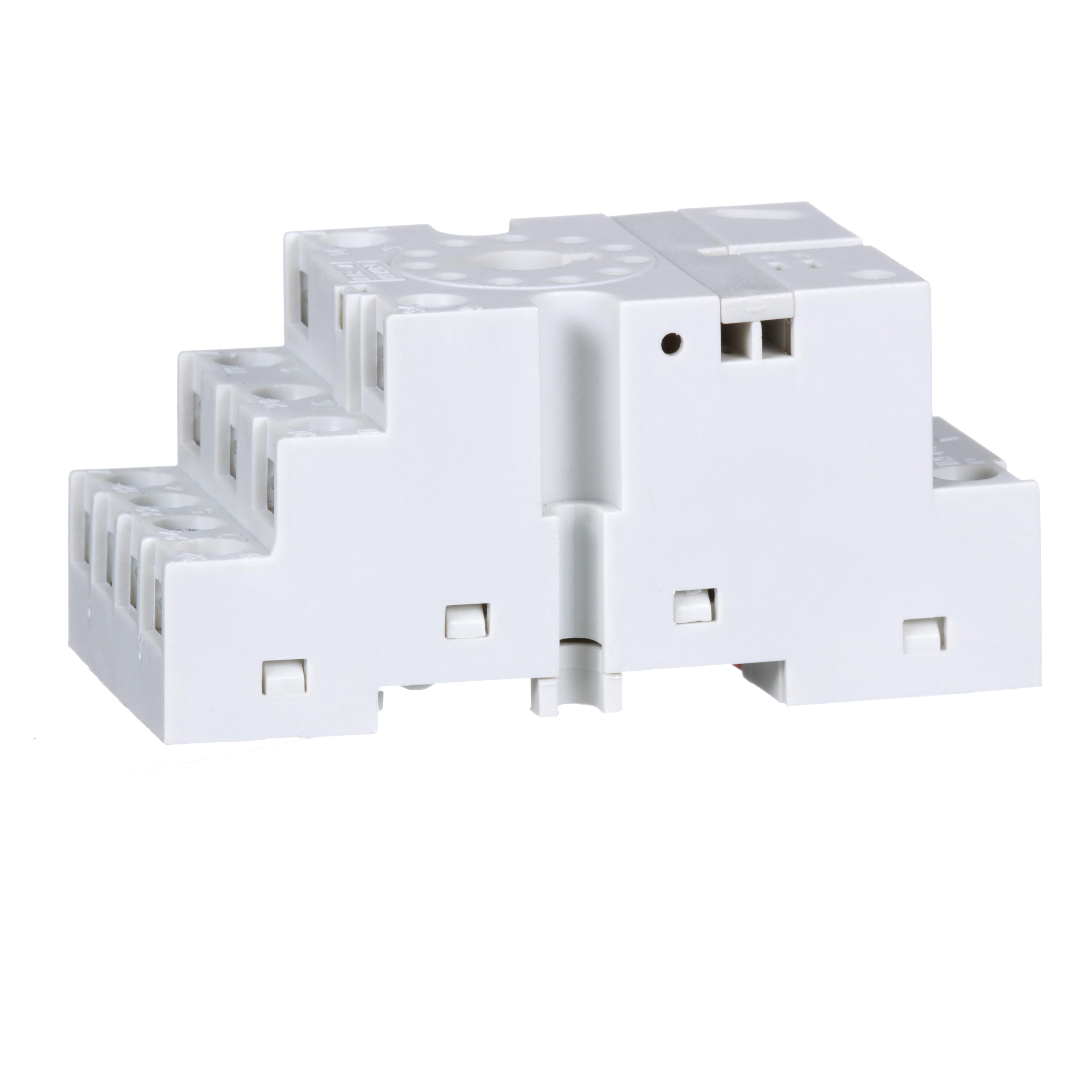

Picture of 8501NR62 - Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers
Square D

8501NR62 - Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers

Item Code: 32450
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501NR62

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR13 and 8501KPDR13 relays and 9050JCK timers will plug into this relay socket which is designed for 11 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.

Specifications

Weight

0.18

Height

1.5

Width

1.58

Length

3.27

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8501NR62/8501NR62.spin

AD All Features

Tubular pin shape

AD Alternative Part Number

8102414

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

TW

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901583714

AD Gtin

00785901583714

AD IDEA Index ID

8102414

AD Invoice Description

SOCKET RLY 300/600VAC 5 TO 16A 11

AD Item Features 01

Tubular pin shape

AD Keywords

8501NR62 Type K Double Tier Relay Socket, 300/600 V AC, 5 to 16 A, For Use With Class 8501 Series Miniature Plug-In Relay, 11 Pin ; Schneider Electric ; Square D ; 8501NR62 ; 8501NR62 ; 785901583714 ; Relay & Timer Bases-Sockets

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.5000

AD Package Height UOM

IN

AD Package Length

3.2700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

7.9200

AD Package Volume UOM

cu-in

AD Package Weight

0.1800

AD Package Weight UOM

LB

AD Package Width

1.5800

AD Package Width UOM

IN

AD Part Number Keywords

8501NR62 ; 8102414 ; 785901583714 ; 78590158371 ; 00785901583714 ; 0785901583714

AD Video Links

https://www.youtube.com/embed/zaDOKFz6F6U

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

5 to 16

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

2.2 in W x 1.13 in D x 1.7 in H

Spec 3 Attribute

Mounting Type

Spec 3 Attribute Value

DIN Rail/Panel

Spec 4 Attribute

Number of Pins

Spec 4 Attribute Value

11

Spec 5 Attribute

Series

Spec 5 Attribute Value

8501N

Spec 6 Attribute

Suitable For Use With

Spec 6 Attribute Value

Class 8501 Series Miniature Plug-In Relay

Spec 7 Attribute

Terminal Type

Spec 7 Attribute Value

Screw clamp

Spec 8 Attribute

Type

Spec 8 Attribute Value

Type K Double Tier

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

300/600
