Square D

8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC

Category Miscellaneous

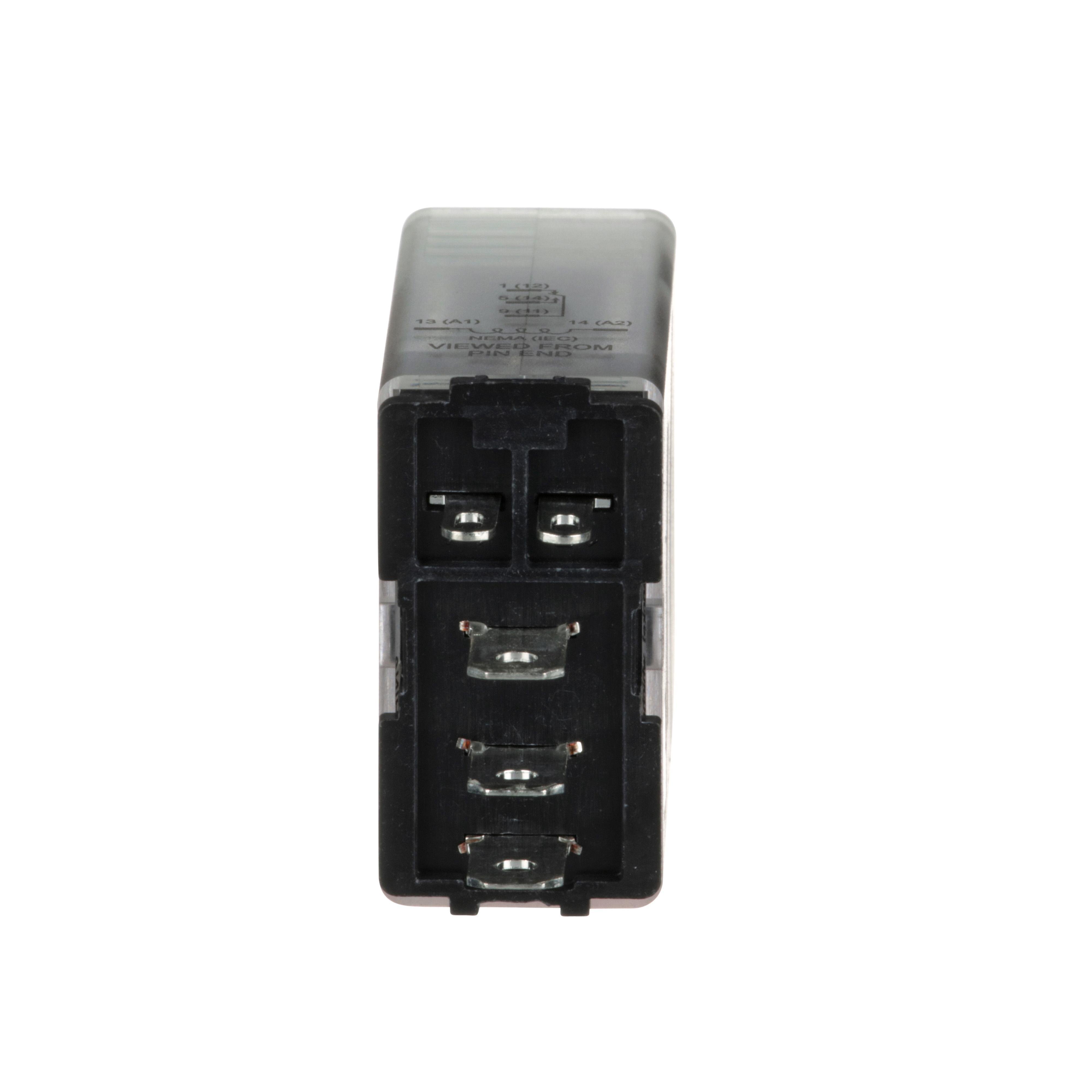

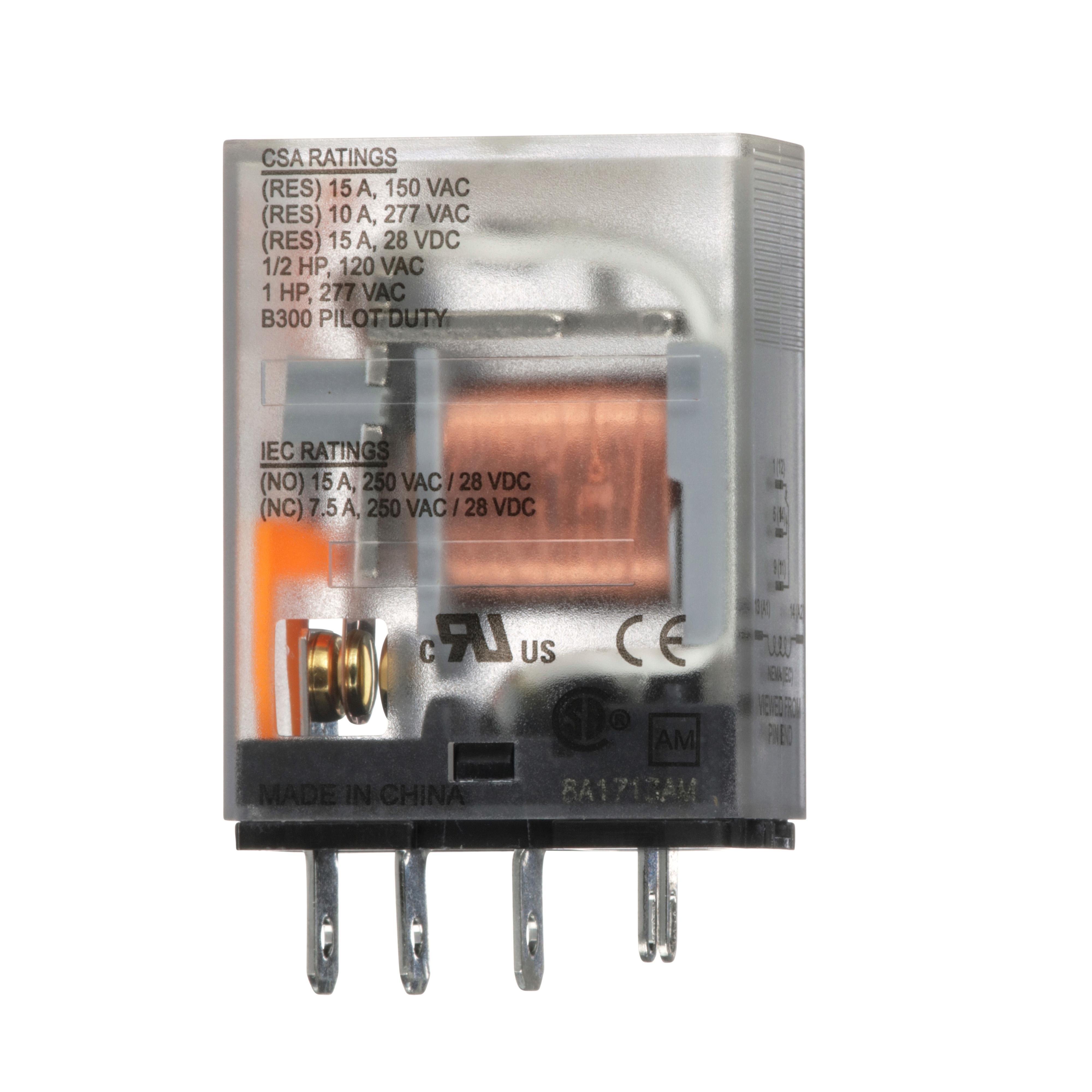

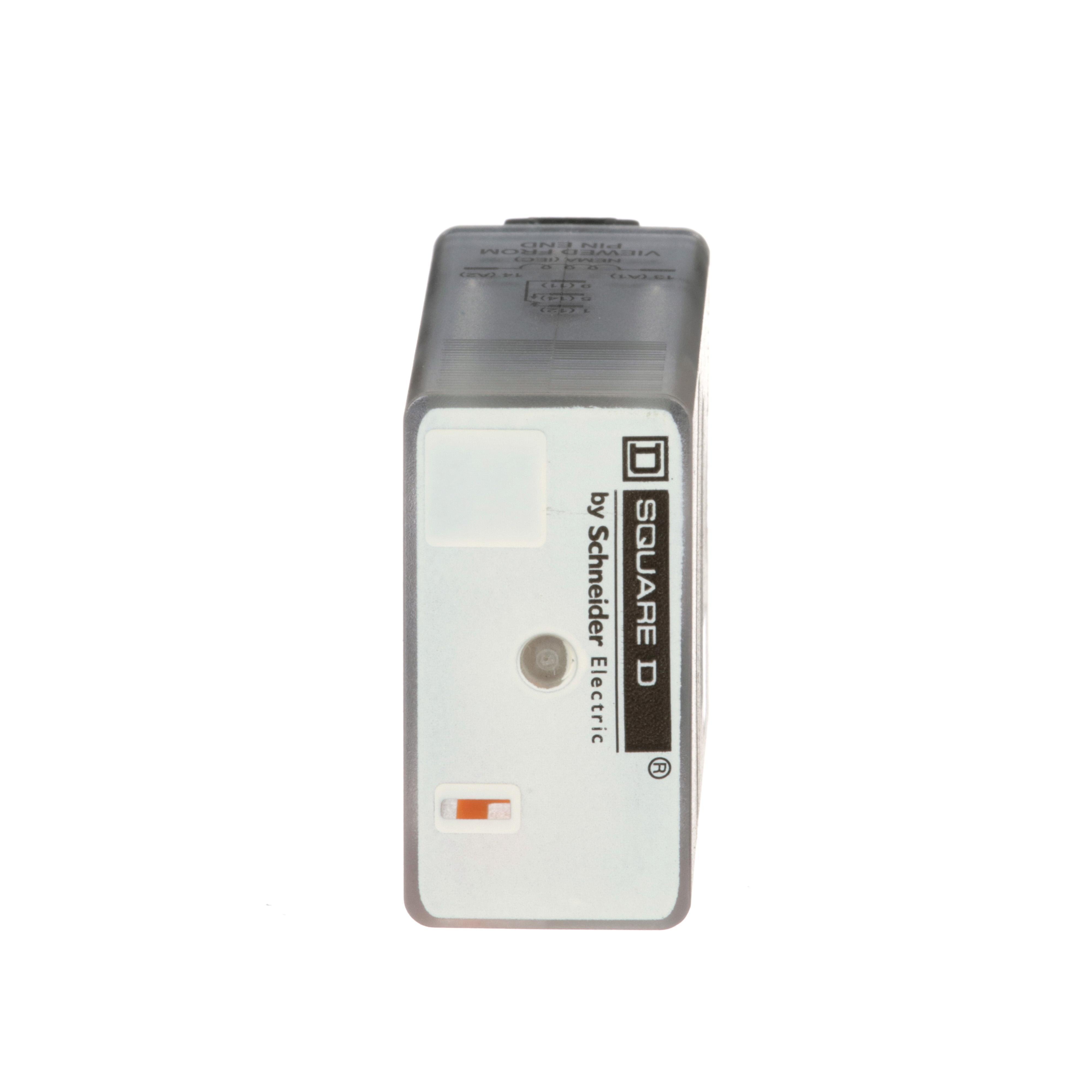

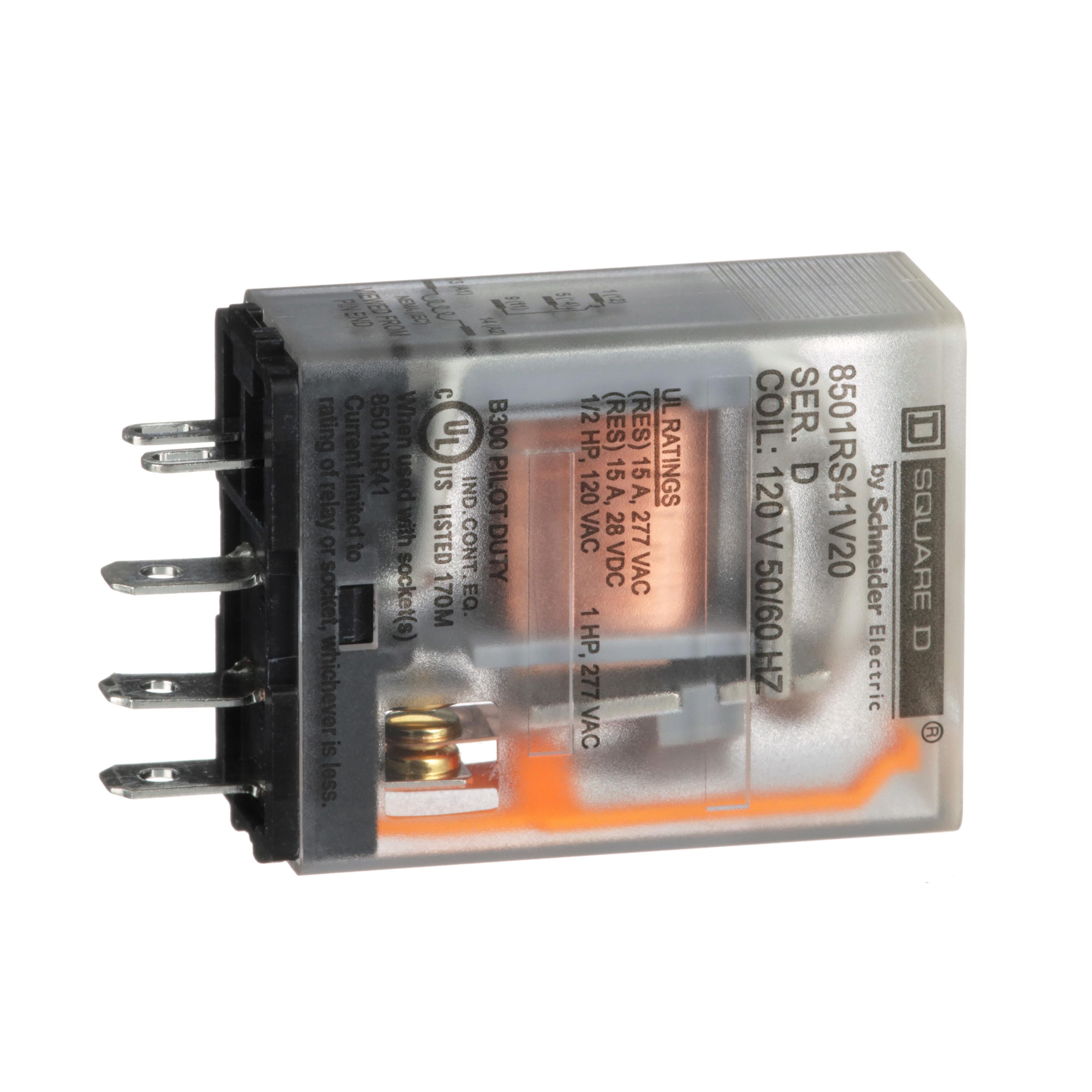

Picture of 8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC Picture of 8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC
Picture of 8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC Picture of 8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC
Picture of 8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC Picture of 8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC
Picture of 8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC Picture of 8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC
Picture of 8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC Picture of 8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC
Square D

8501RS41V20 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC

Item Code: 17179
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501RS41V20

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Specifications

Weight

0.06

Height

1

Width

1.29

Length

1.98

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8501RS41V20/8501RS41V20.spin

AD All Features

Short stroke motion of the armature

AD Alternative Part Number

8042754

AD Application

General purpose applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

CN

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901137030

AD Gtin

00785901137030

AD IDEA Index ID

8042754

AD Invoice Description

RELAY PLUG-IN 10 TO 15A 1/2HP 50/60HZ

AD Item Features 01

Short stroke motion of the armature

AD Item Features 02

Provides long mechanical life for high speed operation

AD Item Features 03

Suitable for high contact reliability, low level switching

AD Item Features 04

Can be used in adverse environments

AD Item Features 05

Wide range of operating temperature from -40 deg C to 55 deg C

AD Keywords

8501RS41V20 8501R Plug-In Relay, 10 to 15 A, 1 Form C SPDT Contact, 300 V AC, 30 V DC V Coil ; Square D ; 8501RS41V20 ; 8042754 ; 785901137030 ; General Purpose Relays

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.0000

AD Package Height UOM

IN

AD Package Length

1.9800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

1.2900

AD Package Width UOM

IN

AD Part Number Keywords

8501RS41V20 ; 8042754 ; 785901137030 ; 78590113703 ; 00785901137030 ; 0785901137030

AD Video Links

https://www.youtube.com/watch?v=yP4g9tSDud4

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10 To 15

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Spade

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type R Standard Miniature

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

300 V AC, 30 V DC

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

1 Form C SPDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

10 A at 240 V AC

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Socket

Spec 7 Attribute

Power Rating

Spec 7 Attribute UOM

HP

Spec 7 Attribute Value

2-Jan

Spec 8 Attribute

Series

Spec 8 Attribute Value

8501R

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

-40 To 131
