Square D

8501RS42P14V20 - Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil

Category Miscellaneous

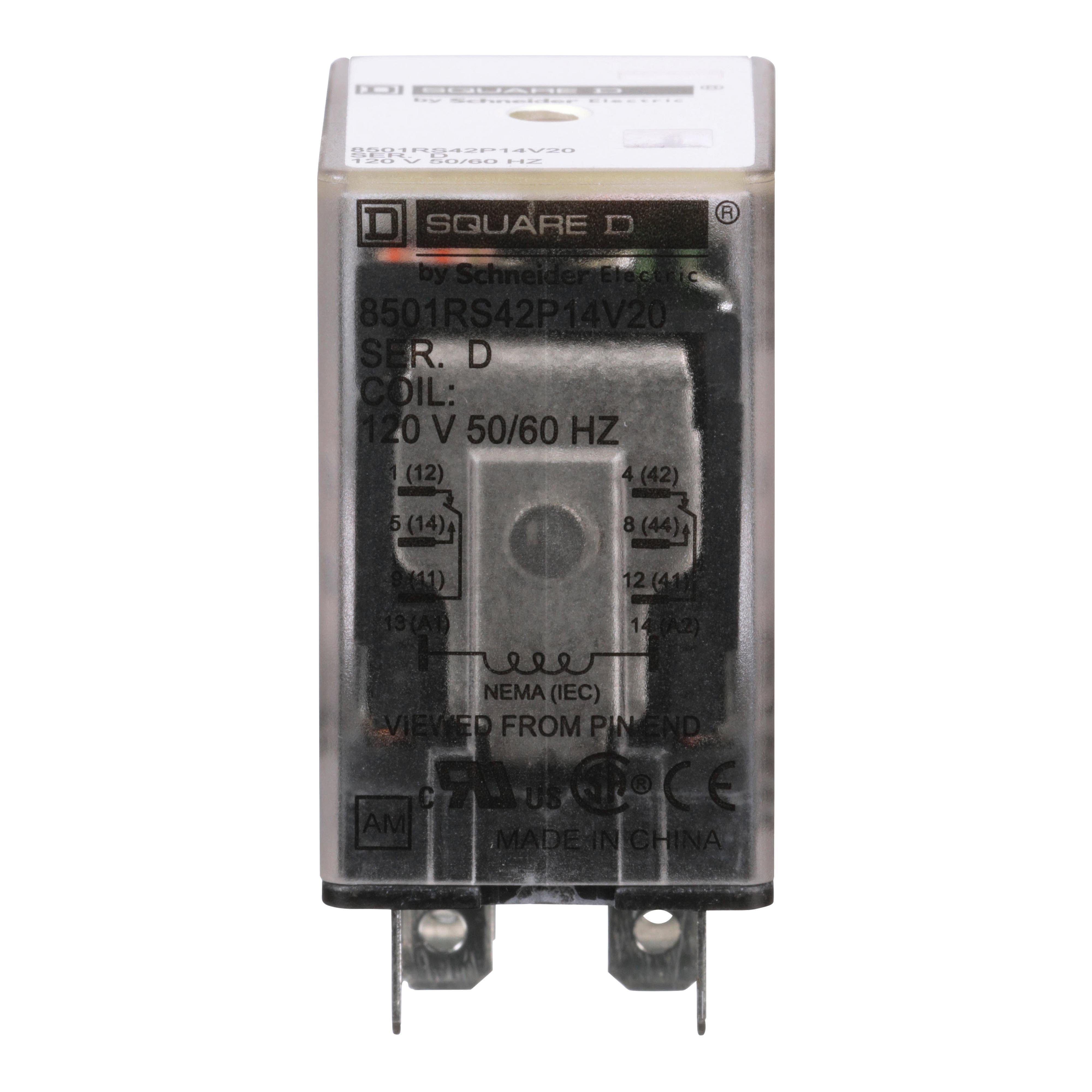

Picture of 8501RS42P14V20 - Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil Picture of 8501RS42P14V20 - Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil

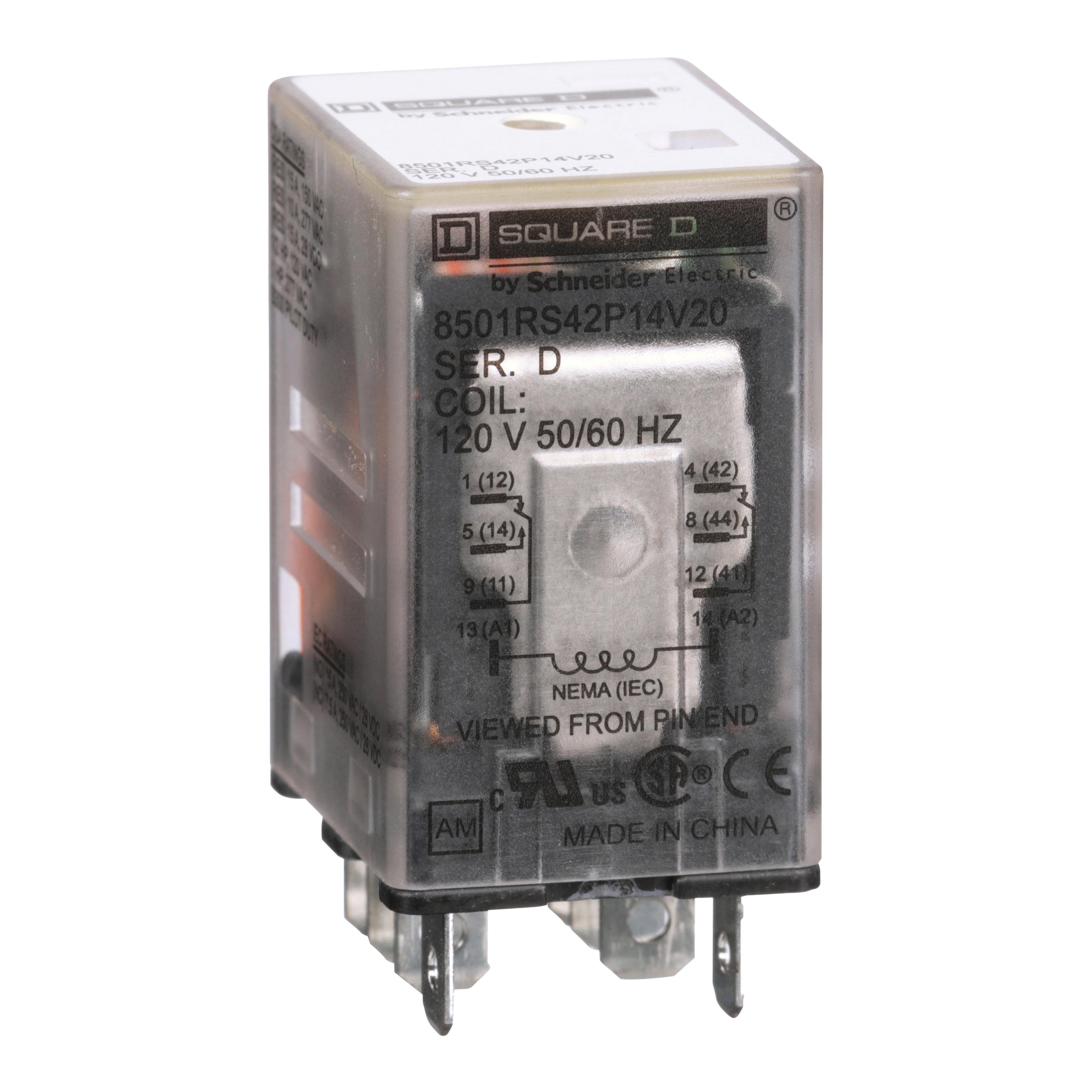

Picture of 8501RS42P14V20 - Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil Picture of 8501RS42P14V20 - Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil

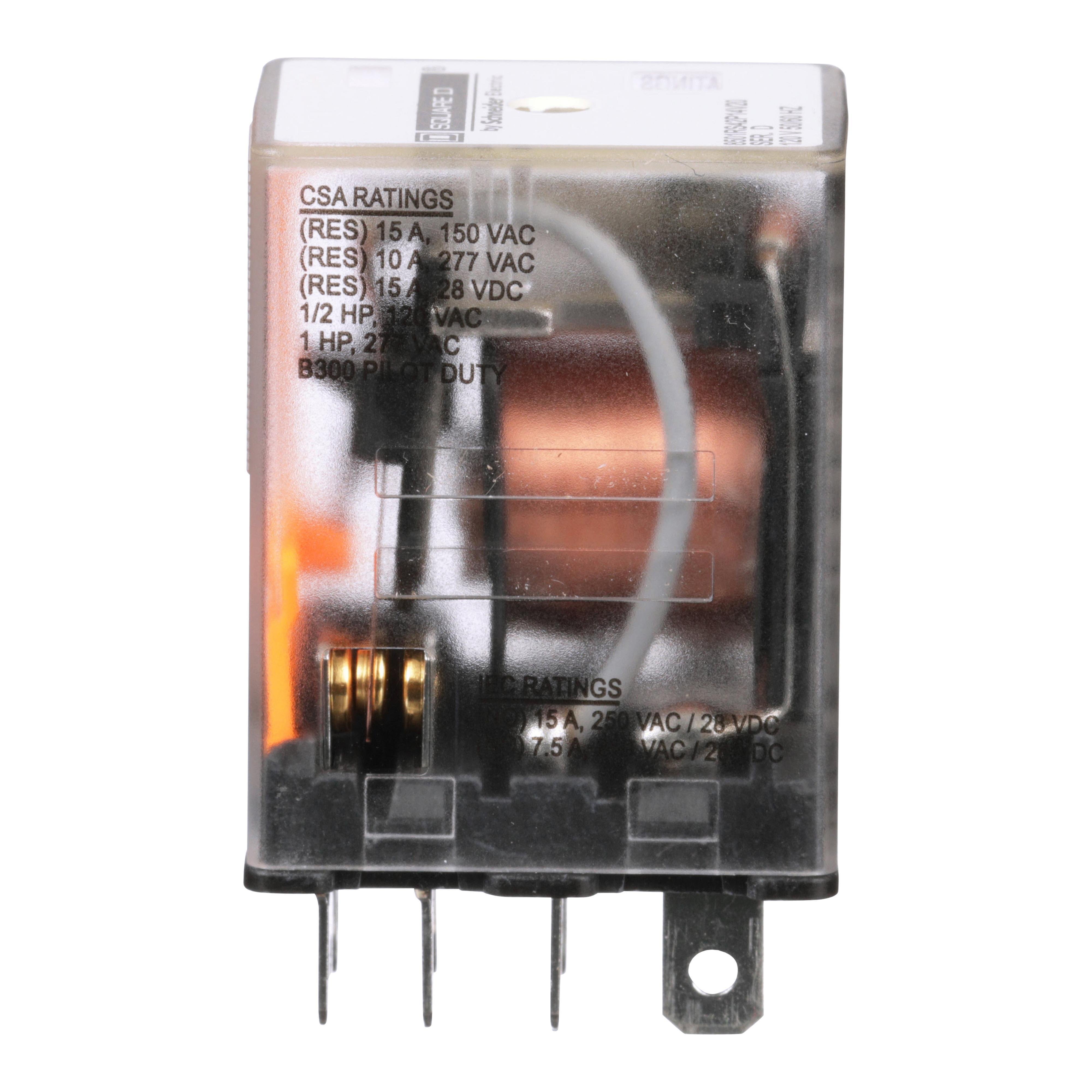

Picture of 8501RS42P14V20 - Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil Picture of 8501RS42P14V20 - Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil

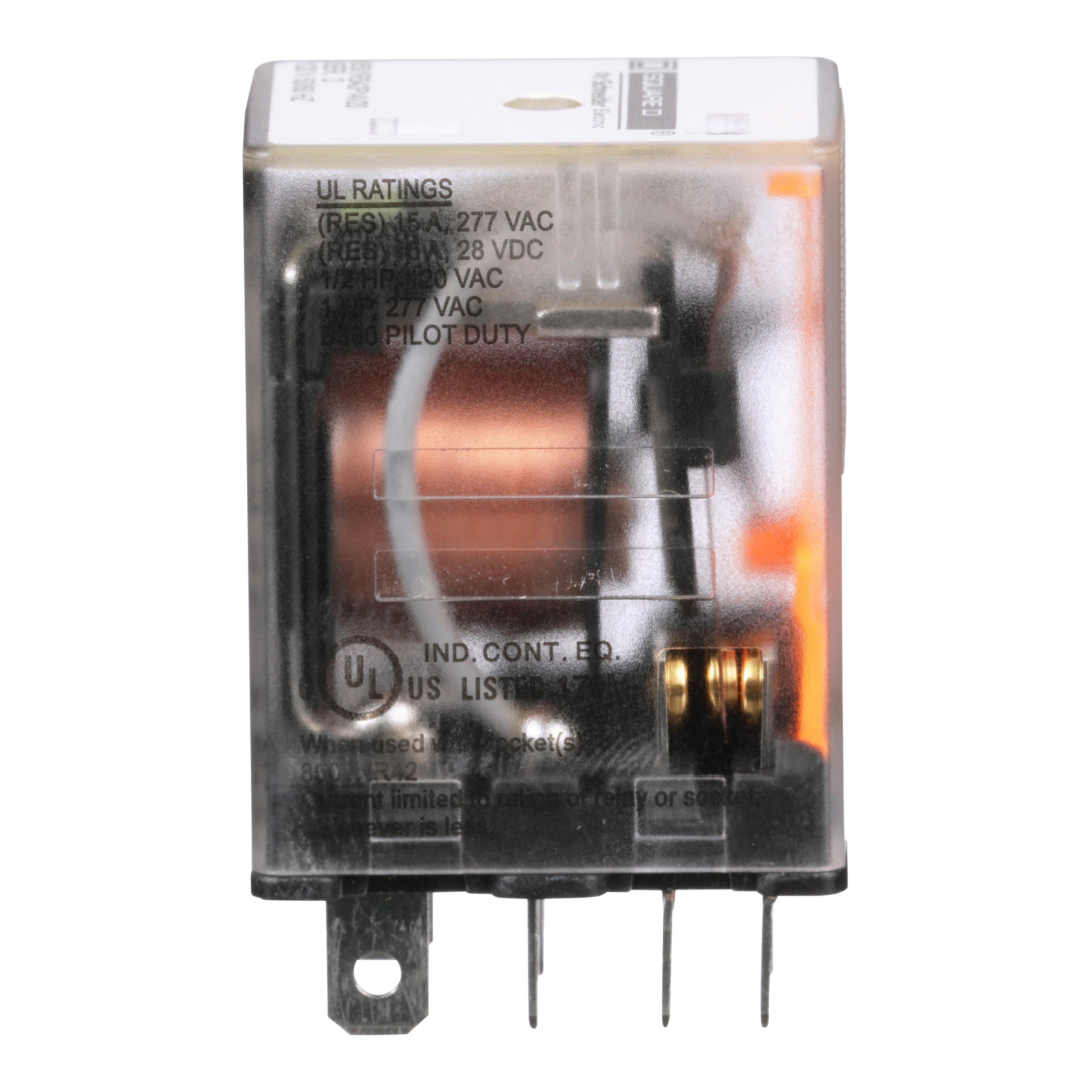

Picture of 8501RS42P14V20 - Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil Picture of 8501RS42P14V20 - Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil
Square D

8501RS42P14V20 - Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil

Item Code: 32453
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501RS42P14V20

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Specifications

Weight

0.09

Height

1.3

Width

1.39

Length

1.98

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/8501RS42P14V20/8501RS42P14V20.spin

AD All Features

The short stroke motion of the armature provides long mechanical life for high speed operation of control systems

AD Alternative Part Number

8041642

AD Application

For Logic elements and power switching output devices applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

CN

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901131342

AD Gtin

00785901131342

AD IDEA Index ID

8041642

AD Invoice Description

RELAY PLUG-IN 10A 1/3HP 1/2HP 1HP

AD Item Features 01

The short stroke motion of the armature provides long mechanical life for high speed operation of control systems

AD Item Features 02

Horsepower rated, 4PDT composition, and 1, 3, or 5 Ampere versions available

AD Keywords

8501RS42P14V20 Type R Standard Miniature Plug-In Relay, 10 A, 8 Pin, 2 Form C DPDT Contact, 300 V AC, 30 V DC V Coil ; Schneider Electric ; Square D ; 8501RS42P14V20 ; 8501RS42P14V20 ; 785901131342 ; General Purpose Relays

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.3000

AD Package Height UOM

IN

AD Package Length

1.9800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3.6400

AD Package Volume UOM

cu-in

AD Package Weight

0.0900

AD Package Weight UOM

LB

AD Package Width

1.3900

AD Package Width UOM

IN

AD Part Number Keywords

8501RS42P14V20 ; 8041642 ; 785901131342 ; 78590113134 ; 00785901131342 ; 0785901131342

AD Video Links

https://www.youtube.com/embed/Hq-lwURWDPs

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Series

Spec 10 Attribute Value

8501R

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-40 To 131

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Spade

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type R Standard Miniature

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

300 V AC, 30 V DC

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2 Form C DPDT

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

10 A at 30/240 V AC

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Socket

Spec 7 Attribute

Number of Pins

Spec 7 Attribute Value

8

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

2

Spec 9 Attribute

Power Rating

Spec 9 Attribute Value

1/3 hp, 1/2 hp, 1 hp
