Square D

8501RSD41V53 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC

Category Miscellaneous
Picture of 8501RSD41V53 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC Picture of 8501RSD41V53 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC
Picture of 8501RSD41V53 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC Picture of 8501RSD41V53 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC
Picture of 8501RSD41V53 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC Picture of 8501RSD41V53 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC
Picture of 8501RSD41V53 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC Picture of 8501RSD41V53 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC
Square D

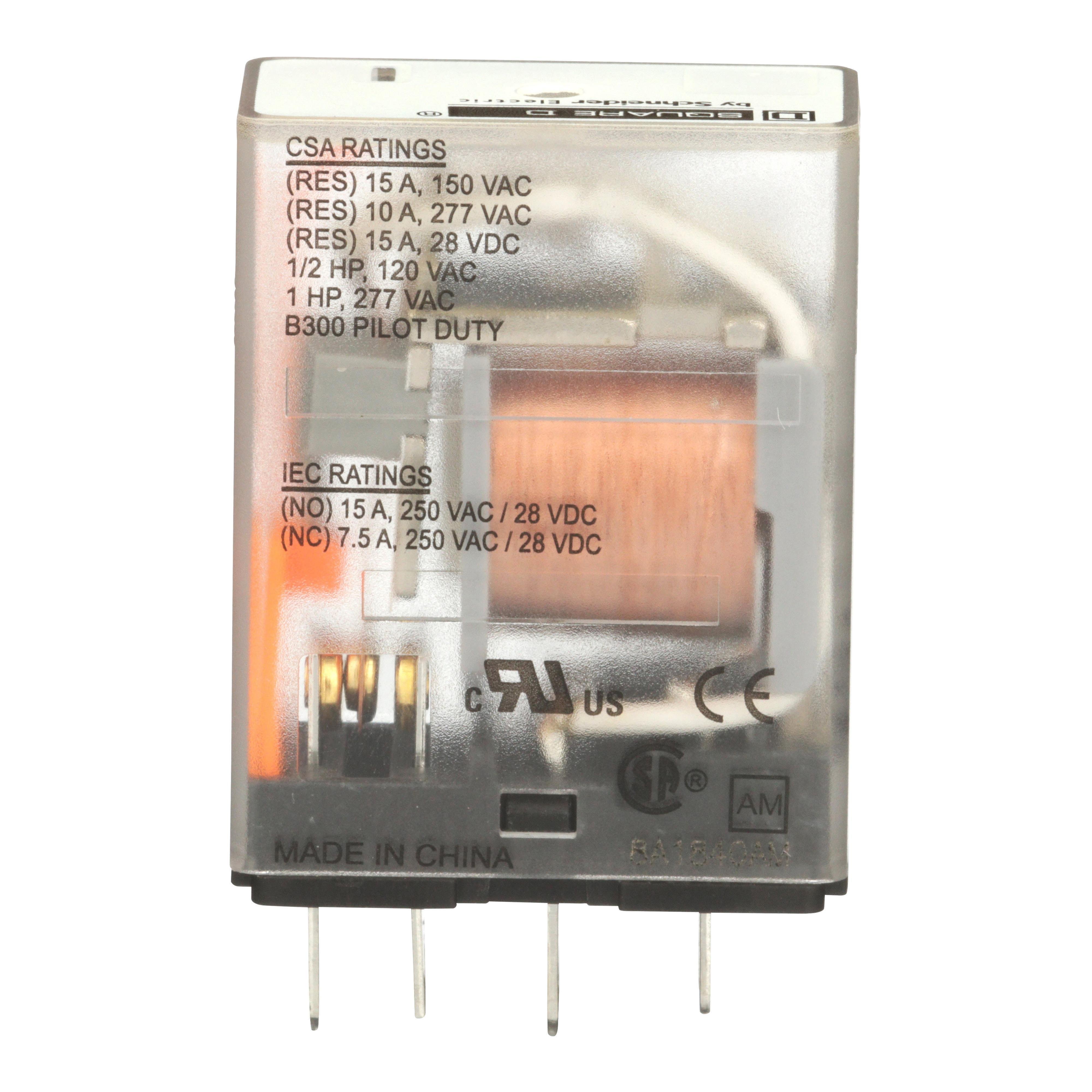

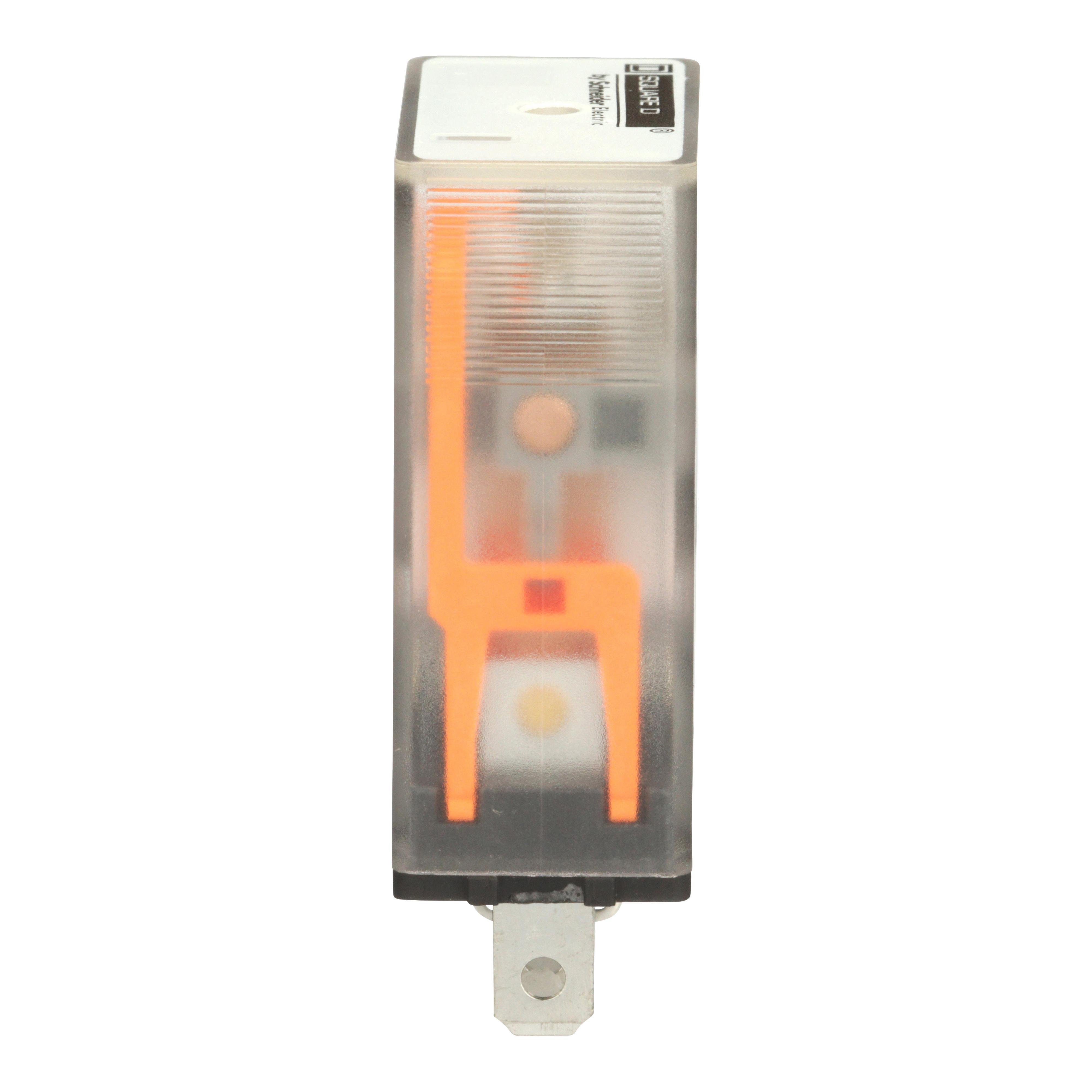

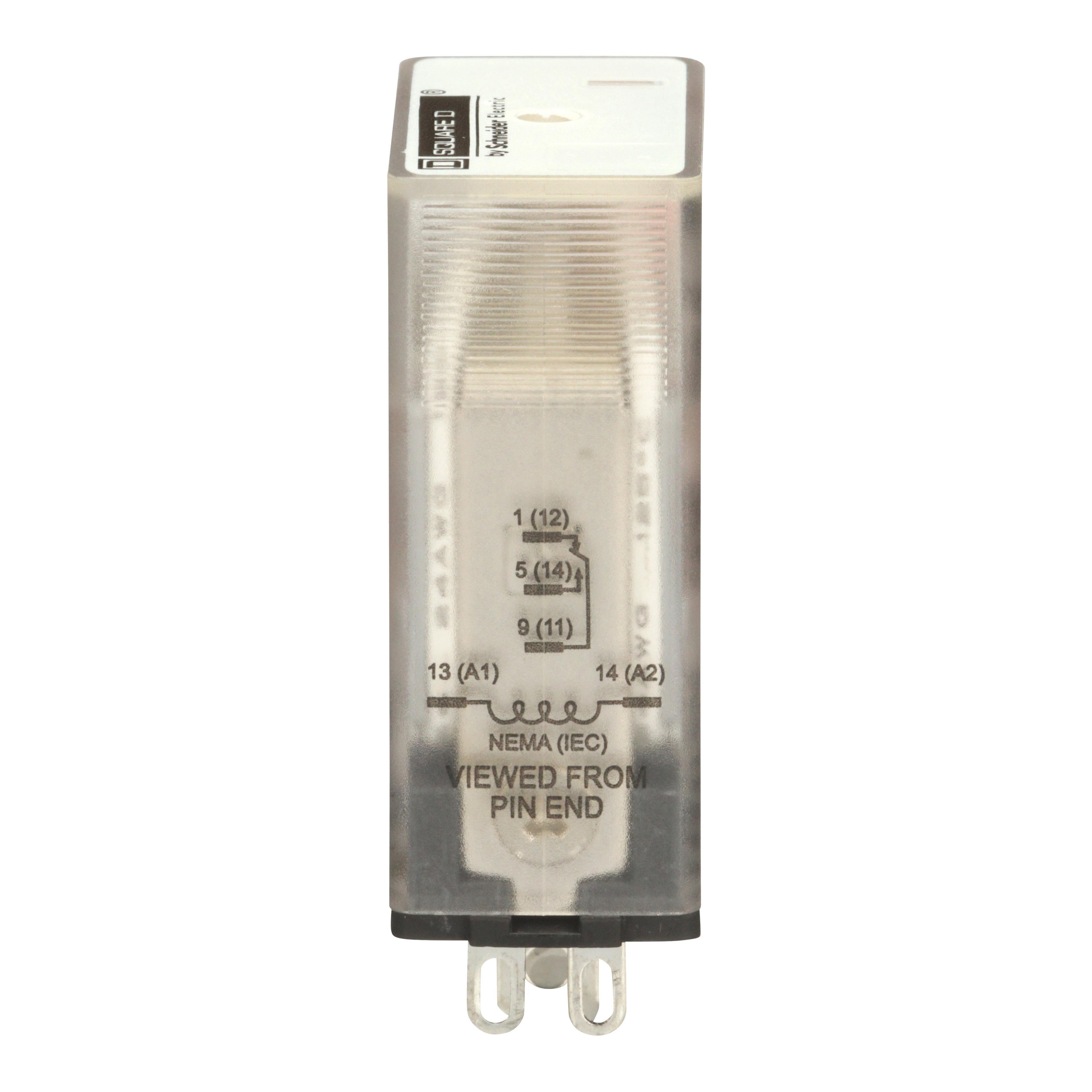

8501RSD41V53 - Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 1HP at 277V AC, 15A resistive at 120V AC, 24V DC, 1NO+ 1NC

Item Code: 17185
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501RSD41V53

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
