Square D

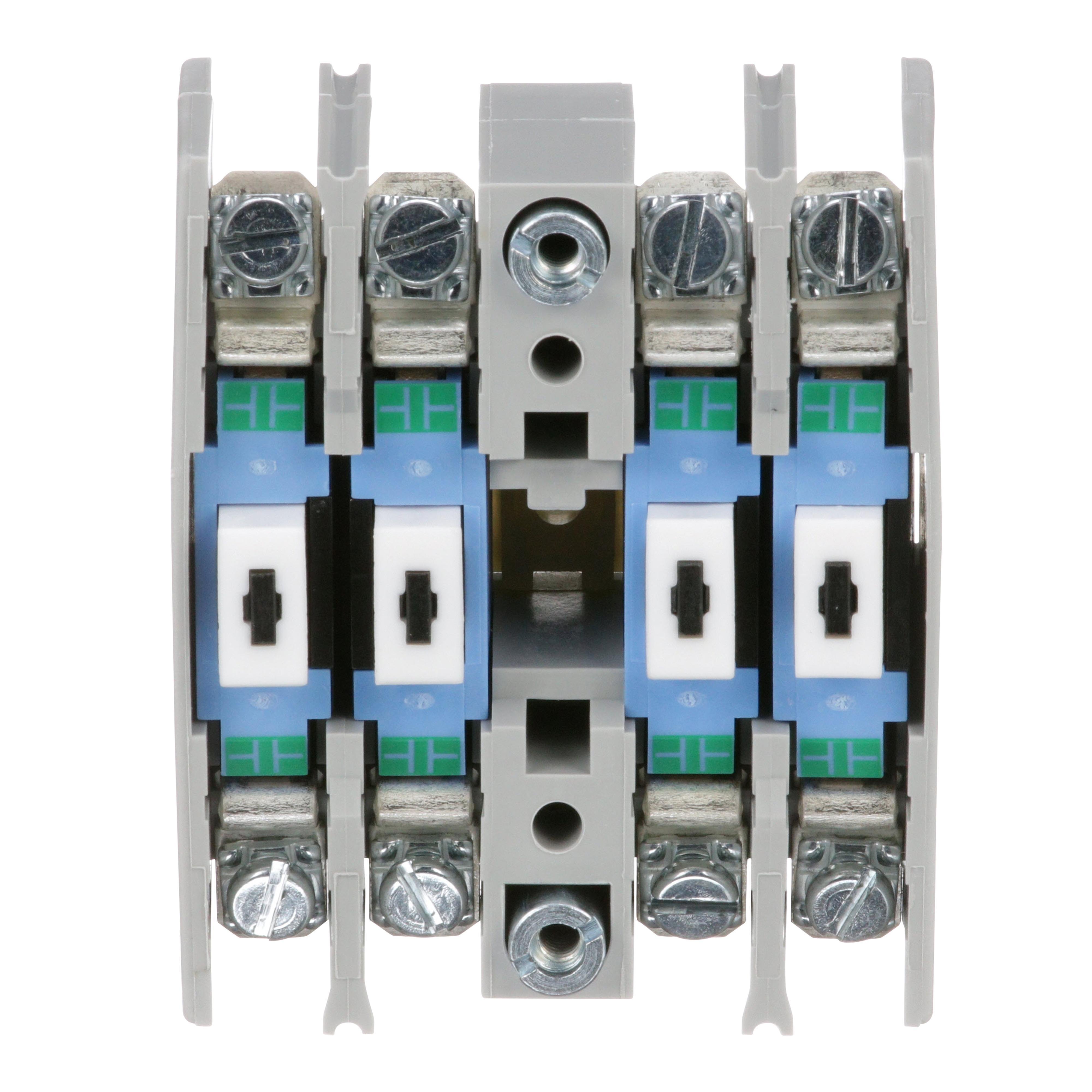

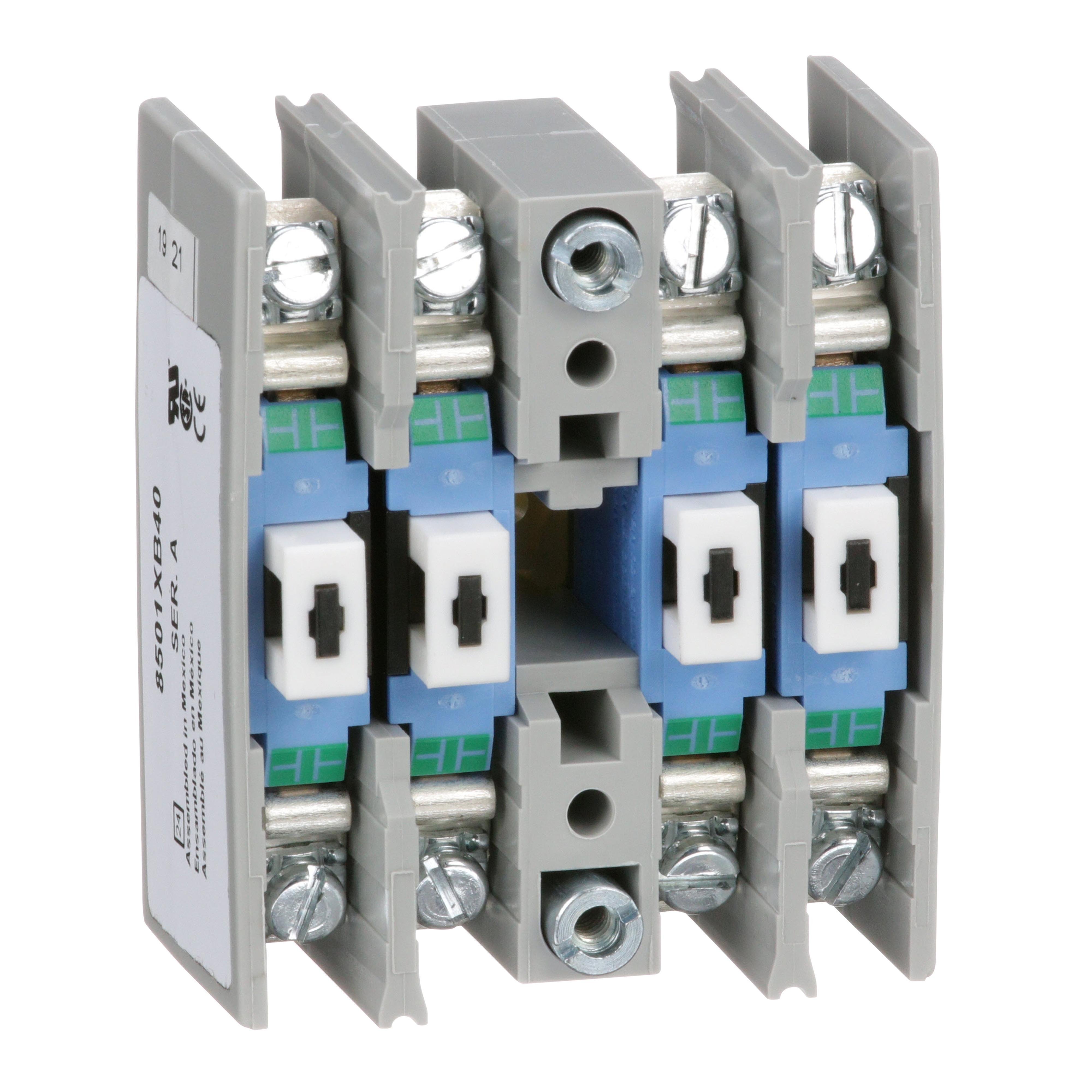

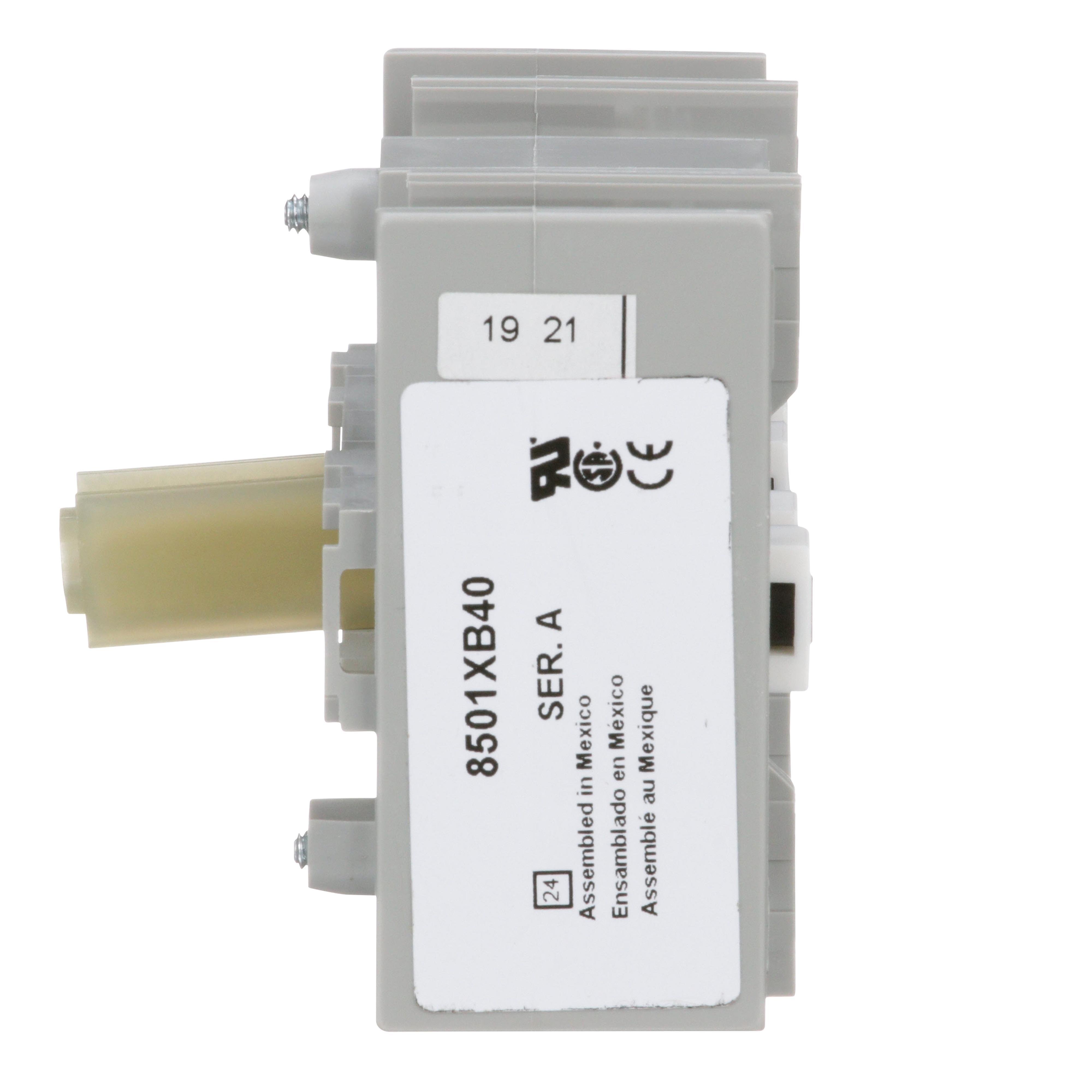

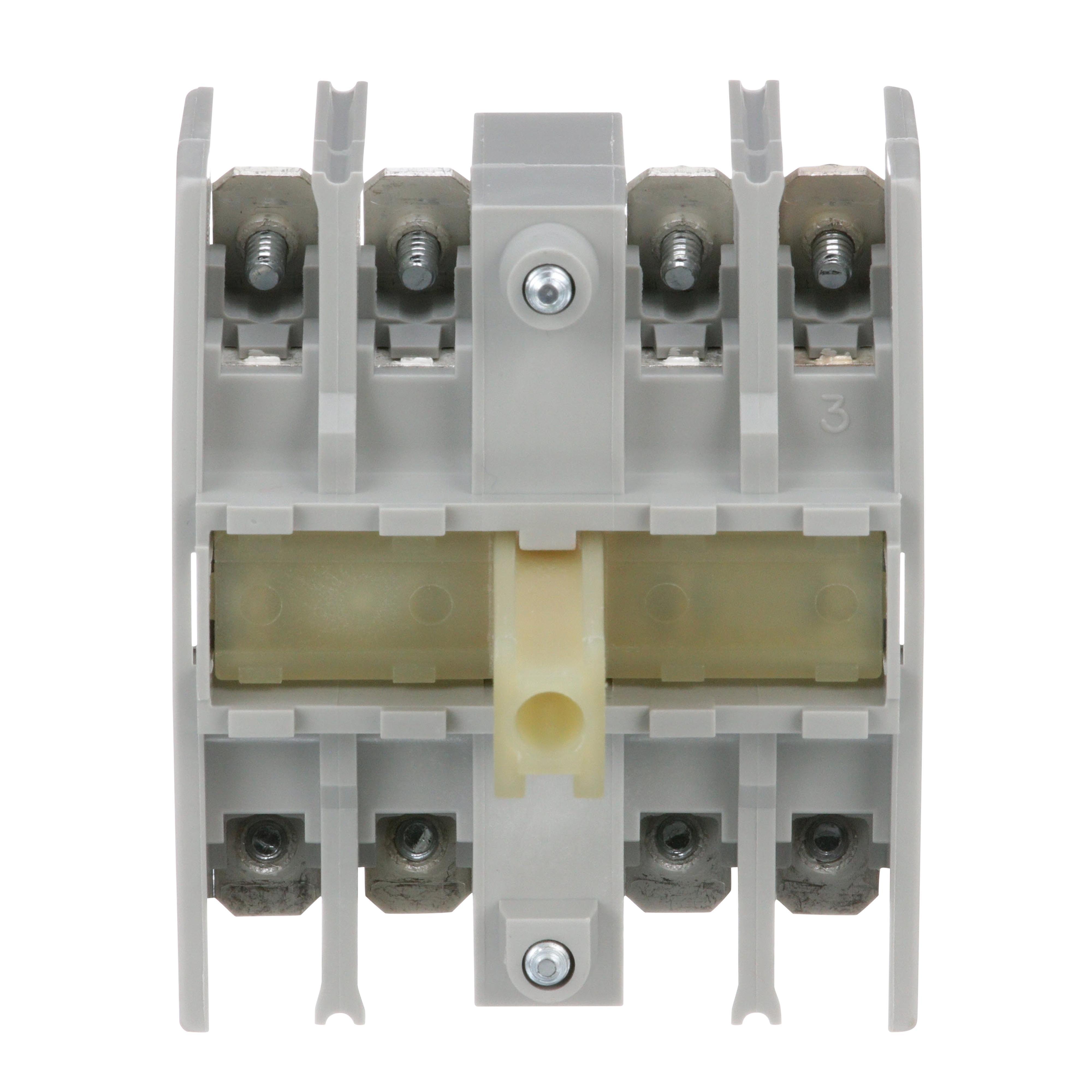

8501XB40 - Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges

Category Miscellaneous
Picture of 8501XB40 - Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges Picture of 8501XB40 - Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges
Picture of 8501XB40 - Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges Picture of 8501XB40 - Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges
Picture of 8501XB40 - Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges Picture of 8501XB40 - Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges
Picture of 8501XB40 - Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges Picture of 8501XB40 - Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges
Square D

8501XB40 - Adder deck, Harmony 8501X, screw clamp terminals, 10A resistive at 600V AC, 4NO, 4 standard contact cartridges

Item Code: 32456
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 8501XB40

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This adder deck allows an addition four contacts to be added to a standard relay. The adder deck has the same straight through wiring as the basic relay. This makes wiring easier. The four plug in contact cartridges in this adder deck make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. This adder deck for an 8501X NEMA machine tool relay is UL listed and CSA certified.
